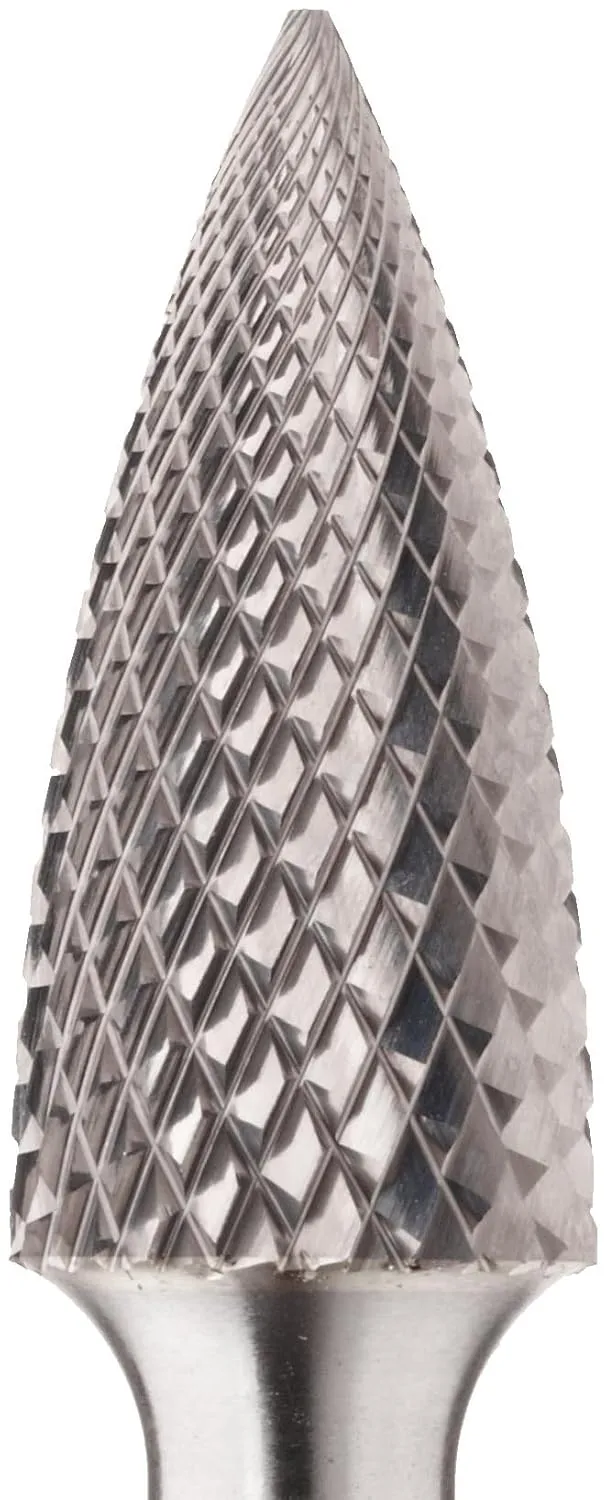

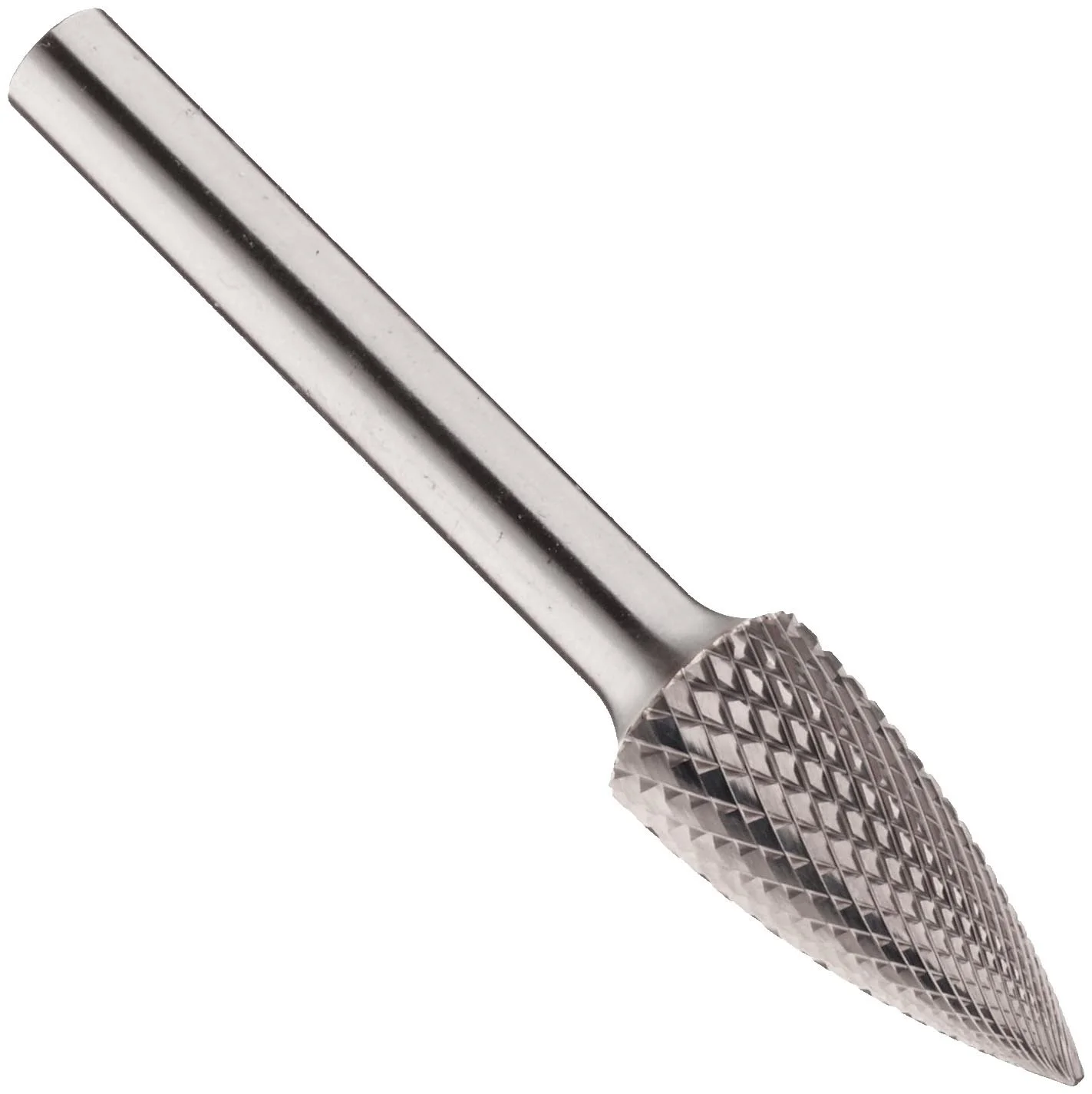

Tough Carbide Bur - Tree Shape (Pointed) DBL Cut (3R) - 3/8" x 3/4" x 1/4" Shank
Customize
Abrasive Bur: SG-3, 3/8" Cut Dia, Tree with Pointed End, TOUGH Cut. Uncoated Finish, 2-1/2" OAL, 3/4" LOC, 1/4" shank. Head material: carbide; head coating: uncoated. Designed for material applications including annealed cast iron, case-hardened steels, cast iron, cast steel, grey/nodular cast iron, hardened heat-treated steels and various steel materials with high hardness. Maximum RPM (General): 29,000. The TOUGH cut variant delivers very high stock removal performance and is specially designed for tough operating conditions in shipyards, foundries and steel construction. PFERD burs provide outstanding results and long service life, making them ideal for demanding manufacturing environments where tooth breakage and heavy wear occur. Package dimensions: 3.2 x 1.2 x 0.5 inches; 0.88 ounces.
- Tree-shaped bur with pointed end
- Overall length: 2-1/2''
- 3/8'' x 3/4'' (Bur diameter x length)
- 1/4'' shank diameter TOUGH cut
Specifications:
| Materials & Construction | |
| Color | Uncoated |
| Material | Carbide |
| Outer Material | Carbide |
| Product Details | |
| Head Coating | Uncoated |
| Head Material | Carbide |
| Head Shape | Tree With Pointed End |
| Industry Specification | Sg-3 |
| Material Application | Annealed Cast Iron; Black Annealed Cast Iron (Gts, Gjmb); Case-Hardened Steels; Cast Iron; Cast Steel; Grey/Nodular Cast Iron (Gg/Gjl, Ggg/Gjs); Hardened, Heat-Treated Steels Over 370 Hv (38 Hrc); Steel; Steel, Cast Steel; Steel Materials With A Hardness |
| Maximum Rpm (General) | 29000 |
| Psc Code | 5345 |
| Tooth Style | Tough Cut |
| Unspsc Code | 27112809 |
| Sizing & Dimensions | |
| Cutting Diameter | 0.3750in |
| Cutting Diameter (Inch) | 3/8 |
| Height | 0.5 inches |
| Length Of Cut (Decimal Inch) | 0.7500in |
| Length Of Cut (Inch) | 3/4 |
| Length | 2.5 inches |
| Package Dimensions | 3.2 x 1.2 x 0.5 inches; 0.88 ounces |
| Product Dimensions | 2.5 x 0.5 x 0.5 |
| Product Weight | 0.0600 |
| Shank Diameter (Inch) | 1/4 |
| Weight | 0.96 ounces |
| Width | 0.5 inches |
| Technical Specifications | |
| Maximum Rpm (General) | 29000 |
