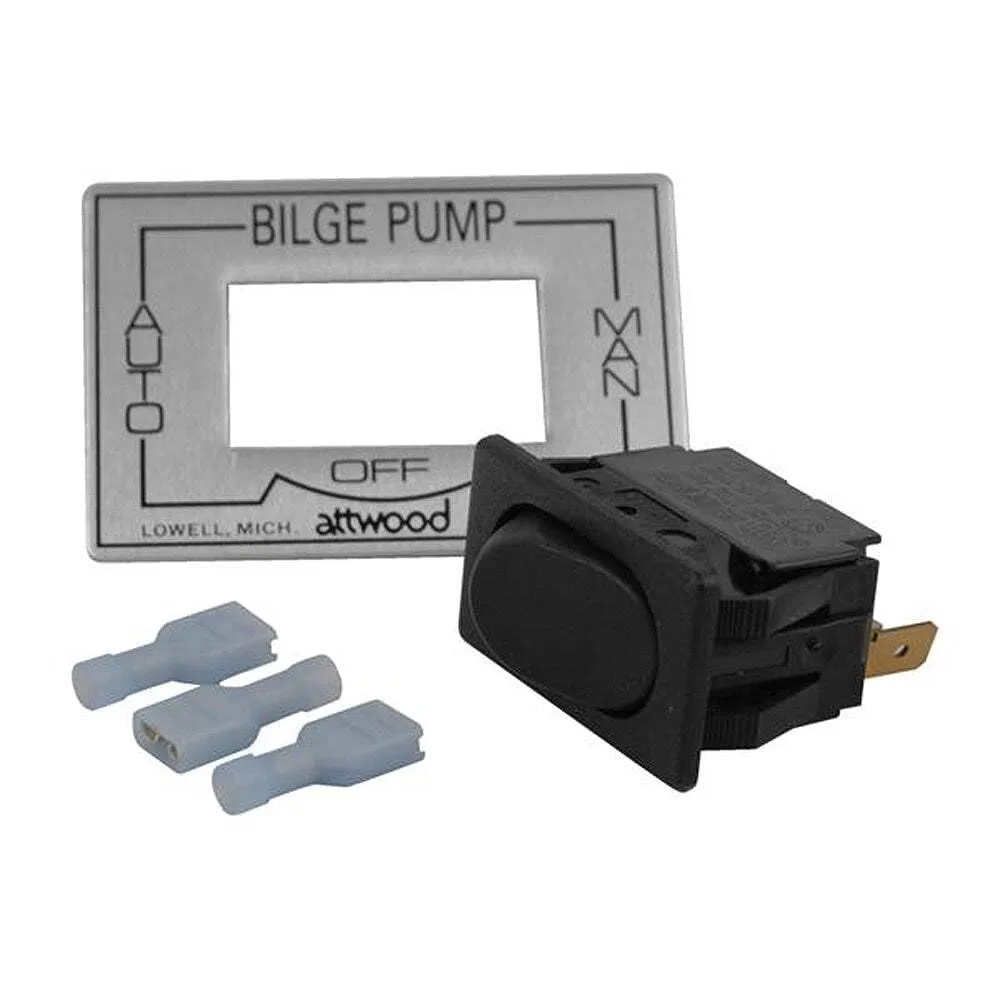

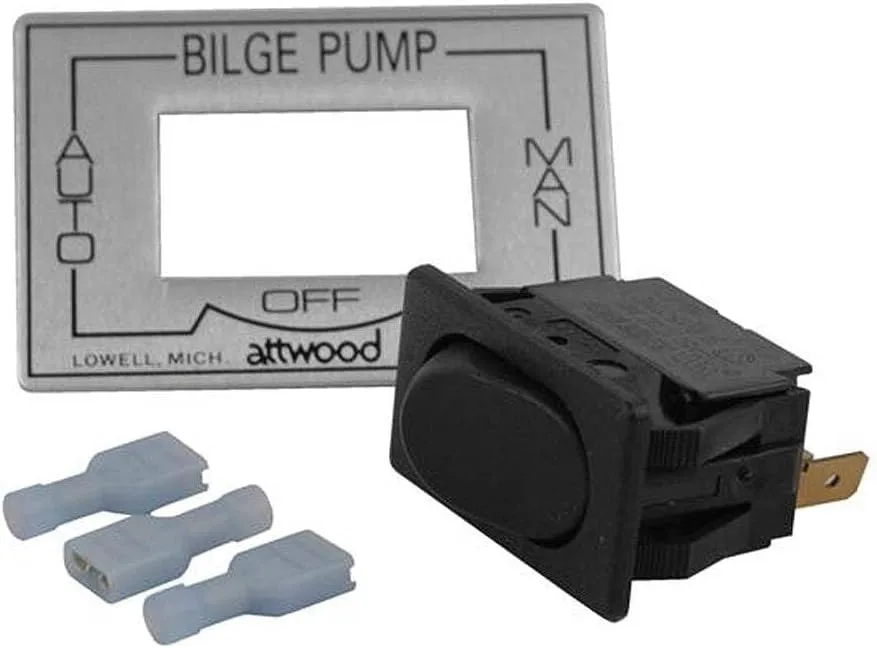

Attwood 3-Way Auto/Off/Manual Bilge Pump Switch
Customize
3-Way Auto/Off/Manual Bilge Pump Switch Part #: 7615A3 Panel-mounted rocker switches for use with pump that draws 10 amps or less. Features: 1/4" spade terminals 6-volt through 32-volt D.C. only 10 amps maximum Plate is 2-13/16" x 1-7/8" Hole size is 1-1/2" x 7/8" Caution: Bilge pump switches are not external ignition protected. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. 3-Way Auto/Off/Manual Bilge Pump SwitchPart #: 7615A3Panel-mounted rocker switches for use with pump that draws 10 amps or less. Features:1/4" spade terminals6-volt through 32-volt D. C. only10 amps maximumPlate is 2-13/16" x 1-7/8"Hole size is 1-1/2" x 7/8"Caution: Bilge pump switches are not external ignition protected. Product : ATTWOOD 3-WAY AUTO/OFF/MANUAL BILGE PUMP SWITCH Manufacturer : ATTWOOD MARINE Manufacturer Part No : 7615A3 UPC : 022697761590
- Power - Max Continuous (Amps): 10 Amps Max. Volts: 6V - 32V D. C.
- Weight: 0.1lbs.
- Box Dimensions: 1"H x 3"W x 5"L.
- 1/4" spade terminals.6-volt through 32-volt D. C. only.
Specifications:
| Materials & Construction | |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Actuator Type | Rocker |
| Circuit Type | 3-way |
| Connectivity Protocol | X-10 |
| Connector Type | Spade |
| Contact Type | Make |
| Control Method | Touch |
| Controller Type | Rocker Switch |
| Current Rating | 1E+1 Amps |
| Manufacturer Part No | 7615A3 |
| Model Number | 7615A3 |
| Mounting Type | Panel Mount |
| Number of Items | 1 |
| Operation Mode | multiple |
| Terminal | Spade |
| Unit Count | 1.0 Count |
| UPC | 022697761590 |
| Wattage | 3.2E+2 |
| Sizing & Dimensions | |
| Height | 0.1 inches |
| Length | 5 inches |
| Product Dimensions | 5 x 3 x 0.1 inches |
| Weight | 0.8 ounces |
| Width | 3 inches |
| Technical Specifications | |
| International Protection Rating | IP00 |
| Is Discontinued By Manufacturer | No |
| Volts | 12/24v |
