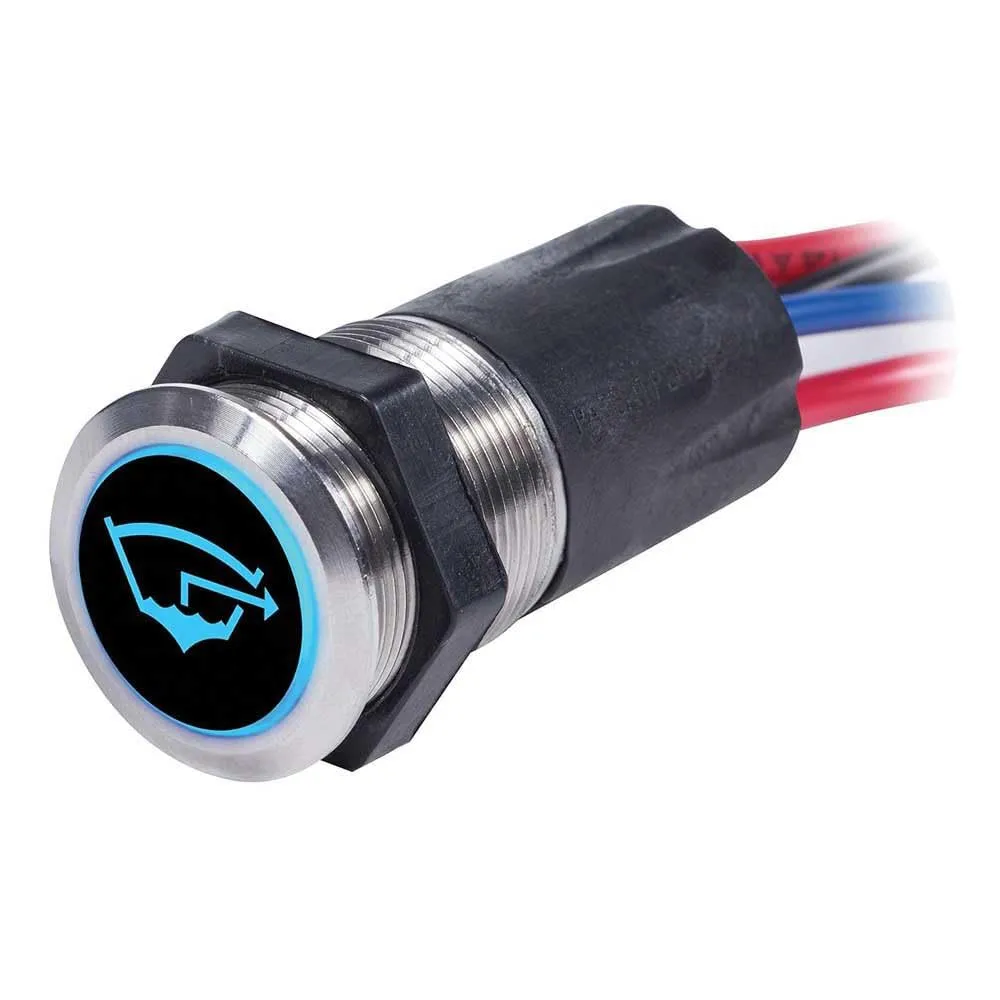

Blue Sea Systems 4181 Backlit Push Button Switch OFF/(ON) - 15A
Customize
4181 Backlit Push Button Switch OFF/(ON) - 15A. Features: Backlit button is blue when OFF and red when ON. Five ICON labels included: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump. Additional 50 ICON label kit sold separately. Specifications: Action: OFF-(ON); Amperage: 15A @ 12V DC Nominal Voltage: 12V DC Maximum Voltage: 15V DC; Maximum LED Operating Current: 20mA; Switching Cycles: 10,000; Temperature Range: -20°C to 55°C; Termination: 3" - Bare Wire Pigtail; Wire Size: Black & Blue Wires 18 AWG / Red & Red/White Wires 14AWG. 15A push button backlit switch is blue when OFF and red when ON. Five ICON labels included. Accessory, lights, anchor light, running light and bilge pump are all included. Additional 50 ICON label kit sold separately.
- 15A push button backlit switch

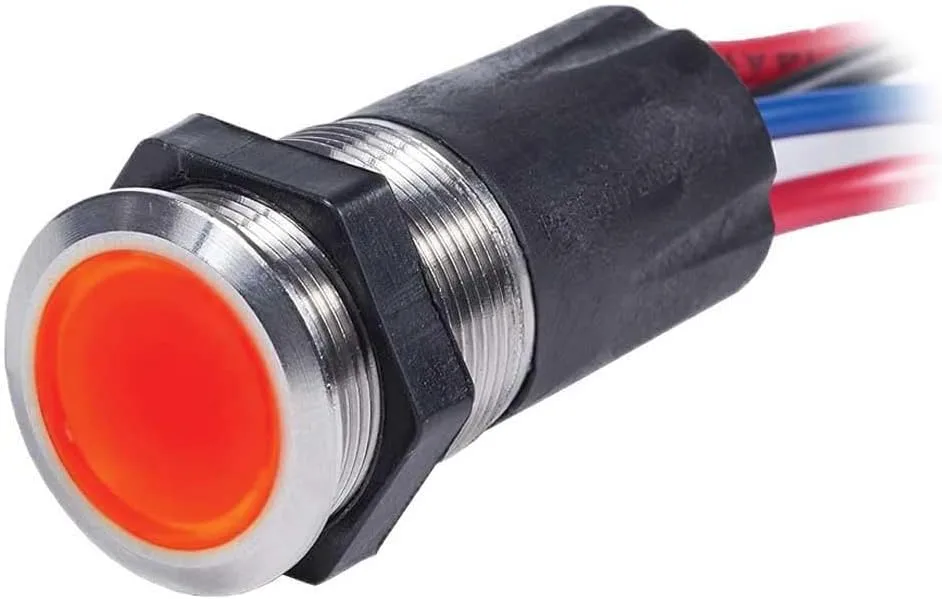

- Color when On: Red

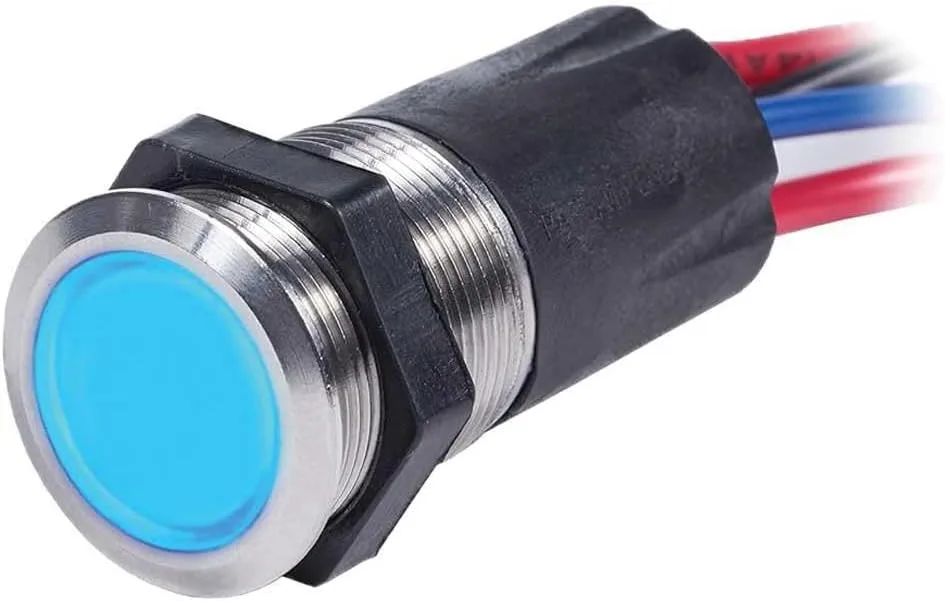

- Color when Off: Blue

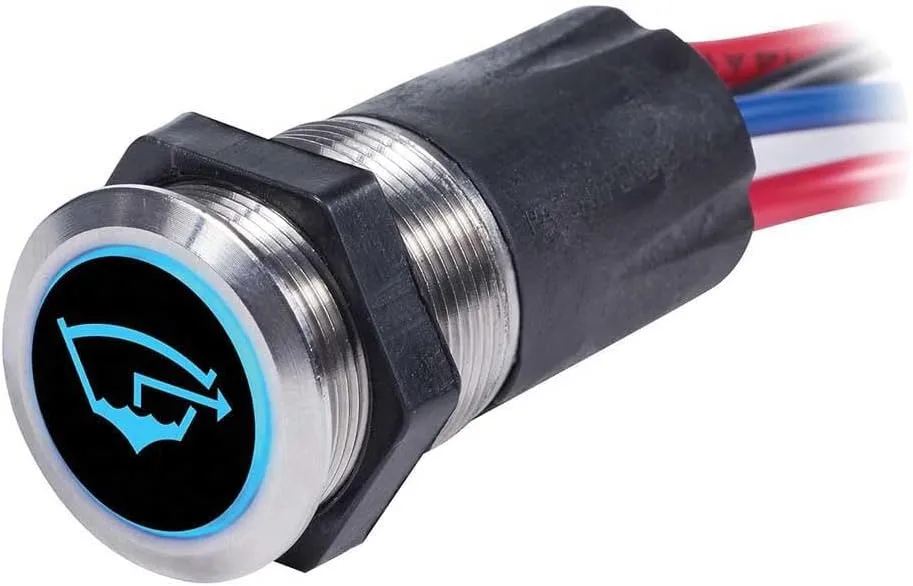

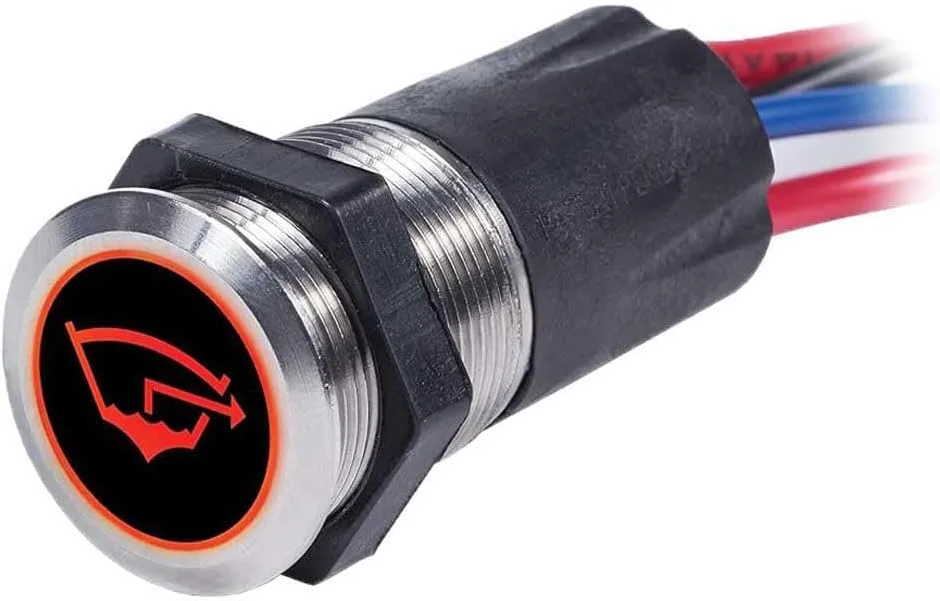

- Includes 5 ICON labels
- Momentary On/Off
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Copper, Brass, Silver |
| Mirror Lighting Type | led |
| Product Details | |
| Action | (On)/Off |
| Actuator Type | push button |
| Circuit Type | 1-way |
| Connector Type | Bare Wire Pigtail |
| Control Method | Touch |
| Controller Type | Push Button |
| Number of Positions | 2 |
| Operation Mode | OFF-NONE-(ON) |
| Terminal | button |
| Sizing & Dimensions | |
| Height | 1.65 inches |
| Length | 8.94 inches |
| Product Dimensions | 8.94 x 2.81 x 1.65 inches |
| Weight | 0.035 ounces |
| Width | 2.81 inches |
| Technical Specifications | |
| Contact Material | Copper, Brass, Silver |
| Contact Type | Normally Open |
| Current Rating | 15 Amps |
| International Protection Rating | IP54 |
| Number of Items | 1 |
| Operating Voltage | 12 Volts |
| Unit Count | 1.0 Count |
| Upper Temperature Rating | 55 Degrees Celsius |
| Wattage | 180 watts |
