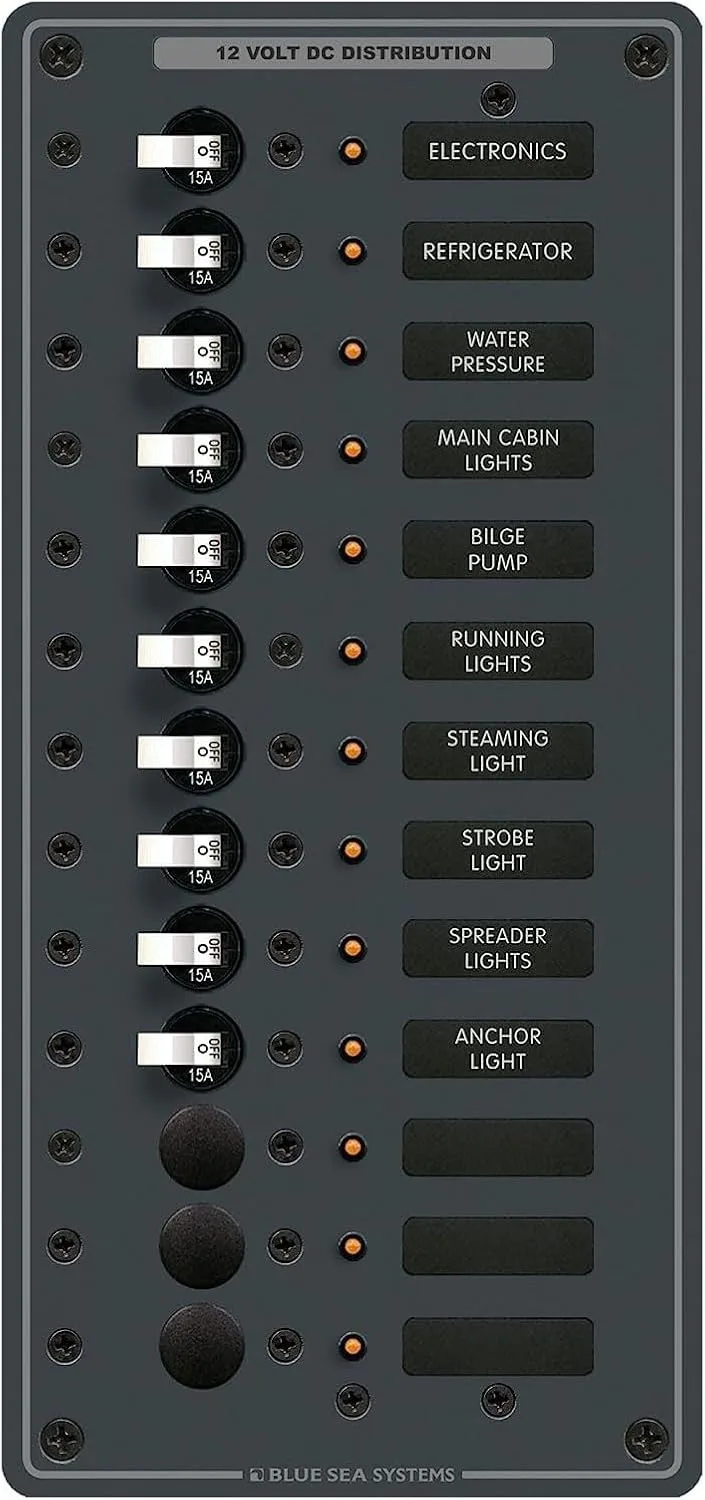

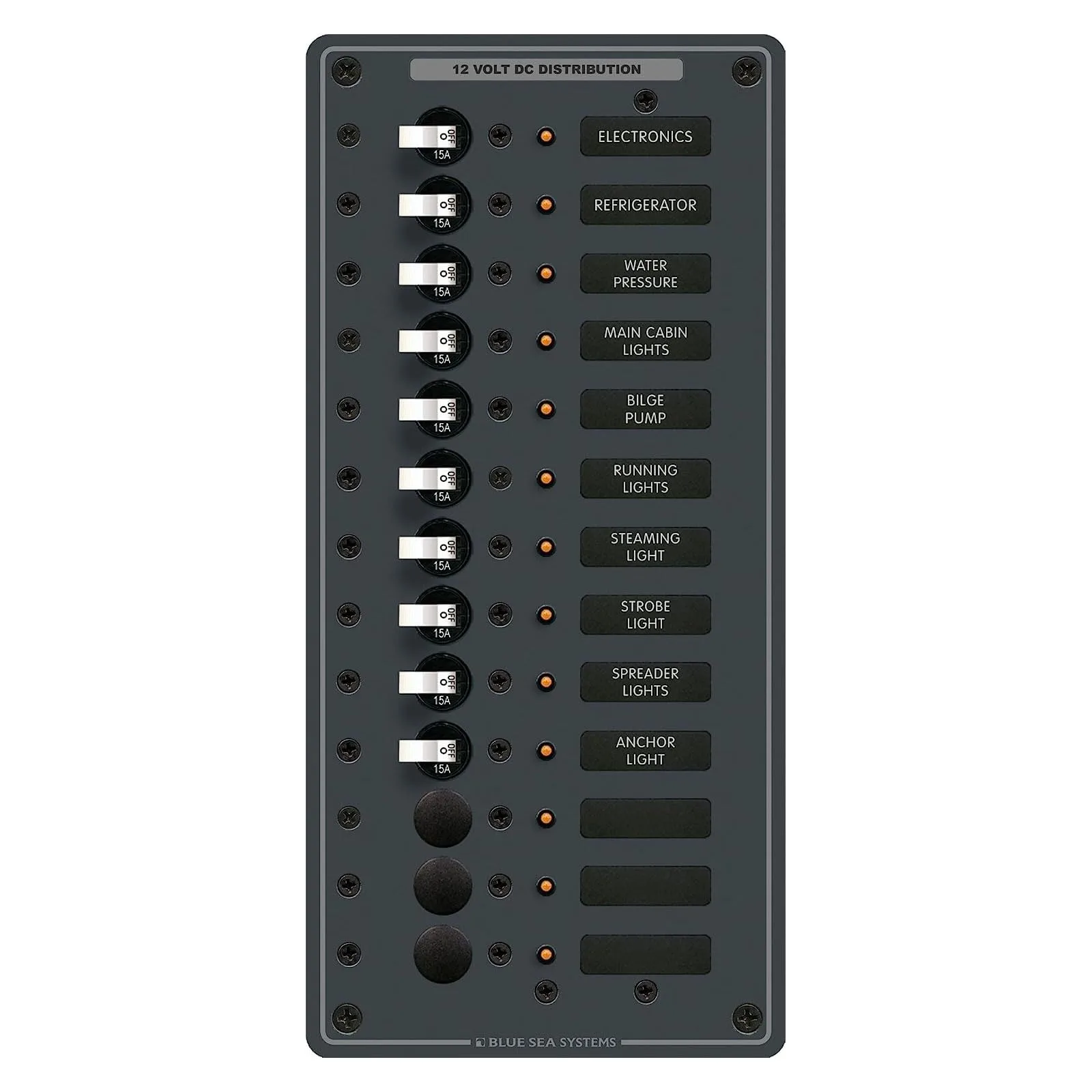

Blue Sea Systems 8376 PANEL DC 10 SWITCH/3 BLANK DC 13 Position, Black, Small
Customize
13 Positions (10) 15A Single Pole Circuit Breakers White Switches. All positive, negative and grounding buses installed, fully pre-wired. Panels with meters include toggle switch for mounting up to 3 battery banks. All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters). All circuit label positions are backlit on standard panels - No kit required. "ON" indicating LEDs installed in all circuit positions. MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance. Two-part polyurethane slate gray finish. Heavy 1/8" aluminum 5052 alloy. Industry standard height and width. Countersunk mounting holes throughout. Detailed installation instructions and cutout template included. Includes set of 30 common Large Format Panel Labels. Over 500 individual labels available. Panels include fully pre-wired hot, neutral and safety ground buses and are suitable for 12/24V DC systems. IP54 rating and toggle control; designed for marine and automotive replacement/repair use.
- All positive, negative and grounding buses installed, fully pre-wired
- Panels with meters include toggle switch for mounting up to 3 battery banks
- All hot, neutral and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels - No kit required
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Alloy Steel |
| Product Details | |
| Actuator Type | Toggle |
| Circuit Type | 13-way |
| Connectivity Protocol | X-10 |
| Connector Type | Screw Terminals |
| Contact Material | Alloy Steel |
| Contact Type | Normally Open |
| Control Method | Touch |
| Current Rating | 10 Amps |
| Included Components | PANEL DC 10 SWITCH/3 BLANK |
| International Protection Rating | IP54 |
| Model Name | PANEL DC 10 SWITCH/3 BLANK |
| Number of Items | 1 |
| Number of Positions | 13 |
| Operating Voltage | 12 Volts (DC) |
| Operation Mode | Toggle |
| Size | Small |
| Terminal | Screw |
| Unit Count | 1.0 Count |
| Warranty Description | LIMITED WARRANTY |
| Wattage | 5 watts |
| Sizing & Dimensions | |
| Height | 11.25 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 5.25 x 11.25 inches |
| Size | Small |
| Weight | 3.11 pounds |
| Width | 5.25 inches |
| Technical Specifications | |
| Warranty | LIMITED WARRANTY |
