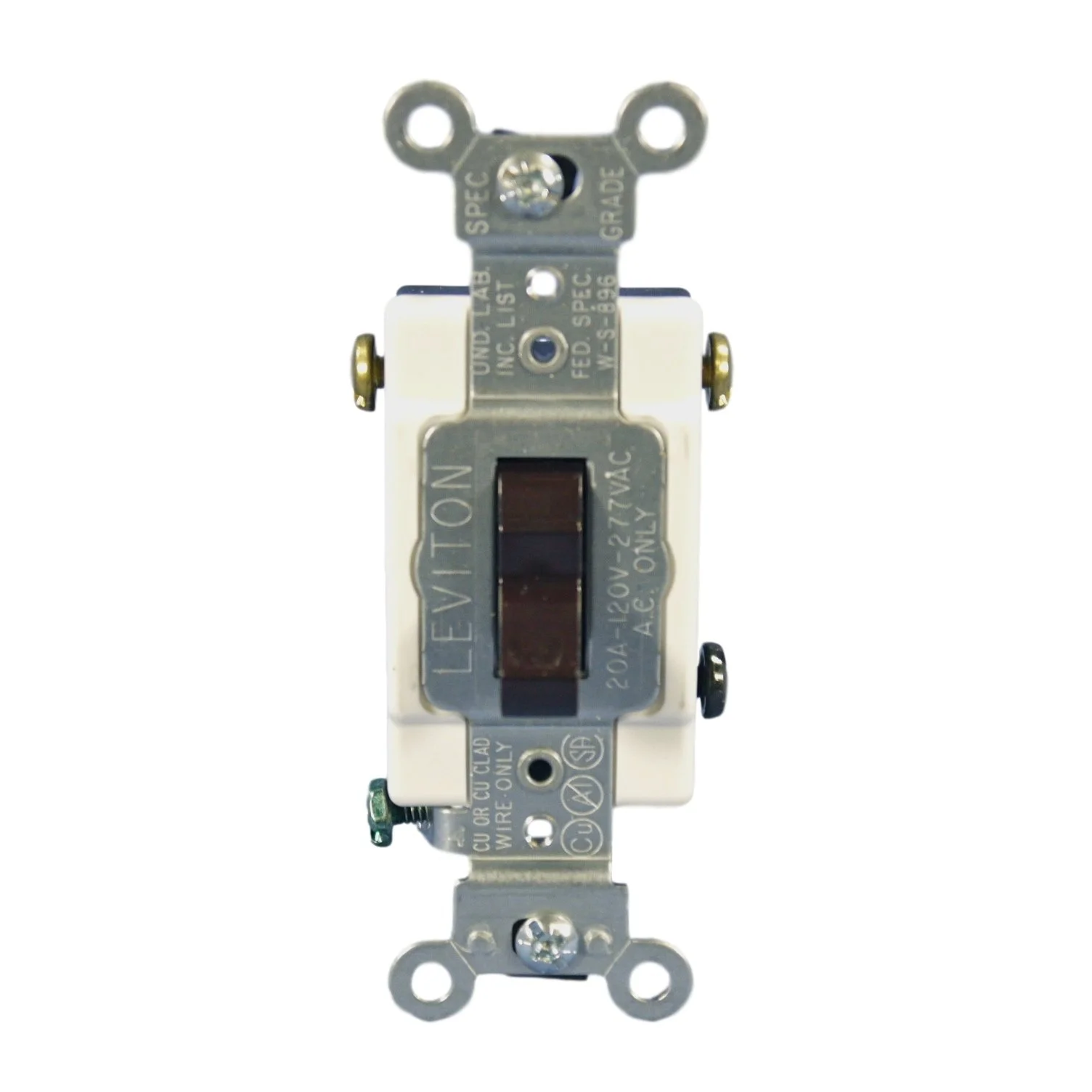

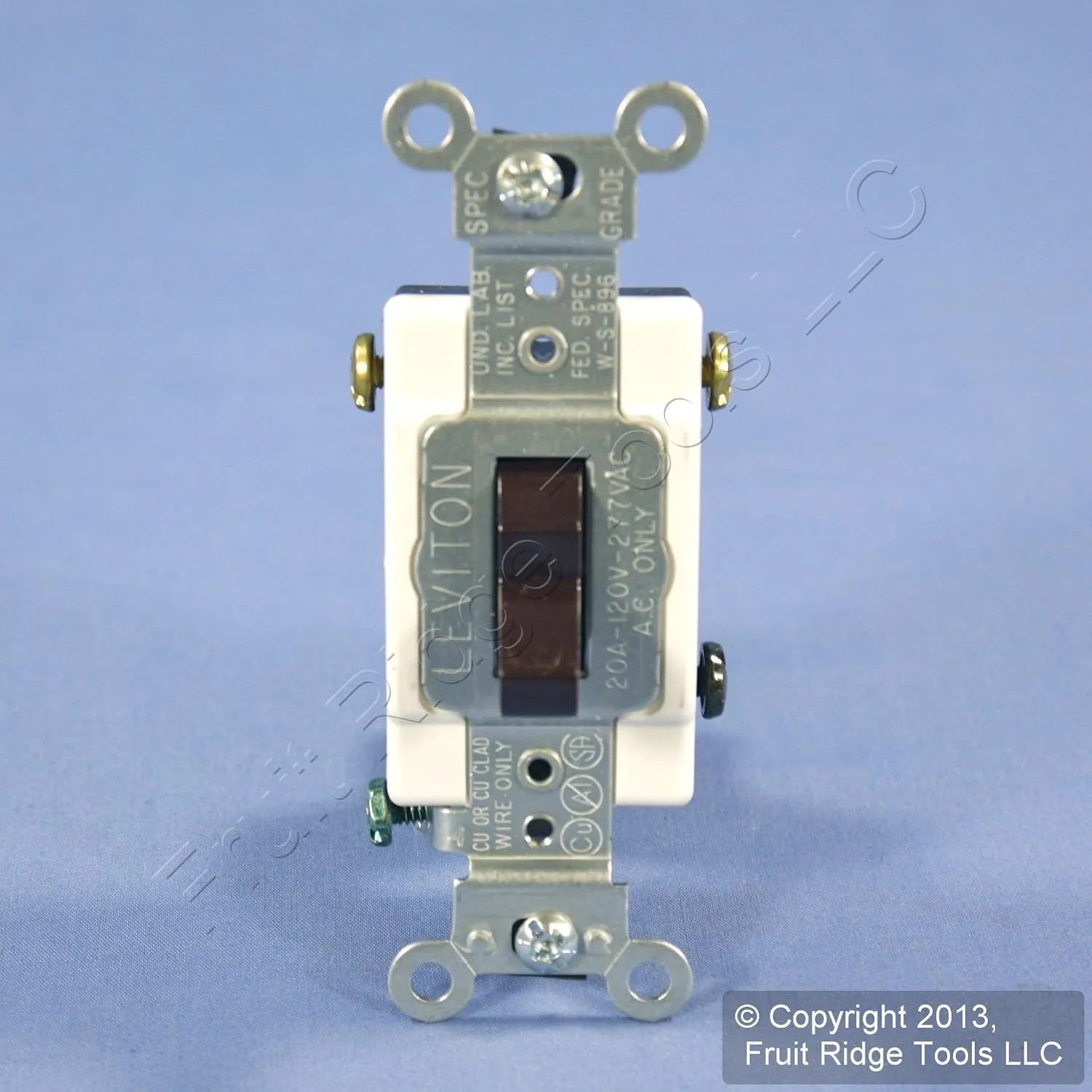

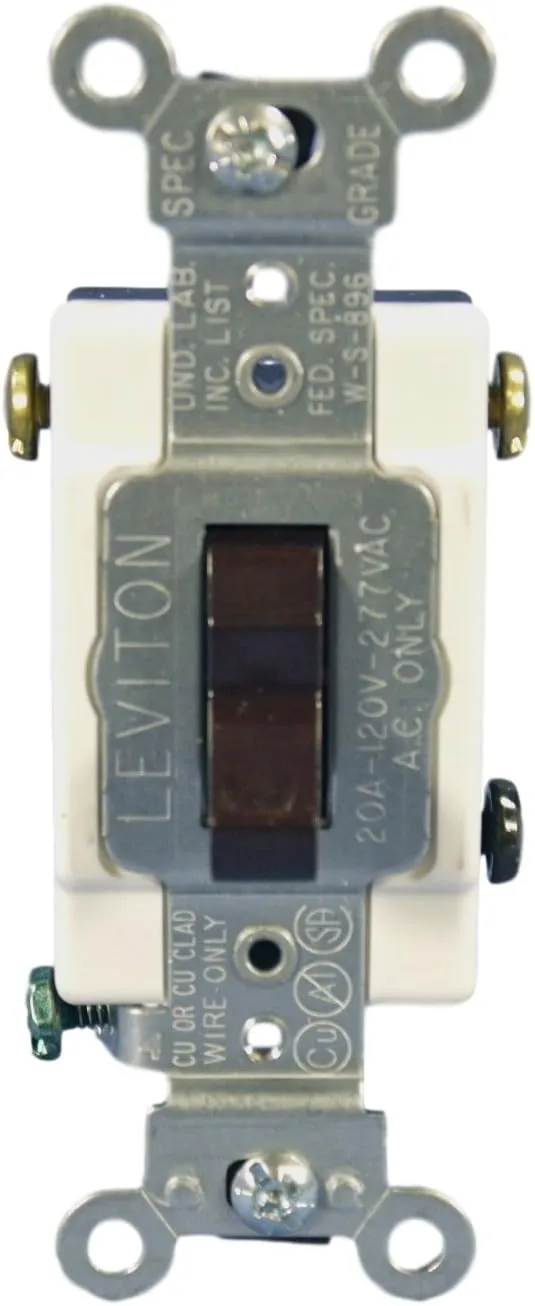

Leviton 20-Amp, 120/277-Volt, Toggle 3-Way AC Quiet Switch, Commercial Grade, Grounding, CS320-2, Brown
Customize
Leviton's Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features. 20-Amp, 120/277-Volt, Toggle 3-Way AC Quiet Switch, Commercial Grade, Grounding Brown. Features and specifications from manufacturer and product database: Commercial specification grade toggle 3-way switch; 20 Amp AC; 120/277 VAC; grounding; toggle operation; screw terminals for back or side wiring; heavy-duty pre-plated steel mounting strap; brass combination-head screws; contact material brass; metal construction; UL listed; meets ANSI C-73, CSA C22.2 No. 111, NEMA WD-1, NEMA WD-6 and other standards. Product dimensions and weight: 4 x 4 x 4 inches; Item weight 2.11 ounces. Includes CS320-2. Backed by Leviton's limited ten-year warranty.
- Listed UL Federal Specification, WS 911
- Backed by a Limited Ten-Year

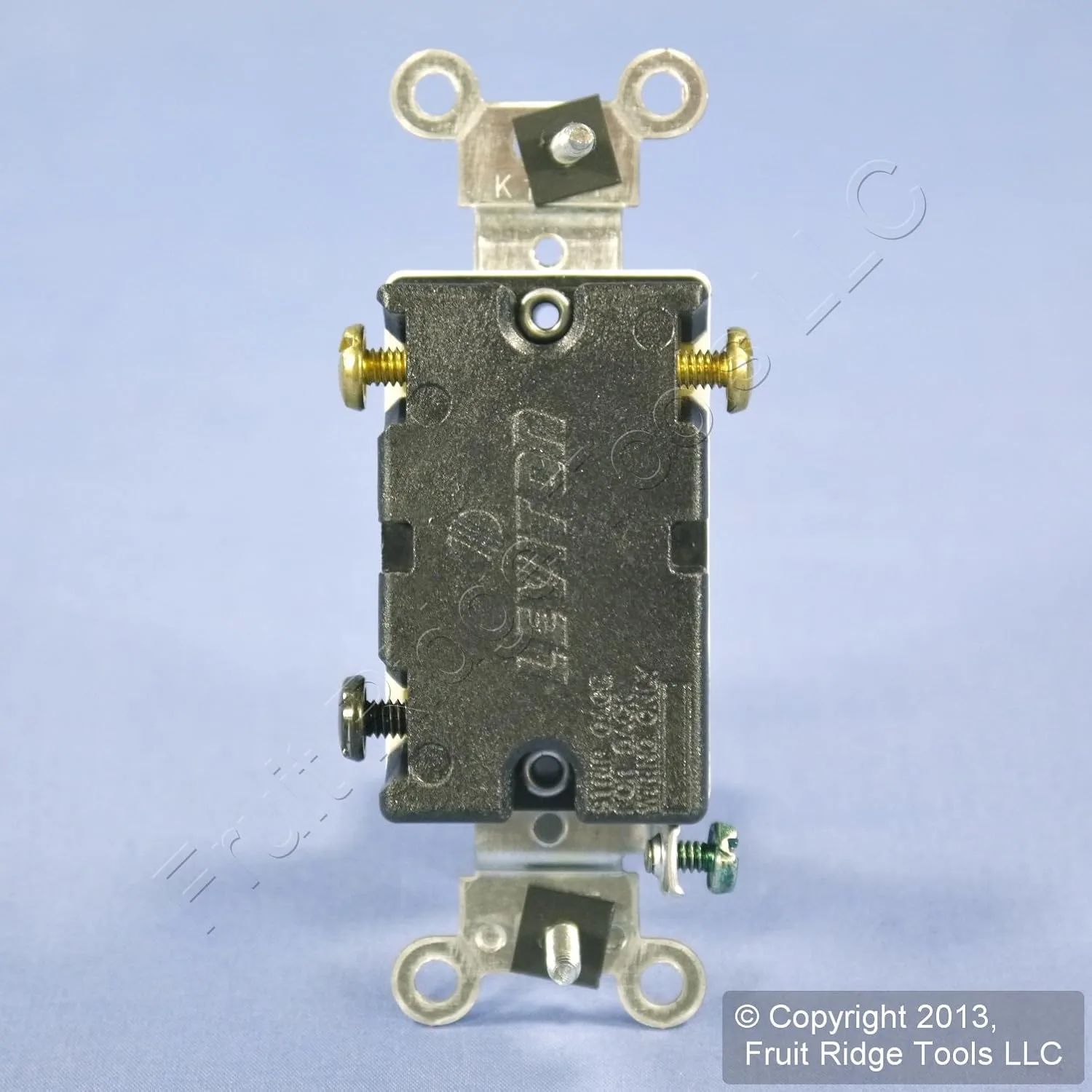

- External Clamp-Type Wiring Terminals Provides Secure Connection of Solid or Stranded Wire for Back or Side Wiring (CSB1 and CSB3)
- All Screws are Brass Combination-Head for Fast Installation with Standard, Phillips, and Robertson Head Screwdrivers
- Heavy-Duty Pre-Plated Steel Mounting Strap for Maximum Strength
Specifications:
| Materials & Construction | |
| Color | See Image |
| Contact Material | Brass |
| Material | Metal |
| Product Details | |
| Connector Type | Screw |
| Grade | Commercial |
| Included Components | CS320-2 |
| Mounting Type | Wall Mount |
| Number Of Pieces | 1 |
| Standards Met | Ansi C-73; Csa C22.2 No. 111 File 152105; Nema Wd-1; Nema Wd-6; Nom 057; Ul 20; Ul 94 V-2; Ul Federal Specification W-S-896e File E7458 |
| Switch Operation | Toggle |
| Switch Type | Three Way |
| Terminal | Screw |
| Sizing & Dimensions | |
| Height | 4 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 4 x 4 inches |
| Weight | 2.11 ounces |
| Width | 4 inches |
| Technical Specifications | |
| AC Adapter Current | 20 Amps |
| Country of Origin | China |
| Current Rating | 20 Amps |
| Dielectric Strength | 1500 volts |
| National Stock Number | 5930-01-386-7174 |
| Operation Mode | ON-OFF |
| Specification Met | Ul |
| Thickness | 1 Inches |
| UPC | 078477815830 |
| Voltage | 120 Volts |
| Warranty Description | manf |
