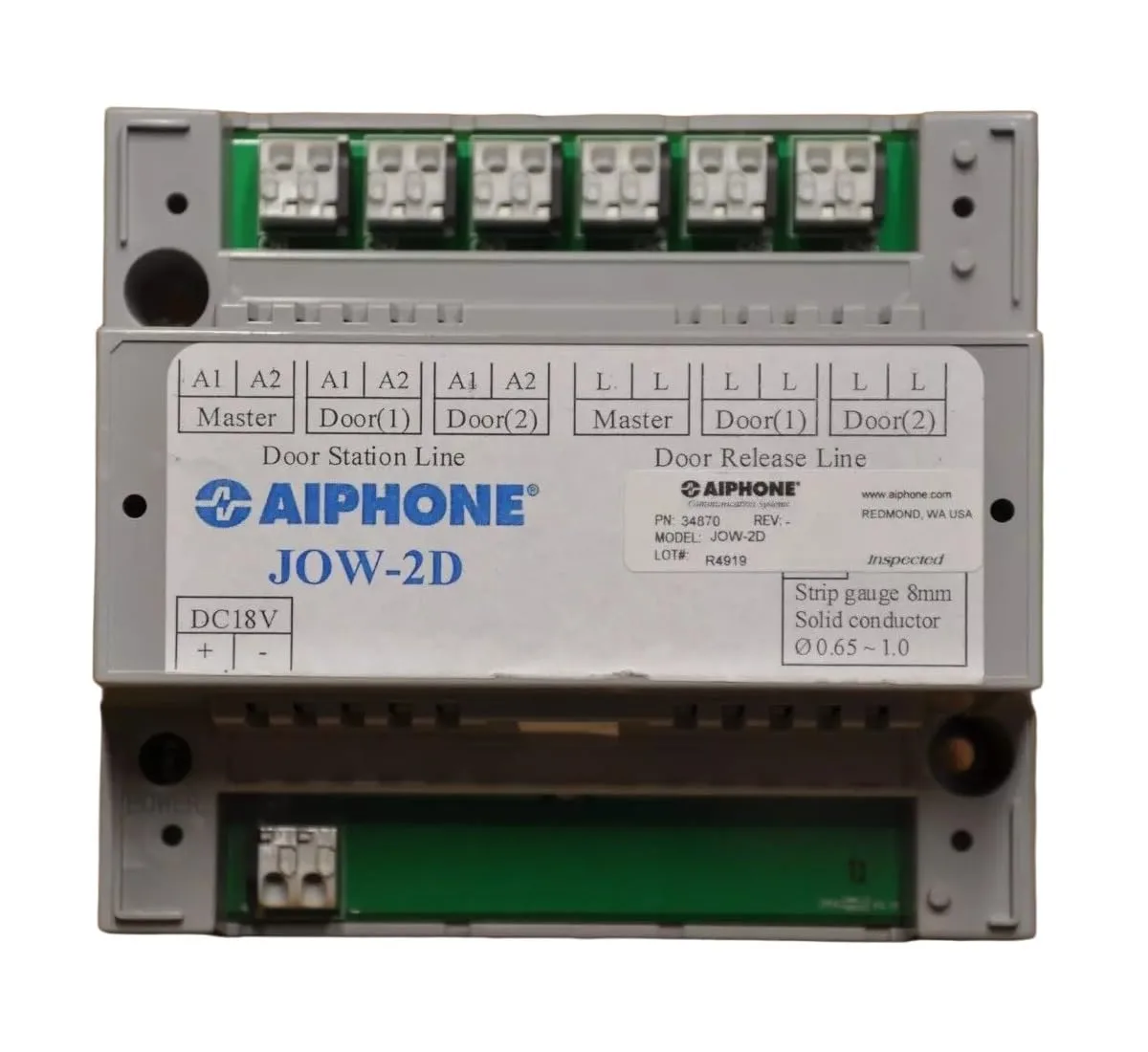

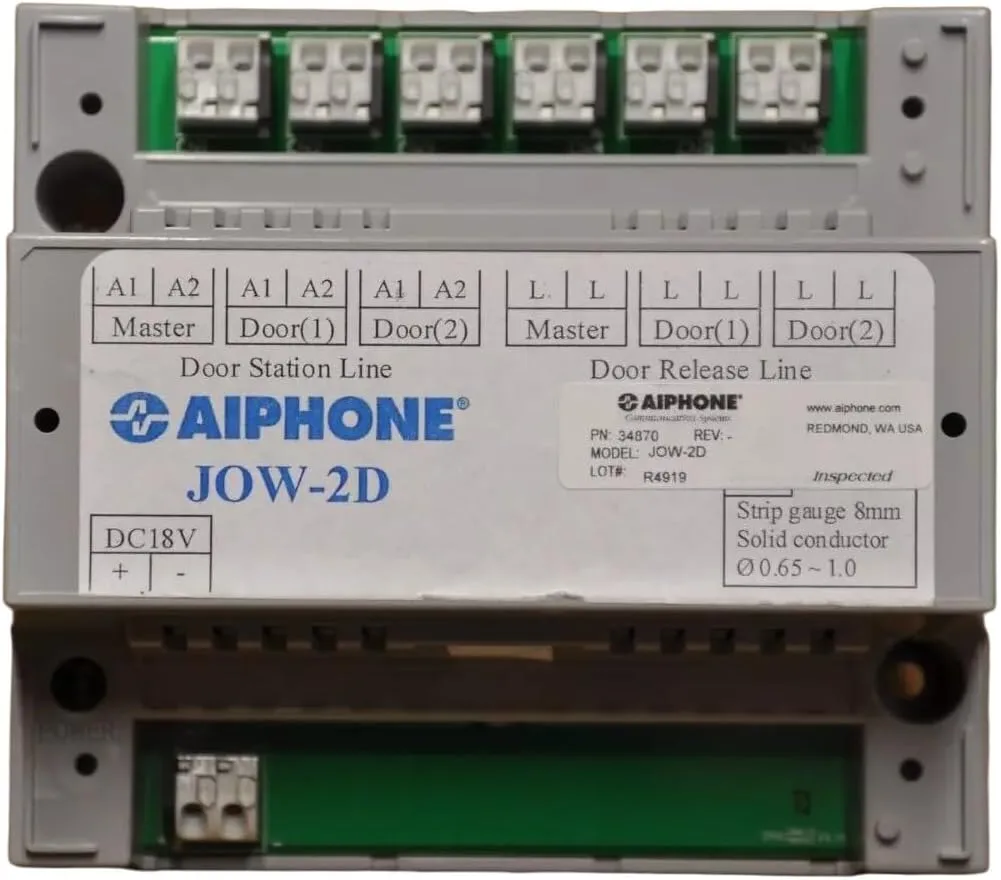

Aiphone JOW-2D Adaptor for JO Series Video Intercom System
Customize
Aiphone JOW2D is an adaptor for the JO Series video intercom system. It allows two video door stations to be used in a standard or app-enabled system. The adaptor has inputs for two JO Series video door stations and outputs to control door release for each of those door stations. When a visitor calls at the door station, his image will be displayed on the inside station(s). The person at the JO-1MDW, JO-1MD, or JO-1FD, answers the call, and if they decide to grant the visitor entry, pushes the door release button to activate the electric lock only at the associated door. If one door station is in use, the call button on the other door station will not activate a call-in. Specification: Power: 18V DC (supplied by JO Series master station). Consumption: 100mA (max), 18mA (standby). Relay Outputs: 24V DC, 1A (JO-1MDW), 24V DC, 500mA (JO-1MD, JO-1FD). Operating Temperature: 32 Degree ~ 104 Degree F (0 Degree ~ 40 Degree C).
- Consumption: 100mA (max), 18mA (standby)
- Power: 18V DC (supplied by JO Series master station)
- Includes normally open contacts to activate a strike for unlocking the door
- Can be added to existing systems for expansion
- Allows a second door station to be connected to any JO Series system
Product Details
- Alert Type:Entry
- Batteries Required?:No
- Compatible Devices:Smartphone
- Connectivity Technology:Wireless
- Control Method:Touch
- Installation Type:professional hard-wired
- Item Package Quantity:1
- Power Source:Electric
- Unit Count:1.0 Count
- Video Capture Resolution:720p
- Voltage:24 Volts
Sizing & Dimensions
- Height:4.24 inches
- Length:3.5 inches
- Product Dimensions:3.5 x 5.2 x 4.24 inches
- Weight:15.8 ounces
- Width:5.2 inches
Technical Specifications
- Product Dimensions (L x W x H):3.5 x 5.2 x 4.24 inches
