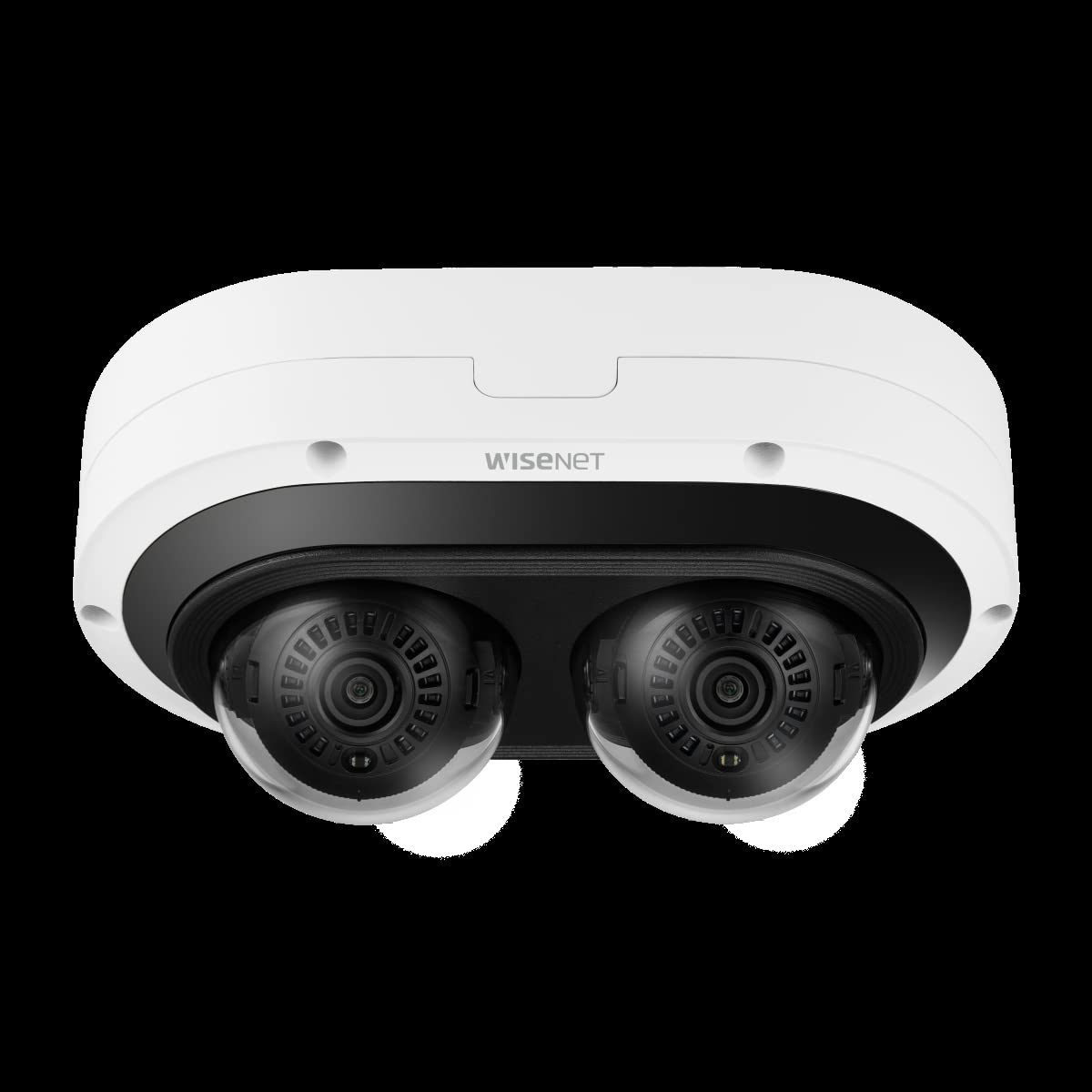

Hanwha PNM-12082RVD Network Vandal Outdoor 2CH IR Dome Camera
Customize
The PNM12082RVD is an outdoor vandalrated network camera featuring 2 Channels, with IR in a dome camera form factor. Featuring 6MP The IR viewable length is 25m 82ft, and features a USB port for easy installation, Day Night ICR, extremeWDR 120dB, DIS, Handover. Operational. Licensefree Intelligent Video Analytics Include Virtual line/direction, Enter/Exit, Appear/Disappear, Loitering, intrusion, Defocus detection, Motion detection, Tampering. Audio detection, Sound classification with optional I/O Box. FIPS 1402, micro SD card 512GB, IP66, NEMA4X, IK10. Audio In Audio in via optional SPM4210 I/O box Audio Out Audio out via optional SPM4210 I/O box Network. Ethernet Metal shielded RJ45 10/100/1000BASET. Video Compression H.265/H.264 Main/Baseline/High, MJPEG. Smart Codec Manual5ea area, WiseStream. Video Quality Adjustment H.264/H.265 Target bitrate level control MJPEG Target bitrate level control. Bitrate Control H.264/H.265 CBR or VBR MJPEG VBR. Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTPUDP, RTPTCP, RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3MIB2, ARP, DNS , DDNS, QoS, UPnP, Bonjour, LLDP, SRTP TCP, UDP Unicast. Security TPM 2.0 FIPS 1402 level 2 HTTPSSSL Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X AuthenticationEAPTLS, EAPLEAP, EAPPEAP MSCHAPv2 Device CertificateHanwha Techwin Root CA, preinstalled Secure by default certificate Secure OS/Boot/Storage, Verify firmware forgery. Application Programming Interface ONVIF Profile S/T SUNAPIHTTP API Open platformSpecifications. Operating Temperature 40C55C40F 131F. Power PoE, Metal shielded RJ45, Hardcoated dome bubble. Imaging Device 1/2.8 CMOS x 2CH. Max. Framerate H.265/H.264 6MP Max.15fps MJPEG Max.15fps. Video Out USB micro USB Type B, 1280x720 for installation. Focal Length Zoom Ratio 3.546.69mm1.9x motori
Specifications:
| Sizing & Dimensions | |
| Height | 12.0000 inches |
| Length | 10.0000 inches |
| Product Dimensions | 12.0 x 9.5 x 10.0 inches |
| Weight | 1.1 pounds |
| Width | 9.5000 inches |
| Technical Specifications | |
| Imaging Device | 1/2.8 CMOS x 2CH |
| Max. Framerate | 6MP Max.15fps (H.265/H.264); MJPEG Max.15fps |
| Operating Temperature | 40C to 55C (40F to 131F) |
| Video Compression | H.265/H.264, MJPEG |
