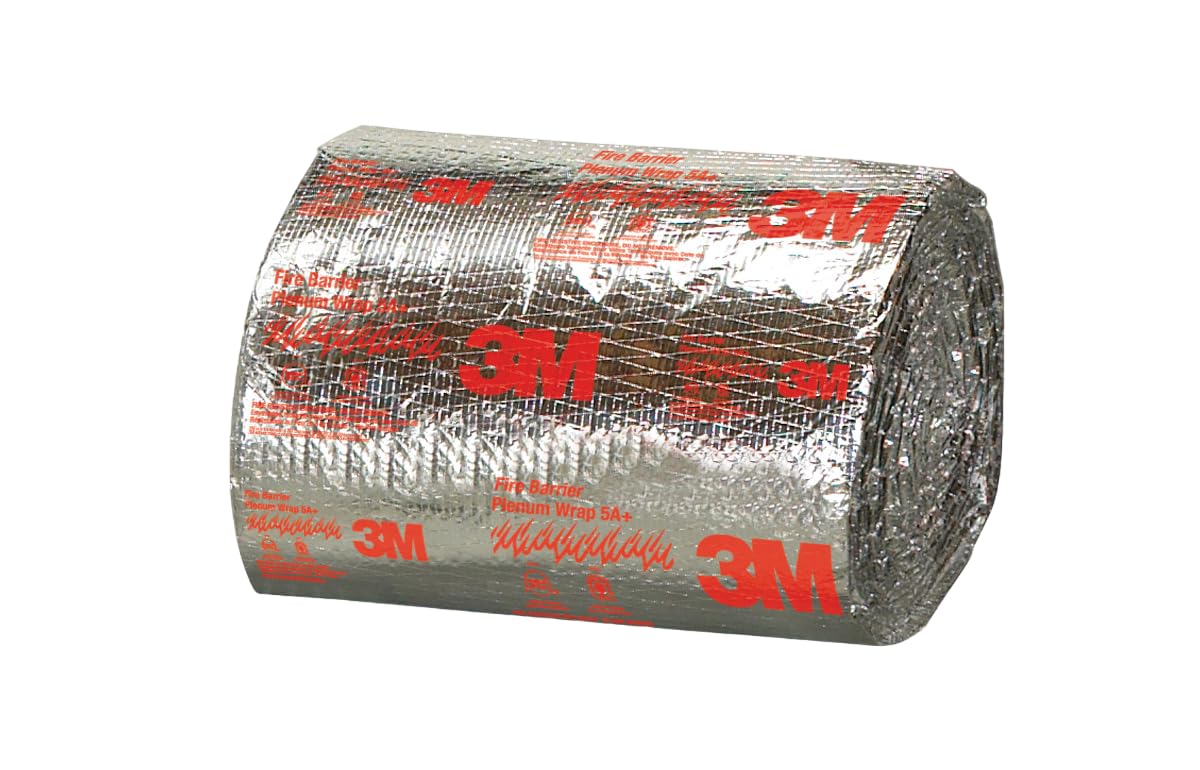

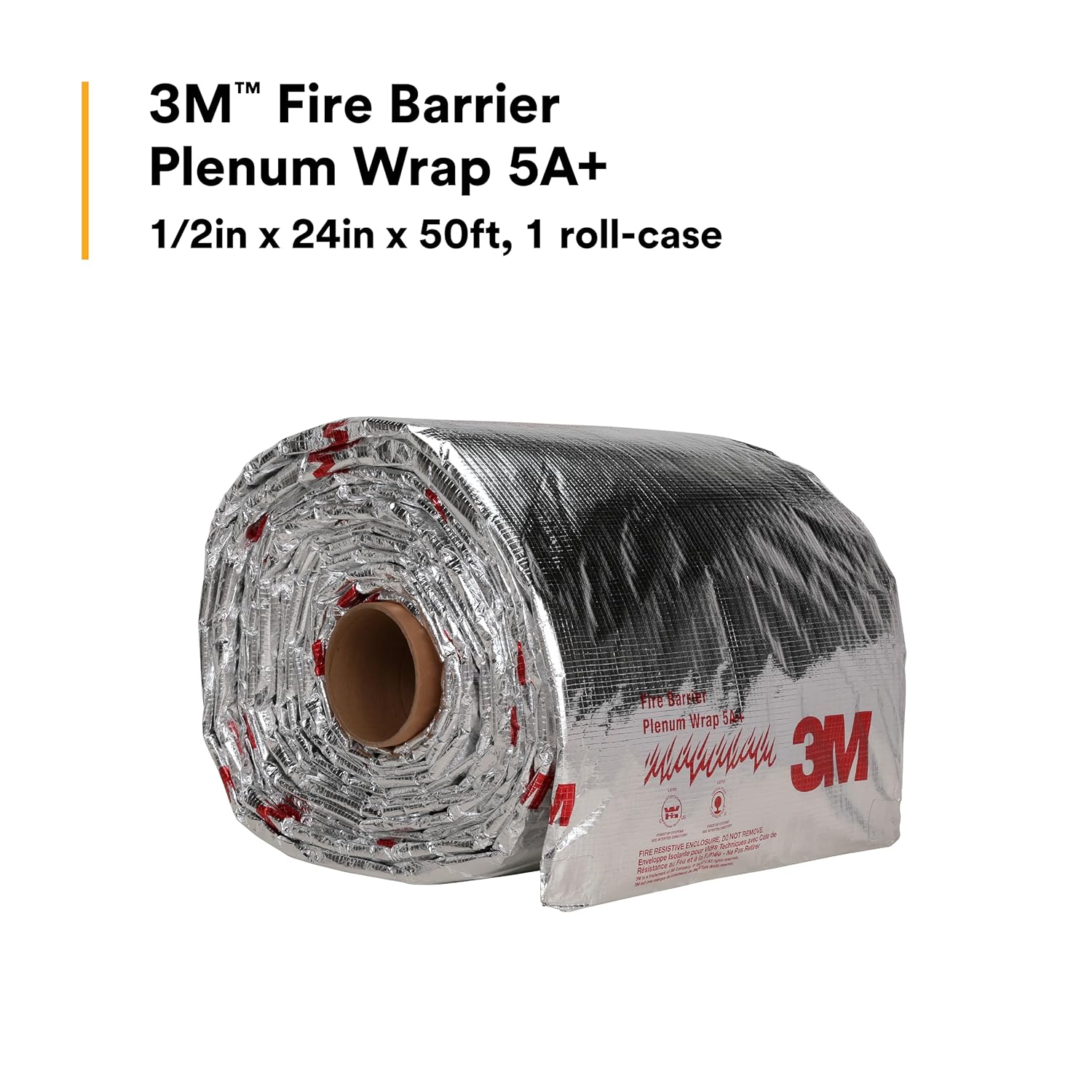

3M Fire Barrier Plenum Wrap 5A+, Inorganic Fiber Blanket With Encapsulated Scrim-Reinforced Foil, 1/2 in x 24 in x 50 ft

Easy Installation for Tough Fire Protection Lightweight, yet strong, 3M Fire Barrier Plenum Wrap 5A+ is a fire-resistant wrap. We designed this wrap with an inorganic fiber blanket encapsulated with a scrim-reinforced foil, creating a fire-resistive enclosure that can reduce the flame and smoke spread ratings to acceptable levels in return air plenums. This product is tested to UL 910 (NFPA 262), UL 1887, and ASTM E 84 and is made with flexible material for easy installation. We constructed this material to be a non-asbestos wrap with a 6 pcf (96 kg/m3) density. Recommended Applications: Our 3M Fire Barrier Plenum Wrap 5A+ is a protective covering which helps reduce the flame propagation and smoke generation of pipes and cables, including: Single and multiple 1-inch diameter (25.4 mm) and larger plastic pipe and cable bundles; PVC; CPVC; PB; PE; PP; PVDF; ASB pipes in return air plenums. Innovative and Flexible Fire-Resistant Wrap: Wrap and protect plastic pipes in plenum areas more easily with our 3M Fire Barrier Plenum Wrap 5A+. Enjoy the lightweight installation and heavyweight fire protection that comes from this innovative solution. Discover the benefits from a fire-resistant wrap designed and tested to reduce external flame propagation and smoke generation. Firestop Barriers & Protection; Product Type: Wrap ; Material Type: Ceramic Fiber ; Fire Rating (Hours): 1.00 ; Overall Thickness: 0.5in ; Color: Silver ; Application: Commercial Construction, Product Type: Wrap , Material Type: Ceramic Fiber , Fire Rating (Hours): 1.00 , Overall Thickness: 0.5in , Color: Silver , Application: Commercial Construction , Standards: NFPA 262, UL 910, UL 1887 and ASTM E84 , Maximum In-Service Temperature (F): 250 , Length Ft.: 50.000 , UNSPSC Code: 46191507

• For industrial/occupational use only. Not for consumer sale or use.
• RECOMMENDED USES: Cables, PVC, CPVC, PB, PE, PP, PVDF and pipes in return air plenums
• NON-ASBESTOS: Wrap is designed from non-asbestos material
• FOIL SCRIM: Features foil-encapsulated scrim

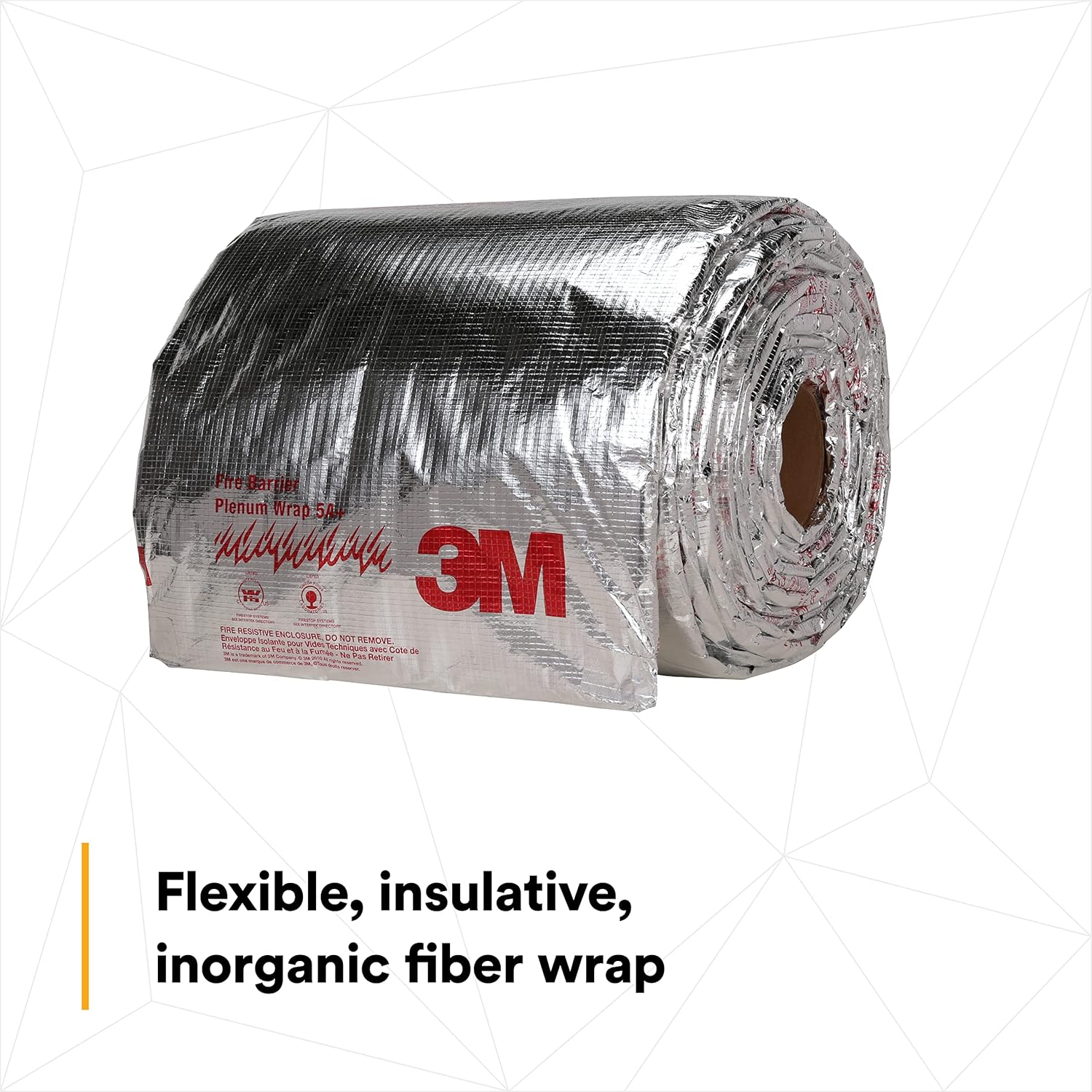

• PRODUCT FEATURES: Flexible, insulative, inorganic fiber wrap

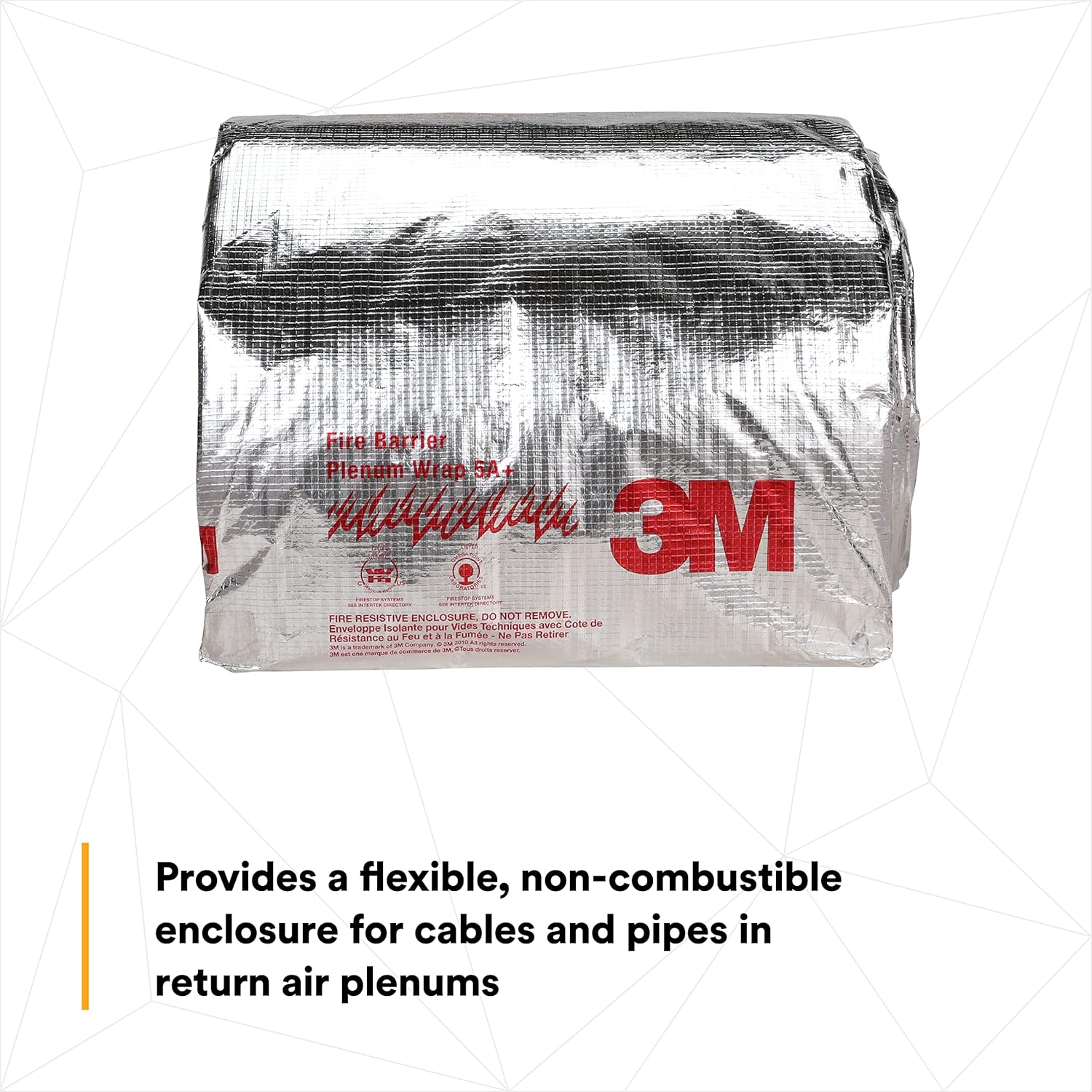

• FULL CONFORMABLE COVERAGE: Provides a flexible, non-combustible enclosure for cables and pipes in return air plenums

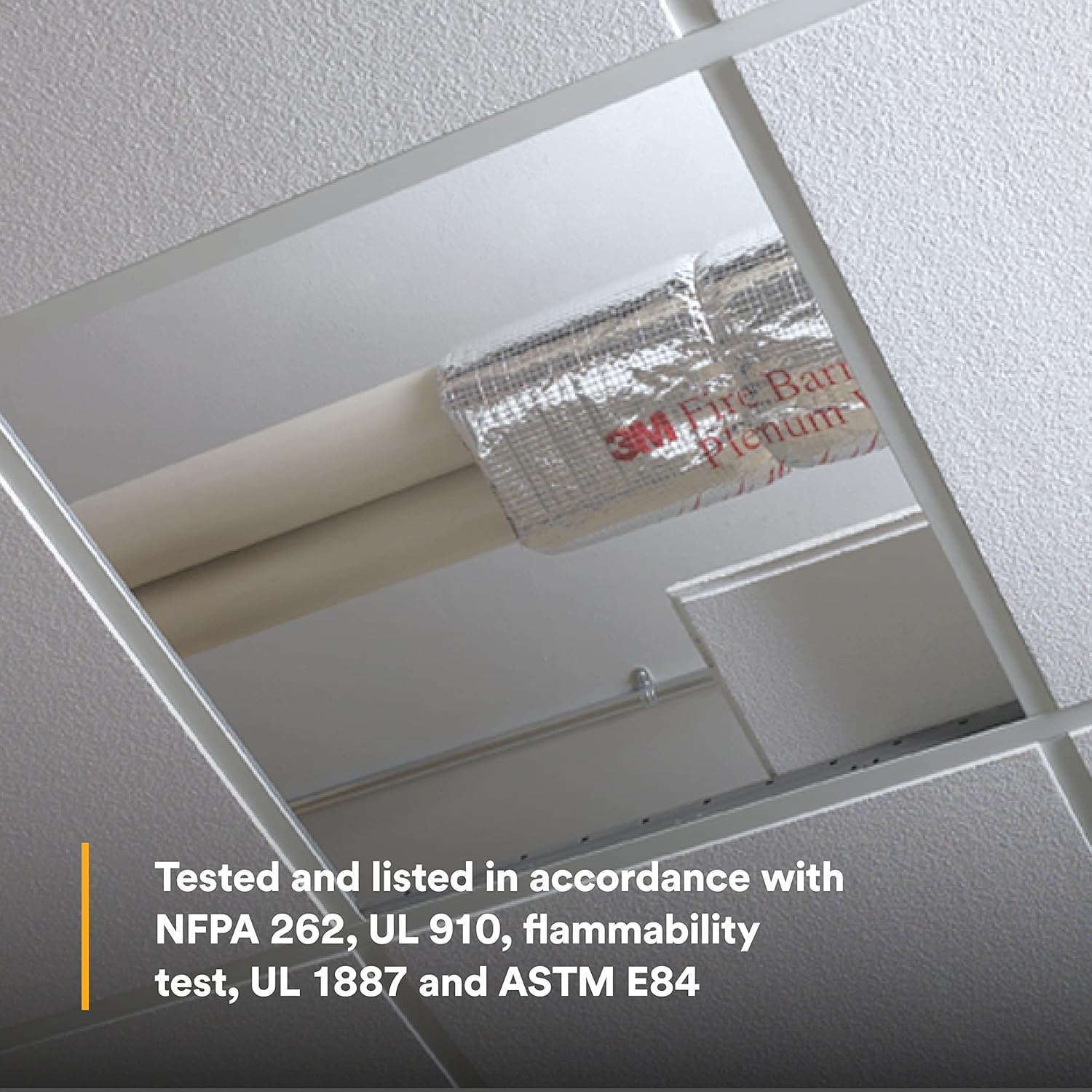

• TESTED FIRESTOP PREFORMANCE: Tested and listed in accordance with NFPA 262, UL 910, flammability test, UL 1887 and ASTM E84
