3M Speedglas Outside Protection Plate 9100, Welding Safety 06-0200-53, High Temperature

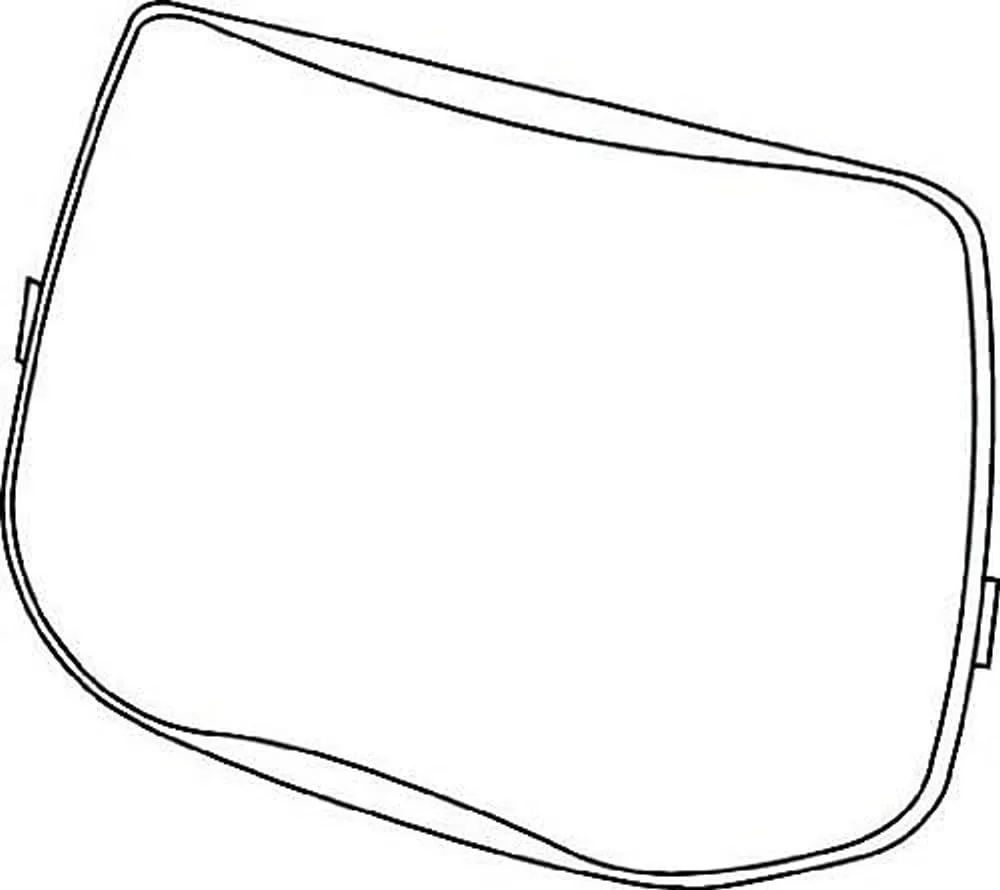

3M Speedglas Outside Protection Plate (9100 series) — clear resin front-mounted cover plate, 10.6" W x 5.05" H x 1/8" thick. High-temperature resistant replacement part for welding helmets.
$86.26
Customize
UPC
51135893611 Available Quantity
21 GSA Item
No GSA Compliant
Yes Product Details
FROM PRODUCT DATABASE AND MANUFACTURER MARKETING: The Speedglas 9100 outside protection plate is a front-mounted clear resin cover plate designed for the Speedglas 9100 series helmets. Product specifications include 10.6" window width by 5.05" window height and 0.125" (1/8") window thickness. Constructed of engineered resin for durability and clarity, the plate meets ANSI Z87.1-2010 and CSA Z94.3 standards. It is compatible with 9100; 9100 FX; 9100 FX-Air; 9100 MP; 9100 QR; 9100-Air; L-Series; and Speedglas 9100 helmet models. Recommended as a replacement part for high-temperature welding applications where a heat-resistant outside protection plate is required. Package dimensions: 6.5 x 4.2 x 0.6 inches; 0.8 ounces.
- Replacement Part
- High Temp Applications
- Outside Protection Plate
Specifications:
| Materials & Construction | |
| Color | Clear |
| Outer Material | Resin |
| Product Details | |
| Item model number | 06-0200-53 |
| Lens Color | Clear |
| Lens Shade | None |
| Material | Resin |
| Mount Type | Front |
| Product Service Code | 4240 |
| Product Type | Cover Plate |
| Series | 9100; 9100 Fx; 9100 Fx-Air; 9100 Mp; 9100 Qr; 9100-Air; L-Series; Speedglas 9100 |
| Standards | Ansi Z87.1-2010; Csa Z94.3 |
| Unspsc Code | 46181703 |
| Window Height (Decimal Inch) | 5.0500 inches |
| Window Thickness (Decimal Inch) | 0.1250 inches |
| Window Width (Decimal Inch) | 10.6000 inches |
| Sizing & Dimensions | |
| Height | 5.0500 inches |
| Length | 0.1250 inches |
| Product Dimensions | 10.6000 x 5.0500 x 0.1250 inches |
| Size | 10.6" W x 5.05" H x 0.125" Thick |
| Weight | 0.8 ounces |
| Width | 10.6000 inches |
| Technical Specifications | |
| Package Dimensions | 6.5 x 4.2 x 0.6 inches; 0.8 ounces |
