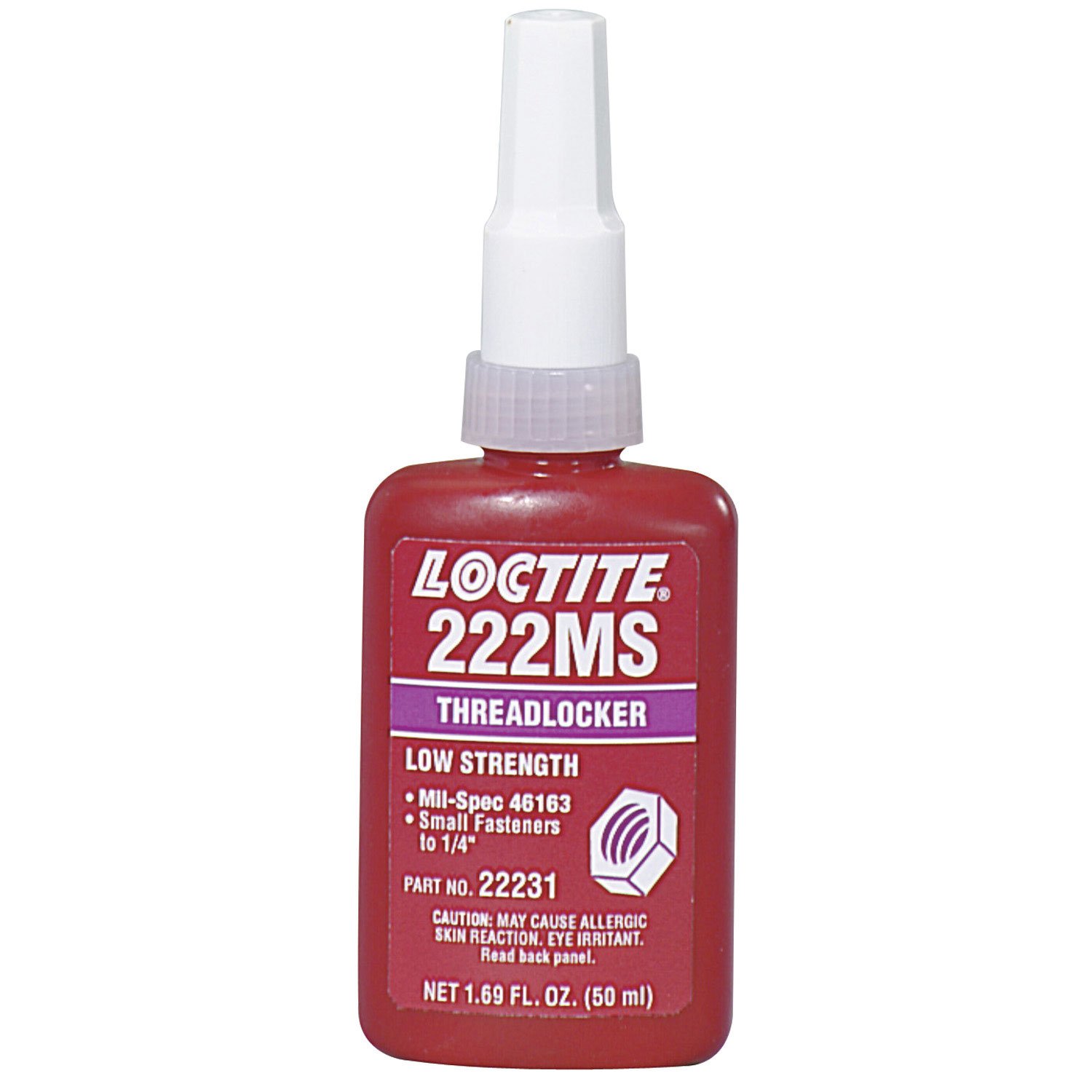

Loctite 135334 Purple 222MS Low Strength Thread Locker, 300 Degrees F Maximum Temperature, 50 mL Bottle Bottle 50 ML
Customize
Threadlocker: Purple, Liquid, 50 mL, Bottle Low Strength, 300 °F Max, Series 222MS, Form: Liquid, Container Size: 50 ml, Strength: Low, Container Size Range: 1 to 15.9 oz, Container Type: Bottle, Color: Purple, Series: 222MS, Series Part Number: 22231, Full Cure Time (Hours): 24.00, Removal Method: Hand Tool; Heat, Fastener Size Range: Up to 1/4; Up to 6.00 mm, Breakaway Torque (Lb./Inch): 10 to 40 (3/8-16 Cadmium Nuts & Bolts After 24 hr at 22 deg C); 10 to 40 (3/8-16 Zinc Nuts & Bolts After 24 hr at 22 deg C), Environmental: Non-Food Contact, Standards: ASTM D-5363; CFIA Approved; MIL-S-46163A Type II Grade M; NSF P1, Maximum Operating Temperature F: 300.00. LOCTITE THREADLOCKER 222MS LOW-STRENGTH/SMALL SEALANTS Capacity Vol.: 50 mL. Viscosity: 1200.0 cP [Min] - 5000.0 cP [Max]. Torque (Break): 53 in lb. Torque (Prevail): 30 in lb. Temp. Range: -65 °F [Min] to 300 °F [Max]. Fix Cure Time: 10 min @ 77 °F. Full Cure Time: 24 h @ 77 °F. Chemical Compound: Acrylic. Applications: Thread. Ideal for fastener diameters of 1/4" and smaller. Controlled lubricity for accurate clamp loads. Parts can be separated using hand tools.
- Item Package Height: 0.899999999082"
- Item Package Width: 2.299999997654"
- Item Package Length: 6.099999993778"
- Capacity Vol.: 50 mL
Specifications:
| Materials & Construction | |
| Color | Purple |
| Material | Aluminum,Brass |
| Product Details | |
| Breakaway Torque (Lb./Inch) | 10 To 40 (3/8-16 Cadmium Nuts & Bolts After 24 Hr At 22 Deg C); 10 To 40 (3/8-16 Zinc Nuts & Bolts After 24 Hr At 22 Deg c) |
| Color | Purple |
| Compatible Material | Metal |
| Container Size | 50 ml |
| Container Size Range | 1 To 15.9 oz |
| Container Type | Bottle |
| Environmental | Non-Food Contact |
| Fastener Size Range | Up To 1/4; Up To 6.00 mm |
| Form | Liquid |
| Full Cure Time (Hours) | 24.00 |
| Item Form | Liquid |
| Item model number | 135334 |
| Material | Aluminum,Brass |
| Maximum Operating Temperature F | 300.00 |
| National Stock Number | 8030-01-069-3046 |
| Product Service Code | 8040 |
| Removal Method | Hand Tool; Heat |
| Series | 222ms |
| Series Part Number | 22231 |
| Standards | Astm D-5363; Cfia Approved; Mil-S-46163a Type Ii Grade M; Nsf p1 |
| Strength | Low |
| Viscosity | 1200.0 cP [Min], 5000.0 cP [Max] |
| Sizing & Dimensions | |
| Height | 7.5 inches |
| Length | 2.7 inches |
| Product Dimensions | 1.3 x 2.7 x 7.5 inches |
| Size | 50 mL |
| Weight | 2.72 ounces |
| Width | 1.3 inches |
| Technical Specifications | |
| Applications | Thread |
| Chemical Compound | Acrylic |
| Fix Cure Time @ Temp. | 10 min @ 77 °F |
| Full Cure Time @ Temp. | 24 h @ 77 °F |
| Temp. Range | -65.0 °F [Min], 300.0 °F [Max] |
| Torque (Break) | 53 in lb |
| Torque (Prevail) | 30 in lb |
