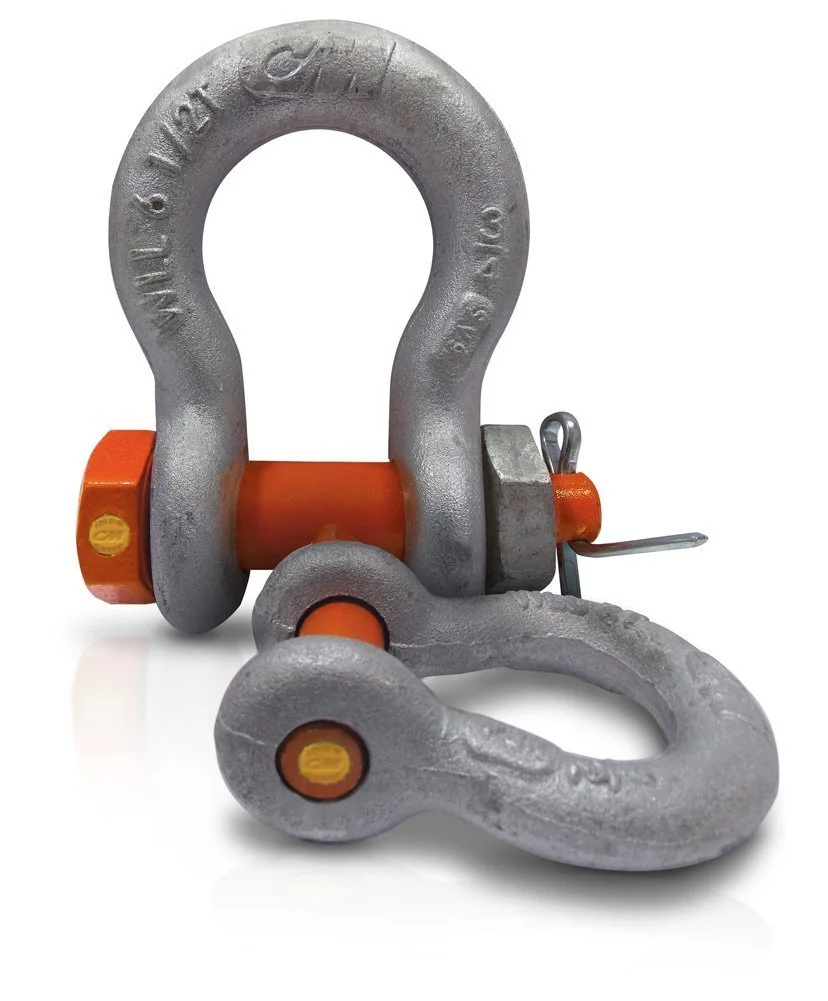

CM M650P Super Strong Anchor Shackle with Orange Powder Coated Screw Pin, 3 Ton Work Load Limit, 1/2" Size
CM M650P 1/2" anchor (screw pin) shackle — carbon steel, orange powder-coated/painted finish, 3 ton working load limit, ASME B30.26 standards, durable lifting hardware.
$20.41
Customize
Available Quantity
106 GSA Item
No GSA Compliant
Yes Product Details
CM Super Strong Shackles are carbon-type shackles with strength ratings that are 17 to 50% stronger than comparable-sized carbon shackles. As a result, these shackles are designed with a 6:1 design factor. Anchor shackles can be side loaded or used for multiple connections. Manufactured from carbon steel with a painted/powder-coated finish, the M650P screw-pin anchor shackle provides robust connection points for lifting and rigging. Meets ASME B30.26 and includes permanent traceability markings. Product dimensions approx. 3.5 x 3 x 1 inches; 12.8 ounces. Item model number M650P. National Stock Number: 4030-01-624-3947.
- Shackles meet dimensional requirements and exceed performance requirements of RR-C-271
- Working load limit and traceability codes shown as permanent markings on body
- Manufactured from technically advanced micro alloy steel with optimal hardness for strength and ductility
Specifications:
| Materials & Construction | |
| Finish | Painted |
| Material | Carbon Steel |
| Product Details | |
| Item model number | M650P |
| National Stock Number | 4030-01-624-3947 |
| Pin Type | Screw |
| Shackle Type | Anchor |
| Sizing & Dimensions | |
| Height | 1 inches |
| Jaw Inside Height | 1.9400in |
| Length | 3.5 inches |
| Overall Thickness | 1.3400in |
| Product Dimensions | 3.5 x 3 x 1 inches; 12.8 ounces |
| Size | 1/2" |
| Weight | 12.8 ounces |
| Width | 3 inches |
| Technical Specifications | |
| Standards | Asme B30.26 |
| Unspsc Code | 46151600 |
