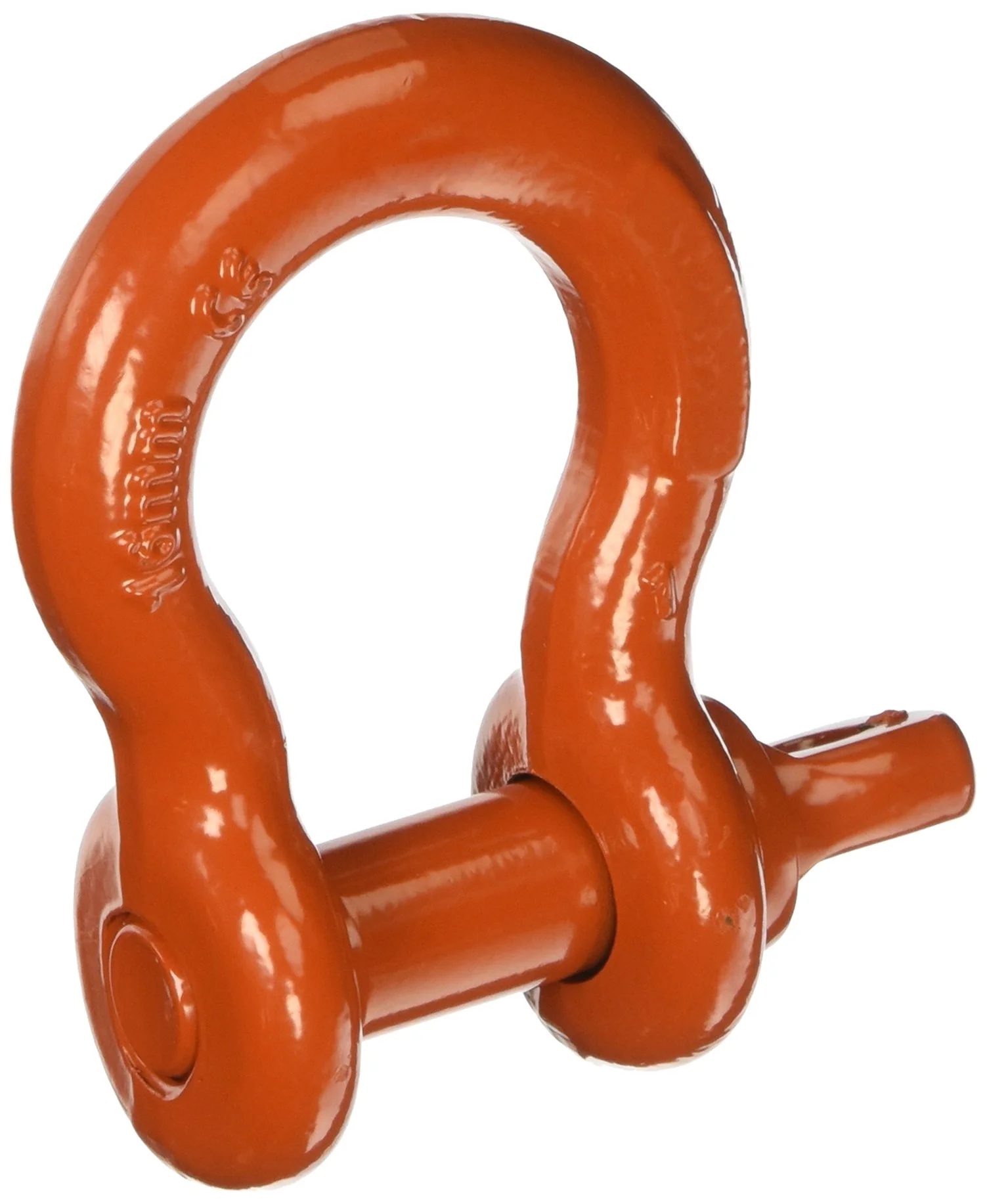

CM M651P Super Strong Anchor Shackle with Orange Powder Coated Screw Pin, 4-1/2 Ton Work Load Limit, 5/8" Size
CM M651P anchor shackle (screw pin) — orange powder-coated screw pin, alloy steel construction, 5/8" size, 4-1/2 ton working load limit, ASME B30.26 rated.
$35.04
Customize
Available Quantity
104 GSA Item
No GSA Compliant
Yes Product Details
CM Super Strong Shackles are carbon-type shackles with strength ratings that are 17 to 50% stronger than comparable-sized carbon shackles. As a result, these shackles are designed with a 6:1 design factor. Anchor shackles can be side loaded or used for multiple connections. Anchor Shackle: Screw Pin Painted Finish, Carbon Steel, Shackle Type: Anchor , Pin Type: Screw , Material: Carbon Steel , Jaw Inside Height: 2.4100in , Overall Thickness: 1.6600in , Finish: Painted , Standards: ASME B30.26
- Shackles meet dimensional requirements and exceed performance requirements of RR-C-271
- Working load limit and traceability codes shown as permanent markings on body
- Manufactured from technically advanced micro alloy steel with optimal hardness for strength and ductility
Specifications:
| Materials & Construction | |
| Color | Orange |
| Exterior Finish | Painted |
| Material | Alloy Steel |
| Outer Material | Alloy Steel |
| Product Details | |
| Finish | Painted |
| Head Style | Round |
| Pin Type | Screw |
| Shackle Type | Anchor |
| Standards | Asme B30.26 |
| Sizing & Dimensions | |
| Height | 1.5 inches |
| Jaw Inside Height | 2.4100in |
| Length | 4.5 inches |
| Overall Thickness | 1.6600in |
| Product Dimensions | 4.5 x 3.25 x 1.5 inches |
| Weight | 1.5 pounds |
| Width | 3.25 inches |
