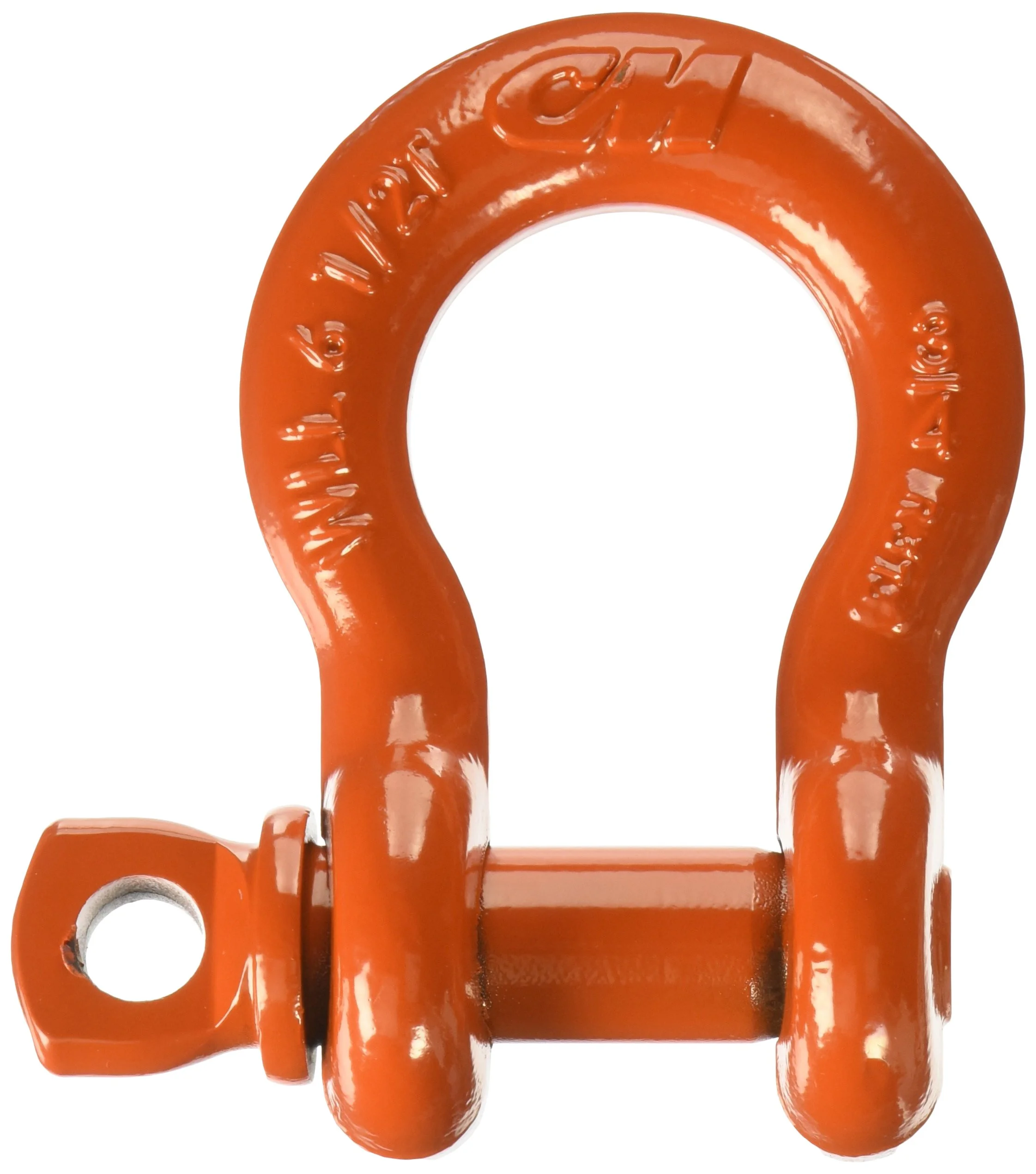

CM M652P Super Strong Anchor Shackle with Orange Powder Coated Screw Pin, 6-1/2 Ton Work Load Limit, 3/4" Size
Customize
CM Super Strong Shackles are carbon-type shackles with strength ratings that are 17 to 50% stronger than comparable-sized carbon shackles. As a result, these shackles are designed with a 6:1 design factor. Anchor shackles can be side loaded or used for multiple connections. Product features and details from manufacturer and technical data: Shackle Type: Anchor; Pin Type: Screw; Material: Carbon Steel / Alloy Steel; Finish: Orange powder-coated (painted finish); Jaw Inside Height: 2.8400in; Overall Thickness: 1.9400in. Manufactured from high-strength micro alloy materials to provide optimal hardness, strength and ductility. Shackles meet dimensional requirements and exceed performance requirements of RR-C-271. Working load limit and traceability codes are shown as permanent markings on the body.
- Shackles meet dimensional requirements and exceed performance requirements of RR-C-271
- Working load limit and traceability codes shown as permanent markings on body
- Manufactured from technically advanced micro alloy steel with optimal hardness for strength and ductility
Specifications:
| Materials & Construction | |
| Color | Orange |
| Exterior Finish | Alloy Steel |
| Material | Carbon Steel, Alloy Steel |
| Product Details | |
| Finish | Painted |
| Head Style | Round |
| Is Discontinued By Manufacturer | No |
| Item model number | M652P |
| Material | Carbon Steel, Alloy Steel |
| Pin Type | Screw |
| Shackle Type | Anchor |
| Standards | Asme B30.26 |
| Thread Size | RM |
| Sizing & Dimensions | |
| Height | 4 inches |
| Item dimensions L x W x H | 1 x 5 x 4 inches |
| Jaw Inside Height | 2.8400in |
| Length | 5 inches |
| Overall Thickness | 1.9400in |
| Product Dimensions | 1 x 5 x 4 inches; 2 Pounds |
| Product Weight | 2.3000 |
| Weight | 2.3 pounds |
| Width | 1 inches |
| Technical Specifications | |
| Standards | Asme B30.26 |
| Thread Size | RM |
