Fill-Rite N100DAU13G 1” 3 to 40 GPM Automatic Fuel Transfer Nozzle - Compatible with Gasoline, Diesel, Biodiesel up to B20
Customize

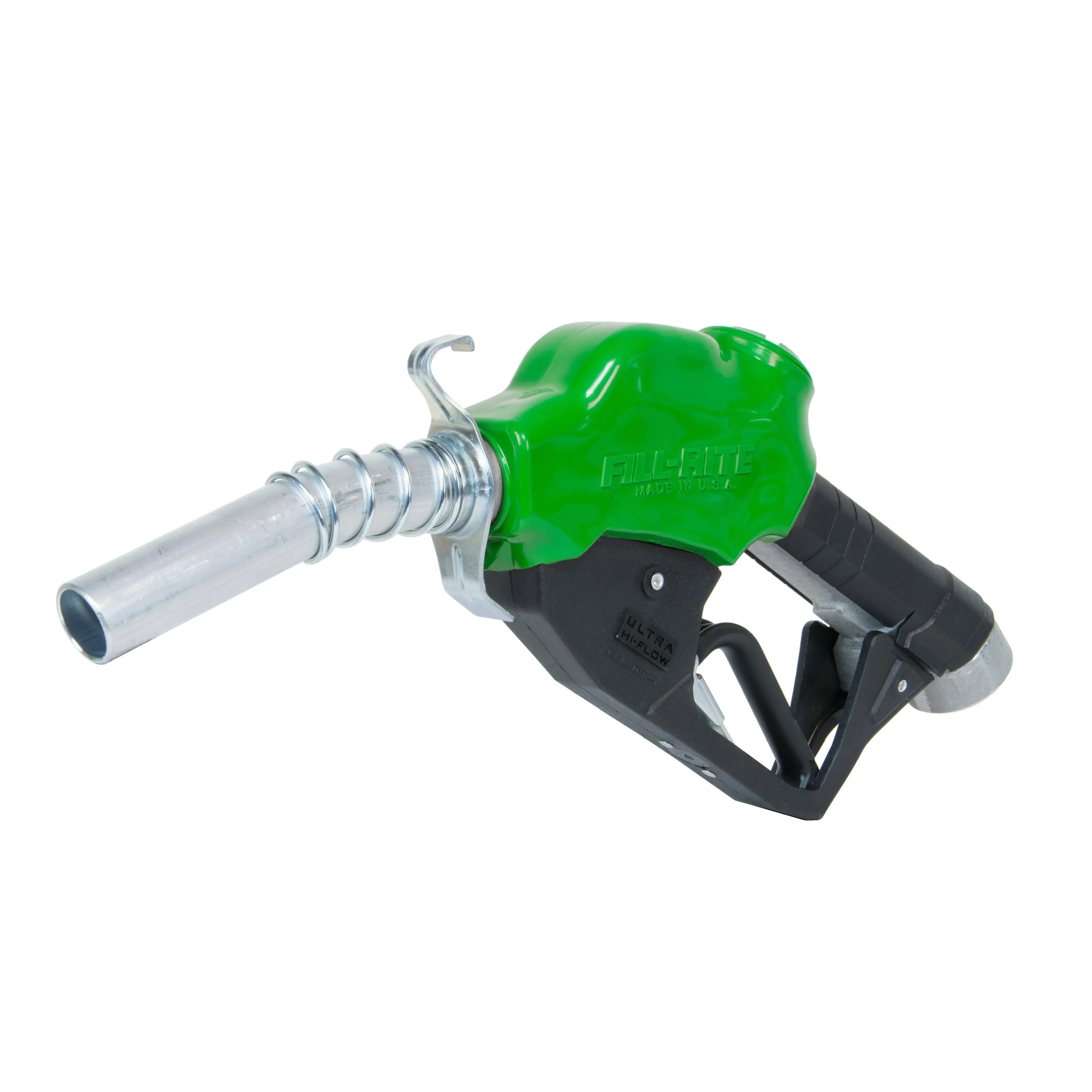

The N100DAU13G Fill-Rite automatic ultra-high-flow nozzle is a rugged, cast-aluminum fuel transfer nozzle designed for a wide range of petroleum fuels. Built for industrial and commercial fueling applications, this model supports flow rates from 3 to 40 GPM and features a gasoline-sized spout with a green jacket for easy identification. Key features include an automatic shutoff to reduce spills, adjustable latching with three positions for precise flow selection, a spout hook for convenient storage, and a spring-loaded spout to ensure optimal placement while filling. Constructed with durable cast aluminum and an aluminum exterior finish, the nozzle provides long-lasting performance for gasoline, diesel, biodiesel up to B20, E15, and kerosene. Inlet and outlet connection options and sizes facilitate installation and compatibility with standard NPT fittings.
- CONVENIENT STORAGE - Spout hook provides simple storage solution
- ADJUSTABLE LATCHING - Three separate latching positions allows operator to select proper flow rate
- AUTOMATIC SHUTOFF - Reduces potential messes by preventing overfilling or spilling of fuel
- EASY FILLING - Spring on spout ensures optimal nozzle placement
- CAST ALUMINUM CONSTRUCTION – built & engineered with rugged cast-aluminum to ensure long lasting life through the most demanding applications
Specifications:
| Materials & Construction | |
| Material | Aluminum |
| Outer Material | Aluminum |
| Product Details | |
| Exterior Finish | Aluminum |
| Inlet Connection Size | 1 Inches |
| Inlet Connection Type | National Pipe Tapered |
| Number of Ports | 1 |
| Outlet Connection Size | 1.13 Inches |
| Outlet Connection Type | Straight End |
| Specification Met | #N/A |
| Sizing & Dimensions | |
| Height | 2.5 inches |
| Length | 17.5 inches |
| Product Dimensions | 17.5 x 4.0 x 2.5 inches |
| Size | 17.5 x 4.0 x 2.5 inches |
| Weight | 4.0000 pounds |
| Width | 4.0 inches |
