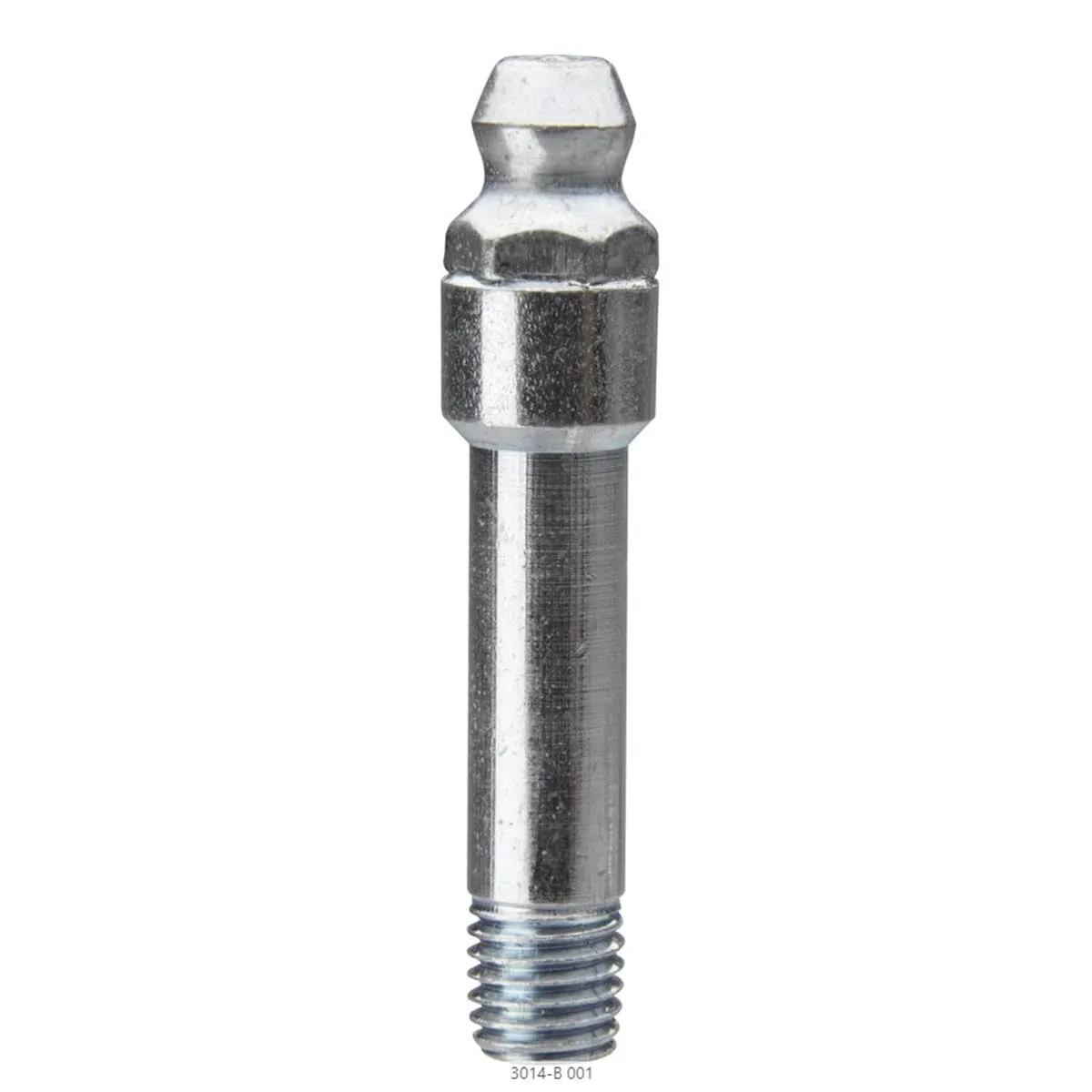

Alemite 3014-B Hydraulic Loose Fitting, Straight, OAL 1-5/8", Shank Length 1", Hex Size 5/16", 1/4" Taper
Customize
Alemite 3014-B is a straight hydraulic 1/4 in.-28 taper thread fitting with overall length of 1-5/8 in., shank length of 1 in. And 5/16 in. Hex. The fitting is made of steel with trivalent zinc plating for increased resistance to corrosion and is RoHS compliant. The fitting features a Dirt-excluding check ball. It exceeds the 72 hour salt spray test. Alemite 1/4 in.-28 taper thread fittings are used on most cars and trucks, as well as many industrial machines. It is recommended that SAE-LT taper threads be assembled into 1/4"-28 UNF, Class 3B, straight threaded holes having a modified maximum minor diameter of 0.2151 in., to ensure 75% minimum thread height. As the inventor of the Zerk fitting, Alemite is a recognized global leader in supplying fittings for automotive and industrial use. Alemite fittings conform to SAE J534 standards for automotive OEM use and Alemite Manufacturing is TS/ISO 16949 certified.
- Straight
- Thread 1/4-28 taper thread (SAE-LT)
- Hex 5/16 inches
- Shank length 1 inches
- Overall Length 1-5/8 inches
Specifications:
| Materials & Construction | |
| Exterior Finish | Zinc |
| Fastener Material | Alloy Steel |
| Material | Zinc-Plated Steel |
| Product Details | |
| Exterior Finish | Zinc |
| Fastener Material | Alloy Steel |
| National Stock Number | 2520-01-041-4089 |
| Style | Straight |
| Thread Coverage | threaded on one end |
| Thread Style | SAE-LT |
| Sizing & Dimensions | |
| Height | 9.21 inches |
| Length | 9.21 inches |
| Product Dimensions | 9.21 x 4.3 x 9.21 inches |
| Product Dimensions (Height) | 9.21 inches |
| Product Dimensions (Length) | 9.21 inches |
| Product Dimensions (Width) | 4.3 inches |
| Weight | 0.16 ounces |
| Width | 4.3 inches |
| Technical Specifications | |
| Ro HS Compliance | True |
| Salt Spray Resistance | Exceeds 72 hour salt spray test |
| Thread Coverage | threaded on one end |
