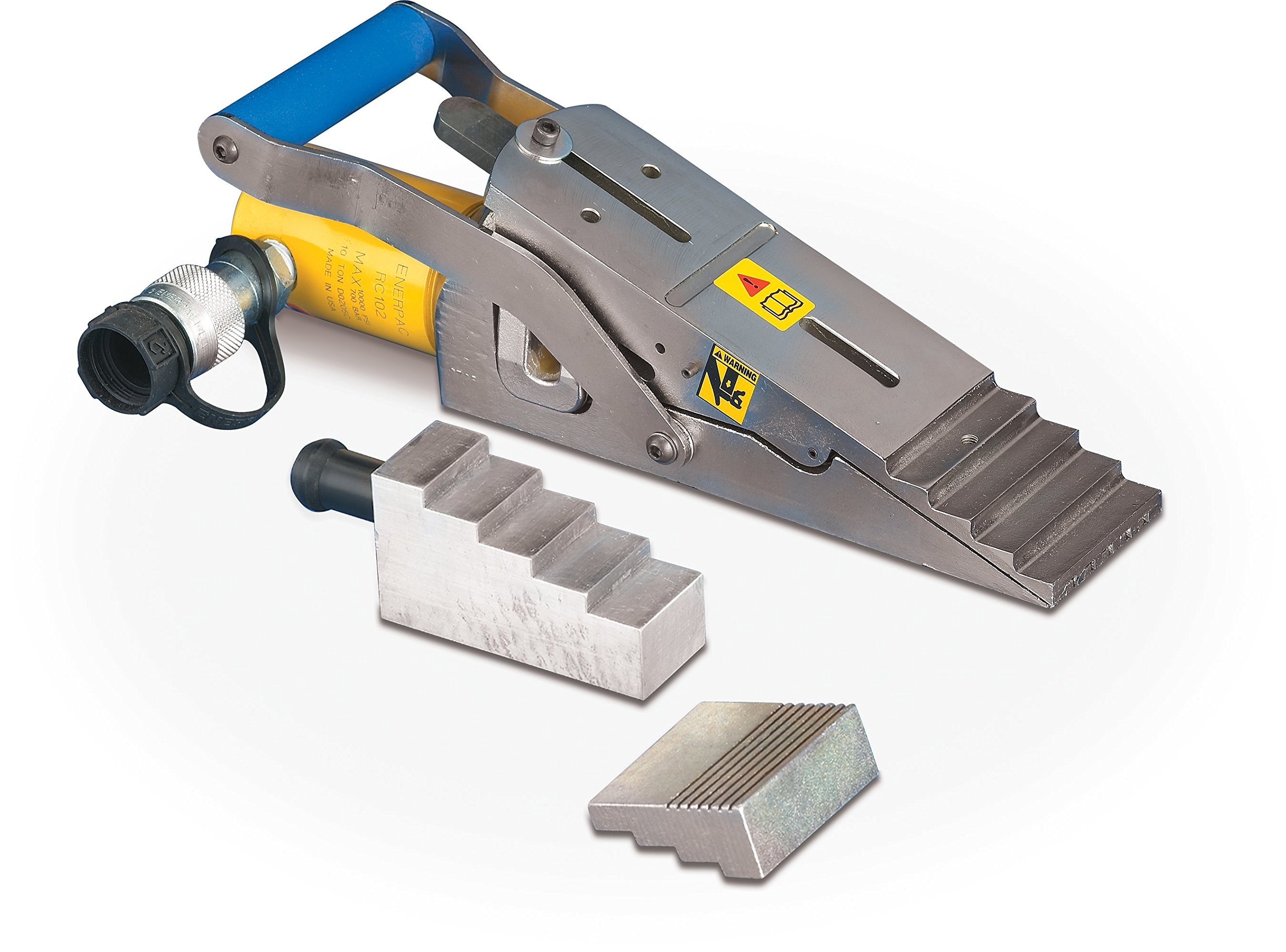

Enerpac LW-16 Single-Acting Hydraulic Lifting Wedge with 16-Ton Maximum Lifting Force at 10,000 PSI
Customize
This Enerpac LW-16 single-acting hydraulic lifting wedge with 16-ton maximum lifting force and automatic retraction lifts an object up to 2.02" above a surface. The wedge tip has four steps that provide 0.83" of vertical lift each for a customized lifting height. The wedge requires a 0.39" access gap between the surface and the object being lifted. SpecificationsMaximum lifting force16 tonsTip clearance0.39 inchesLifting stroke0.83 inchesMaximum lifting height2.02 inchesMaximum operating pressure10,000 psiOil capacity4.75 cubic inchesEnerpac manufactures high-pressure tools and equipment for industrial applications. The company, founded in 1910, is headquartered in Menomonee Falls, WI.WHAT'S IN THE BOX * Enerpac LW-16 lifting wedge * Enerpac SB-2 safety block
- Requires a 0.39" access gap between the surface and the object being lifted
- Maximum lifting force of 16 tons at 10,000 psi hydraulic pressure
- Maximum lifting height of 2.02 inches
- Stepped tip for four lifting height options
- Single-acting hydraulic lifting wedge with automatic retraction to raise objects
Specifications:
| Materials & Construction | |
| Color | Silver |
| Product Details | |
| Lifting Stroke | 0.83 inches |
| Load Capacity | 16 ton |
| Maximum Lifting Height | 2.02 inches |
| Minimum Height | 2.02 Inches |
| Oil Capacity | 4.75 |
| Pressure Rating (Psi) | 10000 |
| Tip Clearance | 0.39 inches |
| Type | Air-Hydraulic |
| Sizing & Dimensions | |
| Height | 5.75 inches |
| Length | 14.5 inches |
| Product Dimensions | 14.5 x 6.75 x 5.75 inches |
| Size | 14.5 x 6.75 x 5.75 inches |
| Weight | 20.85 pounds |
| Width | 6.75 inches |
| Technical Specifications | |
| Lifting mechanism | Single-acting hydraulic with automatic retraction |
| Maximum operating pressure | 10,000 psi |
