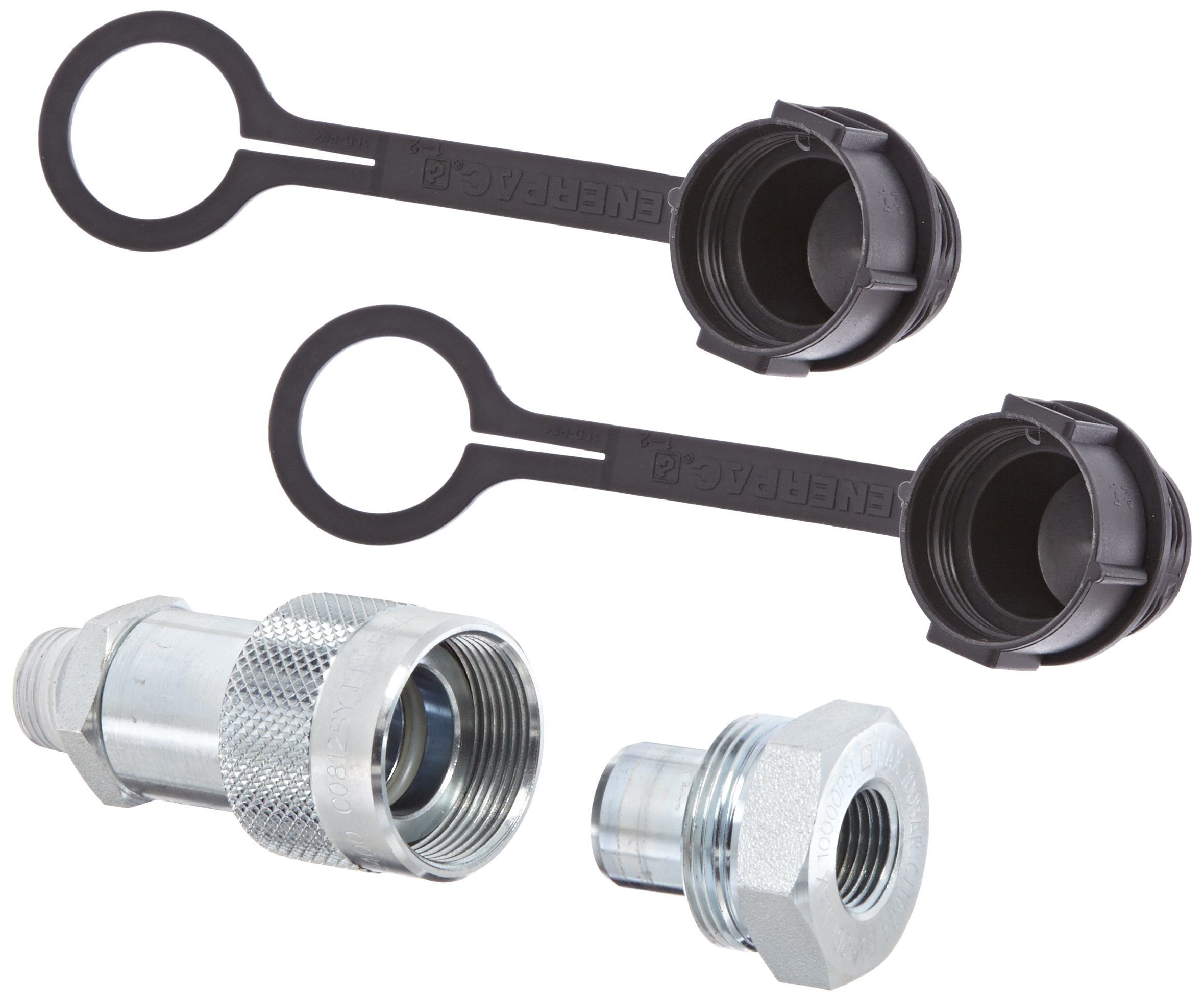

Enerpac C-604 3/8" High Flow Coupler
Customize
Hydraulic Hose High-Flow Coupler Set: 3/8", 10,000 psi Steel, NPTF, Threaded, Fitting Type: High-Flow Coupler Set , Pressure Rating: 10000 , Hose Size: 3/8 in , Material: Steel , Thread Size (Inch): 3/8 , Shape: Straight , Connection Type: Threaded , Maximum Working Pressure (Psi - 3 Decimals): 1000.00 , Maximum Working Pressure (bar): 10000.00 , Overall Length (Decimal Inch): 3.2600 , Overall Length (mm): 83.00 , For Use With: Enerpac Pump & Cylinder , Series: C , Shaft Type: NPTF. This Enerpac C-604 is a quick-disconnect hydraulic coupler for shut-off when disconnected. It is made of steel for strength and durability. The socket has a 3/8" male National Pipe Taper (NPT) threaded connection on one end for connecting to a female hose fitting and a coupler connection on the other end. The plug has 3/8" male NPT threads on one end for connecting to a female hose fitting and a coupler connection. The maximum working pressure is 10,000 pounds per square inch (psi). This quick-disconnect coupler comes with dust caps for protection against contaminants and is suitable for hydraulic applications including cylinders, tools, and pumps. Hose fittings connect, control, change the direction of, and terminate the flow in piping and hose systems. They are made of brass, stainless steel, galvanized steel, and other materials that resist corrosion, pressure, and wear. Hose fittings have various types of connections, including threaded, barbed, push-to-connect, dry disconnect, and others including those based on internationally-accepted specifications. Hose fittings are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation. Enerpac manufactures high-pressure tools and equipment for industrial applications. The company, founded in 1910, is headquartered in Menomonee Falls, WI. WHAT'S IN THE BOX * Socket (CR-400) * Plug (CH-604) * 2 Dust caps (CD-411)
- Dust caps for protection against contaminants
- Maximum working pressure of 10,000 psi
- 3/8" male NPT threads on one end for connecting to a female hose fitting and 3/8" female NPT threads on the other for connecting to a male fitting
- Steel for strength and durability
- Quick-disconnect coupler for shut-off when disconnected
Specifications:
| Materials & Construction | |
| Color | Silver, Black |
| Exterior Finish | Brass |
| Material | Steel |
| Product Details | |
| Connection Type | Threaded |
| Connector Type | Coupler |
| Exterior Finish | Brass |
| Fitting Type | High-Flow Coupler Set |
| For Use With | Enerpac Pump & Cylinder |
| Hose Size | 3/8 in |
| Item model number | C-604 |
| Number of Pieces | 1 |
| Pressure Rating | 10000 |
| Series | C |
| Shaft Type | Nptf |
| Shape | Straight |
| Thread Size (Inch) | 3/8 |
| Sizing & Dimensions | |
| Height | 1 inches |
| Item dimensions L x W x H | 1 x 1 x 1 inches |
| Length | 1 inches |
| Product Dimensions | 1 x 1 x 1 inches |
| Weight | 12.79 ounces |
| Width | 1 inches |
| Technical Specifications | |
| Maximum Working Pressure (Bar) | 10000.00 |
| Maximum Working Pressure (Psi - 3 Decimals) | 1000.00 |
| National Stock Number | 4730-01-148-5006 |
| Pressure Rating | 10000 |
| Thread Type | NPT |
| UNSPSC Code | 40141734 |
