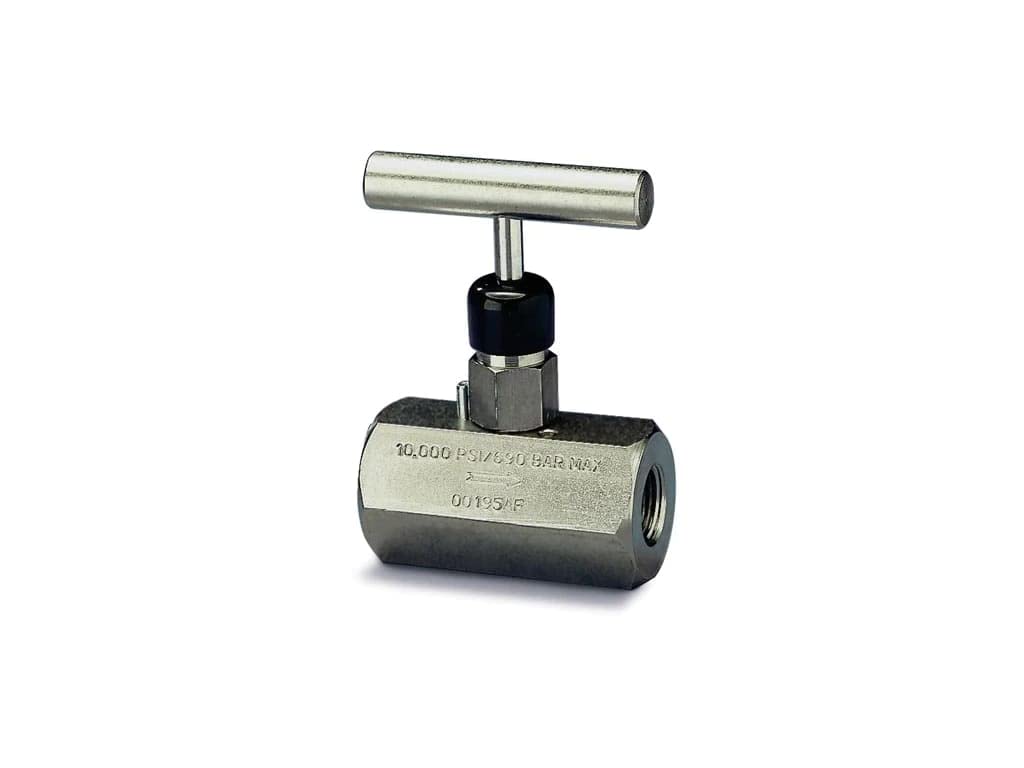

The ENERPAC V-82 needle valve is a high-pressure hydraulic control valve designed for precise oil flow regulation and temporary load holding. Rated to 10,000 psi, it features 3/8-18 NPTF oil ports and a corrosion-resistant exterior finish (stainless steel finish). Typical uses include controlling cylinder speed, gauge snubbing, and serving as a shut-off valve in hydraulic systems. Product details include a needle valve design, 3/8-18 inlet thread (NPTF), two ports, and compliance notes/specifications such as ASME B16.34 and RoHS where applicable. Dimensions and weights are provided for installation and compatibility checks.
| Materials & Construction | |
| Exterior Finish | Stainless Steel |
| Material | Medium carbon steel |
| Product Details | |
| Global Trade Identification Number | 00662005659302 |
| Inlet Connection Type | National Pipe Tapered |
| Inlet Size | 3/8-18 |
| Item model number | V-82 |
| Maximum Operating Pressure | 1E+4 Pound per Square Inch |
| Number of Ports | 2 |
| Outlet Connection Type | FNPT |
| Specification Met | ASME B16.34, RoHS |
| Thread Standard | Nptf |
| Valve Type | Needle |
| Sizing & Dimensions | |
| Height | 3.50 inches |
| Length | 2.38 inches |
| Product Dimensions | 5 x 4 x 5 inches |
| Product Weight | 1.23 pounds |
| Weight | 1.25 pounds |
| Width | 1.87 inches |
| Technical Specifications | |
| Maximum Operating Pressure | 1E+4 Pound per Square Inch |
| Maximum Working Pressure (Psi - 3 Decimals) | 10000 |
| Specification Met | ASME B16.34, RoHS |
