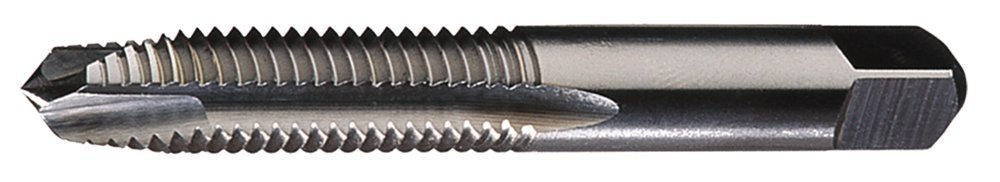

Spiral Point Tap: 5/16-18 UNC, 2 Flutes, Plug Chamfer, 3B Class of Fit, HSS, Bright/Uncoated Coated
Customize
Spiral Point Tap: 5/16-18 UNC, 2 Flutes, Plug Chamfer, 3B Class of Fit, HSS, Bright/Uncoated Coated 1-1/8" Thread Length, 2-23/32" OAL, Right Hand, H3, Series 5301, Thread Size (Inch): 5/16-18 , Thread Standard: UNC , Chamfer: Plug , Material: Hss , Thread Limit: H3 , Class Of Fit: 3B , Coating/Finish: Bright/Uncoated , Thread Direction: Right Hand , Coolant Through: No , Number Of Flutes: 2 , Material Application: Cast Iron; Ductile Iron; Non-Ferrous Metal , Oversize: No , Overall Length (Inch): 2-23/32 , Overall Length (Decimal Inch): 2.7200 , Thread Length (Decimal Inch): 1.1250 , Thread Length (Inch): 1-1/8 , Shank Diameter (Decimal Inch): 0.3180 , Measurement Type: Fractional Inch , Series: 5301. Product marketing and specs: Spiral Point Tap, Right Hand, Tap Style Plug, Size 5/16 In., Pitch 18, Material High Speed Steel, Bright Finish, Overall Length 2-23/32 In., Thread Length 1-1/8 In., Shank Dia. 0.318 In., Number of Flutes 2, Thread Type UNC, Pitch Diameter Limits H3, List Number 1011, Standards USCTI 302.
- Manufacturer: Greenfield Threading
- Country of manufacture: United States
- Power Cutting & Sawing
Specifications:
| Materials & Construction | |
| Coating/Finish | Bright/Uncoated |
| Material | Hss |
| Outer Material | Hss |
| Product Details | |
| Chamfer | Plug |
| Class Of Fit | 3b |
| Coating/Finish | Bright/Uncoated |
| Coolant Through | No |
| Material | Hss |
| Material Application | Cast Iron; Ductile Iron; Non-Ferrous Metal |
| Measurement Type | Fractional Inch |
| Number Of Flutes | 2 |
| Oversize | No |
| Series | 5301 |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Thread Direction | Right Hand |
| Thread Limit | H3 |
| Thread Size (Inch) | 5/16-18 |
| Thread Standard | Unc |
| Sizing & Dimensions | |
| Height | 0.5 inches |
| Length | 3.5 inches |
| Product Dimensions | 3.5 x 0.6 x 0.5 inches; 1.06 ounces |
| Thread Length (Decimal Inch) | 1.1250 |
| Thread Length (Inch) | 1-1/8 |
| Weight | 1.06 ounces |
| Width | 0.6 inches |
| Technical Specifications | |
| Series | 5301 |
| Thread Limit (Pitch Diameter Limits) | H3 |
