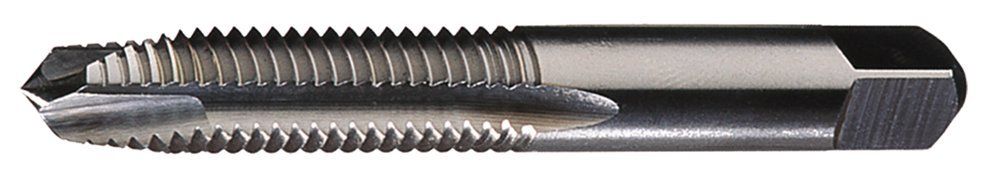

GT/VTD 5/16-24NF SPGP H3 2 flute GP plug Spiral Point tap. This industrial-grade spiral point tap (Model 357405) is manufactured for through-hole threading applications and general purpose use. Features: 5/16-24 thread size, SPGP (spiral point) design for efficient chip evacuation, H3 thread limit, 2 flutes, GP (plug) chamfer, HSS bright/uncoated finish, right-hand thread. Product dimensions: 3.6 x 0.6 x 0.5 inches; 1 Pounds. Material application includes non-ferrous metals and steel. Series/Type: GT/VTD. Ideal for machinists and industrial maintenance where reliable, high-quality threads are required.
| Materials & Construction | |
| Color | Bright/Uncoated |
| Material | Hss |
| Outer Material | Hss |
| Product Details | |
| Chamfer | Plug |
| Class Of Fit | 3b |
| Coating/Finish | Bright/Uncoated |
| Coolant Through | No |
| Material | Hss |
| Material Application | Cast Iron; Ductile Iron; Non-Ferrous Metal |
| Number Of Flutes | 2 |
| Oversize | No |
| Series | 5301 |
| Thread Direction | Right Hand |
| Thread Limit | H3 |
| Thread Size (Inch) | 5/16-24 |
| Thread Standard | Unf |
| Sizing & Dimensions | |
| Height | 0.5 inches |
| Length | 3.6 inches |
| Product Dimensions | 3.6 x 0.6 x 0.5 inches |
| Product Weight | 0.0485 |
| Size | 5/16-24 |
| Weight | 1 pounds |
| Width | 0.6 inches |
| Technical Specifications | |
| Country of Origin | USA |
| Measurement Type | Fractional Inch |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Thread Length (Decimal Inch) | 1.1250 |
| Thread Length (Inch) | 1-1/8 |
