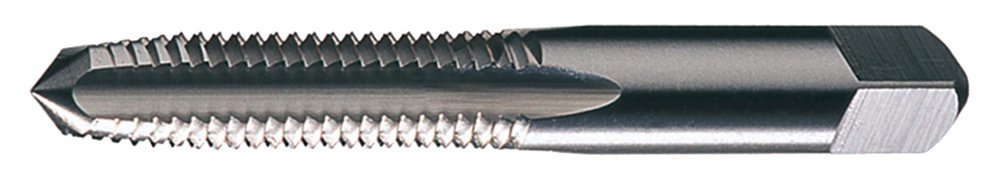

Straight Flute Tap: 3/8-24 UNF, 4 Flute, Bottoming Chamfer, 3B Class of Fit, High-Speed Steel, Bright/Uncoated Finish
Customize
Straight Flute Tap: 3/8-24 UNF, 4 Flute, Bottoming Chamfer, 3B Class of Fit, High-Speed Steel, Bright/Uncoated Finish. 1-1/4" Thread Length, 2-15/16" OAL, Right Hand, H3, Series 5305 & 5303. Tap Type: Standard. Thread Size (Inch): 3/8-24. Thread Standard: UNF. Chamfer: Bottoming. Material: High-Speed Steel. Coating/Finish: Bright/Uncoated. Thread Direction: Right Hand. Coolant Through: No. Class Of Fit: 3B. Thread Limit: H3. Number Of Flutes: 4. Oversize: No. Thread Length (Decimal Inch): 1.2500. Shank Diameter (Decimal Inch): 0.3810. Material Application: Cast Iron; Non-Ferrous Metal. Series: 5305; 5303. Additional marketing/spec details: Hand Tap, Right Hand, Tap Style Bottoming, Size 3/8 In., Pitch 24, Material High Speed Steel, Bright Finish, Standards USCTI 302.
- Power Cutting & Sawing
- Country of manufacture: United States
- Manufacturer: Greenfield Threading
Specifications:
| Materials & Construction | |
| Color | Bright/Uncoated |
| Material | High-Speed Steel |
| Outer Material | High-Speed Steel |
| Product Details | |
| Chamfer | Bottoming |
| Class Of Fit | 3b |
| Coating/Finish | Bright/Uncoated |
| Coolant Through | No |
| Material | High-Speed Steel |
| Material Application | Cast Iron; Non-Ferrous Metal |
| Number Of Flutes | 4 |
| Oversize | No |
| Series | 5305; 5303 |
| Shank Diameter (Decimal Inch) | 0.3810 |
| Tap Type | Standard |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 1.2500 |
| Thread Length (Inch) | 1-1/4 |
| Thread Limit | H3 |
| Thread Size (Inch) | 3/8-24 |
| Thread Standard | Unf |
| Unspsc Code | 23241600 |
| Sizing & Dimensions | |
| Length | 2.9375 inches |
| Product Dimensions | 2-15/16 inches |
| Size | 3/8-24 |
| Weight | 5.07 pounds |
| Technical Specifications | |
| Thread Direction | Right Hand |
| Thread Limit | H3 |
