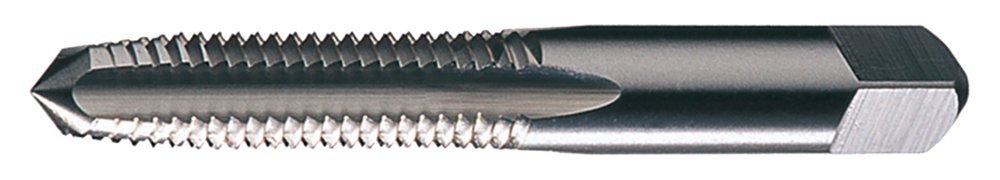

GT/VTD 1/2-13NC HTGP H3 4FL GP Bottom Hand tap. / Product details: Tap Type: Standard; Thread Size (Inch): 1/2-13 (1/2-13NC); Overall Length (Decimal Inch): 3.3800; Thread Standard: UNC/NC; Chamfer: Bottoming (GP Bottom); Material: High-Speed Steel; Coating/Finish: Bright/Uncoated; Thread Direction: Right Hand; Coolant Through: No; Class Of Fit: 3B; Thread Limit: H3; Number Of Flutes: 4; Thread Length (Decimal Inch): 1.6560; Shank Diameter (Decimal Inch): 0.3670; Material Application: Cast Iron; Non-Ferrous Metal; Series: 5305; 5303. Product Dimensions (per marketplace): 4.6 x 0.9 x 0.8 inches; 1 Pounds. Item model number: 306311.
| Materials & Construction | |
| Material | High-Speed Steel |
| Outer Material | High-Speed Steel |
| Product Details | |
| Chamfer | Bottoming |
| Class Of Fit | 3b |
| Coating/Finish | Bright/Uncoated |
| Coolant Through | No |
| Country of Origin | USA |
| Item model number | 306311 |
| Material | High-Speed Steel |
| Material Application | Cast Iron; Non-Ferrous Metal |
| Number Of Flutes | 4 |
| Oversize | No |
| Series | 5305; 5303 |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Tap Type | Standard |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 1.6560 |
| Thread Limit | H3 |
| Thread Size (Inch) | 1/2-13 |
| Thread Standard | Unc |
| Unspsc Code | 23241600 |
| Sizing & Dimensions | |
| Height | 0.8 inches |
| Length | 4.6 inches |
| Product Dimensions | 4.6 x 0.9 x 0.8 inches |
| Size | 1/2-13NC |
| Weight | 1 pounds |
| Width | 0.9 inches |
| Technical Specifications | |
| Number Of Flutes | 4 |
| Thread Direction | Right Hand |
