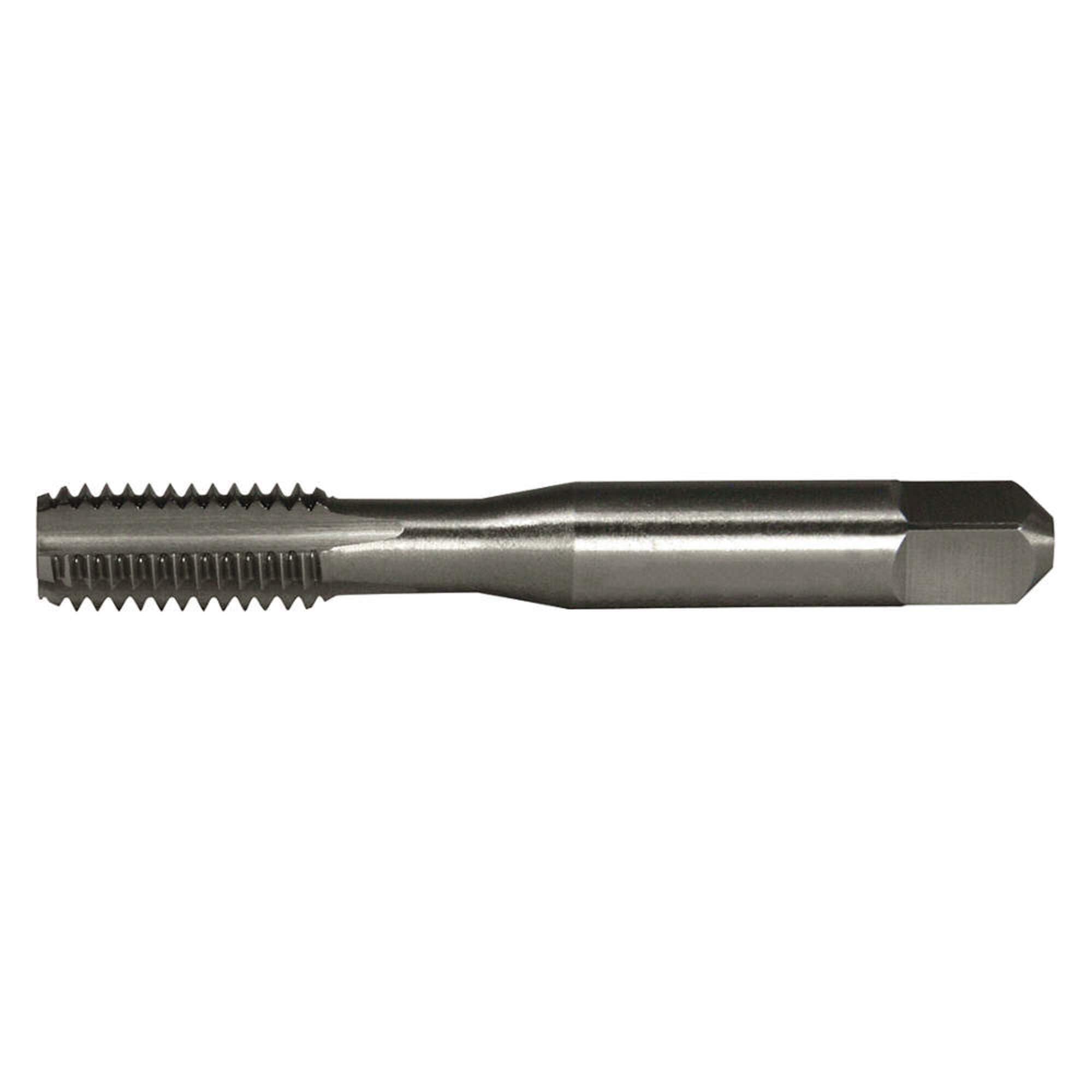

GT/VTD 3/4-10NC HTGP H3 4FL GP Bottom Hand Tap. Standard tap type for blind/bottoming applications. Overall length ~4.25 in (4-1/4), thread length 2 in, 4 flutes, bottoming chamfer, High-Speed Steel bright/uncoated finish. Shank diameter 0.5900 in. Suitable for cast iron, non-ferrous metals and common steel applications. Product dimensions approx. 4.5 x 1 x 1 inches; product weight approx. 4.4 ounces. Series: 5305; 5303. Thread standard: UNC. Thread direction: Right Hand. Thread limit: H3.
| Materials & Construction | |
| Coating/Finish | Bright/Uncoated |
| Material | High-Speed Steel |
| Product Details | |
| Chamfer | Bottoming |
| Coating/Finish | Bright/Uncoated |
| Coolant Through | No |
| Material Application | Cast Iron; Non-Ferrous Metal |
| Number Of Flutes | 4 |
| Oversize | No |
| Series | 5305; 5303 |
| Shank Diameter (Decimal Inch) | 0.5900 |
| Tap Type | Standard |
| Thread Direction | Right Hand |
| Thread Limit | H3 |
| Thread Size (Inch) | 3/4-10 |
| Thread Standard | Unc |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 4.5 inches |
| Product Dimensions | 4.5 x 1 x 1 inches; 4.4 ounces |
| Thread Length (Decimal Inch) | 2.0000 |
| Thread Length (Inch) | 2 |
| Weight | 4.4 ounces |
| Width | 1 inches |
| Technical Specifications | |
| Coolant Through | No |
| Thread Limit | H3 |
