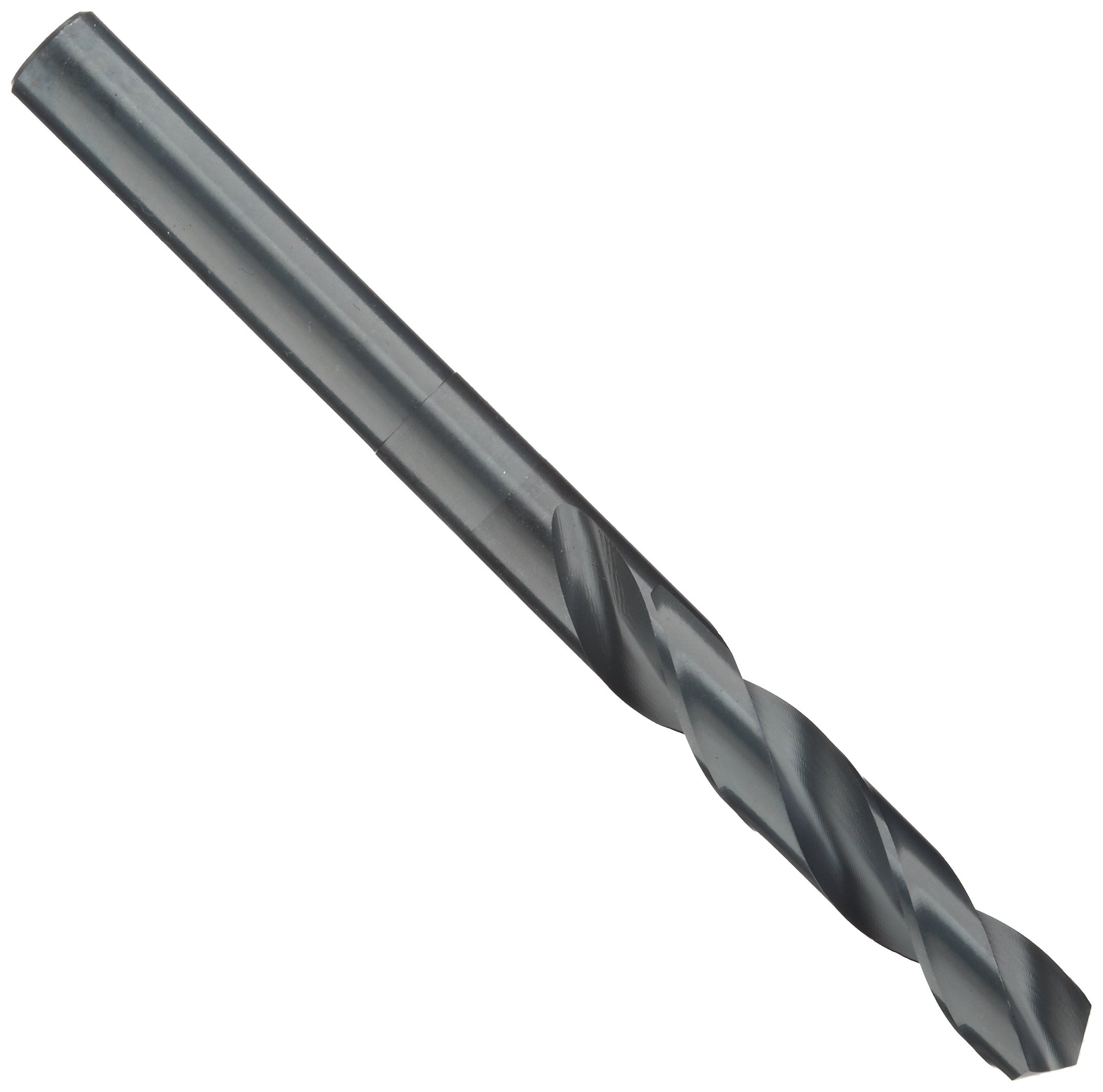

Chicago Latrobe 190 High-Speed Steel Reduced Shank Drill Bit, Black Oxide Finish, Round Shank, 118 Degree Conventional Point

Chicago Latrobe 190 reduced shank drill bit combines high-speed steel construction with a black oxide/coated finish for increased wear resistance and lubricity. It features a 5/8" (0.625") cutting diameter, 1/2" (0.500") reduced shank for use in larger drill chucks, a 118° conventional point for general-purpose drilling, 3-1/8" flute length and 6" overall length. The shank is straight-cylindrical (reduced shank type) with a 2.25" shank length (57.15 mm). Spiral flute design with 2 flutes and right-hand cutting direction. Tolerance: +0.0000 to -0.0012 in. Series 190, intended for portable drilling applications; suitable for wood and secondary workpiece materials including alloy steel, carbon steel and cast iron. Manufactured/packaged in the USA and offered in an industry-standard configuration for tool rooms and maintenance operations.

• Made in the USA
• Standardized lengths result in minimal adjustment during tool changes in screw machines and machining centers
• Increased rigidity is ideal for portable drilling
• Black oxide finish for increased wear resistance and added lubricity standard from stock
• Features 6" overall length and 3 1/8" flute length for increased rigidity, less deflection, and better hole accuracy
• Larger size general-purpose drills with 1/2" reduced shank
