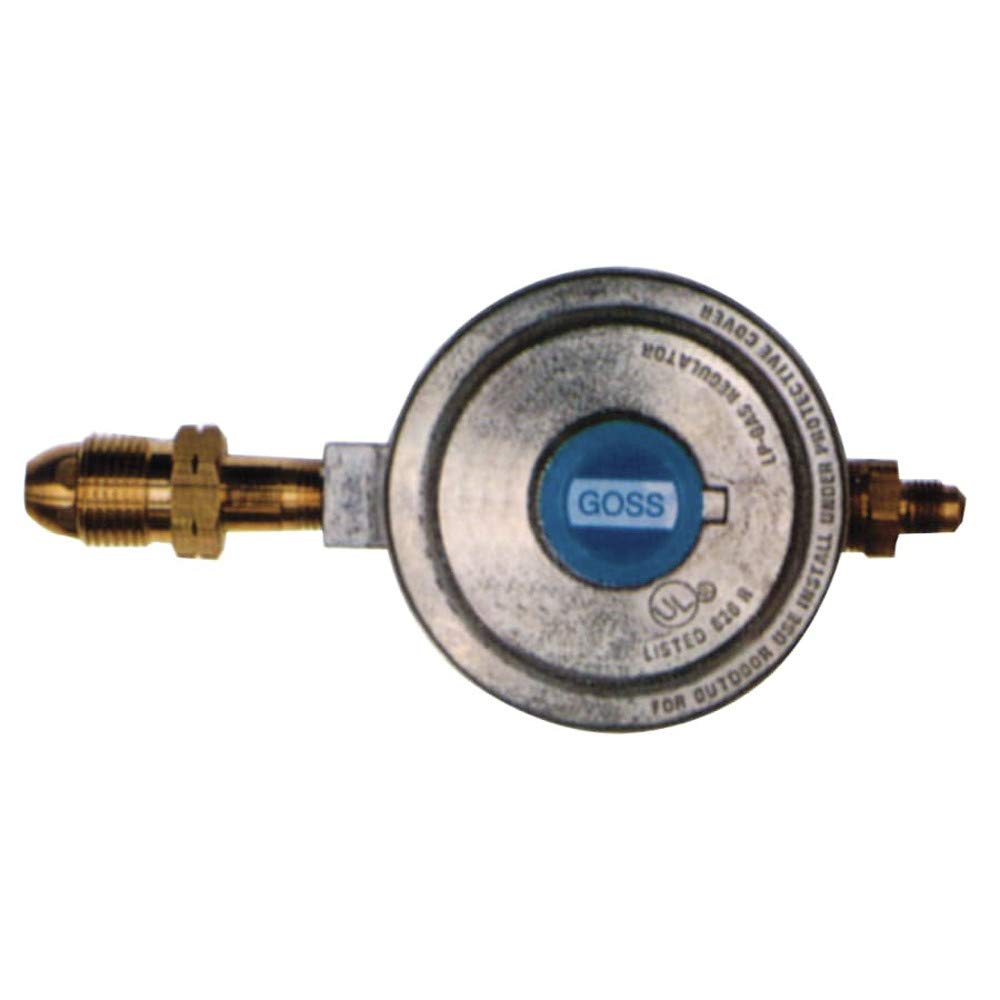

GOSS, EP-60-3, GO EP-60-3 REGULATOR
Customize
EP-60-3 Model Code: AC - Price is for 1 Each (part# EP-60-3) This item features: -For applications requiring low gas pressure. -UL listed with NPT inlet NPT outlet. -Do not use with any Goss LP torch or furnace equipment. -For vapor withdrawal cylinders. -All brass regulators used with propane torches and furnaces. -Use only with vapor withdrawal cylinders. -UL listed with POL inlet spud and nut. -Gauge Not Included. -Regulator with dust cap and heavy duty inlet nut for propane gas. -Inlet Size: 1/4 in (NPT). -Outlet Type: Left Hand Thread. Model Code Model Description AAOutlet Pressure:0.0 psi [Min], 60.0 psi [Max], Pressure:5.00 psi [Min], 60.00 psi [Max], Thread - TPI or Pitch:9/16 in - 18, Type:High Pressure ABOutlet Pressure:0.0 psi [Min], 70.0 psi [Max], Pressure:5.00 psi [Min], 60.00 psi [Max], Thread - TPI or Pitch:9/16 in - 18, Type:High Pressure ACPressure:11.00 inH2O [Max], Outlet Size:3/8 in (NPT), Type:Low Pressure ADPressure:5.00 psi [Min], 60.00 psi [Max], Thread - TPI or Pitch:9/16 in - 18, Type:High Pressure
- GO EP-60-3 REGULATOR
Specifications:
| Materials & Construction | |
| Material | Brass |
| Outer Material | Brass |
| Product Details | |
| Model Number | EP-60-3 |
| Style | Regulator |
| Sizing & Dimensions | |
| Height | 2.7 inches |
| Length | 5.45 inches |
| Product Dimensions | 1 x 1 x 1 inches |
| Product Weight | 1 Pounds |
| Size | 1 x 1 x 1 inches |
| Weight | 0.905 pounds |
| Width | 0.905 inches |
| Technical Specifications | |
| Additional Notes | Gauge not included. Use only with vapor withdrawal cylinders. Do not use with Goss LP torch or furnace equipment. |
| Pressure / Type (selected model AC) | 11.00 inH2O (Max) - Low Pressure |
