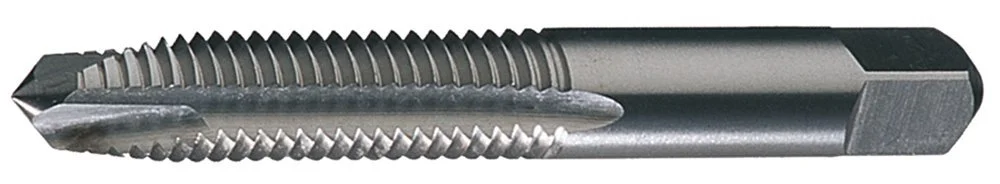

Spiral Point Tap: #4-40 UNC, 2 Flutes, Plug, 2B/3B Class of Fit, High Speed Steel, Bright Finish
Customize
Spiral Point Tap: #4-40 UNC, 2 Flutes, Plug, 2B/3B Class of Fit, High Speed Steel, Bright Finish. 9/16" Thread Length, 1-7/8" OAL, Right Hand, H2, Series 0411. Thread Size (Inch): #4-40. Thread Standard: UNC. Chamfer: Plug. Material: HSS (High Speed Steel). Thread Limit: H2. Class Of Fit: 2B/3B. Coating/Finish: Bright/Uncoated. Thread Direction: Right Hand. Coolant Through: No. Number Of Flutes: 2. Material Application: Steel; Cast Iron; Non-Ferrous Metal. Application: Through-Hole Threading. Measurement Type: Fractional Inch. Square Size (mm): 2.79. Series: 0411. Style: Spiral Point. Marketing/Usage: Cle-Line spiral point tap features a spiral point that pushes chips forward for efficient through-hole threading and improved chip evacuation. The plug chamfer is suited for general purpose use; HSS substrate and bright finish provide economical performance for threading steel, cast iron and non-ferrous metals. Ground thread geometry supports reliable thread form and longer tool life.
- Ground thread for economical tapping
- HSS substrate, bright finish
- Plug chamfer for general purpose applications
- Spiral point pushes chips forward for through hole applications
Specifications:
| Materials & Construction | |
| Color | Bright/Uncoated |
| Material | HSS |
| Outer Material | HSS |
| Product Details | |
| Application | Through-Hole Threading |
| Chamfer | Plug |
| Class Of Fit | 2b/3b |
| Coating/Finish | Bright/Uncoated |
| Coolant Through | No |
| Interrupted Thread | No |
| Material | HSS |
| Material Application | Steel; Cast Iron; Non-Ferrous Metal |
| Measurement Type | Fractional Inch |
| Number Of Flutes | 2 |
| Oversize | No |
| Series | 0411 |
| Square Size (Mm) | 2.79 mm |
| Style | Spiral Point |
| Thread Direction | Right Hand |
| Thread Limit | H2 |
| Thread Size (Inch) | #4-40 |
| Thread Standard | Unc |
| Threads Per Inch | 40 |
| Sizing & Dimensions | |
| Height | 0.1100 inches |
| Length | 1.875 inches |
| Product Dimensions | 1.875 x 0.1410 x 0.1100 inches |
| Product Weight | 0.6200 pounds |
| Size | #4-40 |
| Weight | 0.62 pounds |
| Width | 0.1410 inches |
| Technical Specifications | |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Shank Diameter (Mm) | 3.58 mm (0.1410 inches) |
| Square Size (Mm) | 2.79 mm (0.1100 inches) |
| Thread Length (Decimal Inch) | 0.5625 inches |
| Thread Length (Inch) | 9/16 |
| Thread Length (Mm) | 14.29 mm (0.5625 inches) |
| Thread Pitch (Decimal Inch) | 0.025 |
