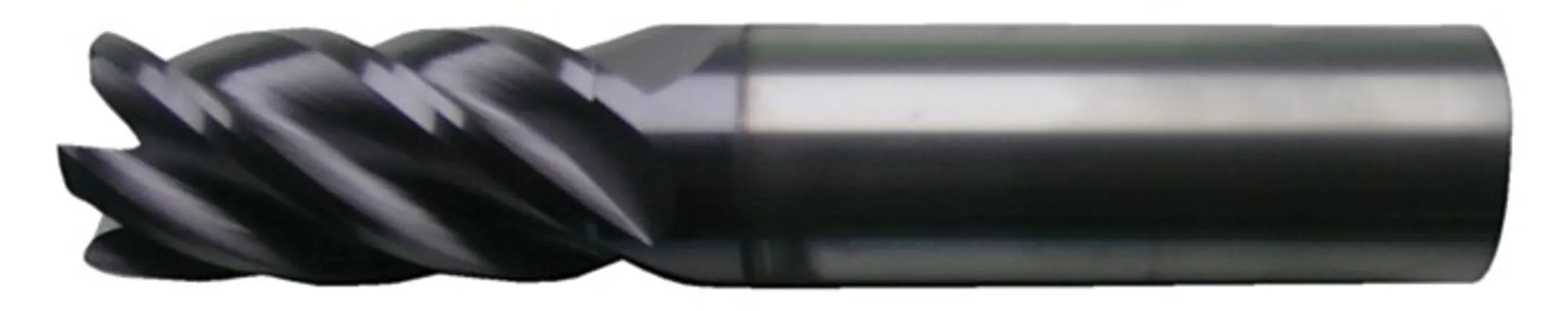

CLEVELAND Cor Rad End Mill,1",Carb,0.0300" rad C80606
Customize
Corner Radius & Corner Chamfer End Mills. CLEVELAND Cor Rad End Mill, 1" (25.40 mm) solid carbide, 5 flutes, variable index/variable helix characteristics for improved finish. Length of cut: 2-1/4" (2.2500" / 57.15 mm). Overall length: 5.0000" (127.00 mm). Corner radius: 0.0300" (0.762 mm). Single end, centercutting, right-hand cutting and flute direction. Coating/Finish: AP/MAX. Shank: 1" round straight shank. Primary workpiece materials: Steel; Stainless Steel; High-Temperature Alloy (codes P; M; S). Material grade: Submicron. Series: CEM-V2-5R-TA. Designed for finishing operations; chipbreaker: No; coolant through: No; helix angle: 38°; flute type: Variable. (Contains marketing/title from RainforestProductData: "CLEVELAND Cor Rad End Mill,1\",Carb,0.0300\" rad C80606".)
- CLEVELAND Cor Rad End Mill,1",Carb,0.0300" rad C80606
Specifications:
| Materials & Construction | |
| Material | Solid Carbide |
| Primary Workpiece Material | Steel; Stainless Steel; High-Temperature Alloy |
| Secondary Workpiece Material | Hard Material |
| Product Details | |
| Centercutting | Yes |
| Chipbreaker | No |
| Coating/Finish | Ap/Max |
| Cutting Direction | Right Hand |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius; Single |
| Extended Reach | No |
| Flute Direction | Right Hand |
| Flute Type | Variable |
| Length Type | Regular |
| Material Grade | Submicron |
| Material Removal Type | Finishing |
| Series | Cem-V2-5r-ta |
| Shank Type | Round; Straight |
| Single Or Double End | Single End |
| Variable Helix | No |
| Variable Index | Yes |
| Sizing & Dimensions | |
| Corner Radius (Decimal Inch) | 0.0300 inches |
| Corner Radius (Mm) | 0.0300 inches |
| Height | 2 inches |
| Helix Angle | 38 |
| Length Of Cut (Inch) | 2-1/4 |
| Length Of Cut (Mm) | 2.2500 inches |
| Length | 5 inches |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Mm) | 1.0000 inches |
| Number Of Flutes | 5 |
| Product Dimensions | 5 x 2 x 2 inches |
| Product Weight | 0.8300 |
| Shank Diameter (Decimal Inch) | 1 |
| Shank Diameter (Mm) | 1.0000 inches |
| Size | 1 inch |
| Weight | 1.6 pounds |
| Width | 2 inches |
| Technical Specifications | |
| Centercutting | Yes |
| Coating/Finish | Ap/Max |
| Coolant Through | No |
| Is Discontinued By Manufacturer | No |
| Item model number | C80606 |
| Material Grade | Submicron |
| Series | Cem-V2-5r-ta |
