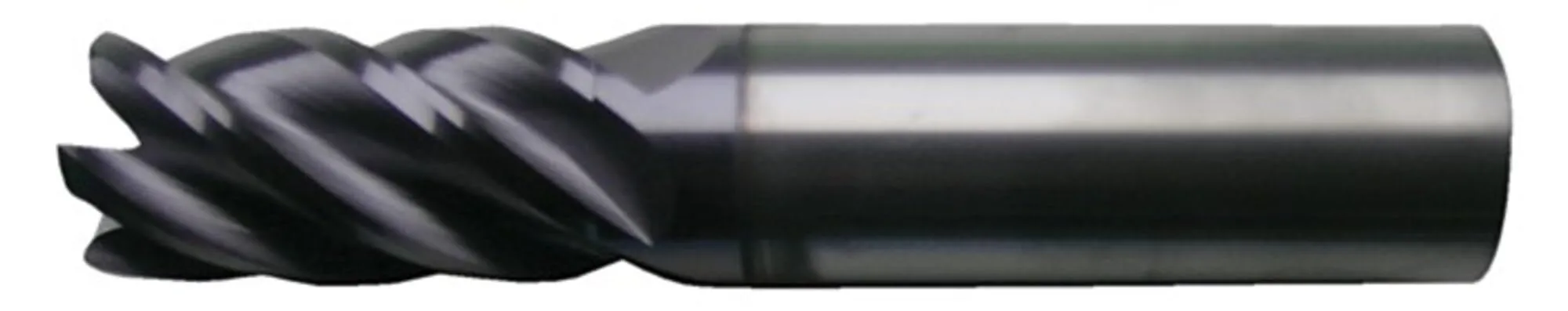

CLEVELAND Cor Rad End Mill,1",Carb,0.0300" rad C80611
Customize
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1 ; Mill Diameter (Decimal Inch): 1.0000 ; Mill Diameter (mm): 25.40 ; Number Of Flutes: 5 ; Length of Cut (Inch): 3 ; Length of Cut (mm): 76.2000, Mill Diameter (Inch): 1 , Mill Diameter (Decimal Inch): 1.0000 , Mill Diameter (mm): 25.40 , Number Of Flutes: 5 , Length of Cut (Inch): 3 , Length of Cut (mm): 76.2000 , Single Or Double End: Single End , End Mill Material: Solid Carbide , Chipbreaker: No , Coating/Finish: AP/MAX , Overall Length (Inch): 6 , Centercutting: Yes , Flute Direction: Right Hand , Corner Radius (Decimal Inch): 0.0300 , Variable Index: Yes , Variable Helix: No , Cutting Direction: Right Hand , Corner Radius (mm): 0.762 , Overall Length (mm): 152.4000 , Overall Length (Decimal Inch): 6.0000 , End Type: Corner Radius; Single , Length Of Cut (Decimal Inch - 4 Decimals): 3.0000 , Length Type: Long , Flute Type: Variable , Extended Reach: No , Shank Type: Round; Straight , Material Removal Type: Finishing , Shank Diameter (Decimal Inch): 1 , Shank Diameter (Inch): 1 , Shank Diameter (mm): 25.4000 , Primary Workpiece Material: Steel; Stainless Steel; High-Temperature Alloy , Primary Workpiece Material Code: P; M; S , Secondary Workpiece Material: Hard Material , Secondary Workpiece Material Code: H , Material Grade: Submicron , Series: CEM-V2-5R-TA. Rainforest marketing: CLEVELAND Cor Rad End Mill,1",Carb,0.0300" rad C80611. Features: 1" carbide cutting diameter, 5 flutes (variable index), 3" cutting length, AP/MAX coating. Applications: finishing on steel, stainless steel and high-temperature alloys.
- CLEVELAND Cor Rad End Mill,1",Carb,0.0300" rad C80611
Specifications:
| Materials & Construction | |
| Coating/Finish | Ap/Max |
| End Mill Material | Solid Carbide |
| Material Grade | Submicron |
| Primary Workpiece Material | Steel; Stainless Steel; High-Temperature Alloy |
| Secondary Workpiece Material | Hard Material |
| Shank Type | Round; Straight |
| Product Details | |
| Centercutting | Yes |
| Chipbreaker | No |
| Cutting Direction | Right Hand |
| End Type | Corner Radius; Single |
| Flute Direction | Right Hand |
| Flute Type | Variable |
| Length Type | Long |
| Series | CEM-V2-5R-TA |
| Single Or Double End | Single End |
| Variable Helix | No |
| Variable Index | Yes |
| Sizing & Dimensions | |
| Corner Radius (Decimal Inch) | 0.0300 inches |
| Corner Radius (Mm) | 0.762 mm (converted: 0.0300 inches) |
| Height | 1.0200 inches |
| Length Of Cut (Inch) | 3 |
| Length | 6.1400 inches |
| Mill Diameter (Decimal Inch) | 1.0000 inches |
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Mm) | 25.40 mm (converted: 1.0 inches) |
| Package Dimensions | 6 x 2 x 1.82 inches |
| Product Dimensions | 1.02 x 1.02 x 6.14 inches |
| Product Weight | 0.9100 pounds |
| Shank Diameter (Decimal Inch) | 1 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Mm) | 25.4000 mm (converted: 1.0000 inches) |
| Size | 1 inch |
| Weight | 0.91 pounds |
| Width | 1.0200 inches |
| Technical Specifications | |
| Centercutting | Yes |
| Chipbreaker | No |
| Coolant Through | No |
| Extended Reach | No |
| Flute Type | Variable |
| Helix Angle | 38 |
| Material Removal Type | Finishing |
| Number Of Flutes | 5 |
