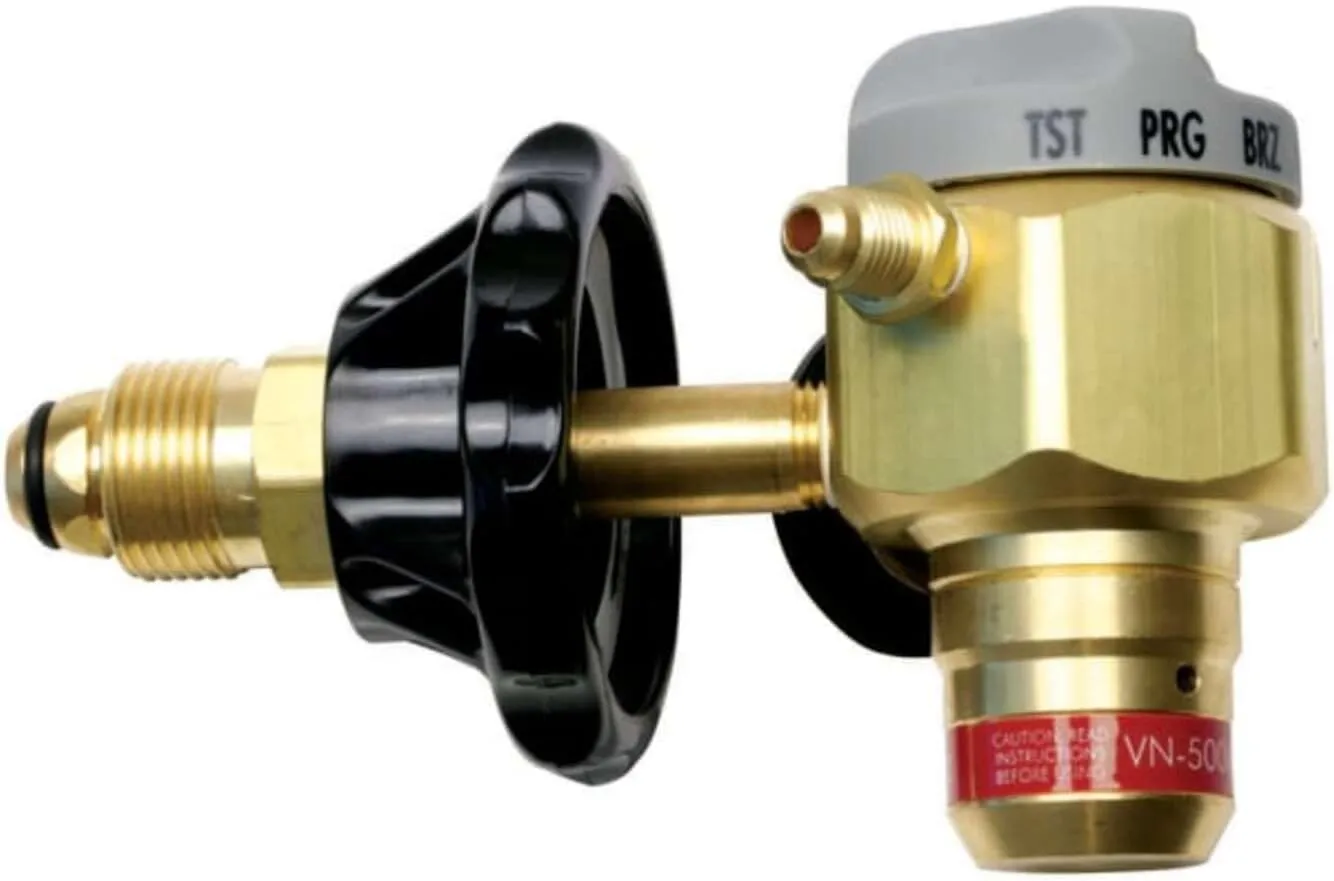

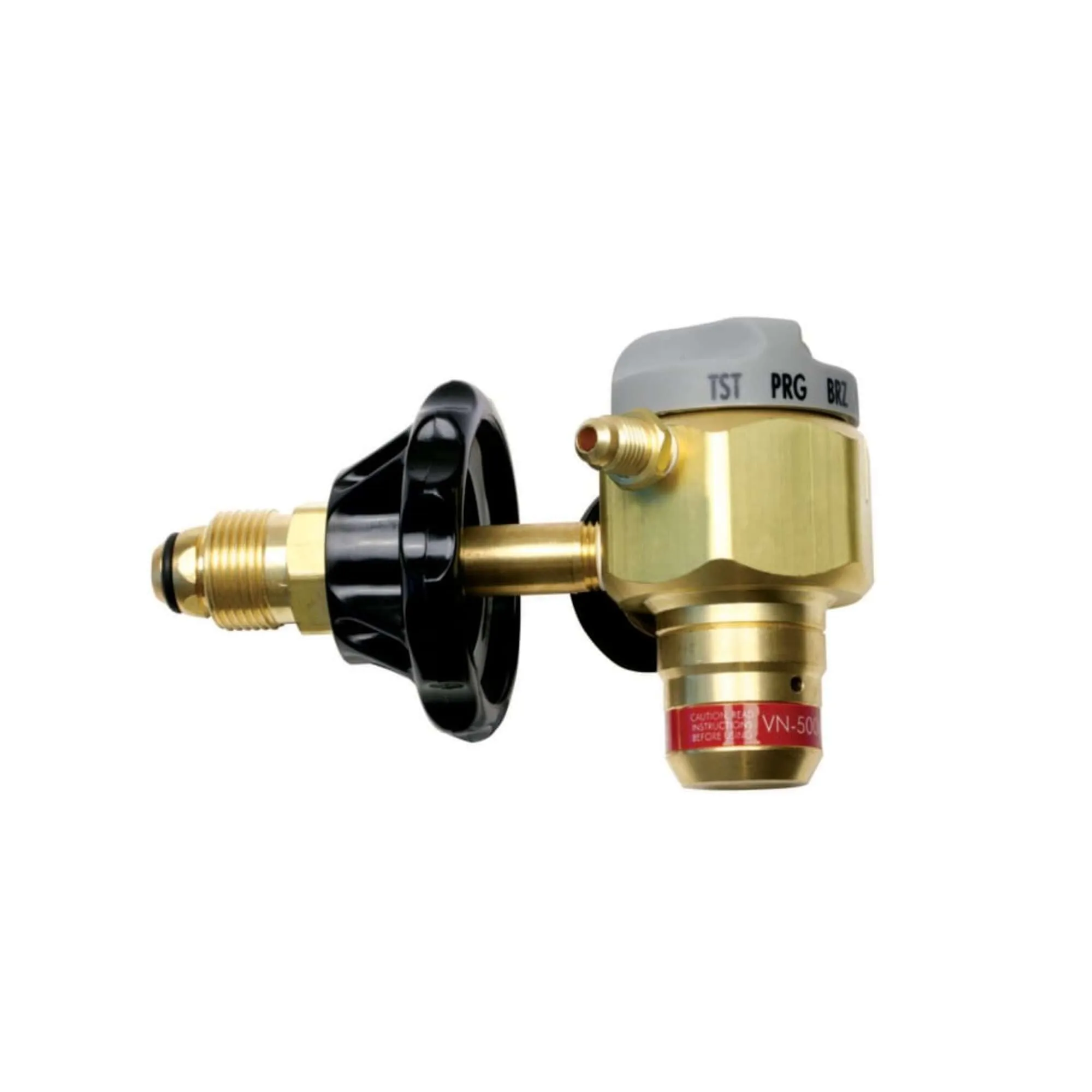

Western Enterprises VN-500 Nitrogen Purging/Test Regulator with 500 PSI Test Pressure
Western Enterprises VN-500 nitrogen purging/test regulator — preset for 500 PSI; heavy-duty brass body with integrated flowmeter and easy-to-read cylinder gauge; ideal for HVAC purging and pressure testing.
$296.96
Customize
Available Quantity
52 GSA Item
No GSA Compliant
Yes Product Details
Western Enterprises VN-500 Nitrogen Purging/Test Regulator with 500 PSI Test Pressure. Heavy-duty brass body designed for rugged field use; hybrid design combining regulator and flowmeter in one unit. Preset flow rates with an easy-to-read nitrogen cylinder content gauge for efficient purging and testing. No adaptors needed; includes male SAE flare outlet and CGA-580 inlet connections. Compact dimensions and lightweight design make it suitable for HVAC purging, pressure testing, and field service applications.
- No adaptors needed
- Hybrid design - regulator and flowmeter all in one
- Heavy-duty brass body designed for rugged field use
- Easy-to-read nitrogen cylinder Content gauge with preset flow rates
Specifications:
| Materials & Construction | |
| Color | Brass |
| Material | Brass |
| Outer Material | Brass |
| Product Details | |
| Exterior Finish | Brass |
| Exterior Finish (Exact) | Brass |
| Global Trade Identification Number | 00698944117900 |
| Included Components | PSI Test Regulator |
| Inlet Connection Size | 0.75 Inches |
| Inlet Connection Type | CGA-580 |
| Material | Brass |
| Number of Ports | 2 |
| Outlet Connection Size | 0.25 Inches |
| Outlet Connection Type | Male SAE Flare |
| Special Features | Click-Style flow selection |
| Specification Met | no |
| UPC | 698944117900 645220651542 |
| Sizing & Dimensions | |
| Height | 3.5 inches |
| Length | 5.5 inches |
| Product Dimensions | 5.5 x 3.6 x 3.5 inches |
| Size | 5.5 inches |
| Weight | 1.2 pounds |
| Width | 3.6 inches |
| Technical Specifications | |
| Maximum Operating Pressure | 500 Pound per Square Inch |
| Number of Ports | 2 |
| Warranty | Manufacturer |
