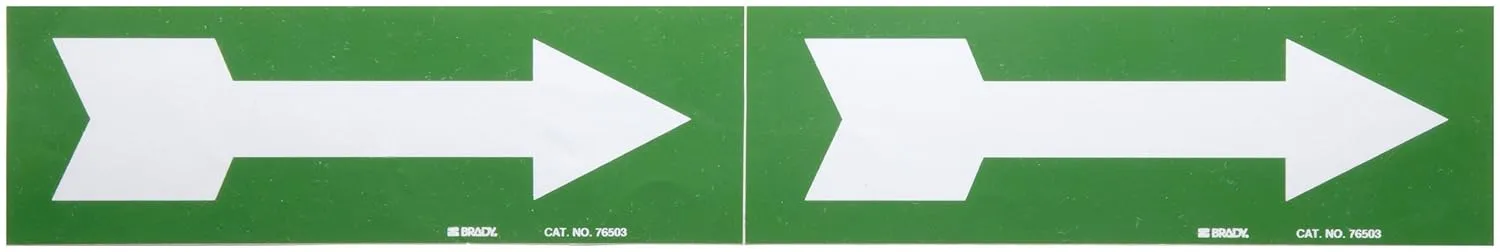

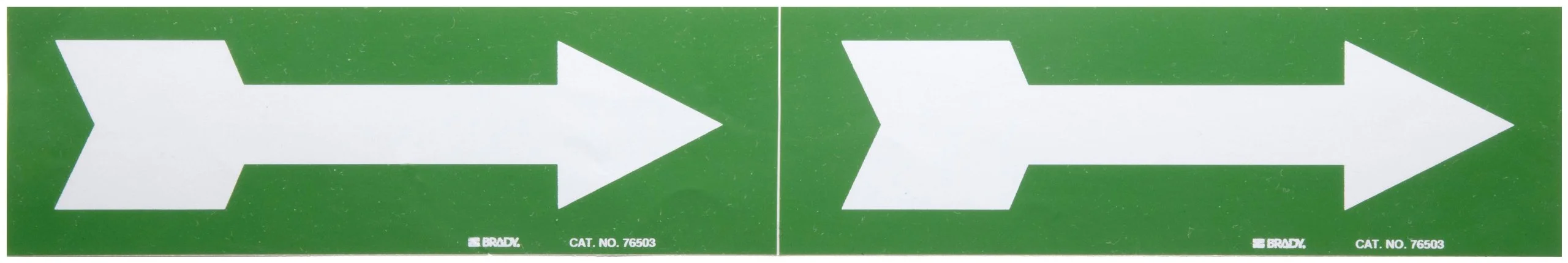

Brady 76503 2-1/4" Height, 7" Width, B-946 High Performance Vinyl, White On Green Color Self-Sticking Vinyl Arrow For 3"
Customize
Brady 76503 Self-Sticking Vinyl Arrow. Style 2 contains two 2-1/4" x 7" markers per card. Product color is white on green, max outside pipe diameter is 3" to 6", size is 2-1/4" height, 7" width, high performance vinyl material. It's used for pipemarkers, arrow tape, numbers and letters, vehicle placards, pedestal markers, warning panels and safety signs. Vinyl film substrate, Standard material colors are white, red, yellow, green, blue and orange. Standard legend colors are black, blue, red, green, white, yellow, orange and magenta. Properties of adhesive are adhesion to steel (PSTC-101), 15 minute dwell to stainless steel (average) 80 ounce/inch (87.5 N/100mm), Ultimate Dwell to stainless steel (72 hours) (average) 85 ounce/inch (93 N/100mm), 15 minute dwell to polypropylene (average)-60 ounce/inch (65 N/100mm), ultimate dwell to polypropylene (72 hours) (average)-69 ounce/inch (75 N/100mm), 5 minute dwell to powder coated metal (average)-60 ounce/inch (65 N/100mm), ultimate dwell to powder coated metal (72 hours) (average)-75 ounce/inch (82 N/100mm). CS 10 wheels, 250g Weight and legend withstands up to 350 cycles abrasion resistance (method 5306 of U.S. federal test method standard no. 191A), 60 degree 50 gardner units. Minimum application temperature is -18 degree Celsius. Service temperature is -40 degree Celsius to 82 degree Celsius.
- Brady B-946 is printed with weather resistant inks and is particularly suited for use in outdoor applications where weatherability is a key consideration
- Brady B-946 Indoor/outdoor marking film is a high gloss, durable, flexible, pressure sensitive adhesive product
- Made of durable B-946 material withstands the elements indoors and out
- Self-sticking vinyl arrows are mounted on easy-to-use dispenser cards
- Use self-sticking vinyl arrows along with pipe markers to identify directional flow of pipe contents
Specifications:
| Sizing & Dimensions | |
| Height | 0.1 inches |
| Length | 14 inches |
| Product Dimensions | 14 x 2.3 x 0.1 inches |
| Size | 2-1/4" x 7" |
| Weight | 0.32 ounces |
| Width | 2.3 inches |
| Technical Specifications | |
| Minimum Application Temperature | -18°C |
| Service Temperature | -40°C to 82°C |
