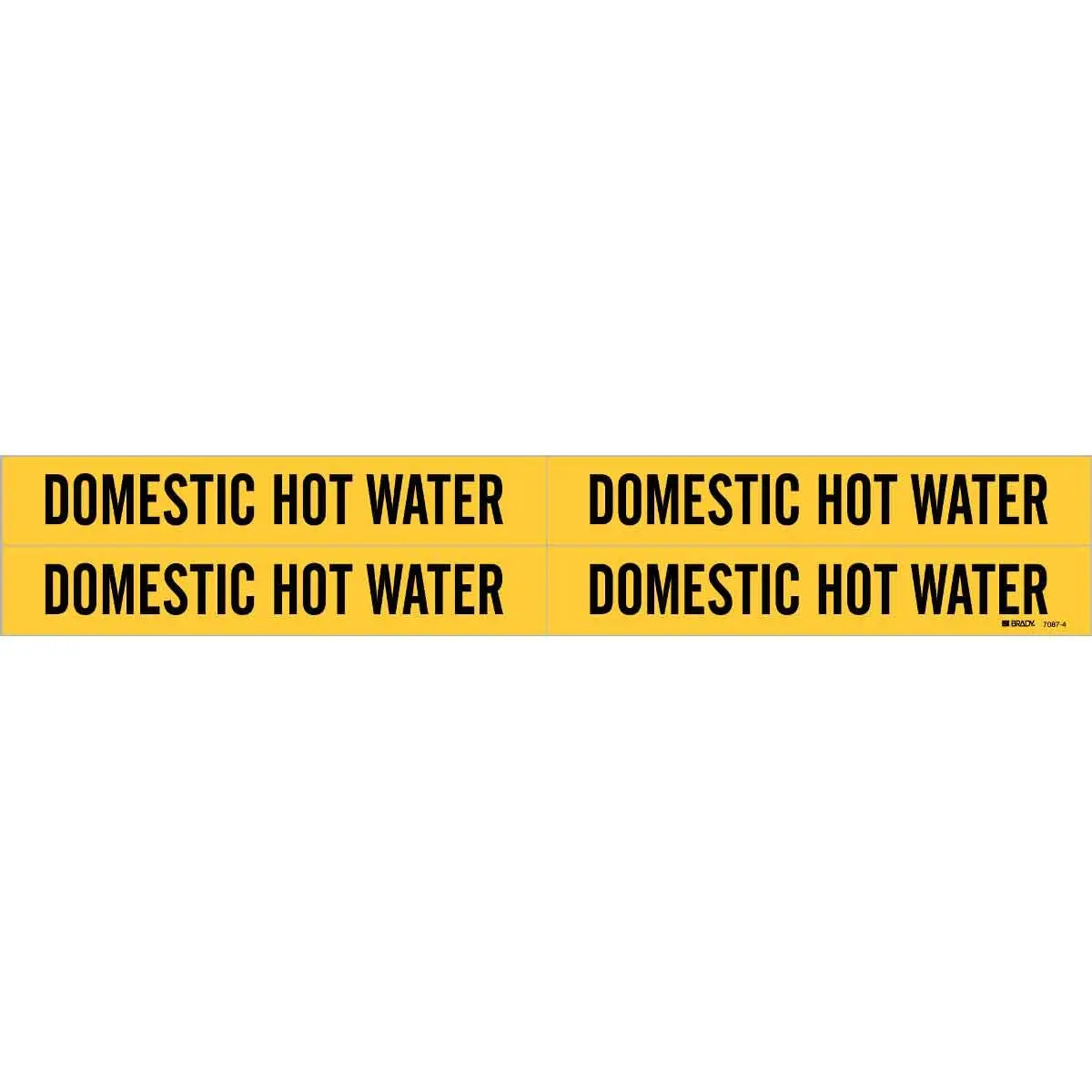

Brady 7087-4 Legend "Domestic Hot Water", 1-1/8" Height, 7" Width, 3/4" - 2-3/8" Outside Pipe Diameter

Service temperature of -40°F to 180°F. Reflective Type - Non-Reflective. Brady 92073/7087-4 B-946 indoor/outdoor marking film is a high gloss, durable, flexible, pressure sensitive adhesive product used for pipemarkers, arrow tape, numbers and letters, vehicle placards, pedestal markers, warning panels and safety signs. Permanent cold temperature pressure sensitive acrylic adhesive, vinyl film substrate type, adhesive properties are adhesion to steel (PSTC-101), 15 minute dwell to stainless steel (average)- 80ounce/inch (87.5 N/100mm), ultimate dwell to stainless steel (72 hours) (average)- 85 ounce/inch (93 N/100mm), 15 minute dwell to polypropylene (average) 60 ounce/inch (65 N/100mm), ultimate dwell to polypropylene (72 hours) (average) 69 ounce/inch (75 N/100mm), 15 minute dwell to powder coated metal (average) 60 ounce/inch (65 N/100mm) ultimate dwell to powder coated metal (72 hours) (average) 75 ounce/inch (82 N/100mm), abrasion resistance (method 5306 of U.S. federal test method standard no. 191A) is CS 10 wheels, 250g weights, Legend is withstands up to 350 cycles,60 degree 50 gardner units gloss. Legend is "DOMESTIC HOT WATER" black on yellow color. Measures 7" width by 1-1/8" height by 3/4" character height.

• Good chemical, oil and water resistance
• Average outdoor durability 8-10 years (average expected outdoor life of product will depend on user definition of failure, climate, mounting techniques and material color)
• Markers meet the requirements of the ASME (ANSI) A13.1 standard for the identification of piping system contents when used with directional flow arrow tape
• Brady B-946 is printed with weather resistant inks and is particularly suited for use in outdoor applications where weatherability is a key consideration
• Marker ends should be banded with brady directional flow arrow tape to indicate pipe content flow direction
• Markers are made of durable vinyl that is ideal for indoor and outdoor environments and are supplied on a coated backing material that makes handling and installation easy
