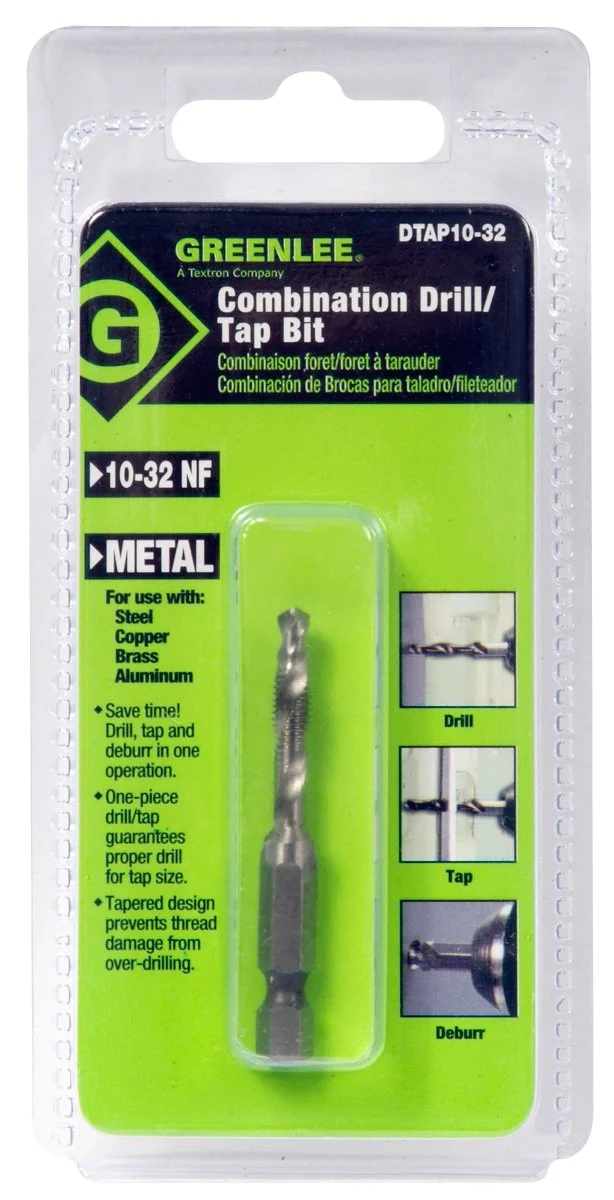

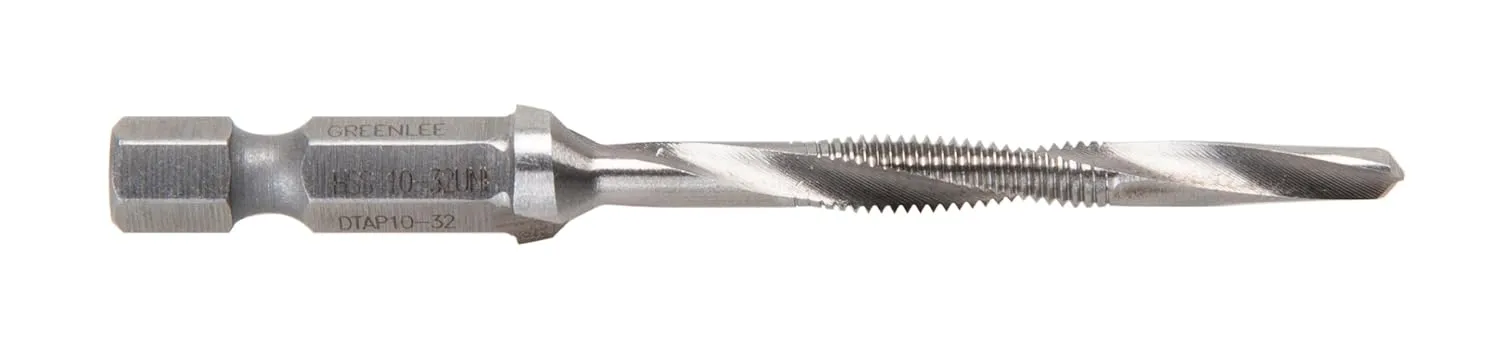

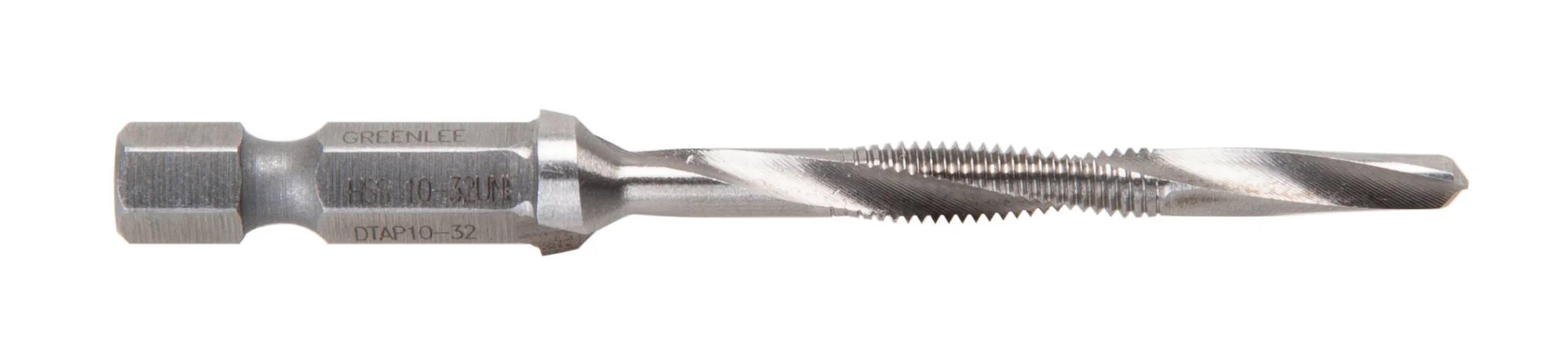

Greenlee Combination Drill Tap #10-32, 2B, 2 Flute, HSS, 2-1/4" OAL
Customize
Complete hole drilling, tapping and deburring/countersinking in one operation with power drill saves labor and time. Back tapered beyond tap to prevent thread damage from over-drilling. Deburr/countersink also provided on bit beyond back taper. Made from hardened high-speed steel vs. carbon steel for longer life. High quality hex shank to ensure strong connection to drill chuck. Designed to tap up to 10-gauge metal. Combination Drill Tap: #10-32, 2B, 2 Flutes, High Speed Steel 1/8" Drill, 1/2" Drill Length, 1/2" Thread Length, 2-1/4" OAL, Thread Size (Inch): #10-32, Thread Standard: UNF, Thread Length (Inch): 1/2, Thread Direction: Right Hand, Drill Size (Decimal Inch): 0.1250, Drill Size (Inch): 1/8, Overall Length (Inch): 2-1/4, Shank Diameter (Decimal Inch): 0.2500, Flute Direction: Right Hand, Material: High-Speed Steel, Split Drill Point: Yes, Coating/Finish: Bright/Uncoated, Class Of Fit: 2B, Number Of Flutes: 2.
- Package height:21.0"
- Package width:18.0"
- Package length:18.0"
- Country of Origin:China
Specifications:
| Materials & Construction | |
| Material | High Speed Steel (HSS) |
| Outer Material | High Speed Steel (HSS) |
| Product Details | |
| Class Of Fit | 2B |
| Coating/Finish | Bright/Uncoated |
| Country of Origin | China |
| Cutting Diameter | 0.131 inches |
| Drill Size (Decimal Inch) | 0.1250 inches |
| Drill Size (Inch) | 1/8 |
| Finish Type | Carbon Steel,High-speed Steel |
| Flute Direction | Right Hand |
| Material | High Speed Steel (HSS) |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2500 inches |
| Shank Type | Hex |
| Split Drill Point | Yes |
| Thread Direction | Right Hand |
| Thread Length (Inch) | 1/2 |
| Thread Size | #10-32 |
| Thread Standard | UNF |
| Sizing & Dimensions | |
| Height | 0.9 inches |
| Length | 2.5 inches |
| Product Dimensions | 2.5 x 3.8 x 0.9 inches |
| Size | #10-32 |
| Weight | 0.64 ounces |
| Width | 3.8 inches |
| Technical Specifications | |
| Cutting Diameter (mm) | 3.32 Millimeters |
| Is Discontinued By Manufacturer | No |
| Shank Type | Hex |
| Split Drill Point | Yes |
