Magswitch MagSquare 400

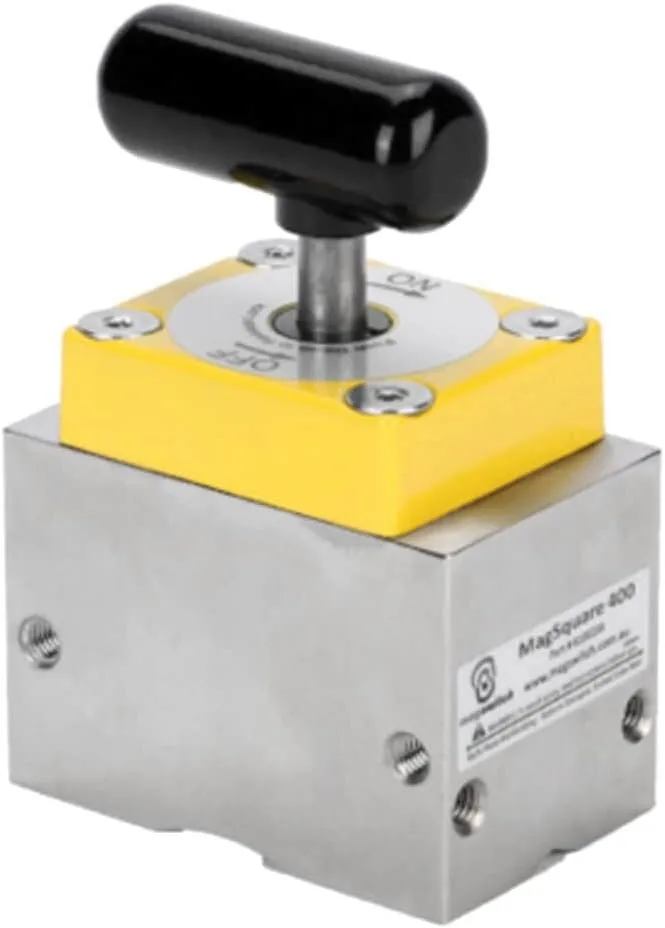

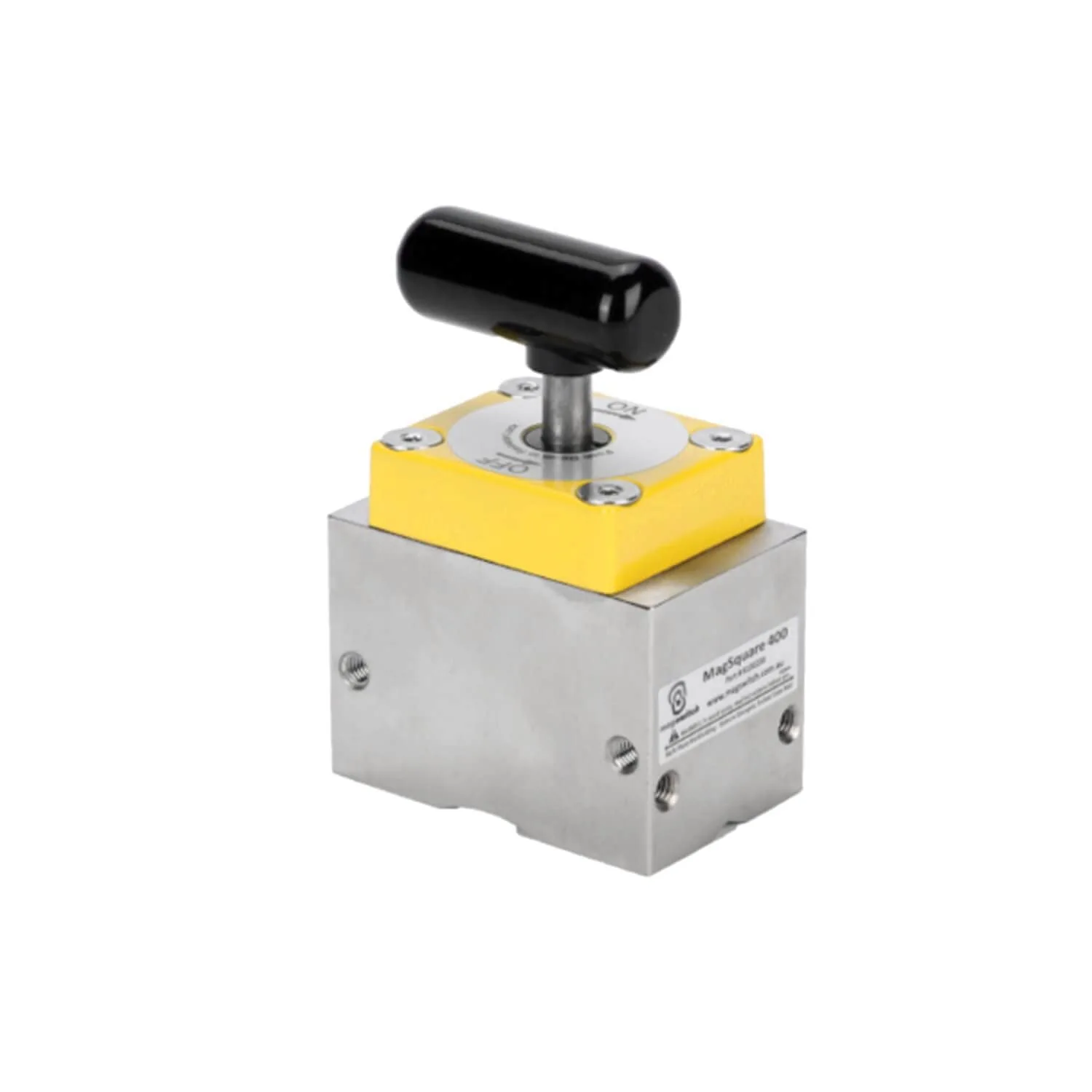

Magswitch MagSquare 400 magnetic work-holding square — metal construction, 400 lb (182 kg) hold force, M6 x 1 tapped holes on all sides, machined at 90°; grips flat and pipe for fast, precise setups (Model 8100238).
$171.99
Customize
Available Quantity
27 GSA Item
No GSA Compliant
No Product Details
An On/Off Magnetic Work-Holding Square With 400 Lb. (182 Kg) Of Hold Force From Magswitch Technology. M6 * 1 Threaded Holes On All Sides And Machined At 90° Magnetic Grip On 5 Sides—Strong On 3 Sides. Allows For Super Fast Set-Ups And Instant Work-Holding And It Stays Clean; When The Square Is Off, Debris Falls Right Off. Grips Flat And Pipe For Better Versatility. Full Saturation Thickness Is 0.1345"/3.43Mm, 2:1 Shear Working Load Is 20 Lb./9 Kg.
- Level sheets, destack capability
- Machined at 90° and features pre-tapped holes on all sides for mounting tools, jigs and fixtures.

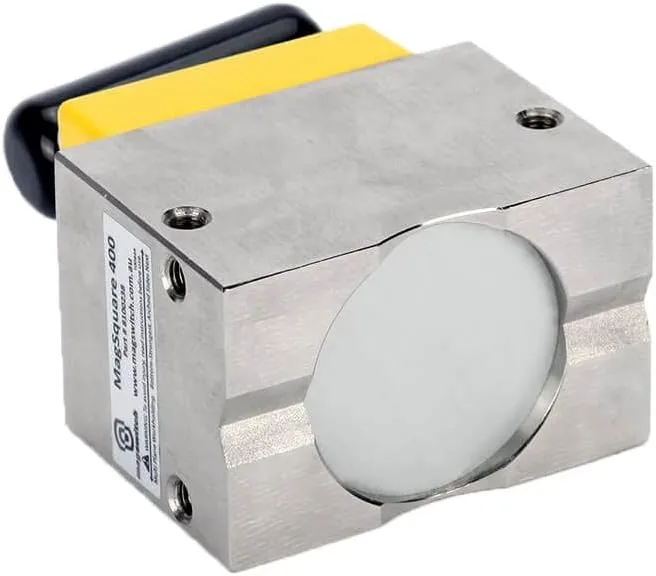

- Magnetic grip on 5 sides. Holds flat and round steel.

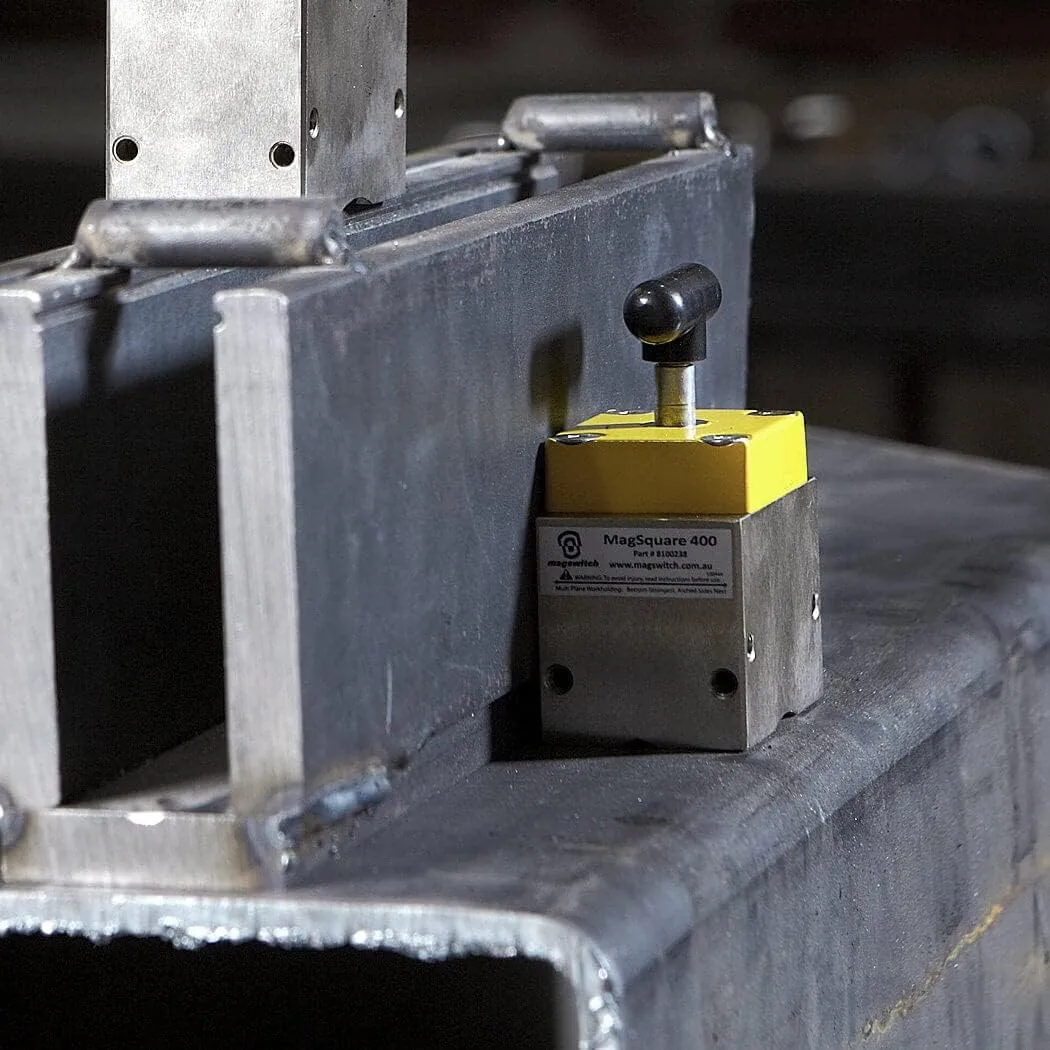

- Mounts anywhere with no limitations like clamps - use as a guide, stop or to secure steel
- Versatile Workholding Square. Incredibly strong fast set ups, precise positioning. Make your own fixtures.
- M6 * 1 threaded holes on all sides and machined at 90° magnetic grip on 5 sides—strong on 3 sides
- (182 kg) of hold force from Magswitch Technology
- An on/off magnetic work-holding square with 400 lb
Specifications:
| Features & Fit | |
| Handle/Lever Placement Detail | top |
| Included Components Detail | MagSquare 400 |
| Number of Pieces | 1 |
| Materials & Construction | |
| Color | Yellow/Silver/Black |
| Material | Metal |
| Outer Material | Metal |
| Product Details | |
| Handle/Lever Placement | top |
| Included Components | MagSquare 400 |
| Installation Method | mig-welding |
| Item Package Quantity | 1 |
| Number of Handles | 1 |
| Power Source | Corded-electric |
| Shape | Square |
| Warranty | 1 year warranty against manufacturer defects |
| Sizing & Dimensions | |
| Height | 0.25 inches |
| Length | 2.5 inches |
| Product Dimensions | 2.5" x 1.6" x 0.25" inches |
| Weight | 1 pounds |
| Width | 1.6 inches |
| Technical Specifications | |
| Installation Method Detail | mig-welding |
| Power Source Detail | Corded-electric |
| Pull Force | 400 Pounds |
