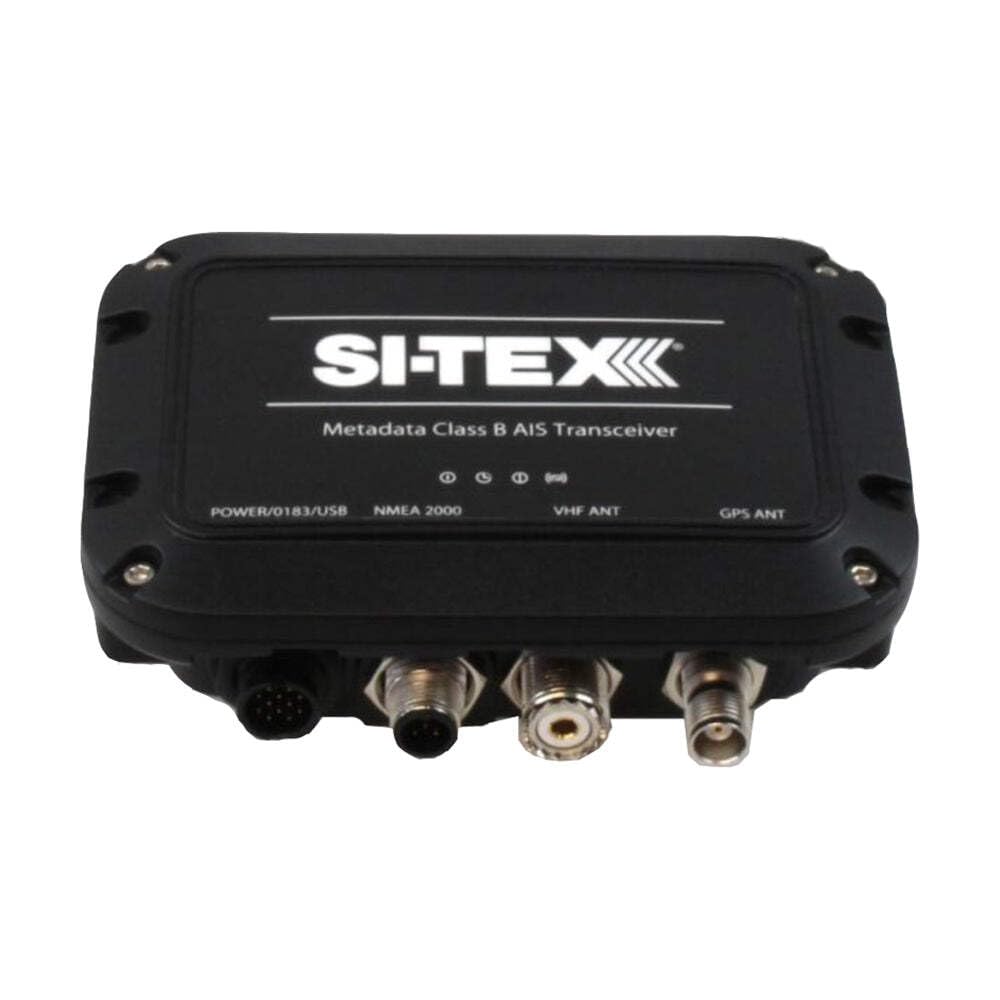

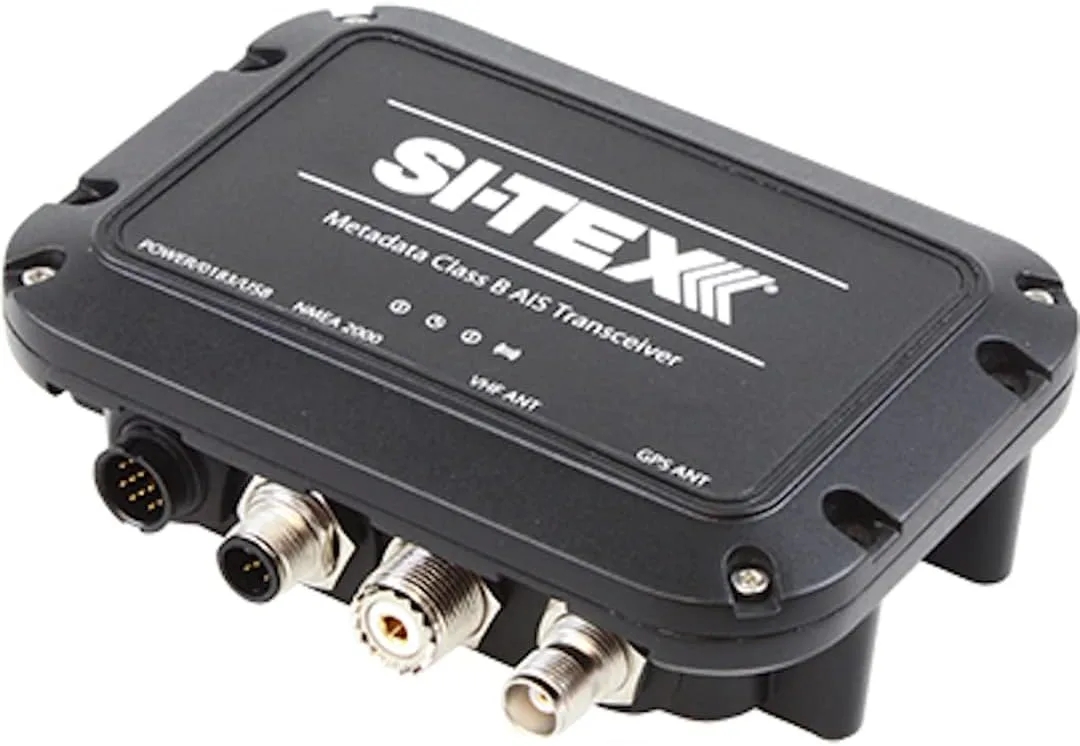

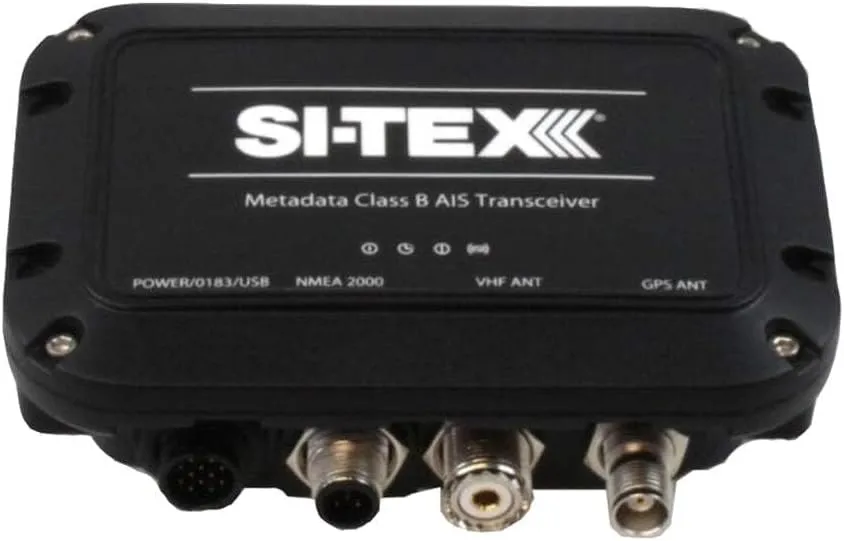

SI-TEX MDA-1 Metadata Class B AIS Transceiver w/Internal GPS - Must Be Programmed
Customize
MDA-1 Metadata Class B AIS Transceiver. As the FCC requires all units sold in the US to be programmed by a qualified technician, please submit the form below for programming at time of purchase. A copy of the MMSI Registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form. Utilizes a compact (5.5"X3.9"X1.9") module that is IPx7 Waterproof rated, for flexible location and rugged performance in any marine environment. Class B AIS Transceiver featuring an Rmax Class B engine that provides maximum range and efficient real-time AIS message processing for all message types. Despite its compact size, the Metadata Class B Transceiver features an internal 50-channel GPS smart antenna, eliminating the need for an external GPS antenna in many installations. It features NMEA0183, NMEA2000 and USB connectivity for easy plug-and-play installations on recreational or commercial vessels wanting to send and receive AIS data. Unit will need to be mounted with a clear view of the sky to utilize the internal GPS antenna. Power: 12 to 24V DC. Power consumption: 150mA @12VDC. Data Interfaces: USB, NMEA2000, IEC61162-1 (NMEA0183) output (38400 baud) and input (4800 baud). Silent mode switch input. Supplied with 2m power and NMEA0183 cable, user manual and quick start guide, product CD, fixing screws. Display Included: No. GPS Included: Yes. Function: Receive/Transmit. AIS Class: B. Antenna Included: No. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
- Includes internal GPS antenna
- Receives and sends AIS data
- Class B transceiver
- Metadata AIS
Specifications:
| Materials & Construction | |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Ais Class | B |
| Antenna Included | No |
| Connectivity Technology | NMEA2000, NMEA0183 |
| Display Included | No |
| Function | Receive/Transmit |
| Gps Included | Yes |
| Included Components | Owner's manual, Installation hardware, MDA-1 AIS |
| Material | Plastic |
| Mounting Type | Panel Mount, Dashboard Mount |
| Number of Items | 1 |
| Special Feature | NMEA2000, IEC61162-1 (NMEA0183) output and input, Silent mode switch input |
| Sport Type | Cycling |
| Vehicle Service Type | Boat |
| Warranty Description | 1 Year Limited |
| Sizing & Dimensions | |
| Height | 6 inches |
| Length | 18 inches |
| Product Dimensions | 18 x 10 x 6 inches |
| Weight | 1.6 pounds |
| Width | 10 inches |
| Technical Specifications | |
| Data Interfaces | USB NMEA2000 IEC61162-1 (NMEA0183) output, 38400baud IEC61162-1 (NMEA0183) input, 4800baud Silent mode switch input |
| Item Dimensions Lx Wx H | 18 x 10 x 6 inches |
| Item Package Dimensions L x W x H | 7.76 x 6.54 x 4.57 inches |
| Power | 12 to 24V DC |
| Power consumption | 150mA @12VDC |
| Warranty | 1 Year Limited |
