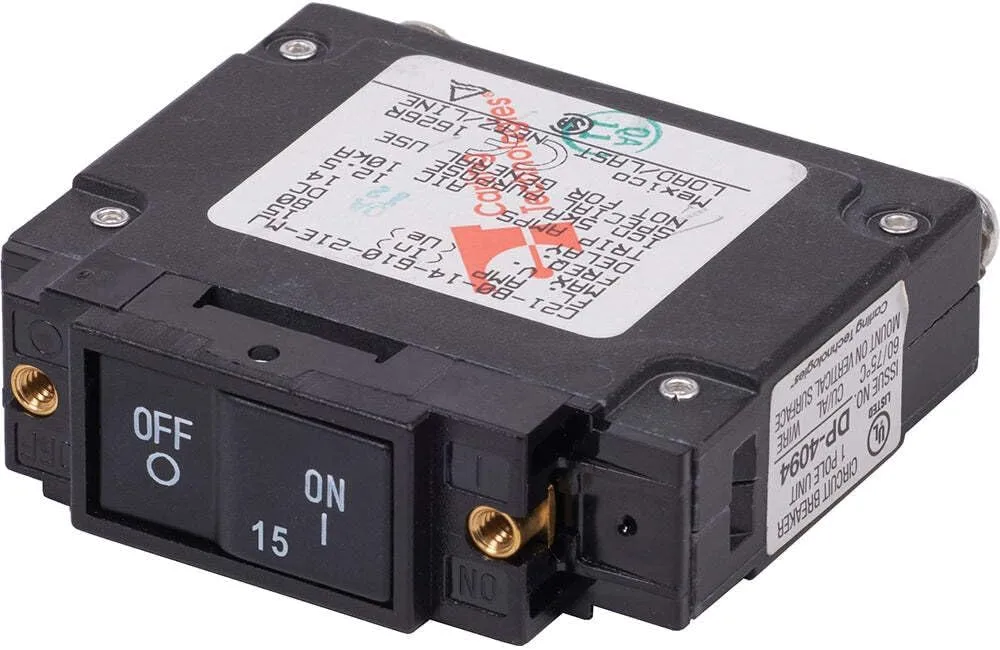

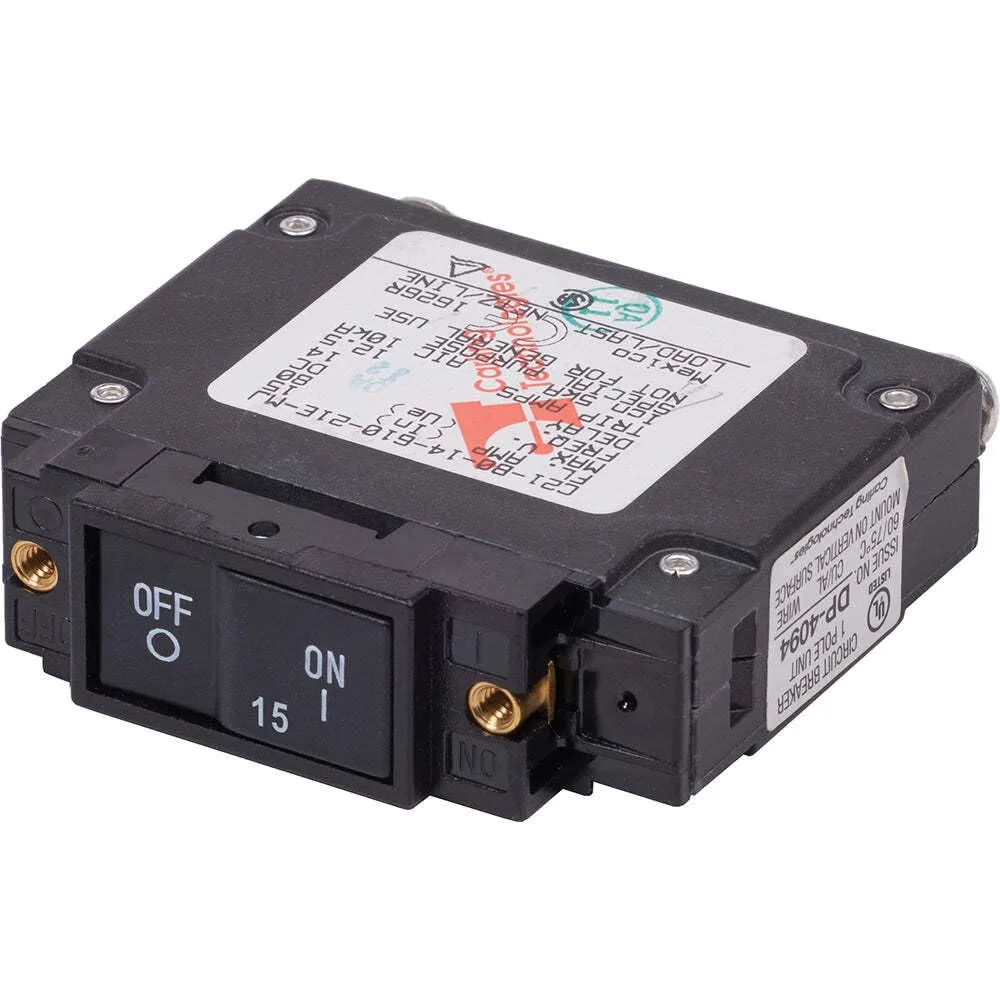

Blue Sea Systems 7442 Circuit Breaker C-Series Flat Rocker 15A DC UL489
Blue Sea Systems 7442 15A DC UL-489 flat rocker circuit breaker — marine-grade protection with #10-32 tin-plated brass terminals, 80V DC max, and 10,000A interrupt capacity.
$63.99
Customize
Available Quantity
3 GSA Item
Yes GSA Compliant
Yes Product Details
7442 UL-489 Circuit Breaker - 15A Flat Rocker. Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46). Features: 15A DC rating, flat rocker actuator, single pole design, maximum operating voltage 80V DC, terminal type #10-32 screw (tin-plated brass) with terminal torque 15-20 in-lb, mounting screw #6-32 SS with torque 7-9 in-lb. Interrupting capacity 10,000A. Temperature operating range -40°C to 85°C. Package and weight info: item weight ~0.25 pounds; package weight ~3.36 ounces; item package dimensions 4.38 x 2.69 x 0.94 inches. Manufacturer: Blue Sea Systems. Model: 7442 C-Series, UL-489 Circuit Breaker. Warranty: Lifetime.
- Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46)
- Mounting Screw: #6-32 SS, Mounting Screw Torque: 7-9 in-lb
- Terminal: #10-32 Tin-Plated Brass Screw, Terminal Torque: 15-20 in-lb
- Interrupting Capacity:10,000A, Voltage Max. Operating: 80V DC, Temperature Operating: -40 degrees C to 85 degrees C
- 15A DC Flat Rocker UL 489 Circuit Breaker
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Circuit Breaker Type | Standard |
| Current Rating | 15 Amps |
| Included Components | Circuit Breaker |
| Model Name | UL-489 Circuit Breakers |
| Model Year | 2019 |
| Number of Items | 1 |
| Number Of Poles | 1 |
| Size | 15 Amp DC |
| Warranty Description | Lifetime |
| Sizing & Dimensions | |
| Product Weight | 0.25 pounds |
| Size | 15 Amp DC |
| Weight | 4 ounces |
| Technical Specifications | |
| Item Package Dimensions L x W x H | 4.38 x 2.69 x 0.94 inches |
