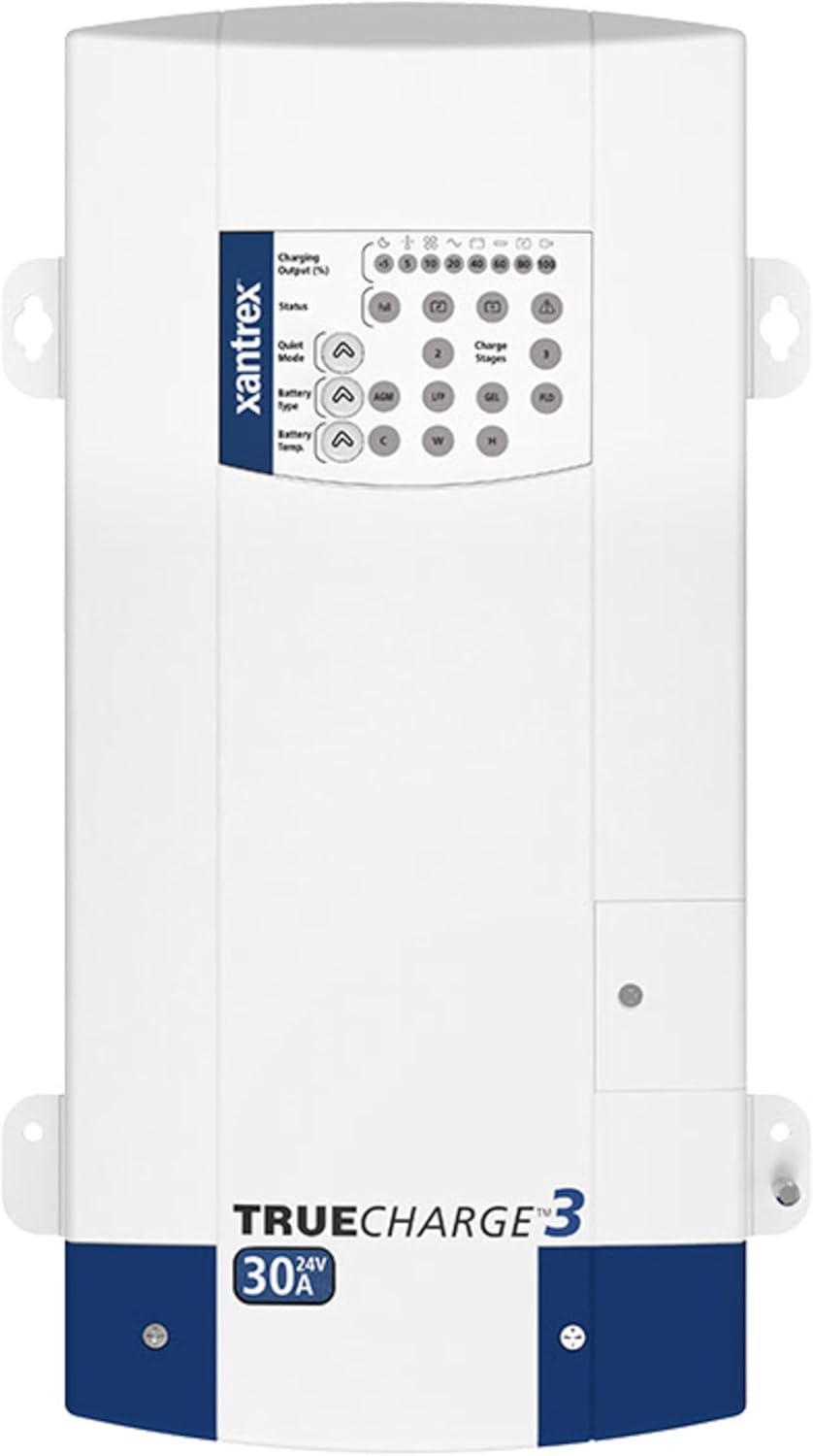

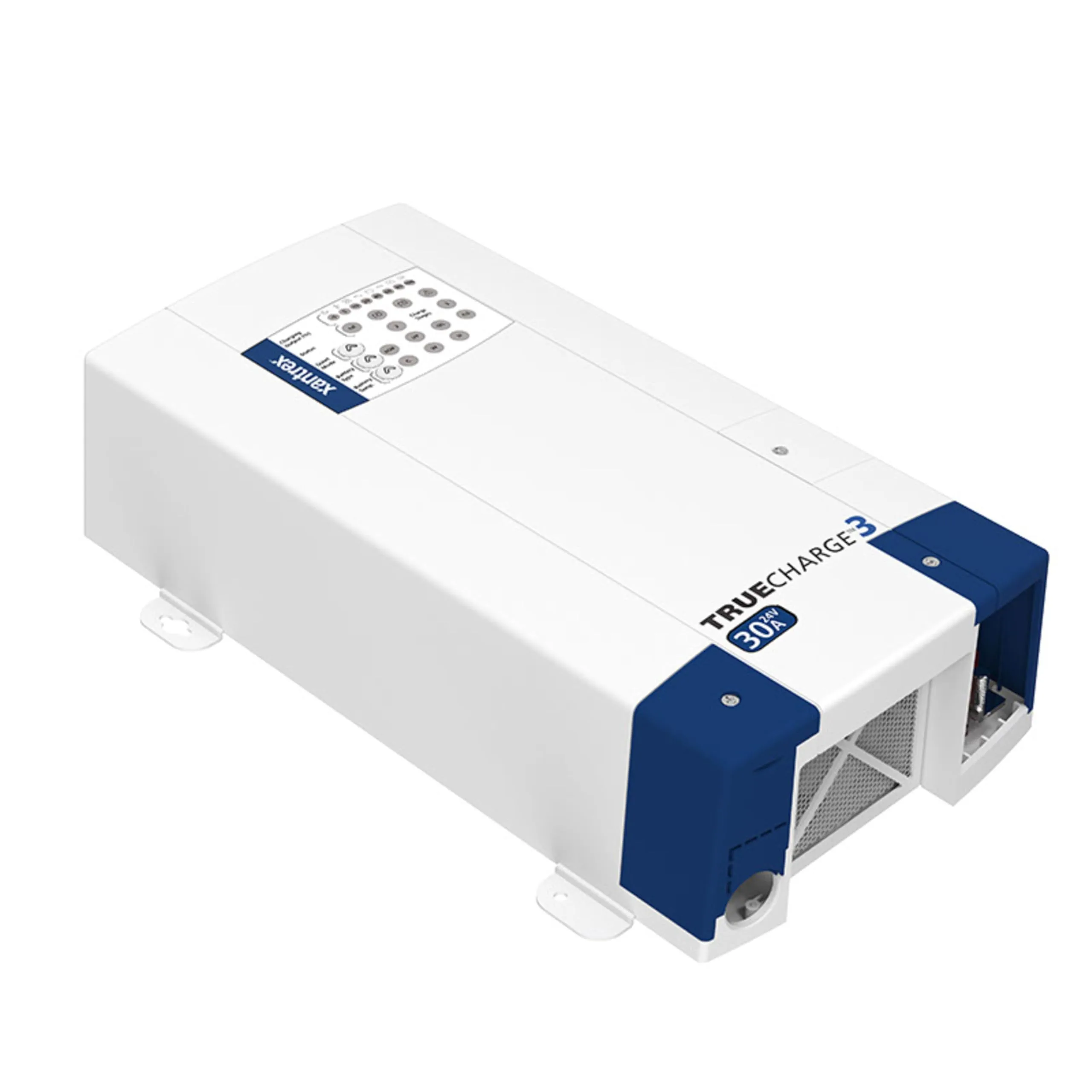

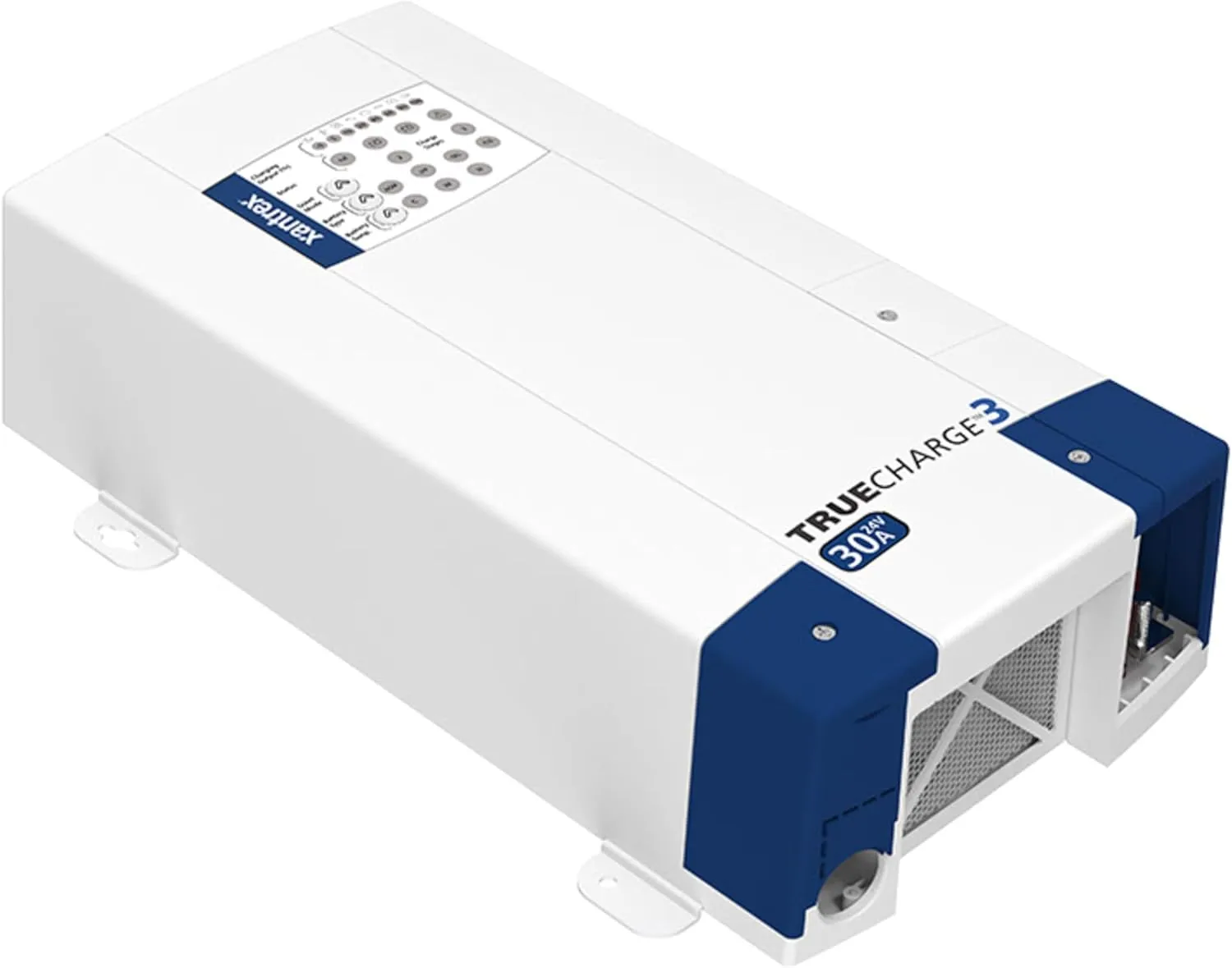

Xantrex 804-2430-10 TRUEcharge3 Multistage Charger - 24V/30A, Hardwire, 3-Bank

TRUEcharge3 battery chargers lead the industry with a small footprint and ultra-compact design. In addition to meeting global safety and regulatory standards, TRUEcharge3 battery chargers feature low electrical interference and efficient power factor-corrected multistage charging. Thanks to their inherent drip-proof design characteristics, the TRUEcharge3 Chargers can be mounted in multiple positions. Unlike its predecessors, TRUEcharge3 is lithium-ion battery compatible. Designed for recreational and commercial applications worldwide, TRUEcharge3 accepts 90–265 Vac, and 47–63 Hz, which makes traveling abroad and handling poor-quality power a breeze. The easy-to-read display of the TRUEcharge3 24 V models can be enhanced with an optional remote panel. Each model comes with built-in protection against surges and spikes on the AC power line. Features include microprocessor-controlled multistage charging algorithms, battery-equalization, settings for flooded/gel/AGM/Lithium, parallel stacking (remote panel required), ability to charge deeply-discharged batteries, quiet mode, reverse-battery polarity protection, drip-proof design, DC over-voltage protection, over-temperature protection, and circuit breaker protection. Electrical specs: nominal output current 30 A; charge voltage depending on settings 28.4–31.0 Vdc; float 26.8–27.6 Vdc; three positive output connections; AC input 90–265 Vac (47–63 Hz). General specs: operating temperature 0–60°C; storage -40–80°C; minimum recommended battery bank size 60 Ah. Dimensions reported: product dimensions approx. 16 x 10 x 6 inches; product weight ~9.5 pounds. Regulatory approvals include CSA 60335-2-29, UL1564, IEC 60335-2-29, IP32 per EN/IEC 60529, FCC Part 158, Canada ICES-003 Class B emissions limits, ABYC A-31, and DOE/CEC energy efficiency compliance.

• Small footprint and ultra-compact design
• Drip proof design for flexible mounting and safety in marine environments
• Universal input voltage capable 95-265 Vac, 47-63 Hz
• Parallel Stacking to allow two chargers to work together to combine the output current, achieving up to 120A for large battery banks; Remote panel 808-8040-10 required for stacking
• Lithium-Ion Compatible Connect TrueCharge3 battery charger with Lithium, flooded, gel, AGM
