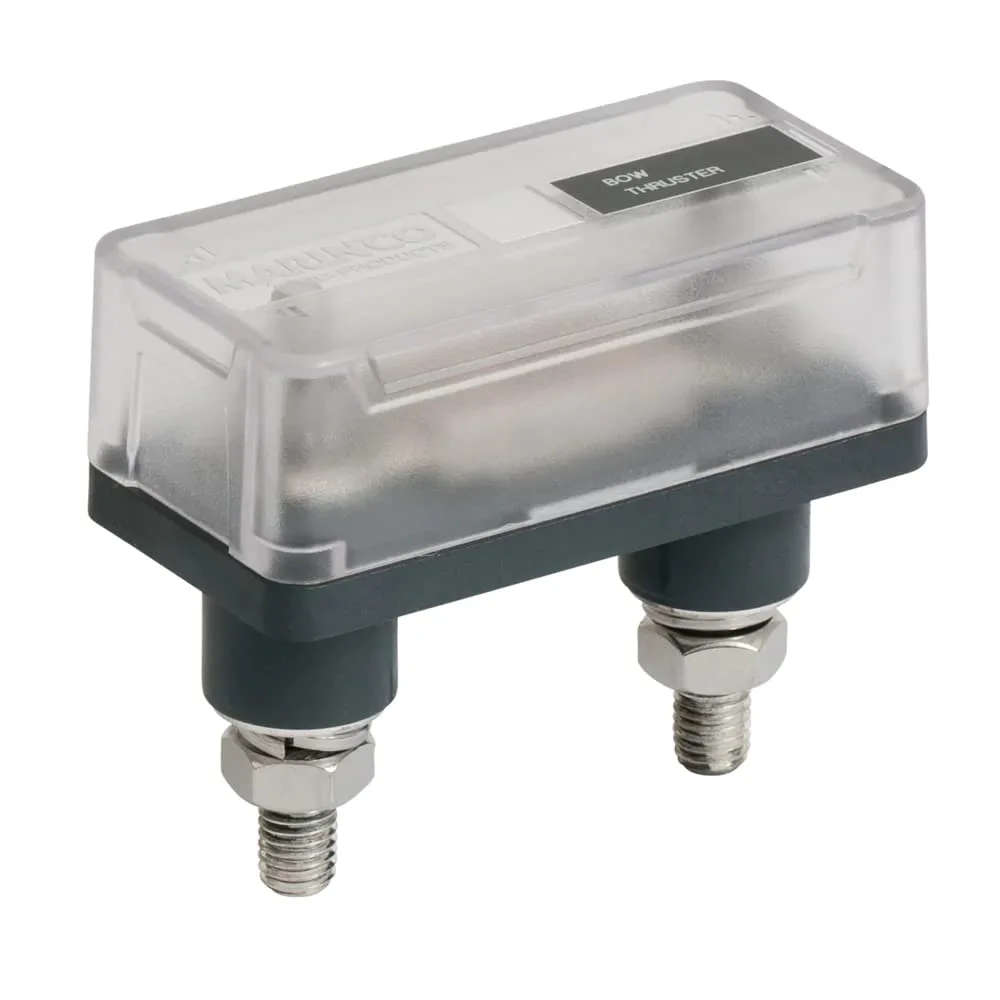

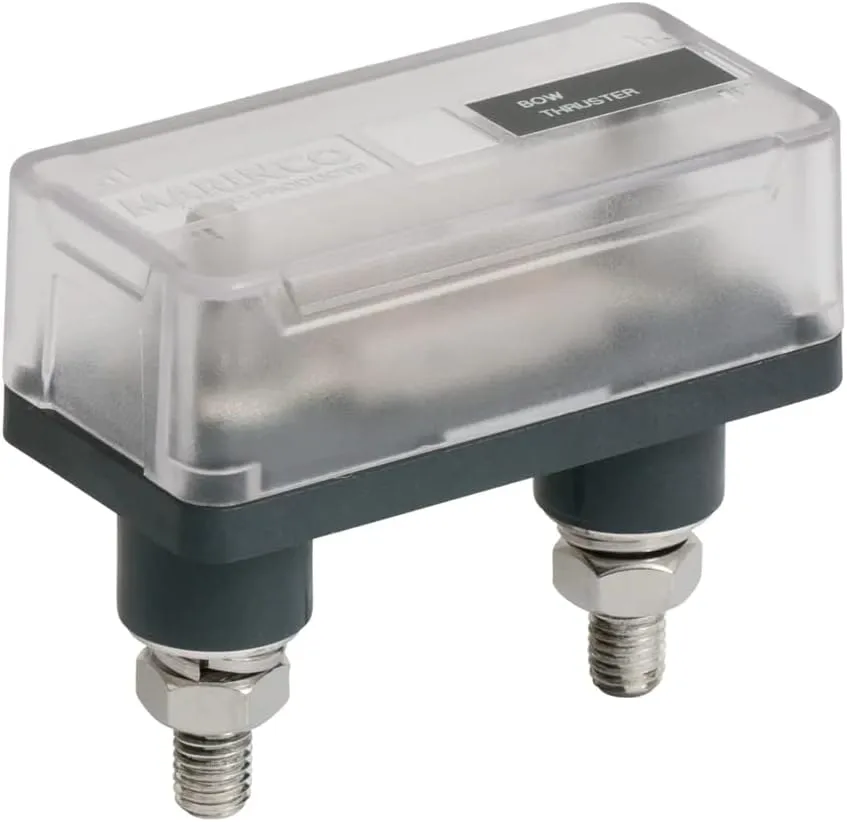

BEP Pro Installer ANL Through Panel Fuse Holder - 500A
Customize
ANL Through Panel Fuse Holder, 500A. This innovative, through-panel mounting fuse holder (Patent Pending) offers easy visual inspection of fuse state and safe access to change fuses if blown. Provides high-capacity fusing, fast response, and high interrupt ratings (up to 3,000 Amps DC). Ideal for protecting demanding onboard power electronics including inverters and battery chargers, protecting wiring from short circuits as a main fuse for house circuits, for digital switching main feed circuits, or heavy duty loads. Features convenient fuse inspection and replacement, compact footprint to save space, radiused connection points for improved cable routing (back-to-back lugs fit at any angle -90° to +90°), an innovative clear cover for insulation/protection and a fuse viewing window to aid visual inspection. Label recess on cover fits up to 12.7mm printed labels. Insert molded studs offer superior mechanical strength and are designed for harsh marine environments. Cable connection studs: 10mm (3/8"). Fuse mounting studs: 8mm (5/16"). Allows 10mm (3/8") fuses to be used. Fuse type: ANL or ANN (very fast acting). Amperage: 35-500A, 50 VDC or determined by fuse fitted. High temperature, fibre reinforced plastic base provides strength and chemical resistance; clear polycarbonate cover; tinned CDA260 highly conductive brass integral studs; stainless steel nuts and washers for longevity in marine environments. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Great Product
- Great Product
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Product Details | |
| Fuse Type | Anl |
| Included Components | Great Product |
| Model Name | 778-ANLTP |
| Mounting Type | Through-Hole Mount |
| Number of Items | 1 |
| Size | One Size |
| Type | Fuse Holders |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 7 inches |
| Product Dimensions | 7 x 6 x 2 inches |
| Size | One Size |
| Weight | 4.32 ounces |
| Width | 6 inches |
| Technical Specifications | |
| Item Dimensions Lx Wx H | 7 x 6 x 2 inches |
| Item Package Dimensions L x W x H | 7 x 6 x 2 inches |
