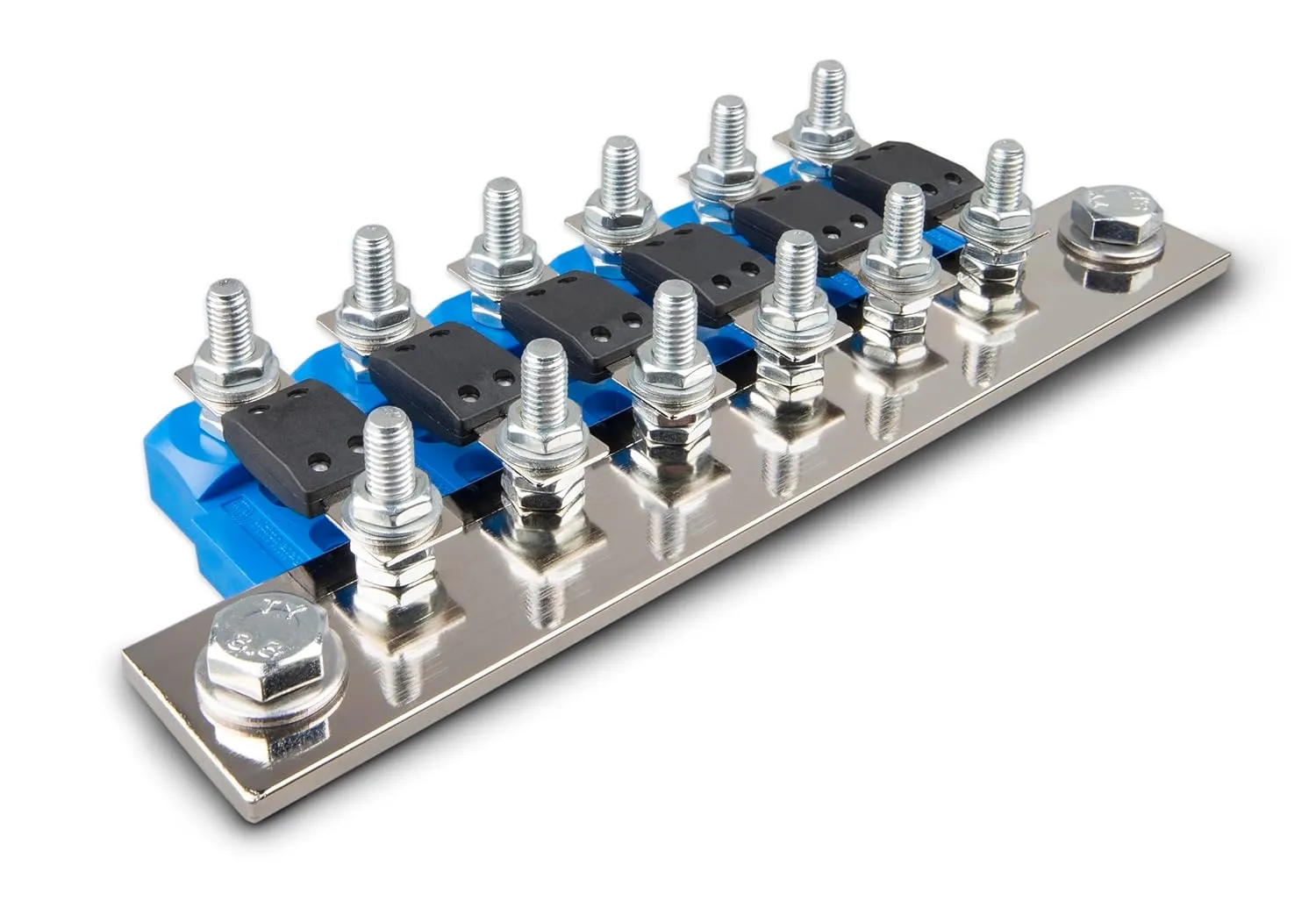

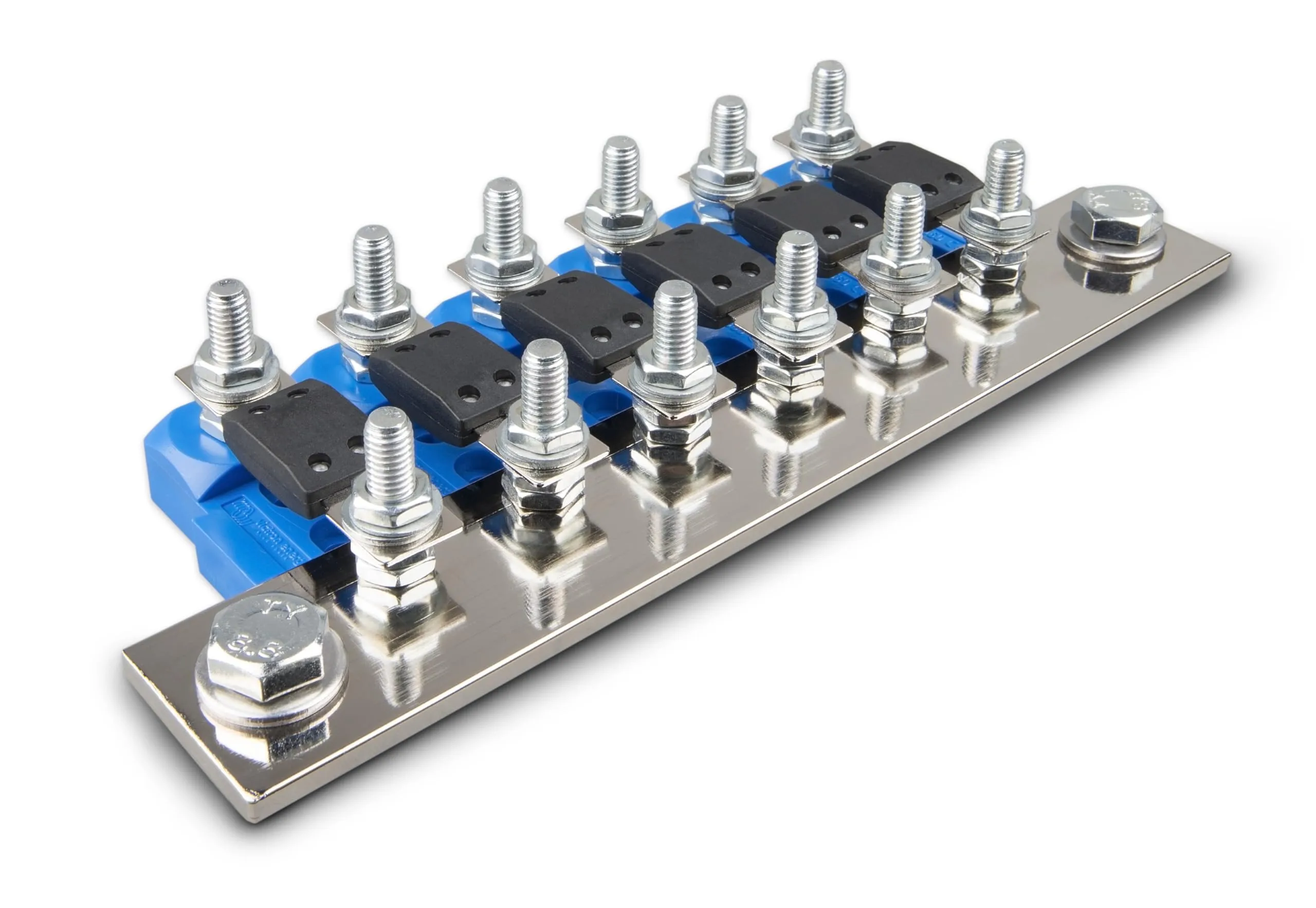

Victron Energy Bus bar to Connect 6 Modular Fuse Holders for MEGA fuses
Customize
Busbar to Connect 6 Modular Holders Features (combined): Six position high current bus bar (1500 A) with two M10 input connections. Input current up to 2000 A (depending on configuration). Recommended to parallel multiple high power Multi or Quattro inverter/chargers. Dovetail feature allows interlocking multiple fuse holders together. Available in sizes including five-position (500 A) and six-position (1500 A). Only suitable for use with Mega Fuse holders (CIP100200100). Exterior finish: Silver. Thread size: M10x1.25. Head style: Hex. Material: Several. Manufacturer grade: heavy-duty. Warranty Info: Please contact your dealer for any returns, repairs or support issues related to this product. Proposition 65: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- "It is available in 2 sizes: 1- Five position high current busbar (500 A) - With one M10 input connection. - Input current up to 500 A 2- Six position high current busbar (1500 A) - With two M10 input connection. - Input current up to 1500 A - Recommended to parallel multiple high power Multi or Quattro inverter/chargers."
- Dovetail feature: The dovetail feature allows interlocking multiple fuse holders together.
- It is only suitable to use with Mega Fuse holders (CIP100200100)
- Dimensions: 5-point: 180 x 40mm 6-point: 240 x 40mm
Specifications:
| Materials & Construction | |
| Material | Several |
| Outer Material | Several |
| Product Details | |
| Exterior Finish | Silver |
| Head Style | Hex |
| Manufacturer Grade | heavy-duty |
| Material | Several |
| Thread Size | M10x1.25 |
| Sizing & Dimensions | |
| Height | 4.72 inches |
| Length | 9.84 inches |
| Product Dimensions | 9.84 x 6.3 x 4.72 inches; 7.05 ounces |
| Size | 6-position |
| Weight | 7.05 ounces |
| Width | 6.3 inches |
