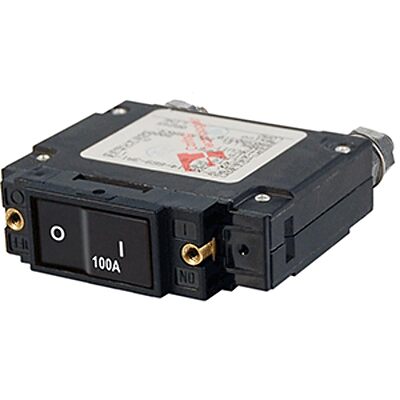

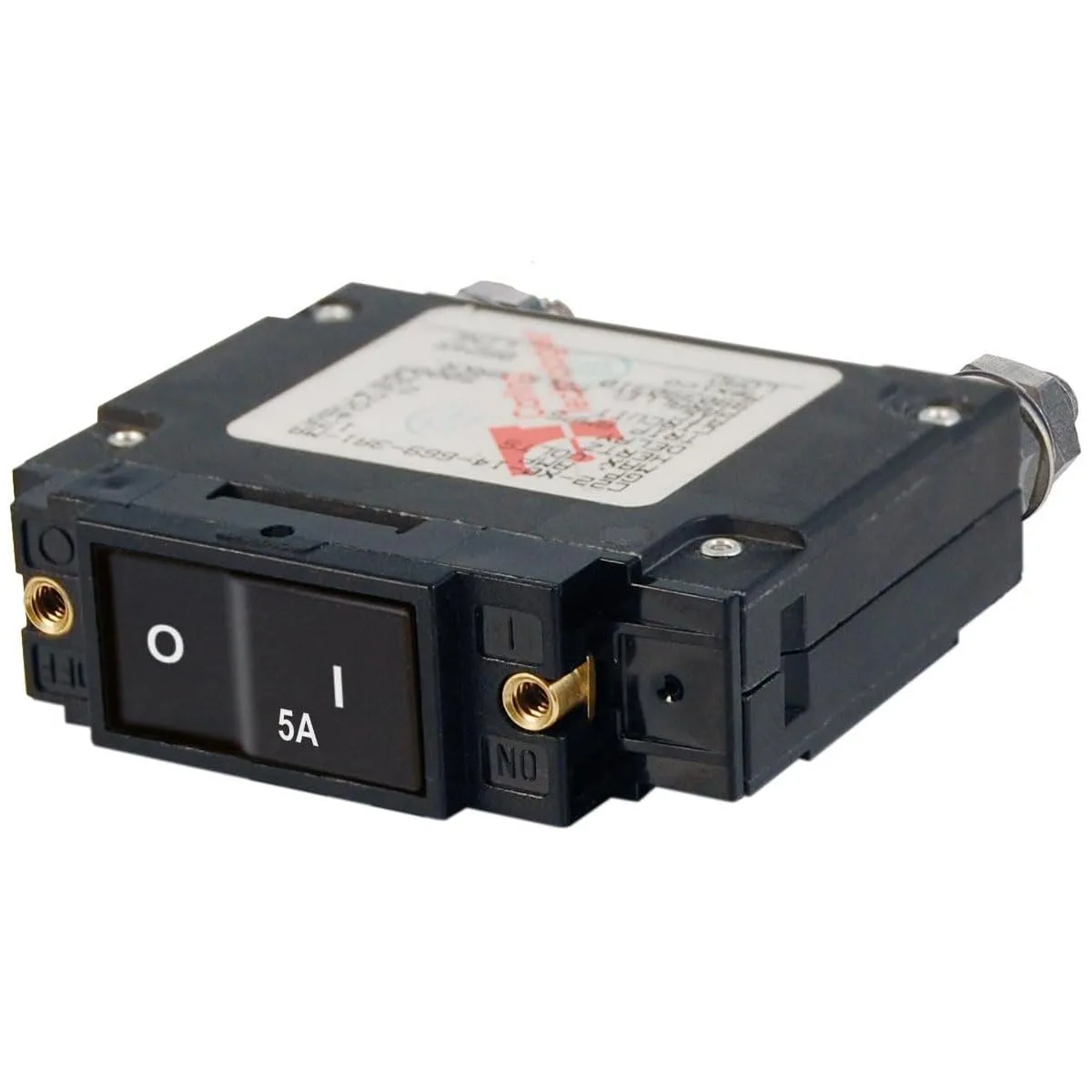

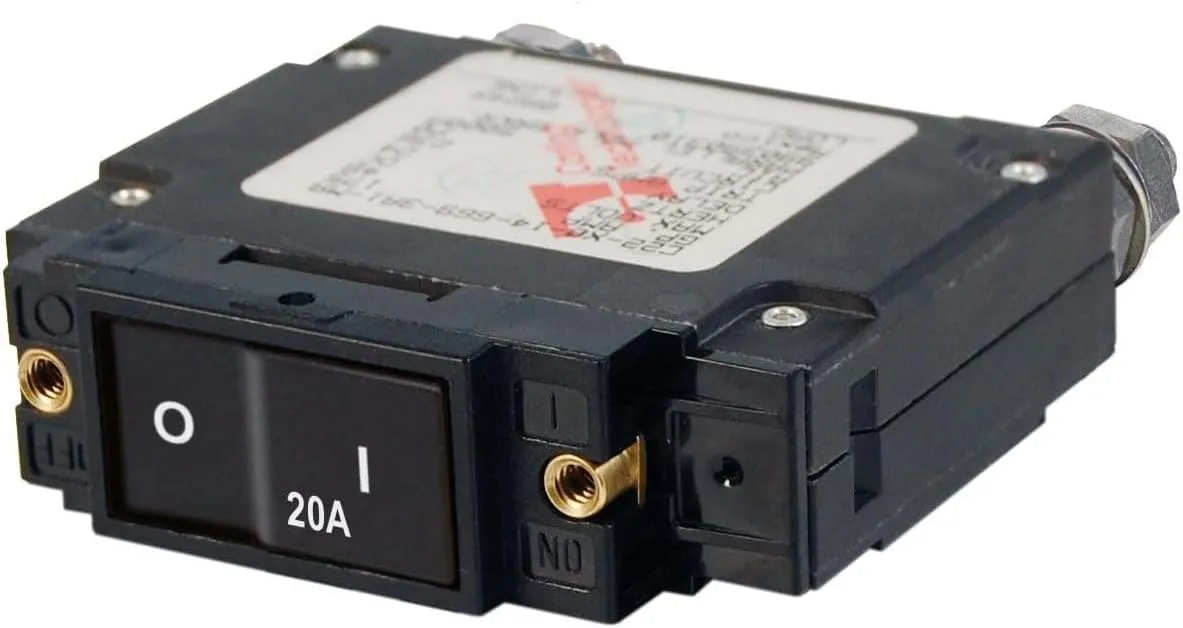

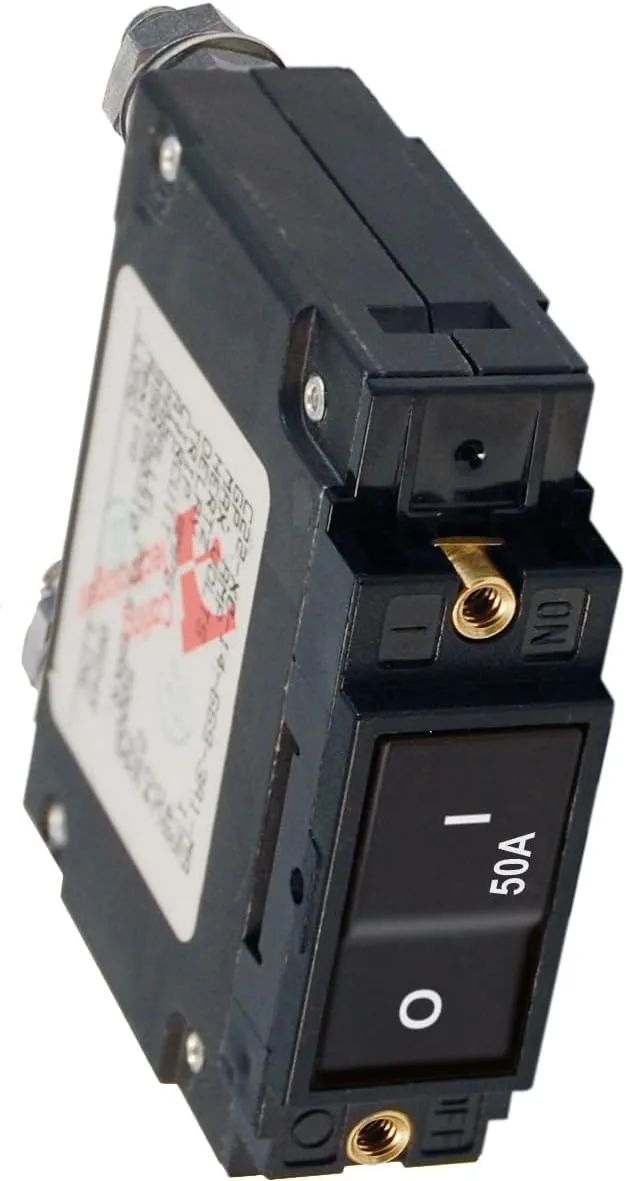

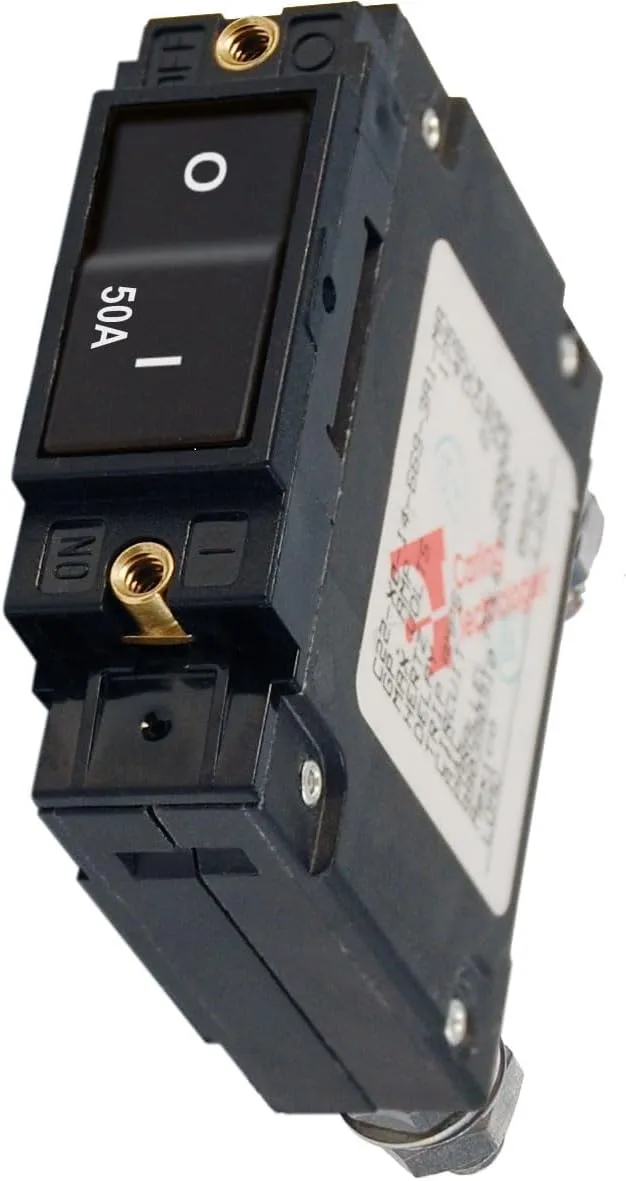

Blue Sea Systems C-Series Flat Rocker Circuit Breaker - Single Pole

Blue Sea Systems C-Series flat rocker single-pole circuit breakers feature a magnetic-hydraulic, trip-free design that cannot be held closed after a fault. The flush rocker actuator reduces accidental switching and the color actuator indicates the OFF position. These breakers combine switching and circuit protection for a variety of marine and vehicle electrical uses including inverters, bow thrusters and windlasses, and are ignition protected for installation near gasoline engines. Common specifications across the series include compatibility with AC and DC systems (maximum 240V AC / 48V DC), a 1/4-20 tin-plated brass terminal stud, #6-32 stainless steel mounting hardware, terminal stud torque of 35 in-lb and mounting screw torque of 6 in-lb, interrupt capacity ratings of 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC, 10,000 switching cycles, and an operating temperature range from -40° C to 85° C.

• "Trip Free" design cannot be held "ON" during fault current condition
• Circuit breakers will trip all poles if any one pole trips
• Flush in the "On" position
• Rocker actuator is flush in the "ON" position, eliminating the risk of accidental switching
• Compatible with AC and DC systems for the stated amperage
