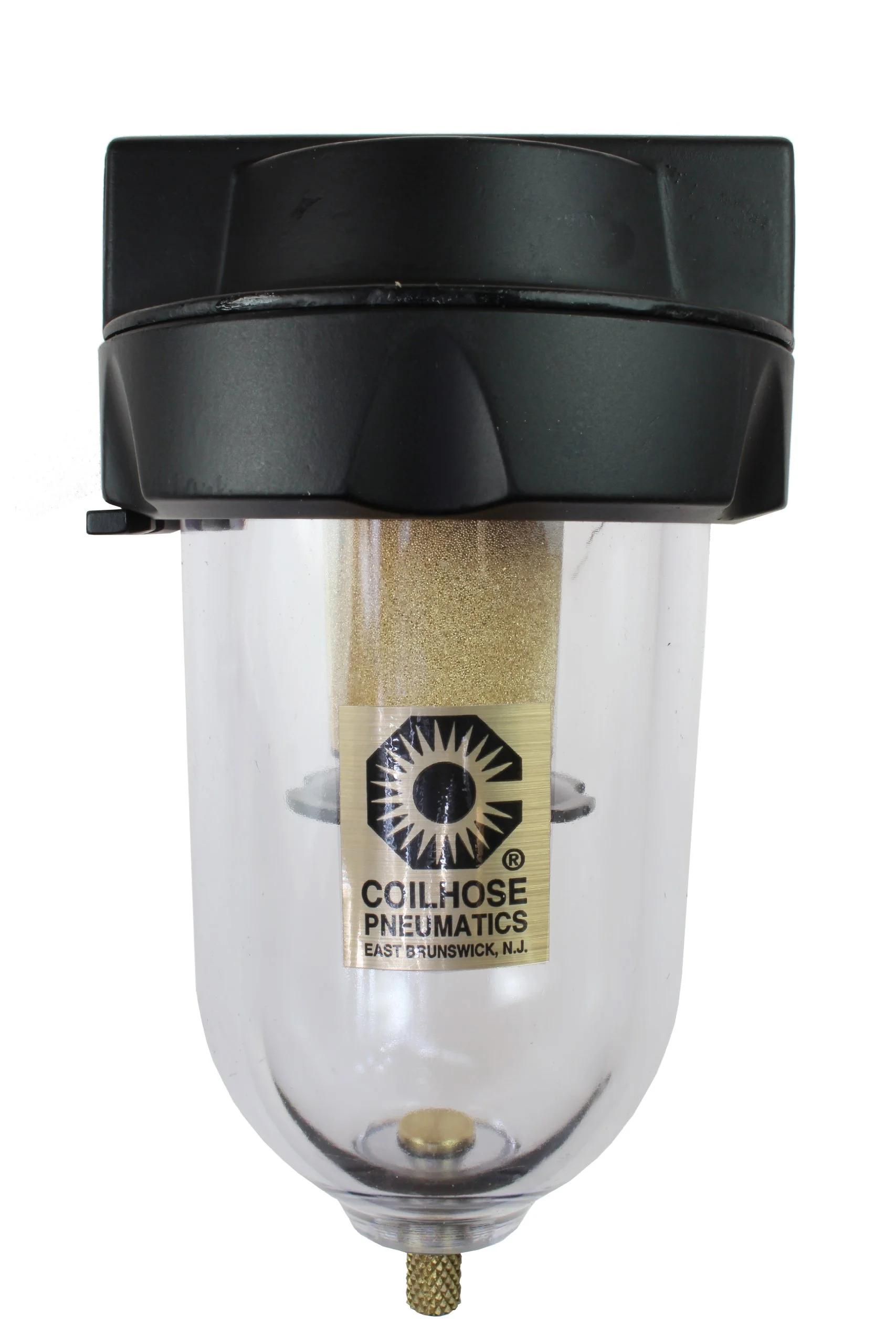

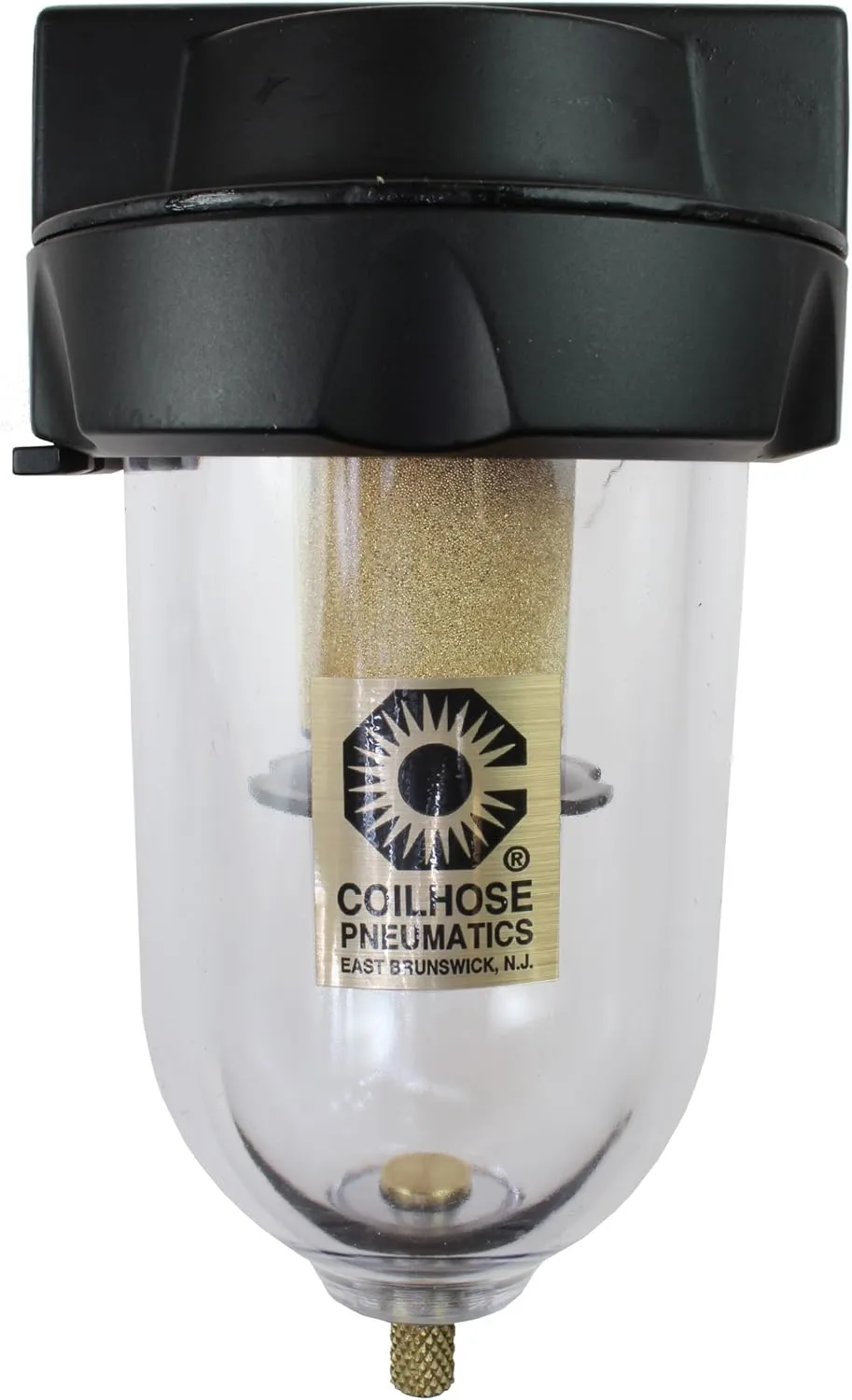

Coilhose Pneumatics Heavy Duty Series Filter
Heavy-duty compressed air filter with die-cast aluminum construction, heavy polycarbonate bowl and sintered bronze element (40 micron) to remove water and particulates. Rated to 150 psi.
Out of stock Out of stock Out of stock Out of stock
$86.21 - $1,253.46
$1,253.46
$108.58
$86.21
$214.98
Color
size
Select size
material
Select material
Customize
Available Quantity
0 GSA Item
No GSA Compliant
Yes Available Quantity
3 GSA Item
No GSA Compliant
Yes Available Quantity
12 GSA Item
No GSA Compliant
Yes Available Quantity
1 GSA Item
No GSA Compliant
Yes Product Details

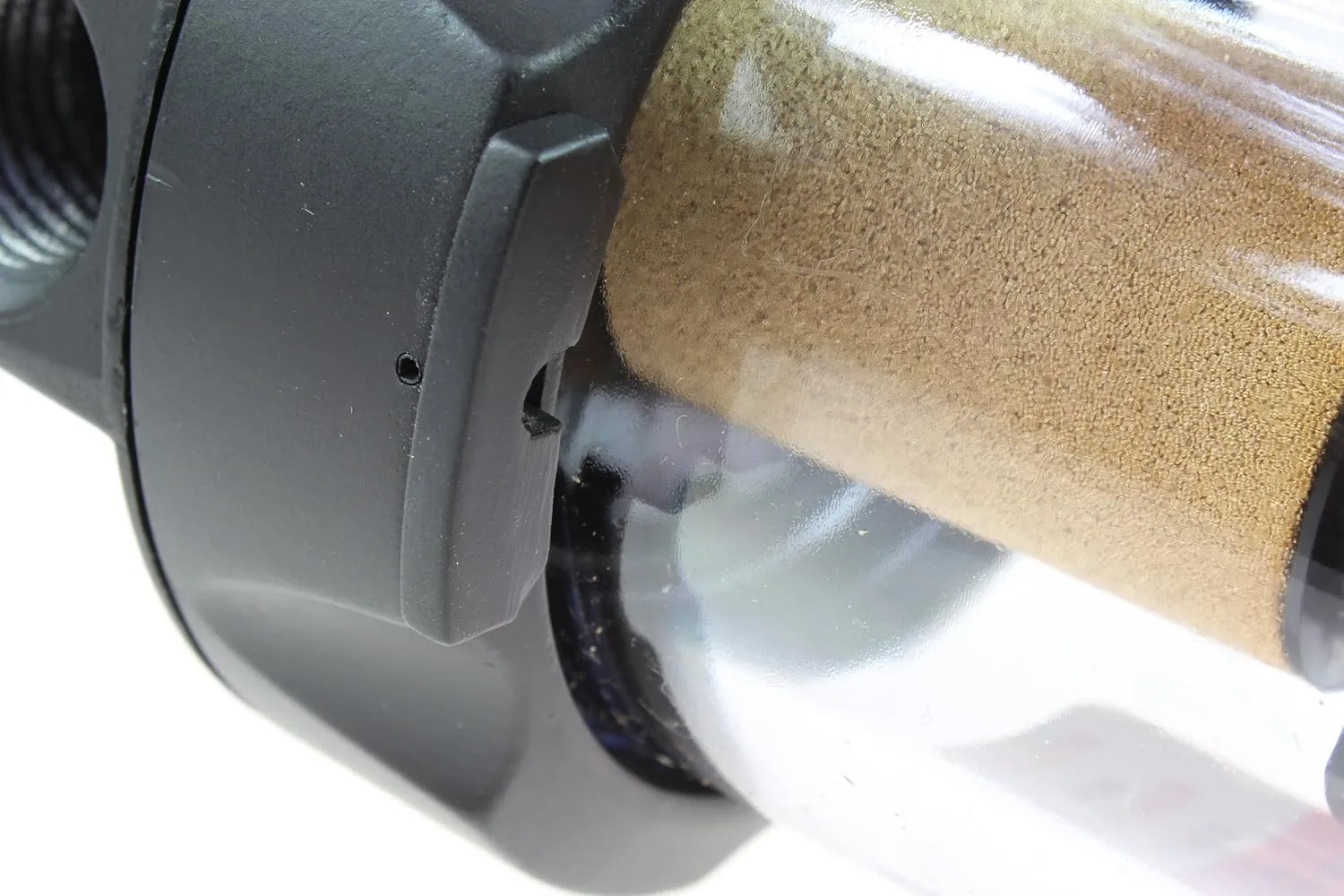

The Heavy Duty Series Filter from Coilhose Pneumatics delivers reliable compressed air filtration with durable construction and service-friendly design. It combines a die-cast aluminum body with a heavy-walled polycarbonate bowl and an extra-large sintered bronze element rated at 40 microns for effective contaminant and particle reduction. The industry-exclusive bayonet-type locking ring enables quick bowl removal and replacement, simplifying maintenance. Supplied with inlet and outlet ports, the filter is intended for removal of water and particulates from compressed air systems and is rated for a maximum operating pressure of 150 psi and a maximum operating temperature of 120°F.
- Filter for removal of water and particulates from compressed air systems
- Die-cast aluminum and polycarbonate construction, with a sintered bronze filter element
- Maximum operating temperature of 120 degrees F
- Maximum pressure of 150 psi for safety
- 40 micron rating for contaminant and particle reduction
Specifications:
| Product Details | |
| Is Discontinued By Manufacturer | No |
| Measurement System | Inch |
| Sizing & Dimensions | |
| Weight | 12 ounces |
| Technical Specifications | |
| Included Components | Filters |
| Item Package Quantity | 1 |
Ratings And Reviews
