LUMITEC Zambezi Quattro Surface Mount Underwater Light
Customize

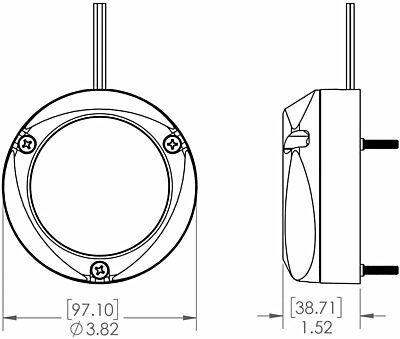

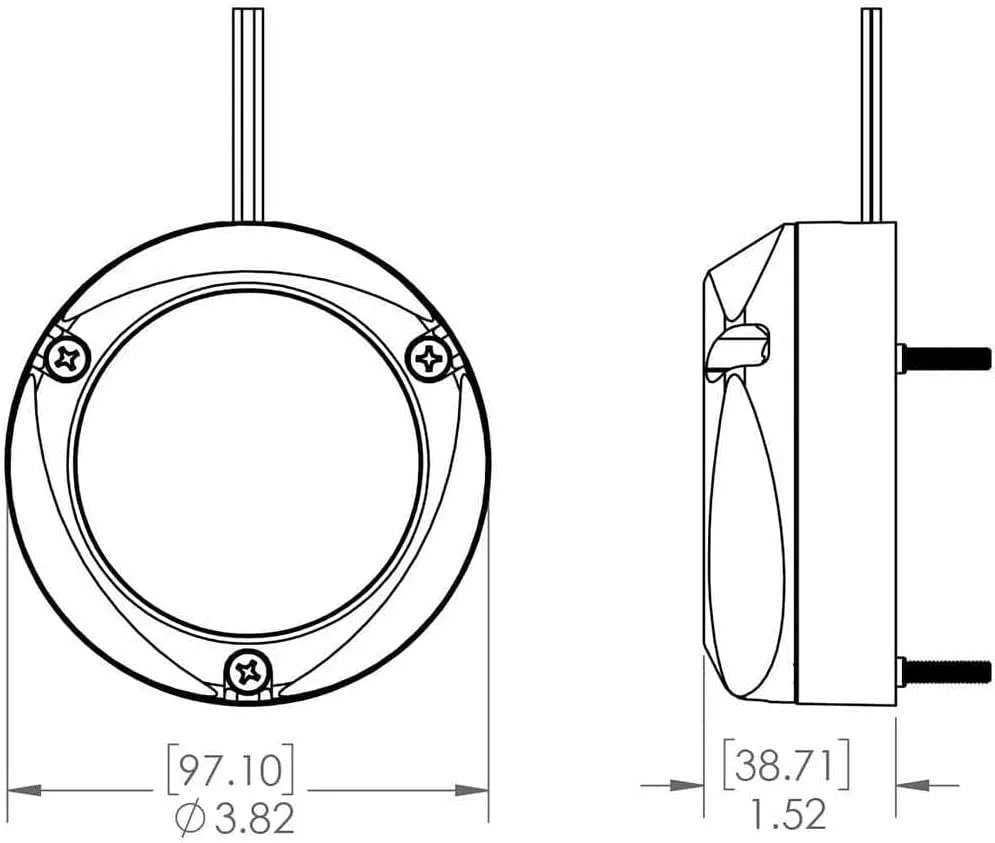

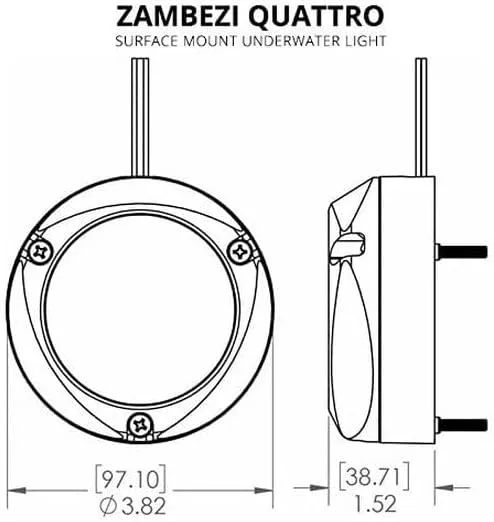

The LUMITEC Zambezi Quattro Surface Mount Underwater Light is a robust, sealed LED fixture designed for larger pontoon boats, aluminum skiffs and floating docks. Key features include a naval-grade bronze housing, heat-tempered glass lens, sealed waterproof design with no external drivers, and self-isolation from metallic mounting surfaces to prevent galvanic corrosion. It delivers 2000+ lumens (white) at 25W and operates on a 10–30V DC input (12V DC: 2.1A, 24V DC: 1.1A). Color and control options vary by variant. Specifications: Lumens (White): 2000+; Rated Watts: 25W; Voltage: 10–30V DC; 12V DC Amps: 2.1A; 24V DC Amps: 1.1A; CCT: 6500K; CRI: 70+; Operating Temp: -31/35 to +131/55 F/C; Timed Toggled Protocol (TTP): Yes; Third Party Dimmer Compatibility (3PD): No; Color Match Commitment (CM): No; Mounting Hole Diameter: 0.5"; Diameter: 4in (10.16cm); Depth: 1.6in (4.06cm). Extended 5-year warranty and P65 warning included in variant details.
- Extended 5-Year Warranty: Lumitec is the first and only LED manufacturing company in the United States to offer a 5-year warranty across the complete line of our extreme environment LED products.
- Naval grade bronze housing with heat tempered glass
- Self-isolating from any metallic surfaces with simple 2-wire hookup
- Dual-color or full-color spectrum with no external controllers

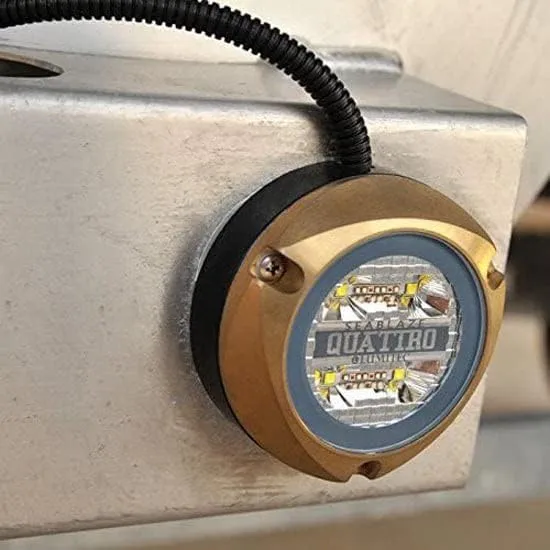

- Surface mountable with no wiring through-hull holes required. 2000+ Lumens (white)
Specifications:
| Materials & Construction | |
| Outer Material | Bronze |
| Product Details | |
| Assembly Required | No |
| Included Components | Great Product |
| Item dimensions L x W x H | 4 x 1.7 x 1 inches |
| Item Package Dimensions L x W x H | 4.72 x 4.45 x 3.27 inches |
| Lens Color | Blue/White |
| Lens Material | Glass |
| Number of Items | 1 |
| Style | Surface |
| Vehicle Service Type | Boat |
| Voltage - Input Range (Volts) | 10-30v |
| Wattage (Rated) | 25 |
| Year | 2018 |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 1.7 x 1 inches |
| Size | One Size |
| Weight | 1.7 pounds |
| Width | 1.7 inches |
| Technical Specifications | |
| CCT | 6500 |
| Color Match Commitment (CM) | No |
| CRI | 70+ |
| Lumens (White) | 2000+ |
| Mounting Hole Diameter | 0.5" |
| Operating Temperature F/C | -31/35 to + 131/55 |
| Rated Watts | 25 |
| Third Party Dimmer Compatibility (3PD) | No |
| Timed Toggled Protocol (TTP) | Yes |
| Warranty Description | Warranty |
