BLUE SEA SYSTEMS MAXI Fuse Block and In-Line Fuse Holder
Customize

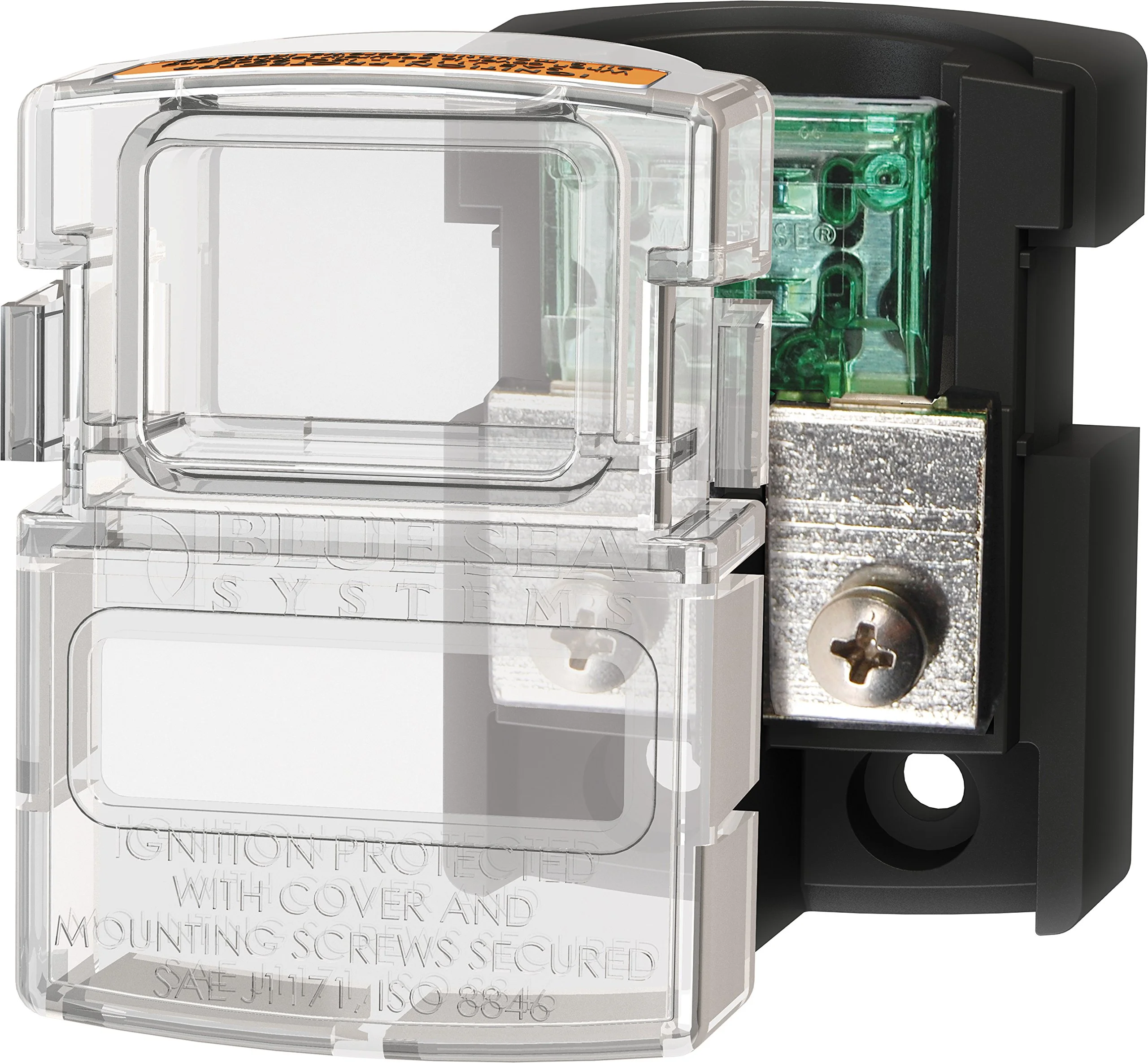

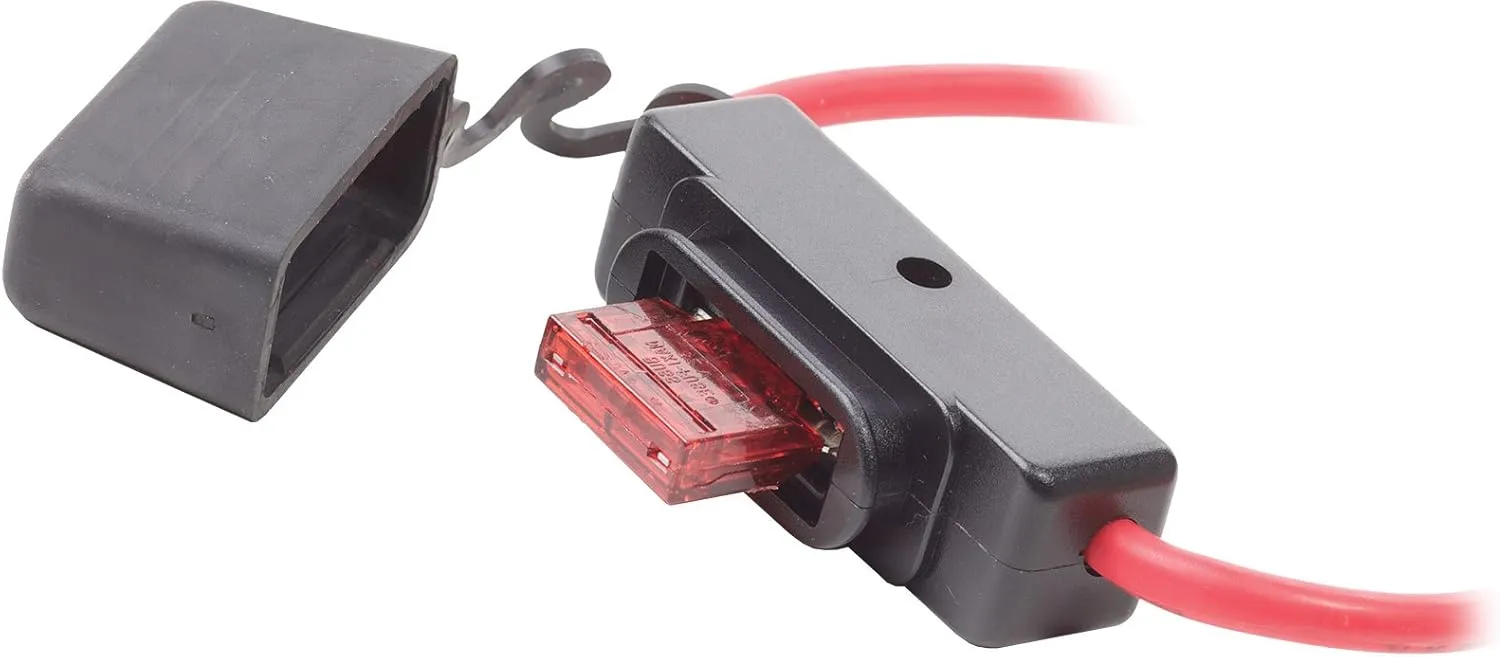

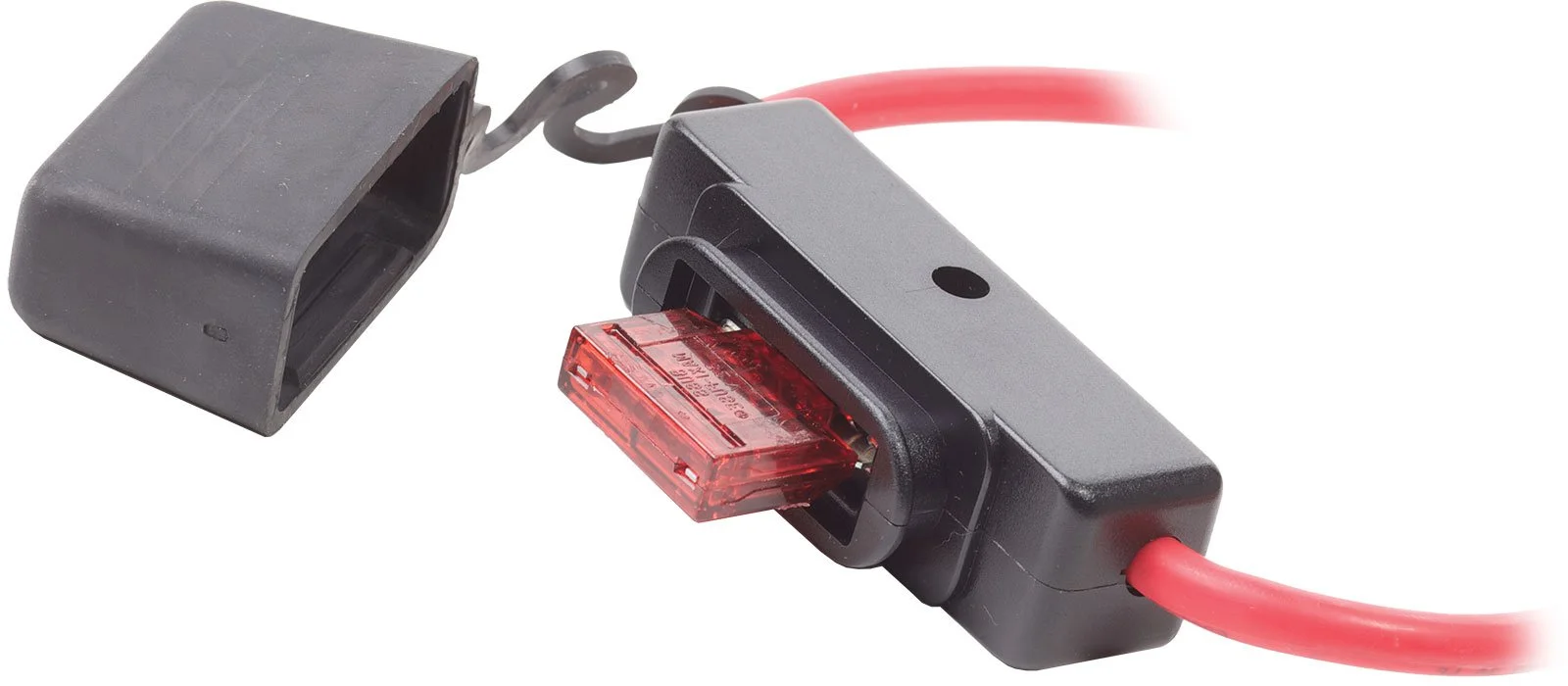

The BLUE SEA SYSTEMS MAXI product family comprises MAXI in-line fuse holders and MAXI fuse blocks designed to accept MAXI fuses (fuse sold separately) with a 32V DC maximum voltage rating. Common features include plastic construction, protective covers (removable retaining strap or snap-on insulating cover), and mounting provisions for firewall or surface installation; firewall mounting holes permit multiple holders to be mounted together. Fuse blocks offer secure terminal connections and versatile wiring orientations, and some models include label recesses or ignition-protected designs. Certain in-line models are supplied with lead wire and sealing shrink wrap tubes. WARNING: This product line includes items that carry a California Proposition 65 warning for di(2-ethylhexyl)phthalate (DEHP).
- Max. amperage: 48A, max. voltage: 32V DC, mounting hole: 1/4", M6 or #12 screw

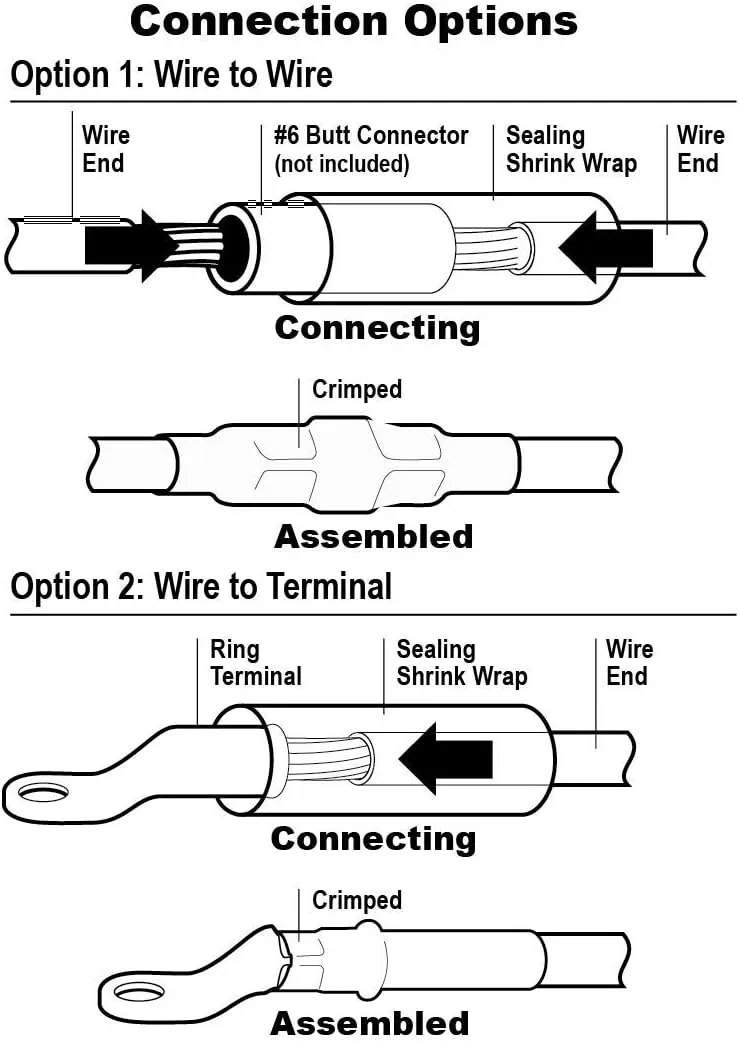

- Supplied with 5 inch #6 red lead wire and two adhesive lined sealing shrink wrap tubes
- Fire wall surface mounting hole permits two or more holders to be mounted together
- Protective cover with retaining strap
- Accepts MAXI Fuses. Fuse sold separately
Specifications:
| Materials & Construction | |
| Outer Material | Plastic |
| Product Details | |
| AC Adapter Current | 48 Amps |
| Fuse Type | Maxi |
| Included Components | Maxi Fuse holder |
| Mounting Type | Wall Mount |
| Style | In-line Fuse Holder |
| Type | Fuse Holders |
| Sizing & Dimensions | |
| Weight | 2.88 ounces |
| Technical Specifications | |
| Voltage | 32 Volts |
