UFLEX Rotech Rotary Steering Package - T71FC Helm, X34 Bezel, M66 Cable
Customize

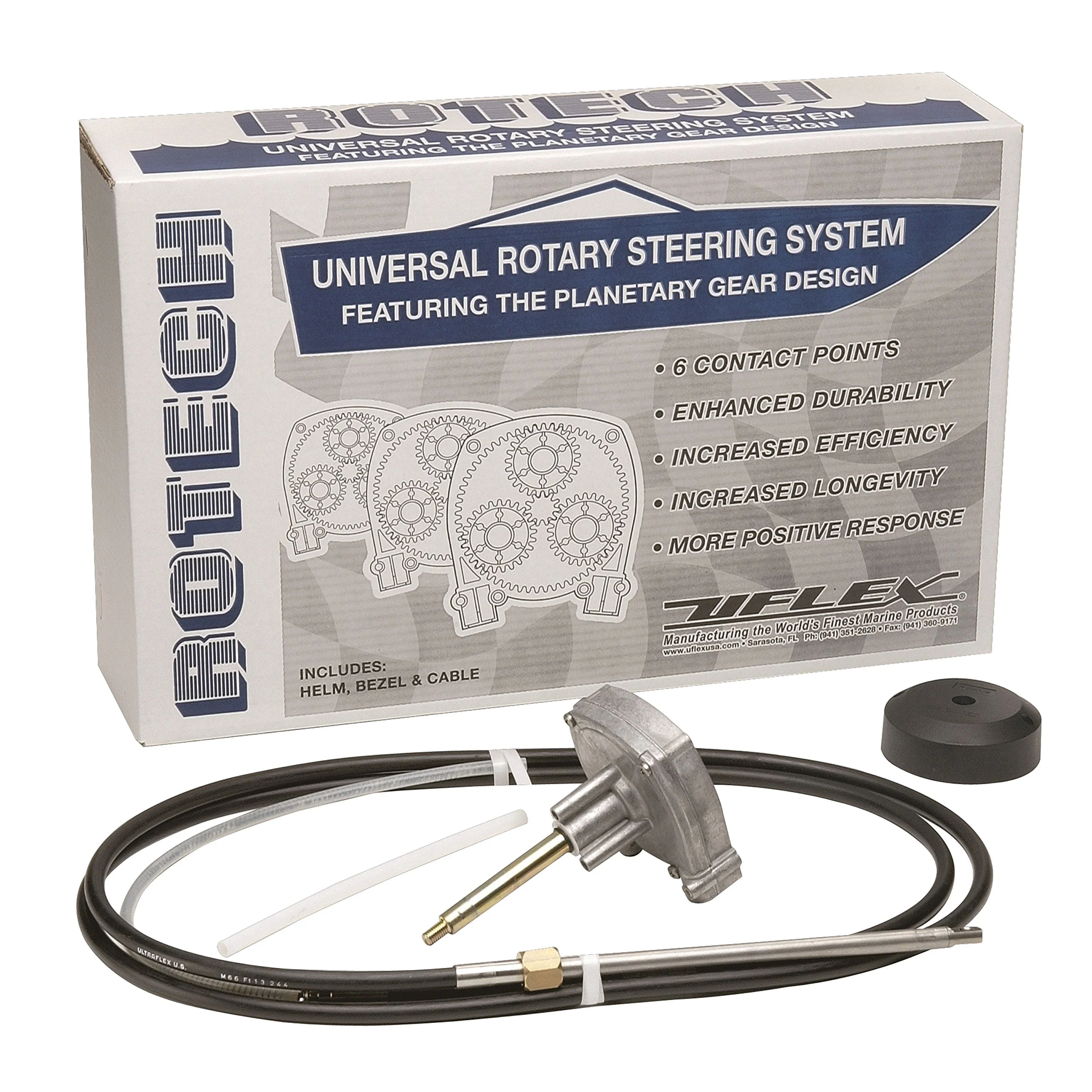

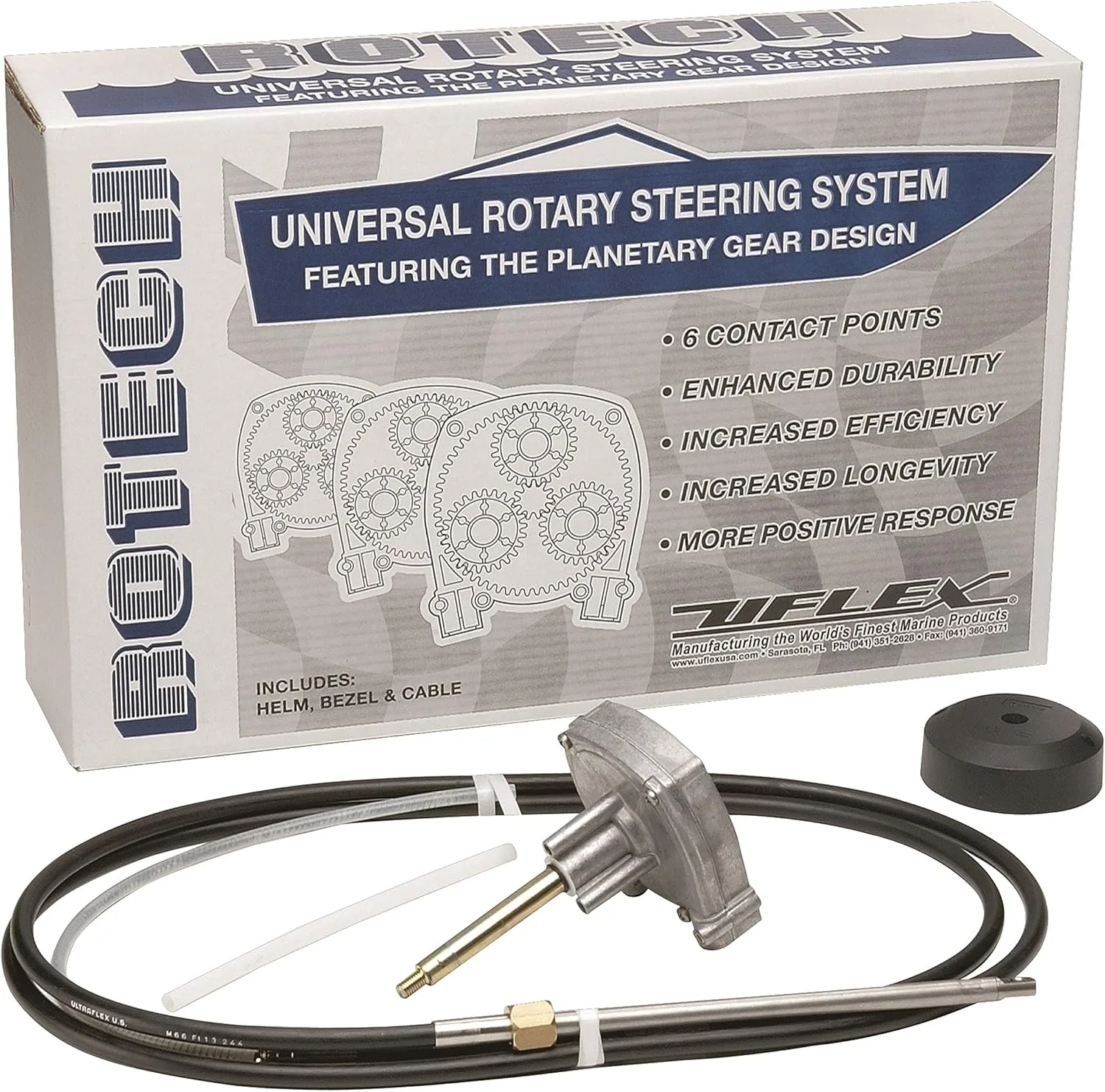

The UFLEX Rotech rotary steering package combines the T71FC helm, X34 90° bezel and M66 steering cable in a boxed kit for convenient replacement installation. The T71FC planetary gear helm reduces steering effort, balances loads on the wheel and offers a wider wear area to reduce lost motion and improve durability. Centered on the main drive shaft for reduced space behind the dash, it is a direct drop-in replacement requiring no new holes for installation and features fast connect, simple installation and minimal feedback. Technical highlights (as provided): standard 3/4" tapered shaft; lock-to-lock turns approx. 3.8; stroke 9" (228 mm); maximum steering wheel diameter: 16" (406 mm); minimum steering cable bend radius: 7.9" (200 mm). All stainless-steel cable output ends and corrosion-resistant materials enhance longevity. Kit packaged in a box; wheel not included. Not for use on boats exceeding the engine horsepower rating of the boat; for boats faster than 50 mph consider the twin cable T72FC system.
Specifications:
| Product Details | |
| Country of Origin | USA |
| Global Trade Identification Number | 00702755019312 |
| Is Discontinued By Manufacturer | No |
| Item model number | 3006.0034 |
| Manufacturer Part No | ROTECH09 |
| UPC | 702755019312 044702009596 |
| Vehicle Service Type | Boat |
| Sizing & Dimensions | |
| Weight | 11.1 pounds |
| Technical Specifications | |
| Lock-to-lock turns | approx. 3.8 |
| Maximum allowable steering wheel diameter | 16" (406 mm) |
| Minimum steering cable bend radius | 7.9" (200 mm) |
| Package Includes | T71FC helm, X34 90 degree bezel, M66 steering cable |
| Standard shaft | 3/4" tapered shaft |
| Stroke | 9" (228 mm) |
