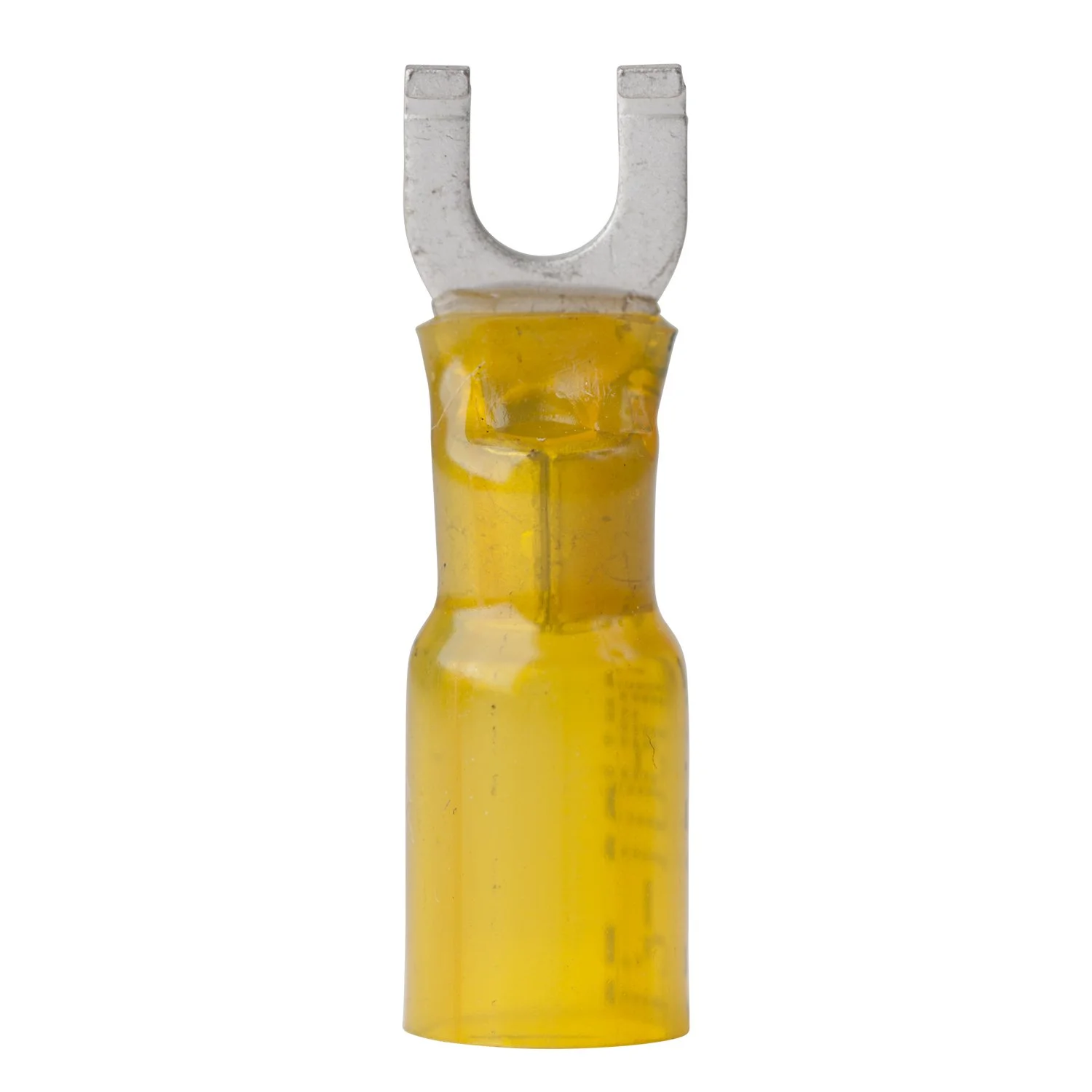

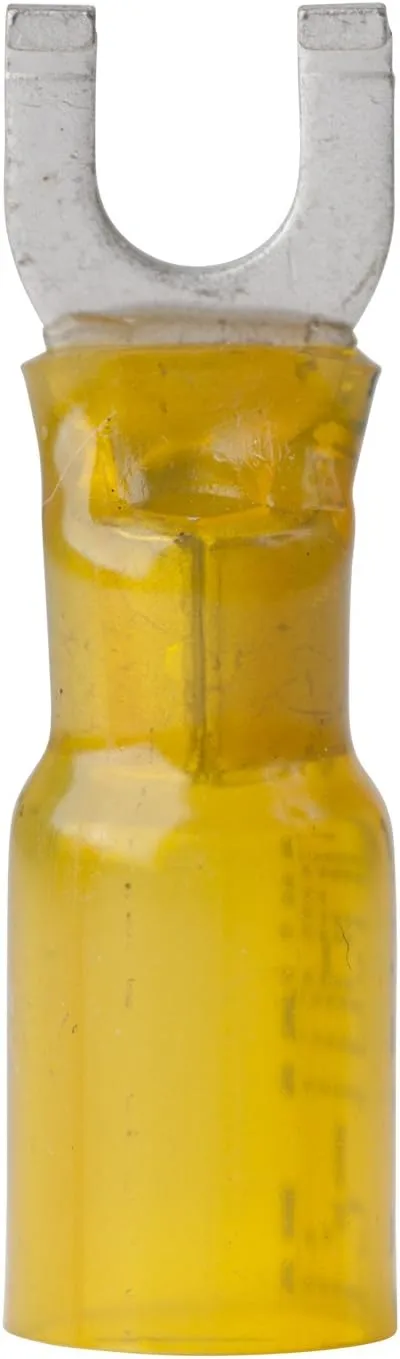

Ancor Marine Grade Heat Shrink Spade Terminals 12-10 AWG #10 Screw
Ancor marine-grade heat shrink spade terminals for 12-10 AWG wire and #10 screw posts; heat-activated sleeve forms a water tight seal and provides corrosion-resistant connections.
Out of stock Out of stock
$47.99 - $90.99
$90.99
$47.99
Color
size
Select size
material
Select material
Customize
Available Quantity
1 GSA Item
No GSA Compliant
Yes Available Quantity
0 GSA Item
No GSA Compliant
Yes Product Details
Ancor Marine Grade heat shrink spade terminals are designed for 12-10 AWG wire and #10 screw posts. The heat-activated adhesive built into the sleeve forms a water tight seal when heated, offering vibration and strain relief for reliable connections. These connectors are tinned for corrosion resistance, feature pure copper for maximum current flow and a brazed seam for maximum strength, and are UL listed and CSA recognized. Ideal for marine, automotive, and general electrical applications where a sealed, corrosion-resistant connection is required. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm.
- UL listed and CSA recognized
- Tinned for corrosion resistance
- When heated, these connectors form a water tight seal and the ultimate vibration and strain relief
- Ancor heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
- 25 Pack of 12-10 AWG #10 Screw size heat shrink spade terminals
Specifications:
| Materials & Construction | |
| Insulation Material | Nylon |
| Outer Material | Plastic |
| Product Details | |
| Global Trade Identification Number | 00091887318548 |
| Heat Shrink | Yes |
| Included Components | Great Product |
| Insulation Material | Nylon |
| Number of Items | 1 |
| Package Qty | 25 |
| Post Size | #10 |
| Specification Met | UL |
| Sport Type | Boating |
| Style | #10 Screw, 25 Pack |
| Temperature Rating | 25 degree celsius |
| Terminal | Screw Terminal |
| Type | Spade Connectors |
| Unit Count | 1.0 Count |
| UPC | 091887318548 |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Weight | 1.6 ounces |
| Technical Specifications | |
| Specification Met | UL |
| Temperature Rating | 25 degree celsius |
| Warranty | Warranty |
