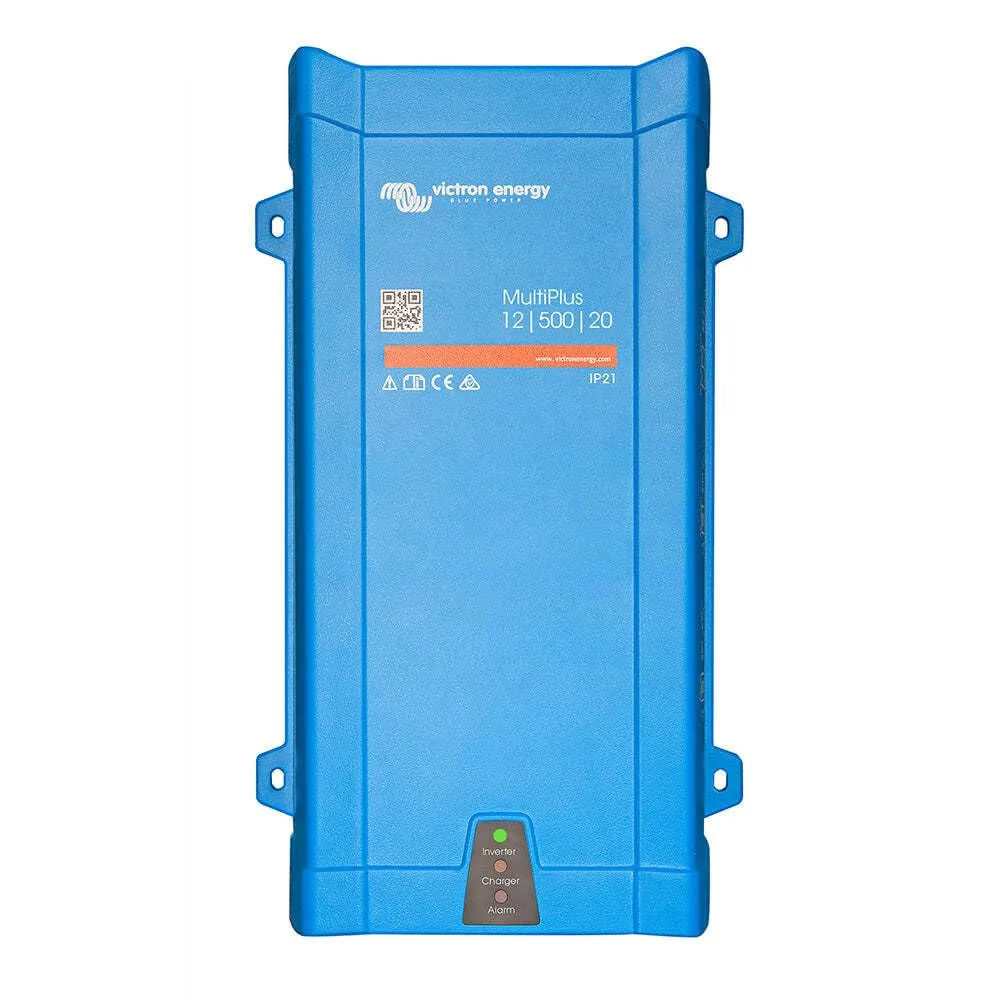

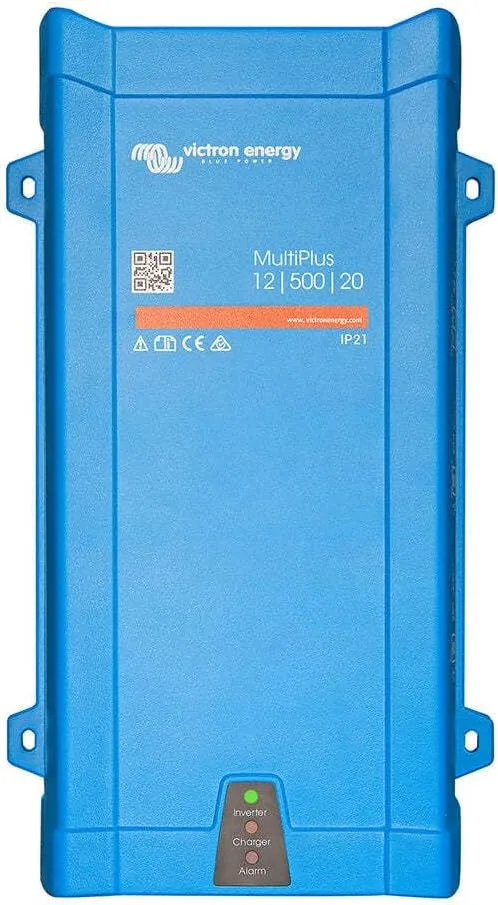

VICTRON ENERGY MultiPlus 12 120V VE.Bus True Sine Wave Inverter/Charger
Customize
The MultiPlus 12 120V VE.Bus from VICTRON ENERGY combines a true sine wave inverter, a sophisticated adaptive four-stage battery charger, and a high-speed AC transfer switch in one enclosure. Key features include PowerAssist to supplement shore or generator power, PowerControl to limit generator or shore current draw, UPS functionality for uninterrupted AC power, and dual-bank/trickle charging for a starter battery. Multiple units can operate in parallel for increased power and units can be configured for three-phase output. VE.Bus connectivity and GX device compatibility (for example Cerbo GX) provide local and remote monitoring via Victron's VRM portal. The product includes protection features for short circuit, overload, input ripple, over/under battery voltage and high temperature, and is supplied in an aluminum blue RAL 5012 enclosure suitable for RV, marine, off-grid and backup power installations.
- Four-Stage Adaptive Charger: Advanced charging optimised for Lithium, AGM, Gel and Flooded batteries, with a dedicated trickle charge for starter or auxiliary banks
- Parallel and three-phase capability: Connect up to six MultiPlus units for more power. In addition to parallel connection, three units can be configured for three-phase output.
- PowerAssist: If shore or generator power can’t keep up, the MultiPlus adds battery power to cover the difference.When the load drops, it uses any spare power to top up the batteries
- PowerControl: You can set a limit on how much power comes from shore or a generator. The MultiPlus makes sure your system stays within that limit, and uses any leftover power to charge the batteries
- Multifunctional with smart power management: Converts 12V battery power into 120V AC at 500 VA to power 120V appliances up to 430 watts. Charges 12V batteries at up to 20 amps, all in one compact unit
Specifications:
| Materials & Construction | |
| Outer Material | Aluminum |
| Product Details | |
| Model Name | Victron Energy MultiPlus |
| Recommended Uses For Product | RV, Boat, Backup Power, Off-grid Cabin |
| Sizing & Dimensions | |
| Height | 12.2 inches |
| Length | 3.9 inches |
| Product Dimensions | 12.2 x 7.2 x 3.9 inches |
| Size | 12.2 x 7.2 x 3.9 inches |
| Weight | 11.8 pounds |
| Width | 7.2 inches |
| Technical Specifications | |
| Power Assist | Yes |
| Power Control | Yes |
