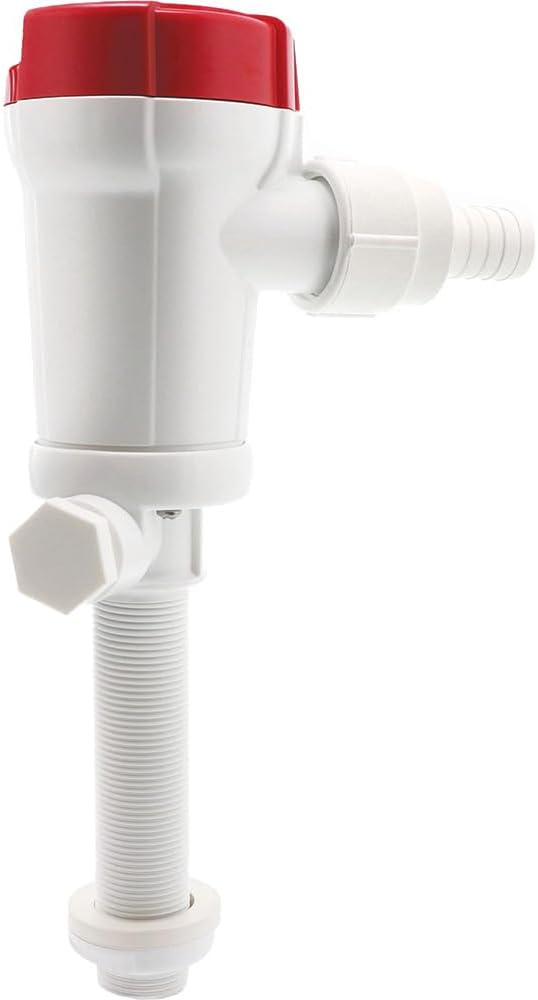

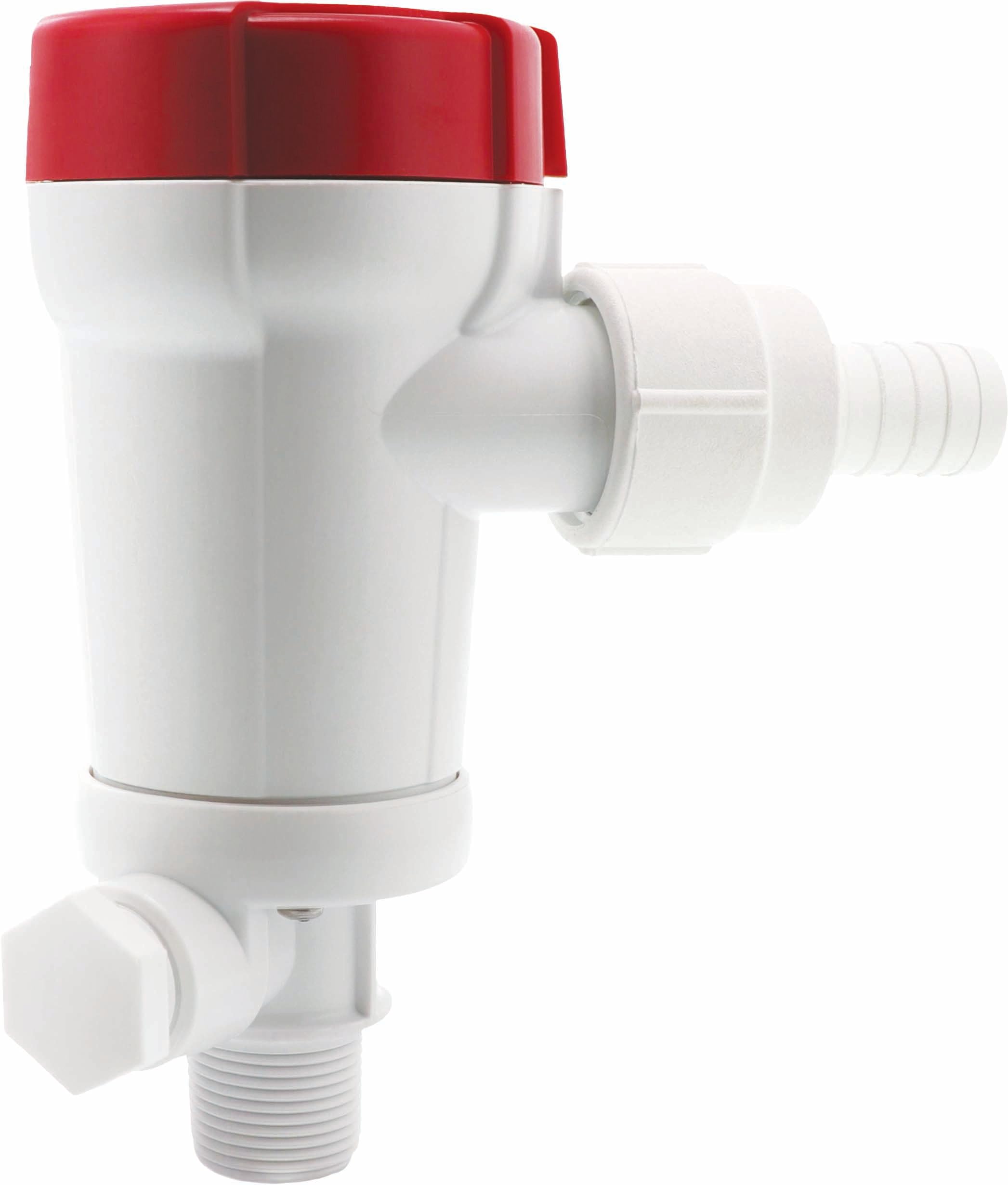

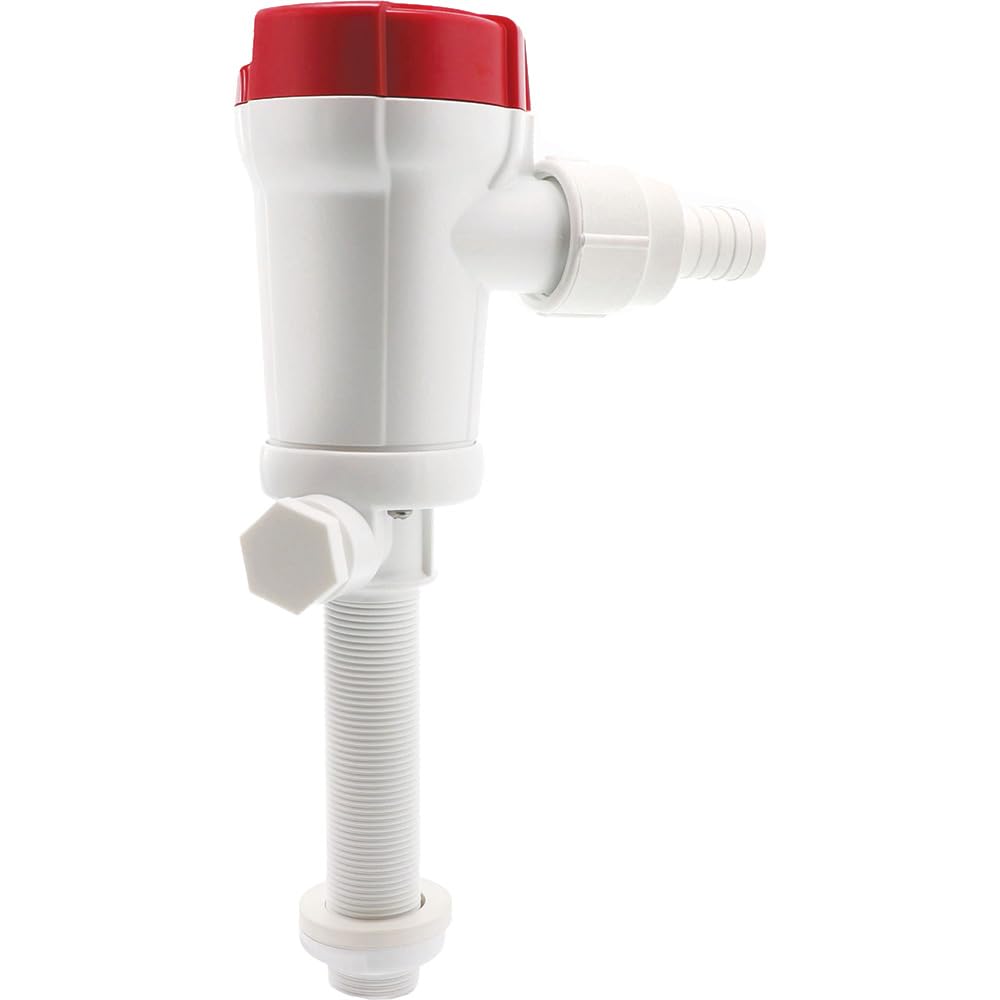

RULE Livewell Pump Series, 12V
Customize
For over 50 years boat builders and owners have depended on Rule pumps. The RULE Livewell Pump Series is designed to deliver superior performance and quality for keeping bait and catch alive. Common features across the series include high-efficiency motor and impeller design for optimal circulation, a simple push-and-twist (twist & click) motor cartridge removal system for easy service, advanced anti-airlock protection, and a secondary inlet port for washdown pump connection. All pumps are supplied with threaded nylon hose barb attachments and offer inlet options for straight thru-hull, angled thru-hull and seacock installations. The series is built to withstand higher inlet pressures from high-speed pickup scoops and to adapt to a variety of marine livewell configurations.
- High efficiency pump design for optimal bait health
- Simple one hand ‘twist & click’ motor cartridge removal/replacement
- Inlet for angled thru-hull installations
- Advanced anti-airlock protection
- Secondary inlet port for washdown pump connection
Specifications:
| Materials & Construction | |
| Outer Material | Plastic |
| Product Details | |
| Batteries Required | No |
| Included Components | Livewell Pump |
| Item Package Quantity | 1 |
| Style | 1100 GPH |
| UPC | 042237115768 |
| Warranty | Manufacturer |
| Sizing & Dimensions | |
| Weight | 1.6 pounds |
| Technical Specifications | |
| Amp Draw @ 12VDC | 4.7 AMP |
| Discharge Size - Hose Barb | 1-1/8" |
| Fuse Size | 7.5 AMP |
| Inlet Size - NPT | 3/4" NPSM Thread |
| Inlet Style | Angled Thru-Hull |
| Open Flow | 1100 GPH |
| Replacement Motor Cartridge PN | 67DR |
| Voltage | 12VDC |
