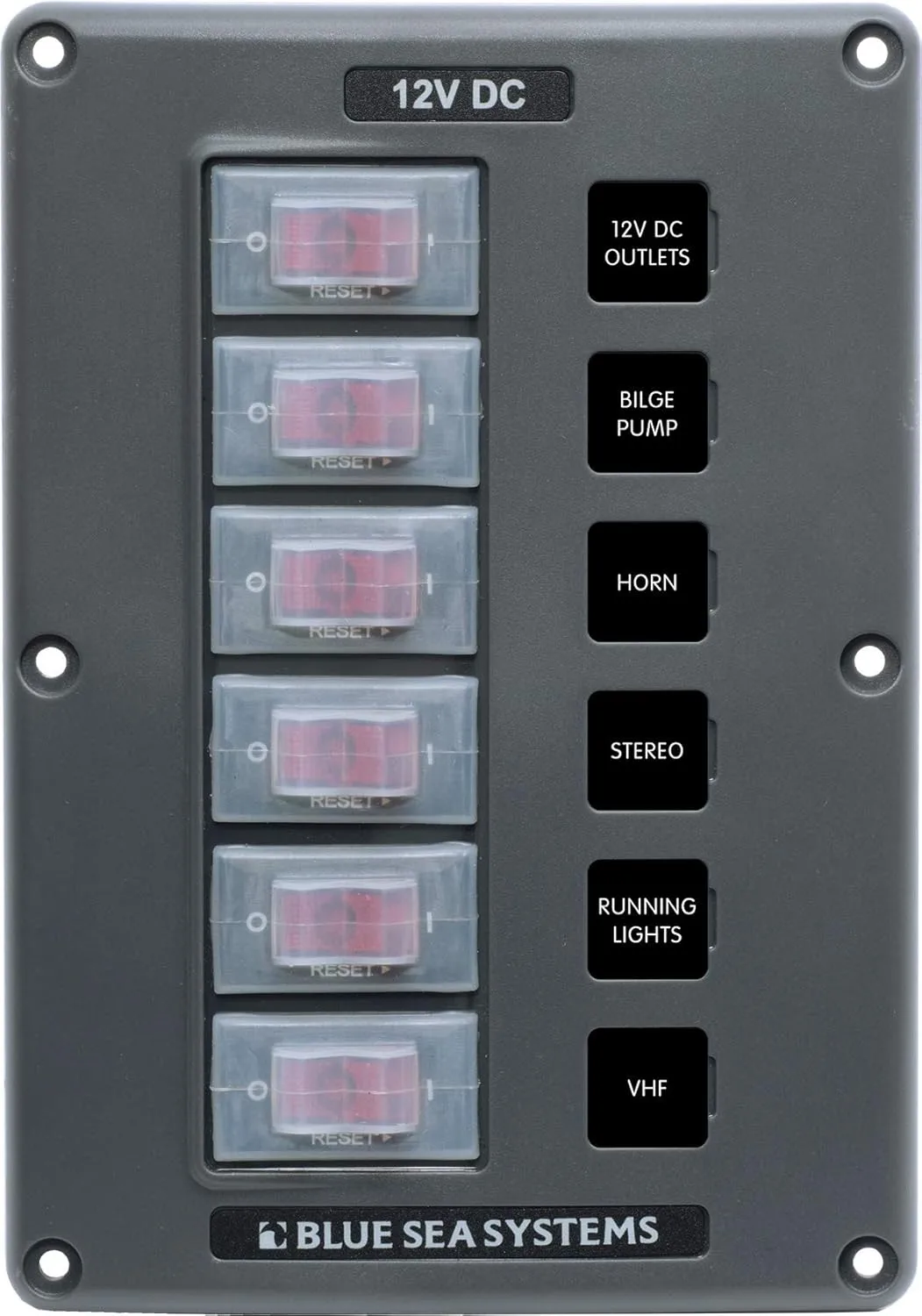

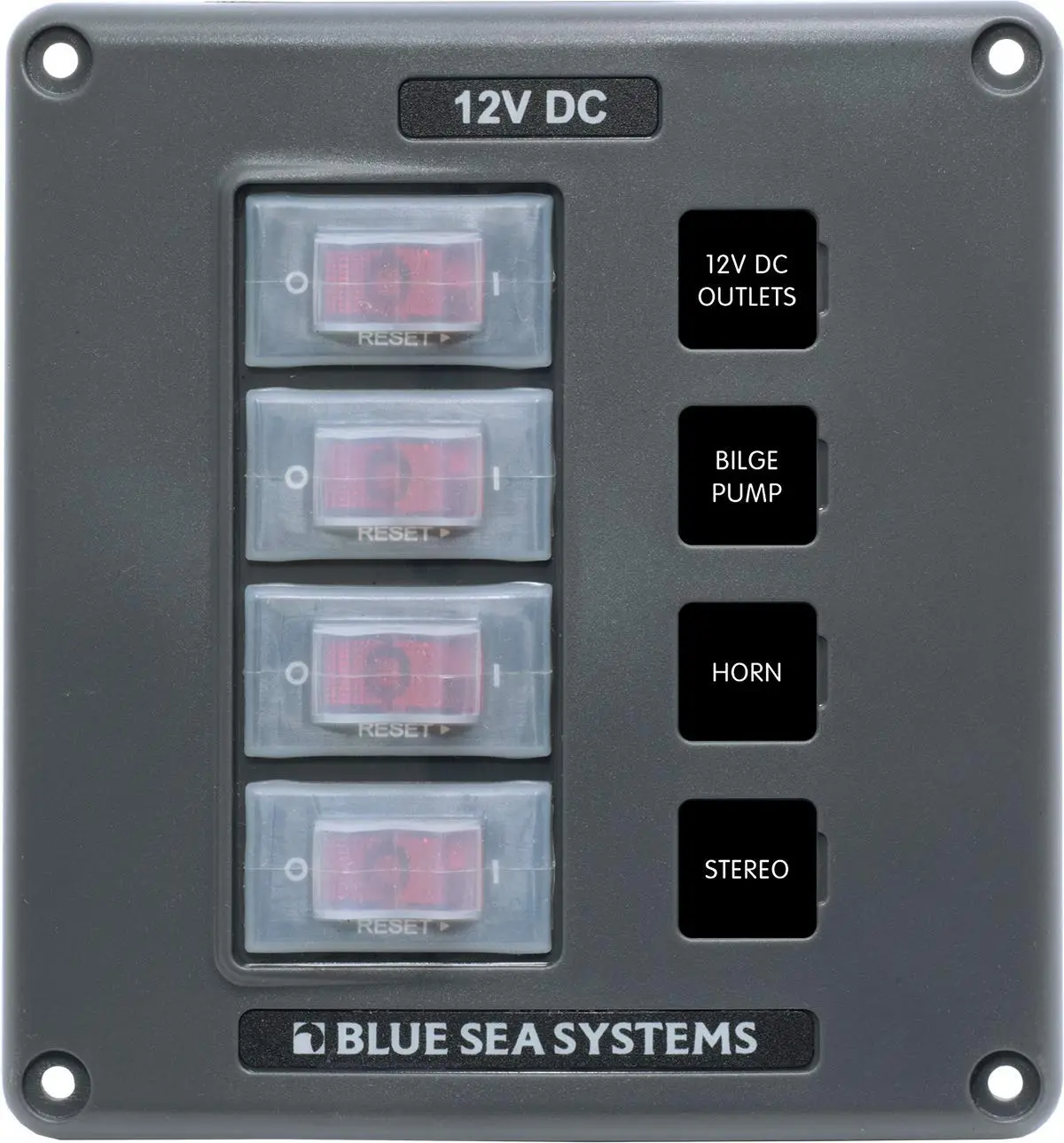

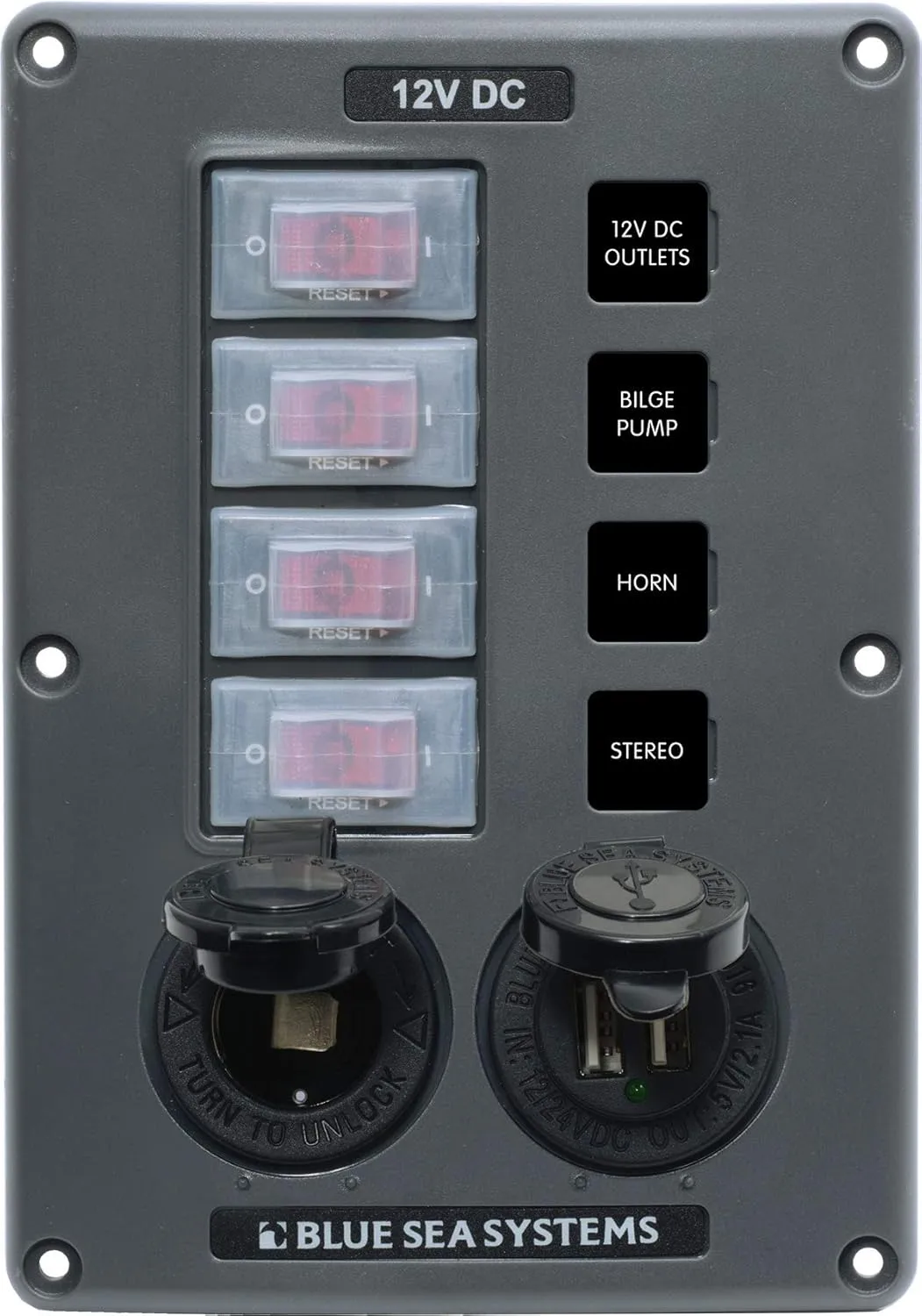

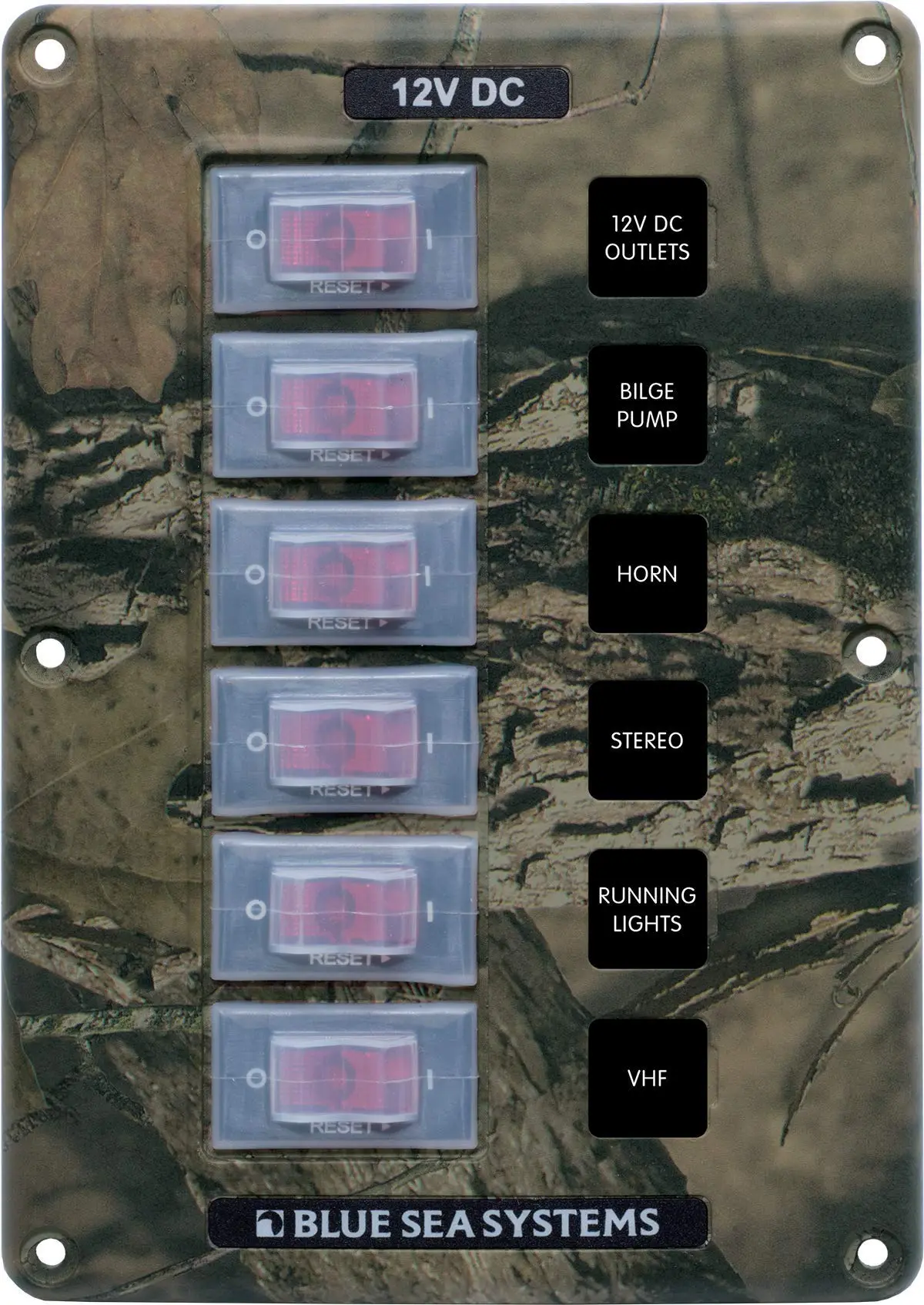

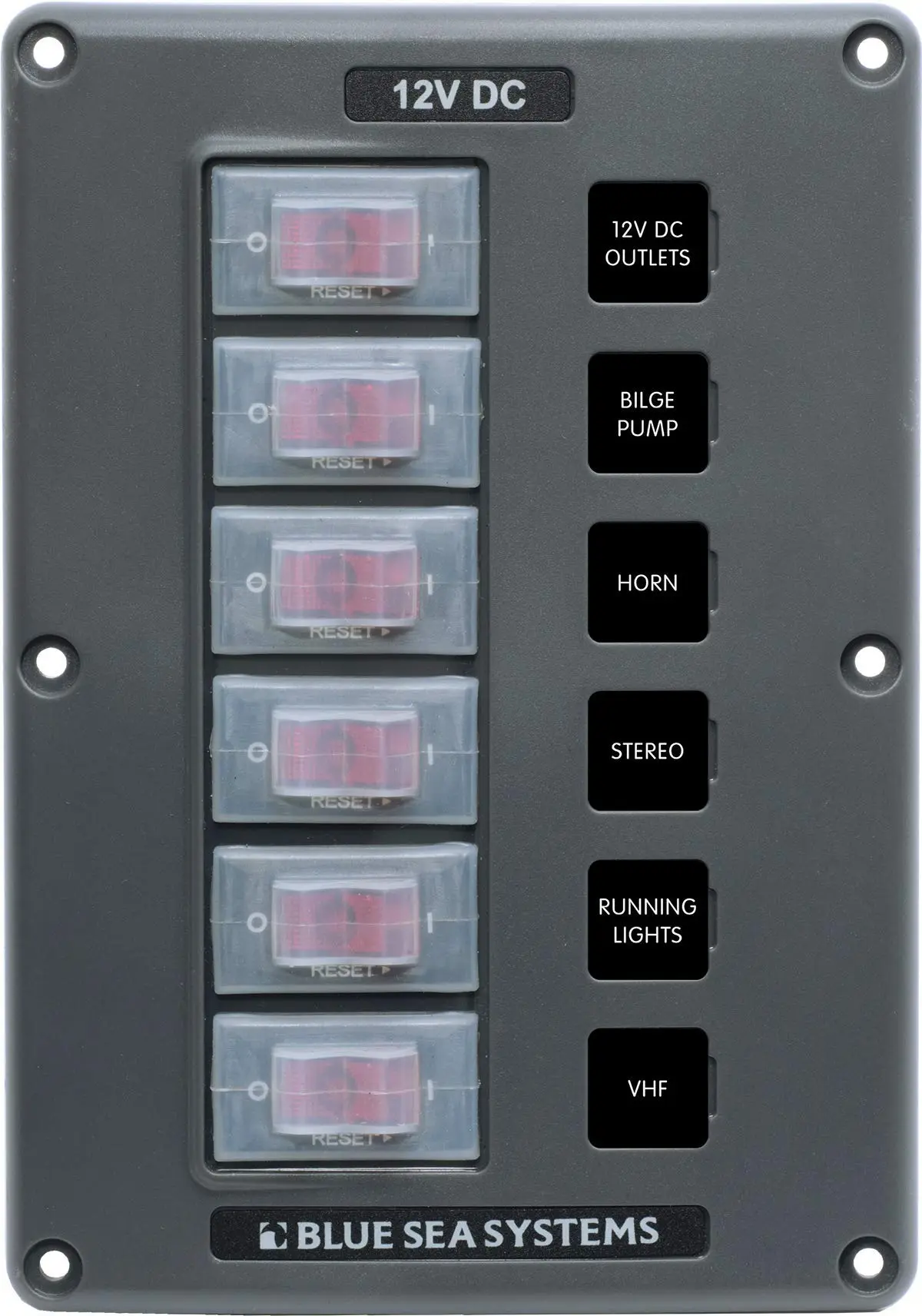

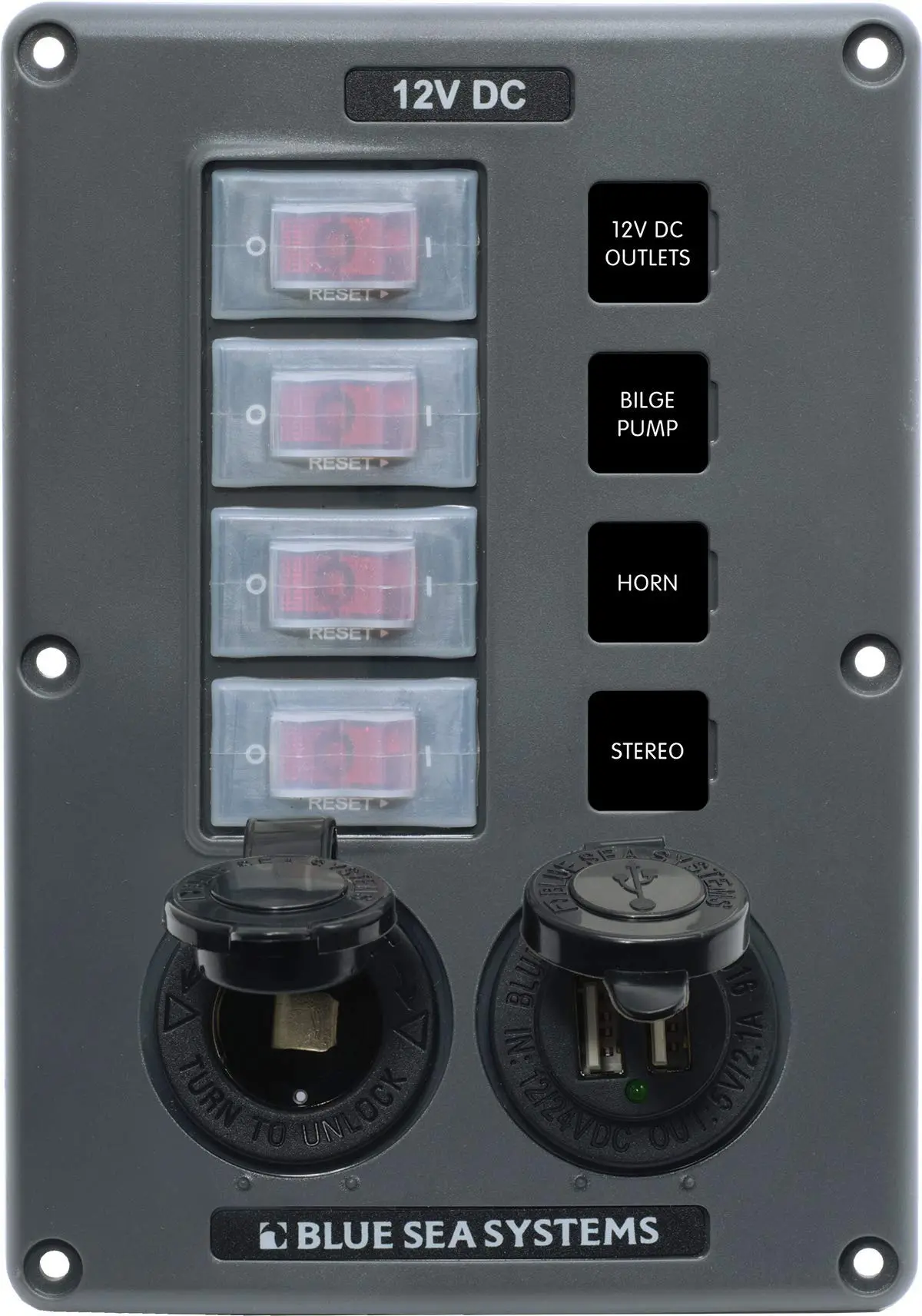

Blue Sea Systems Water-Resistant Circuit Breaker Switch Panel
Customize
Designed for exposed mounting applications, these Blue Sea Systems water-resistant circuit breaker switch panels feature illuminated 15A circuit breakers that provide switching, "ON" indication and overcurrent protection. The polycarbonate/ABS panel surface is UV-stabilized and flame retardant; silicone breaker boots and a gasket protect against water ingress and the panel front is IP66 when mounted with the gasket in place. Fast-on 1/4" male quick connect terminals and a two-wire connection (requires #10 ring terminals) make wiring quick, while terminals screw to bus bars for secure connections. Stainless steel #6 x 5/8" mounting screws are specified and a set of 15 square format circuit labels is included; industry-standard sizes and mounting allow easy retrofit. Nominal Voltage: 12V DC. Maximum Amperage: 45A.
Product Details
- Circuit Type:6-way
- Connectivity Protocol:X-10
- Connector Type:quick connect,screws
- Contact Material:Copper, Brass
- Contact Type:Normally Open
- Control Method:App
- Controller Type:Ring
- Country of Origin:Mexico
- International Protection Rating:IP66
- Item model number:4322-BSS
- Mirror Lighting Type:LED
- Number of Items:1
- Operation Mode:ON-OFF
- Terminal:quick connect,screws
- Unit Count:1.0 Count
- Wattage:1800 watts
Sizing & Dimensions
- Weight:0.01 ounces
Technical Specifications
- Current Rating:45 Amps
- Hardware:Stainless Steel #6 x 5/8" mounting screws
- Max Breaker Quantity:6
- Operating Voltage:12 Volts (DC)
- Terminal Type:1/4" Male Quick Connect
