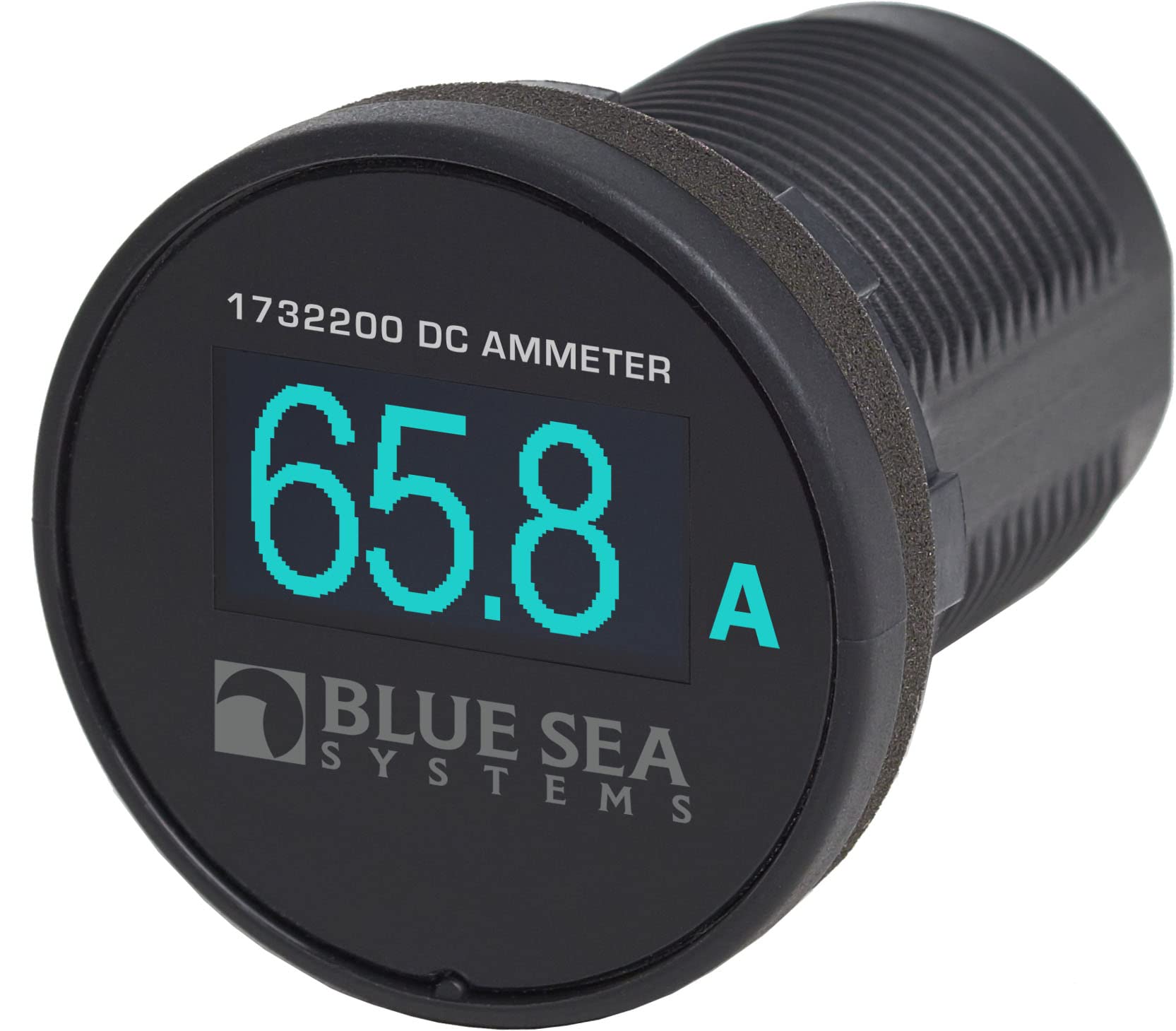

BLUE SEA SYSTEMS Mini OLED Meters for Marine, RV and More
Compact, waterproof Mini OLED panel meters by BLUE SEA SYSTEMS with daylight‑readable OLED displays; reverse‑polarity protected and designed for 12V/24V systems (8–36V input), mounting in a 1-1/8 in hole.
Out of stock Out of stock Out of stock
$81.99 - $141.99
$81.99
$141.99
$141.99
Color
size
Select size
Customize
UPC
632085017392 Available Quantity
6 GSA Item
No GSA Compliant
No UPC
632085017323 Available Quantity
2 GSA Item
No GSA Compliant
No UPC
632085173227 Available Quantity
3 GSA Item
No GSA Compliant
No Product Details

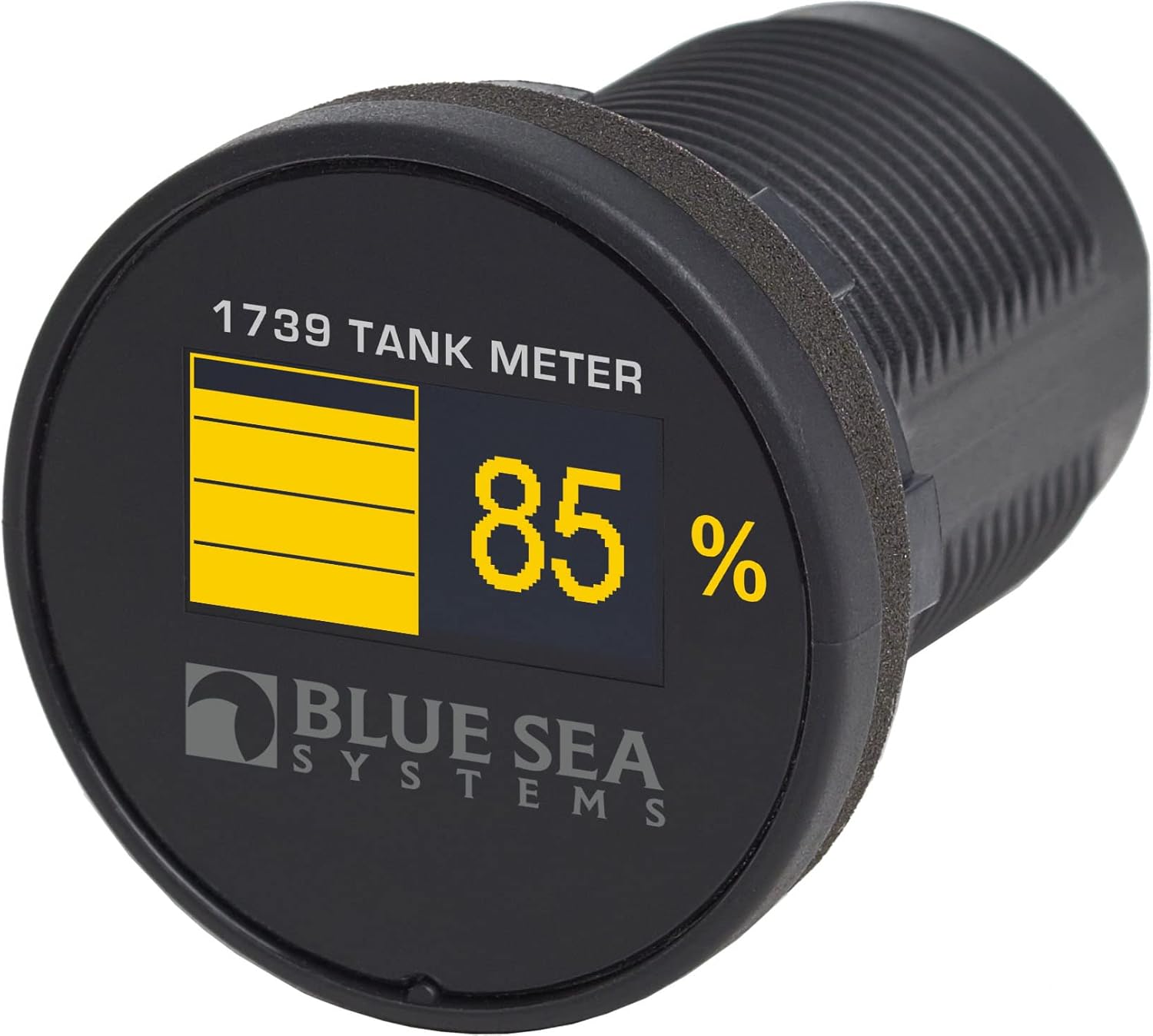

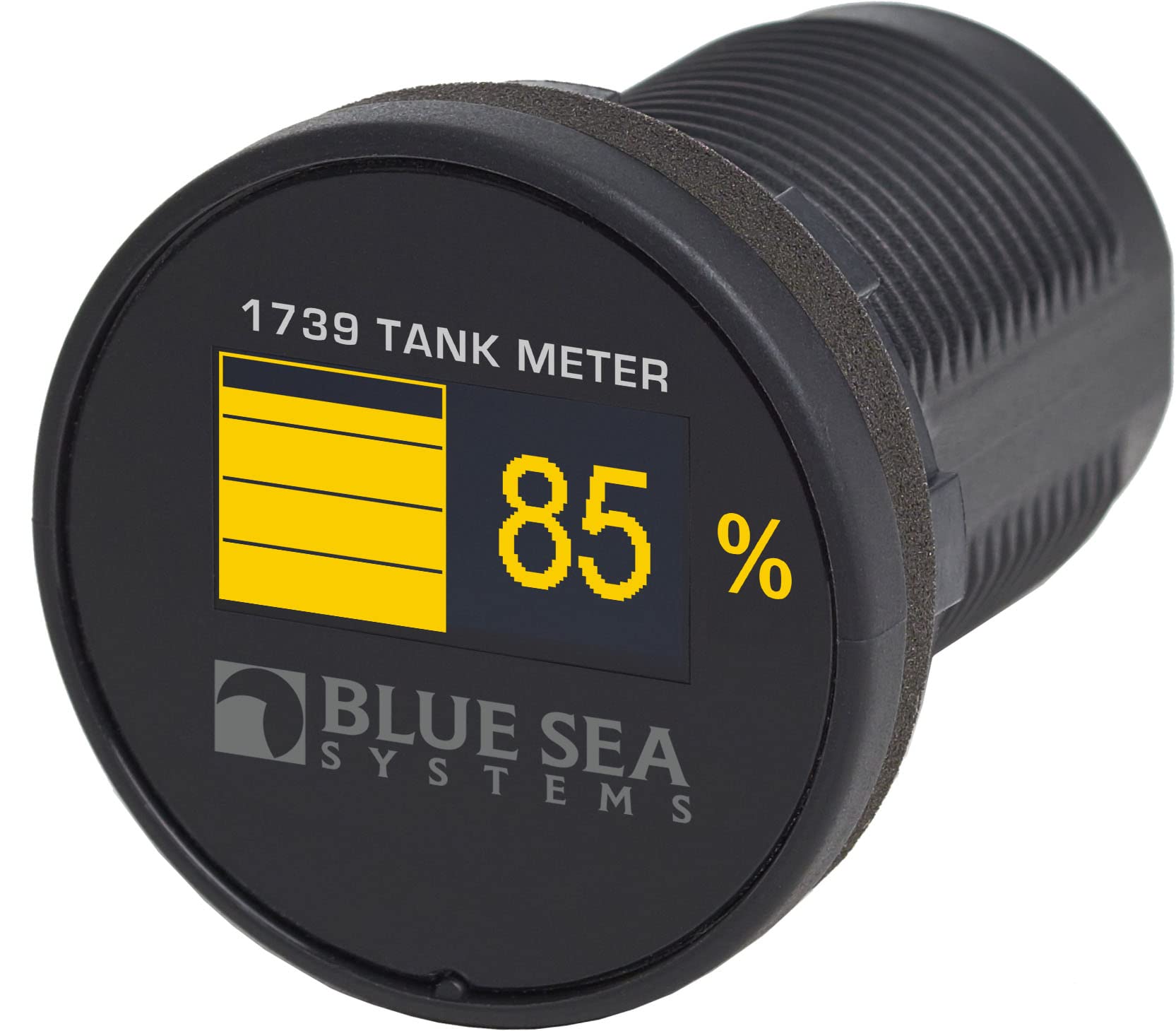

The BLUE SEA SYSTEMS Mini OLED meter family provides compact, durable panel-mounted monitoring solutions for marine, RV and automotive applications. Each meter features a bright, waterproof, daylight‑readable OLED display and reverse‑polarity protection, allowing flexible installation in a standard 1-1/8 in hole. The line includes ammeters, voltmeters, tank meters and temperature monitors, all designed for 12V/24V nominal systems with an 8–36V input range and low operating current (~10–17mA). With compact form factors and long lifecycle ratings (10,000 switching cycles), these meters deliver convenient system monitoring and reliable operation in harsh environments.
- Color: Blue, Meter: Current Meter, Nominal Voltage: 12V DC/ 24V DC, Resolution: 0.1A, Intermittent Rating: 110A, Cranking Rating (30 sec): 175A, Accuracy: +-2%, Input Voltage Range: 8-36V DC, Lifecycles: 10,000 hours, Operating Current: 15mA, Operating Temperature Range: -40°C – 70°C (-40°F – 158°F)

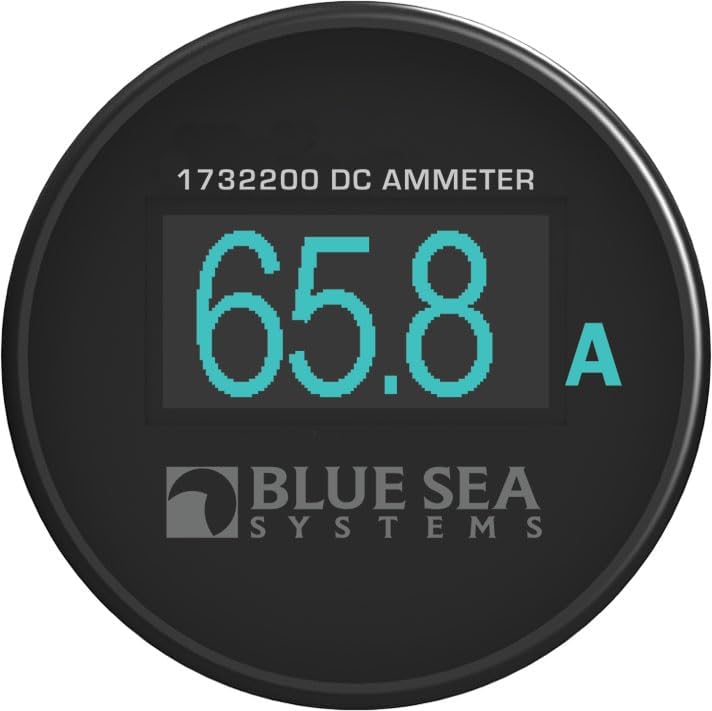

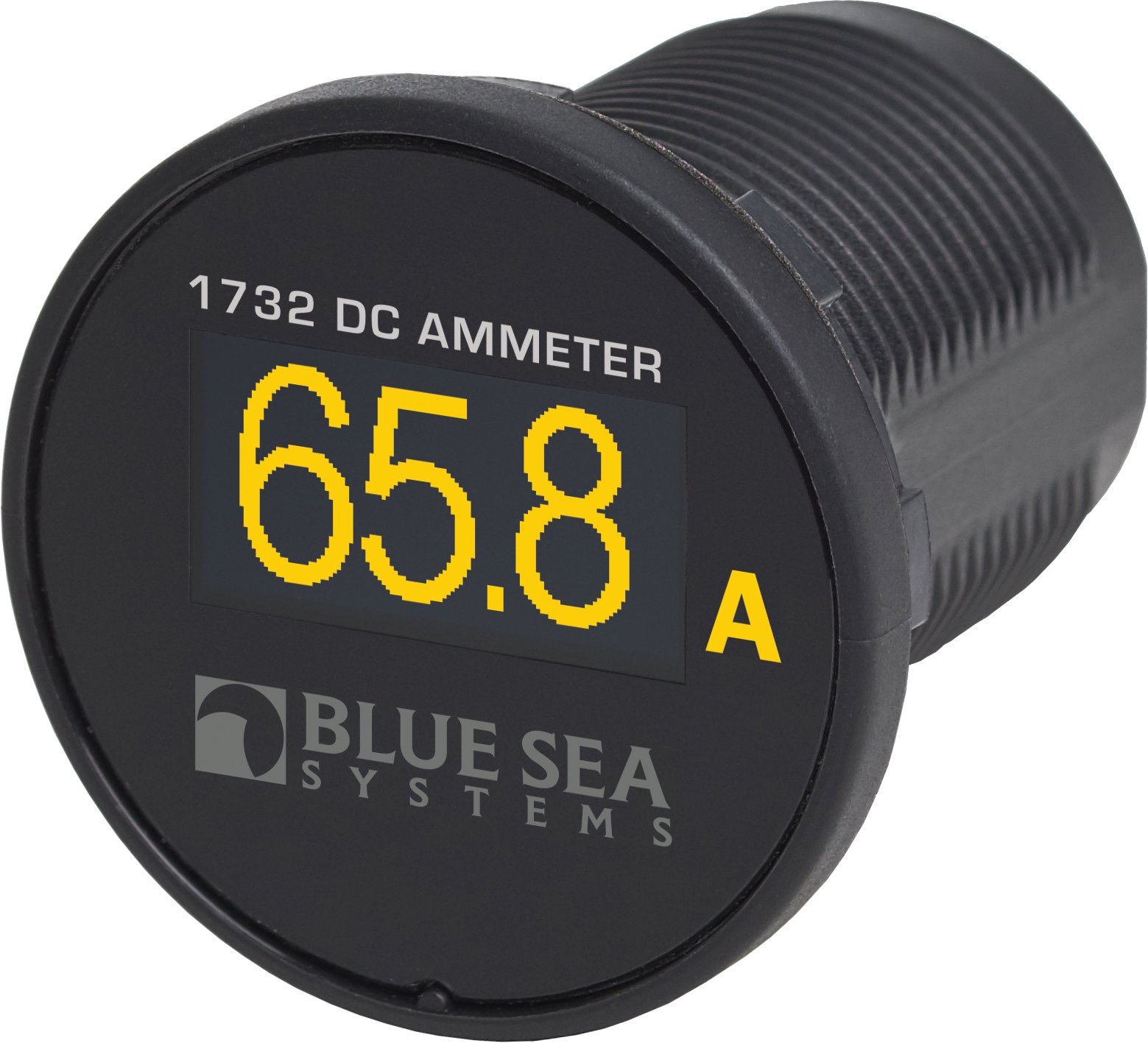

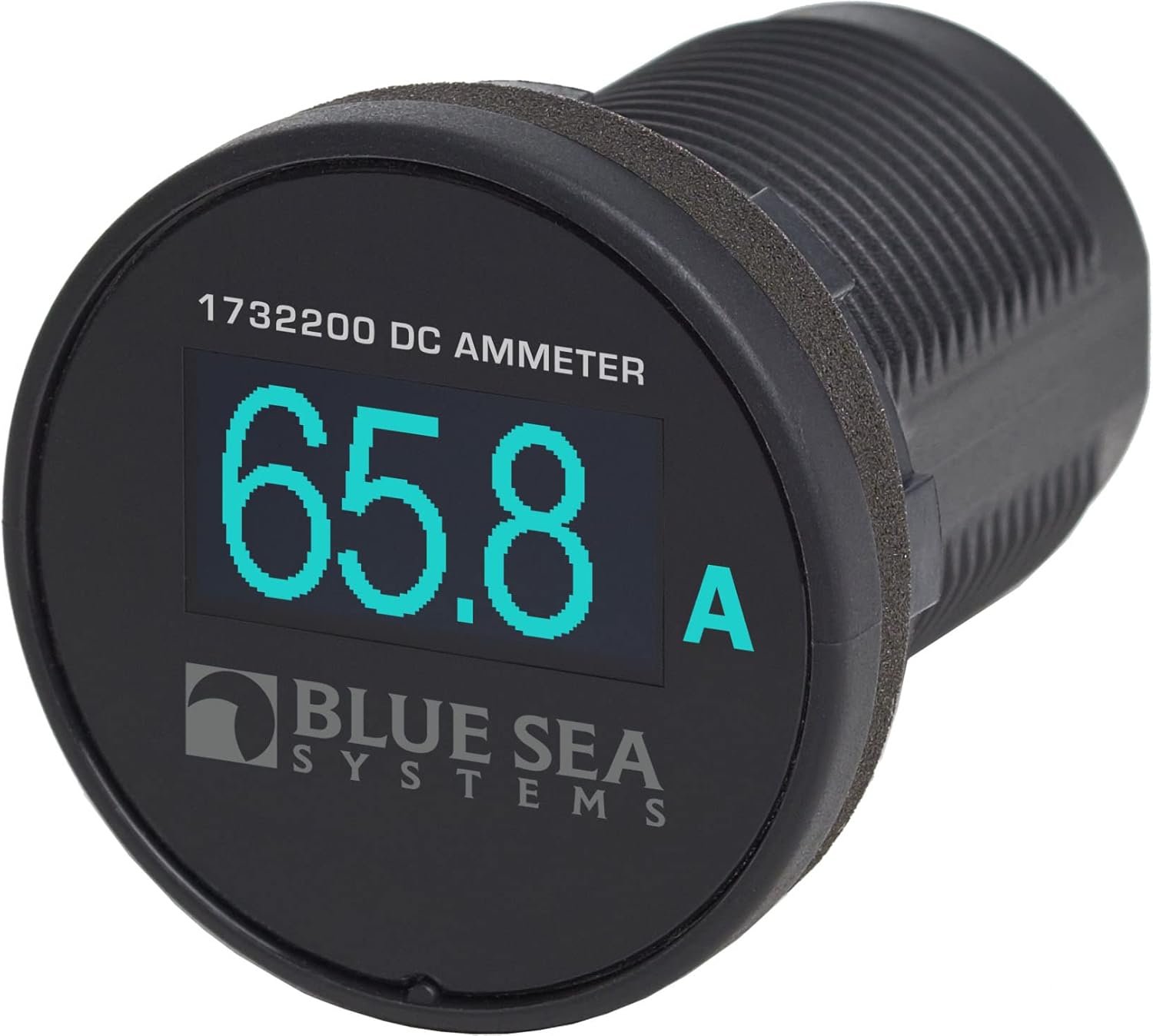

- Convenient amperage monitoring on a bright, waterproof, daylight readable OLED screen
- Compact size enables mounting in any convenient location
- Reverse polarity protected

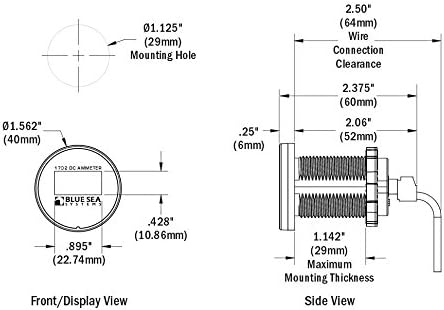

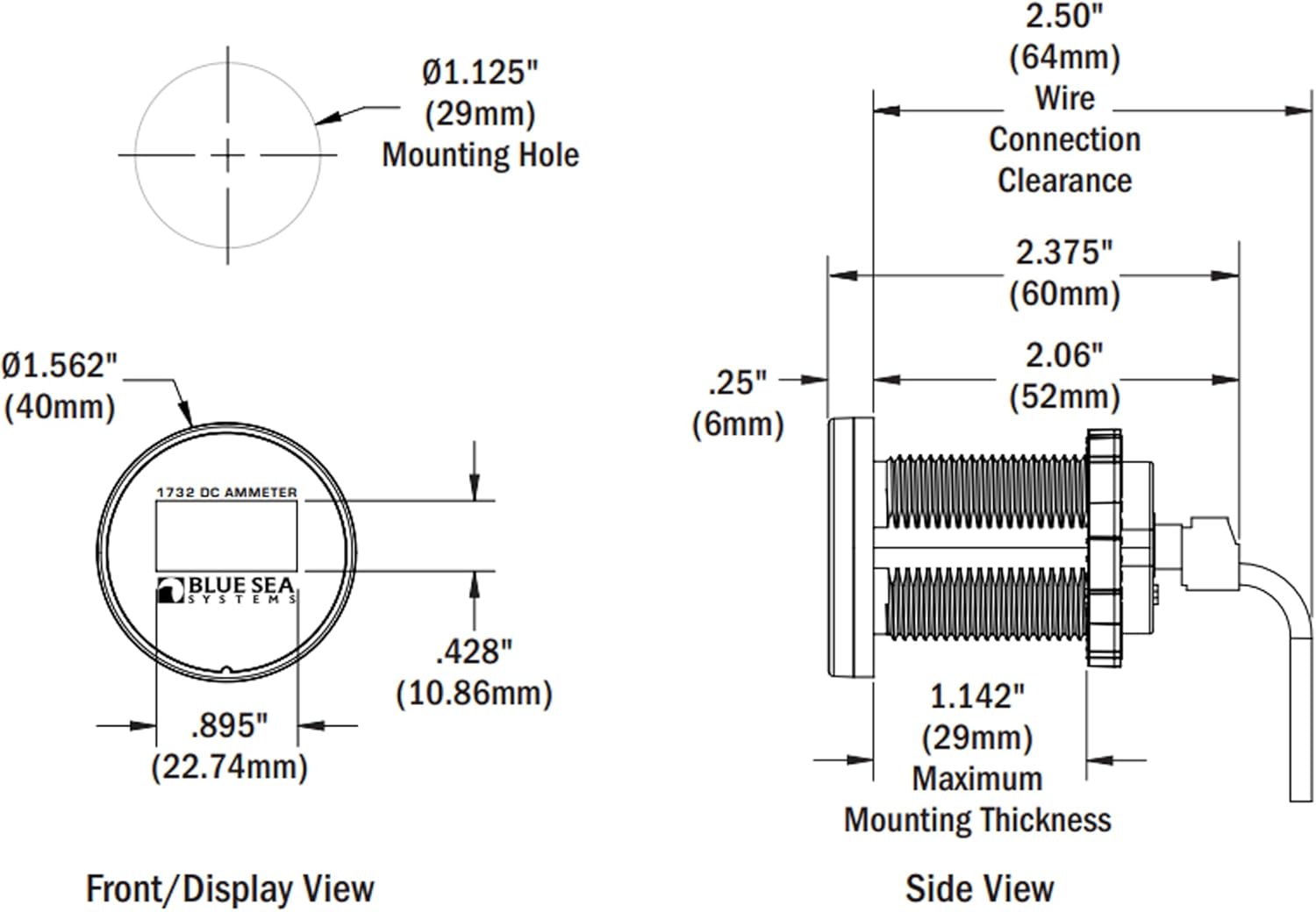

- Mounts in a common 1-1/8 in hole
- Monitors -100A to 100A DC
- Rated IP66 - protected against powerful water jets
Specifications:
| Product Details | |
| Model Name | Blue Sea Systems Boating Electrical Equipment |
| Number of Items | 1 |
| Sport Type | Boating |
| Warranty | 5 Year Warranty |
| Sizing & Dimensions | |
| Weight | 5.29 ounces |
| Technical Specifications | |
| Accuracy | +-2% |
| Cranking Rating (30 Sec) | 175A |
| Input Voltage Range | 8-36V DC |
| Intermittent Rating | 110A |
| Lifecycles | 10,000 hours |
| Nominal Voltage | 12V DC/24V DC |
| Operating Current | 15mA |
| Operating Temperature Range | -40°C – 70°C (-40°F – 158°F) |
| Resolution | 0.1A |
