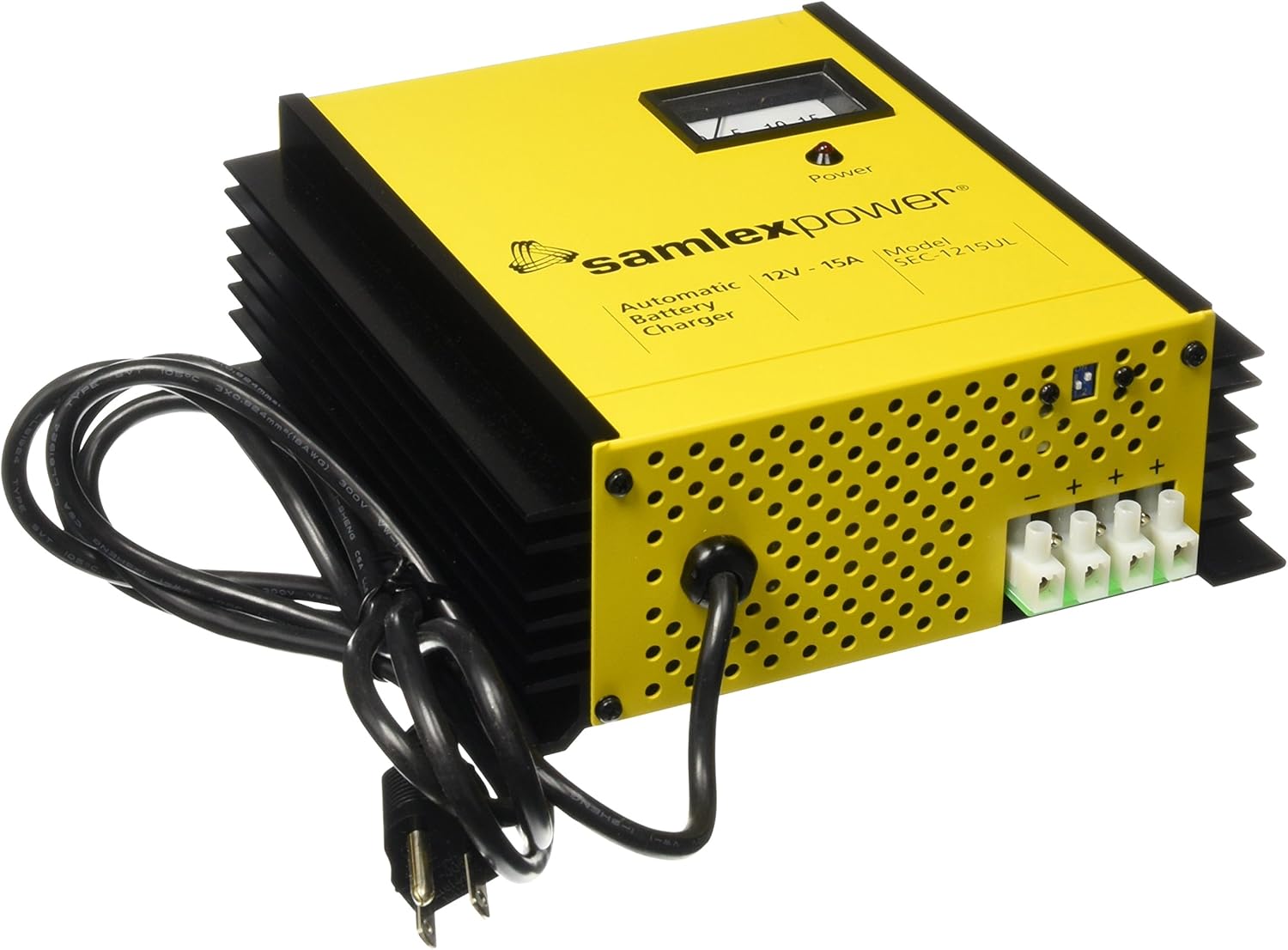

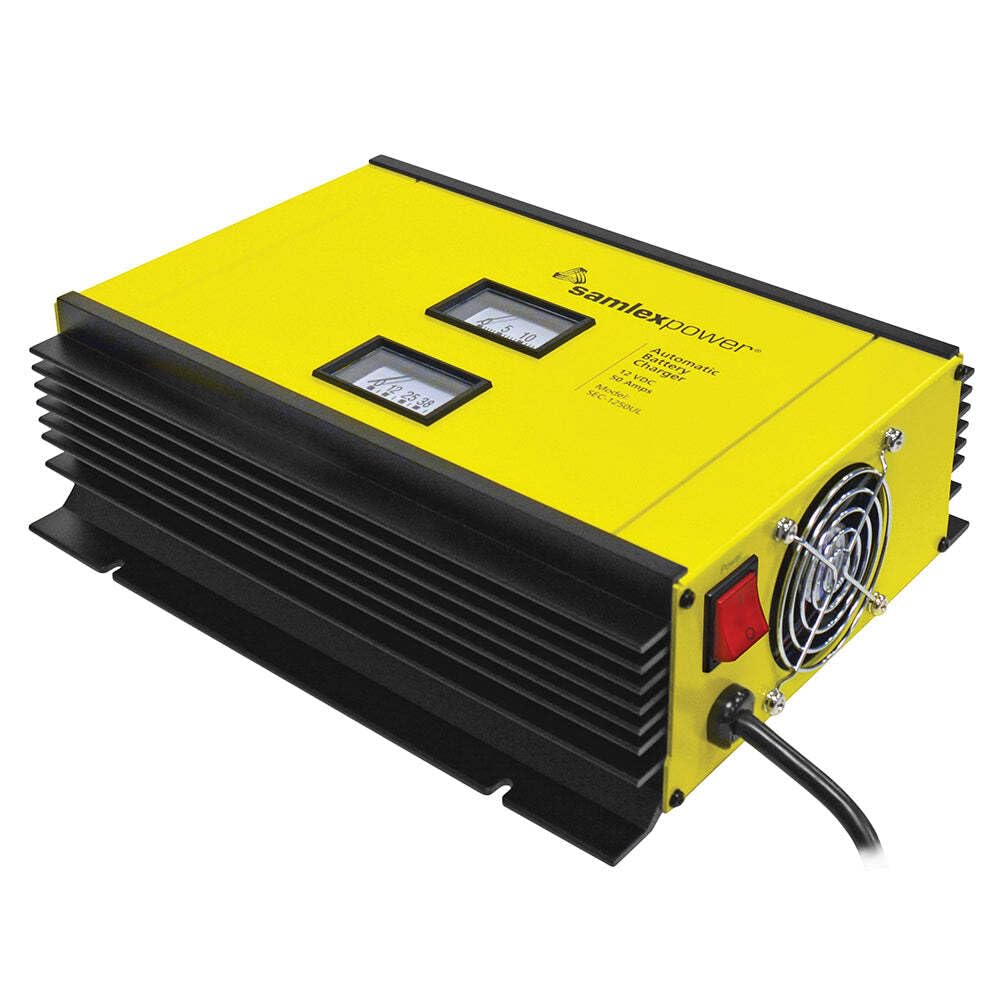

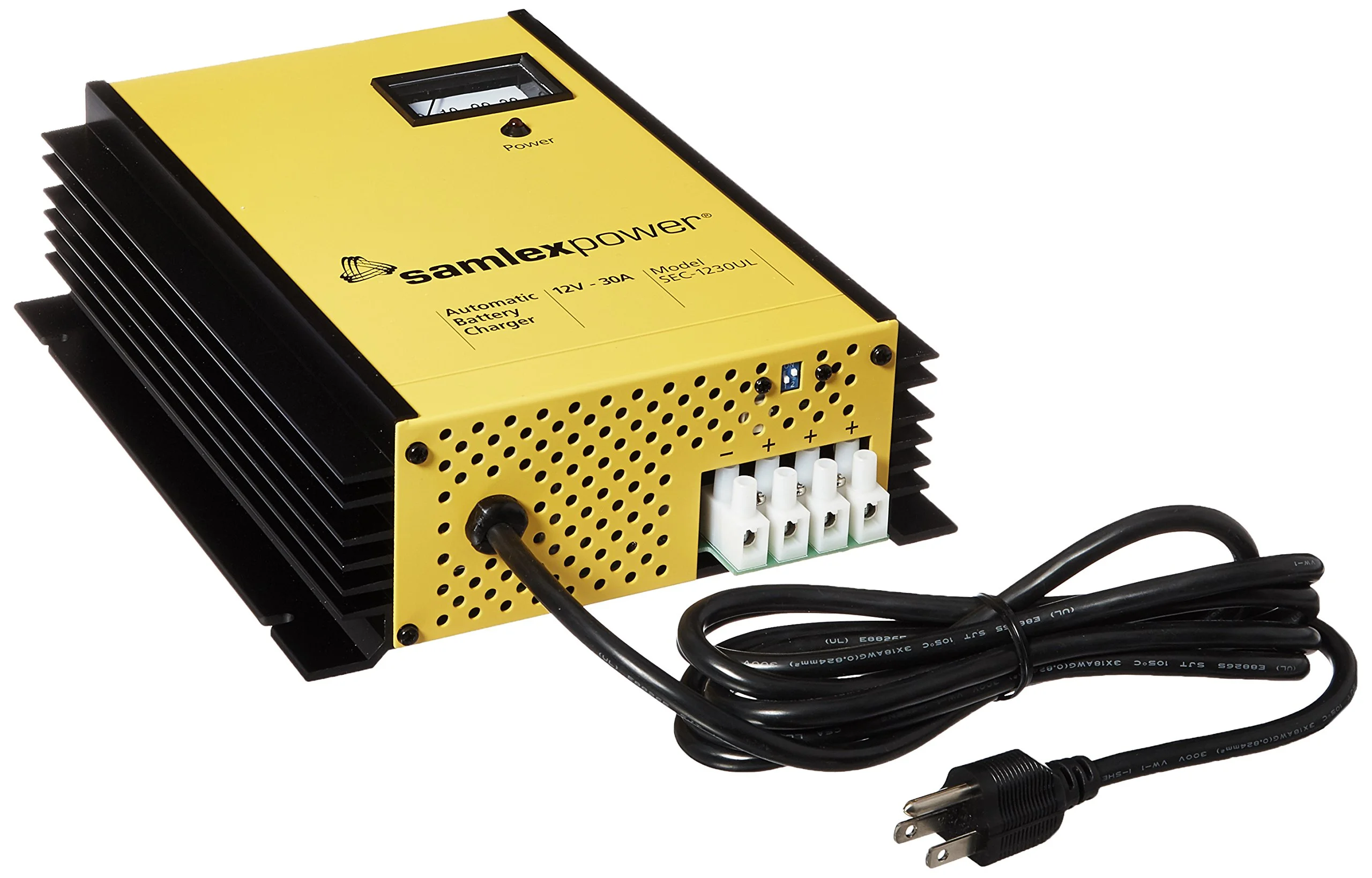

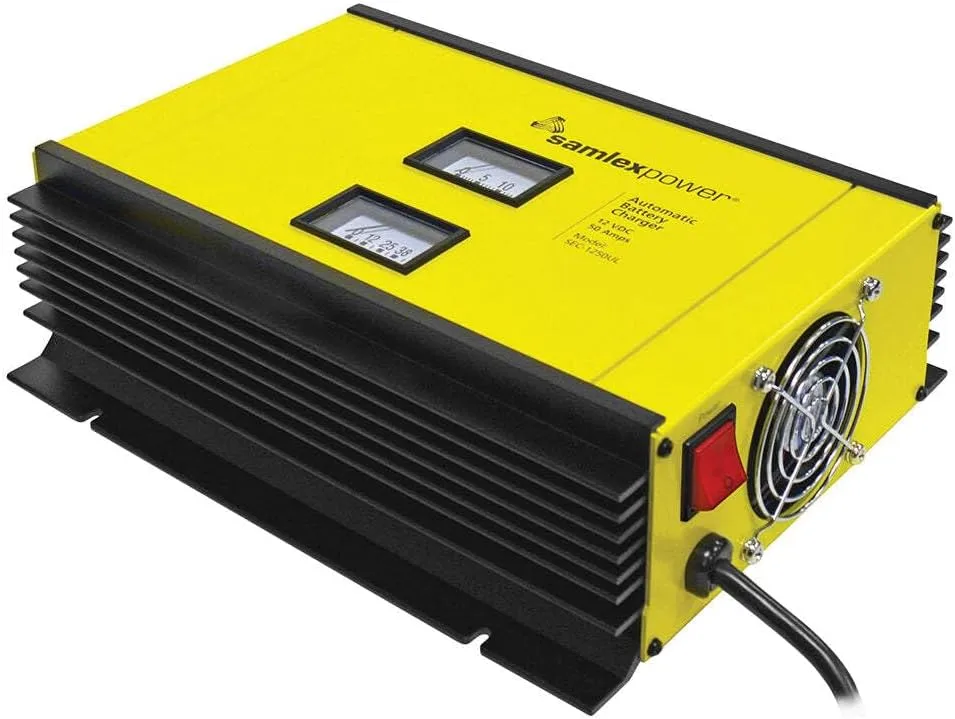

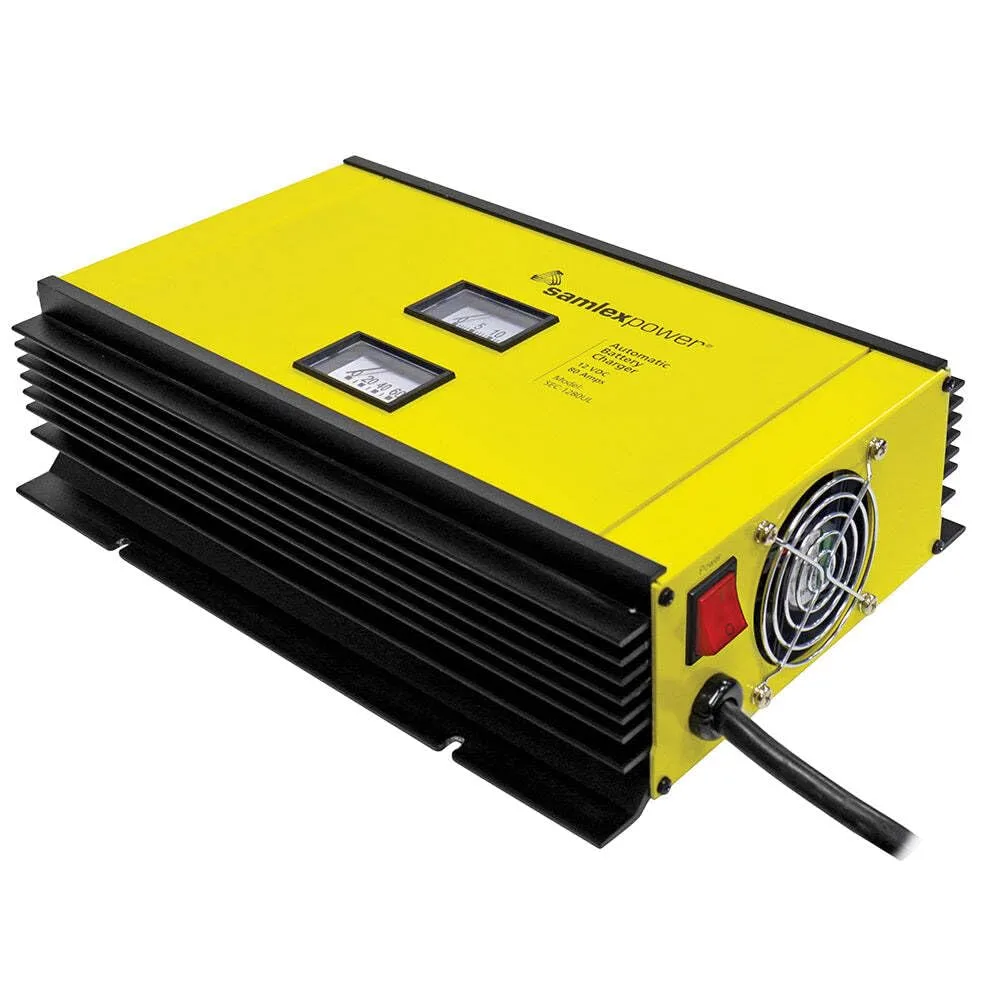

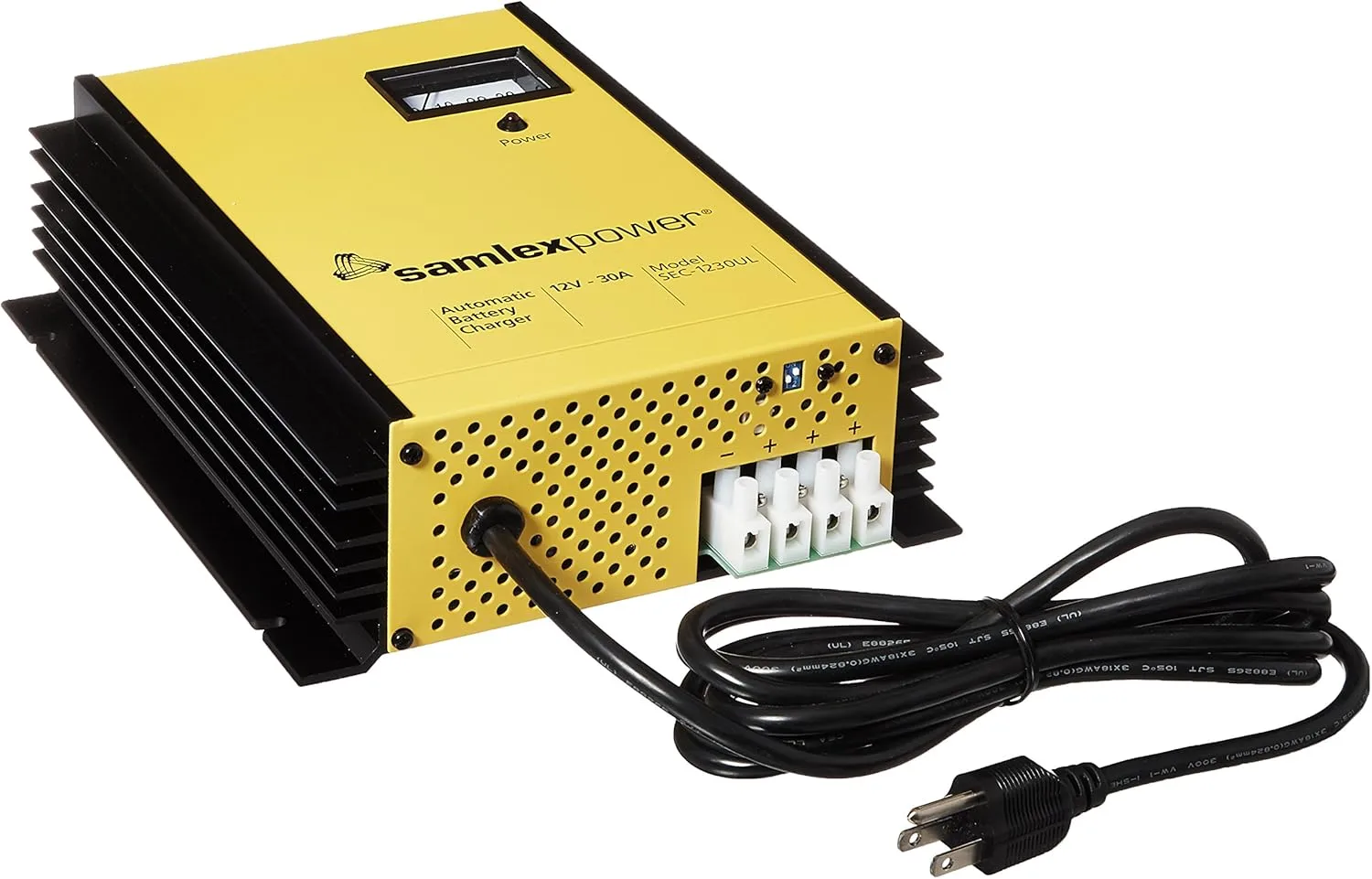

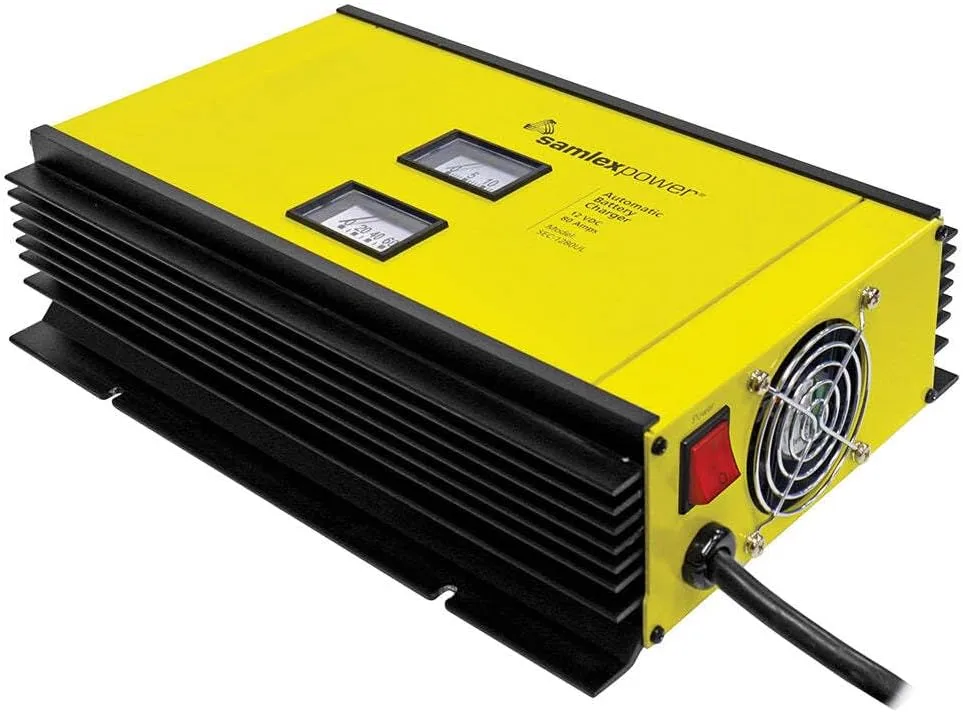

Samlex America 12V 3-Stage Battery Charger with DIP Switch & Lugs
Customize
The Samlex America 12V 3-stage battery charger family delivers reliable, automatic charging for Flooded, AGM and Gel lead-acid batteries. Units feature a DIP switch to select 2- or 3-stage charging algorithms and a user-selectable 120/230 VAC (50/60 Hz) input, allowing flexible installation in a range of applications. Built-in monitoring includes voltmeter and ammeter displays, and safety protections cover overload and short-circuit conditions. These chargers can operate as a DC power supply or provide DC UPS functionality when batteries are connected to a DC load. Lightweight and quiet in operation, the product family is UL-1564 listed and EMI compliant to FCC Part 15(B), Class B, and is covered by a 2 Year Limited warranty. Ideal for automotive, recreational vehicle, marine, communications sites and battery back-up systems.
- Switch mode technology for high efficiency, lightweight and quiet operation
- Automatic operation for ALL Lead Acid Batteries Flooded, AGM or Gel Cell
- Protections: Short circuit, overload, reverse battery connection and over temperature
- Includes temperature sensor to prevent under/overcharging of battery if temperature varies extensivelyn
- 2-year warranty / Listed to UL Standard UL-1564, EMI Compliant to FCC Part 15(B), Class B
Specifications:
| Product Details | |
| Charger Input - Voltage | 120/240v |
| Charger Output - Amps | 15a |
| Voltage | 12 Volts |
| Sizing & Dimensions | |
| Height | 3.27 inches |
| Length | 8.43 inches |
| Product Dimensions | 8.43 x 8.58 x 3.27 inches |
| Weight | 4.9 pounds |
| Width | 8.58 inches |
