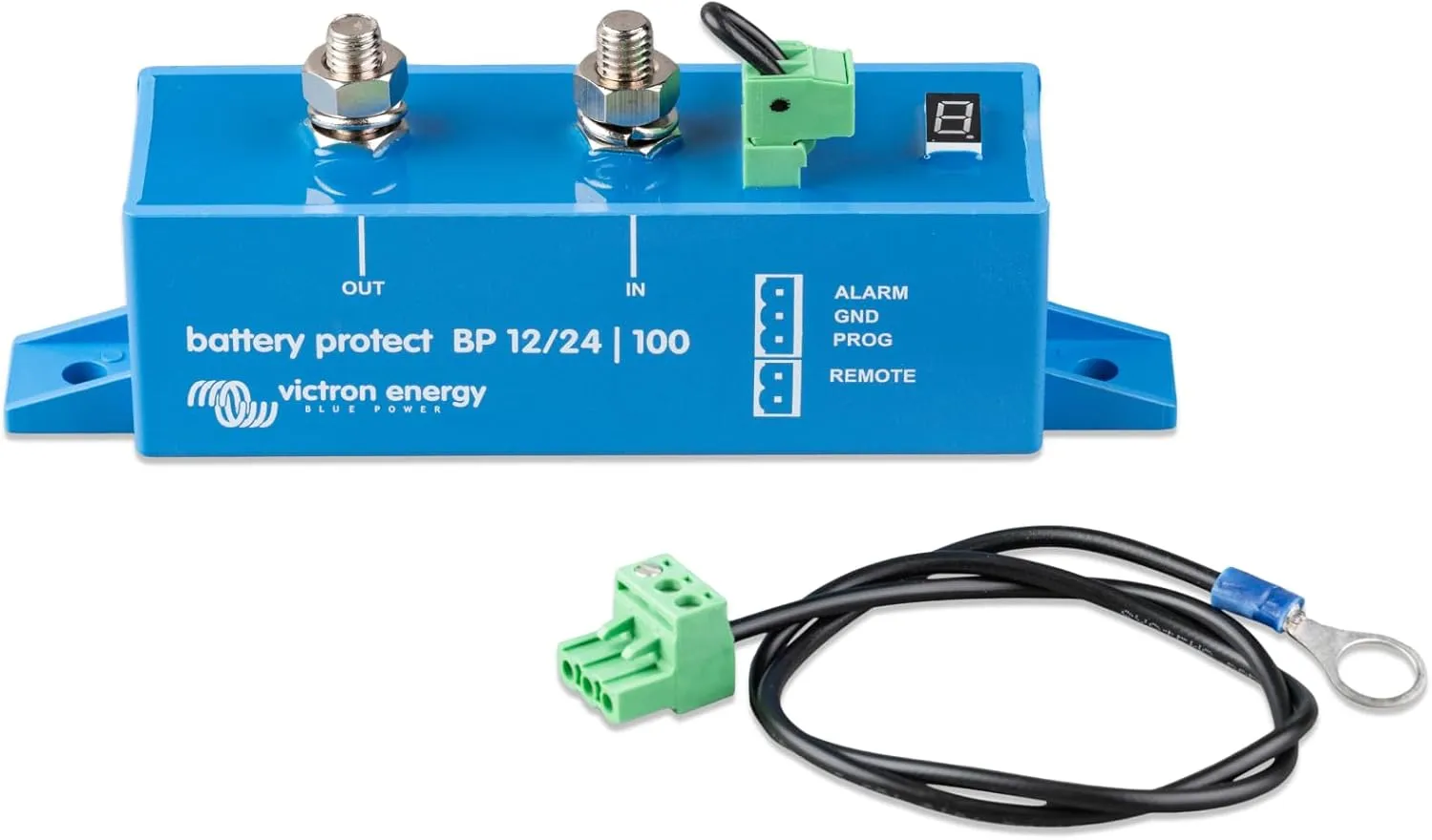

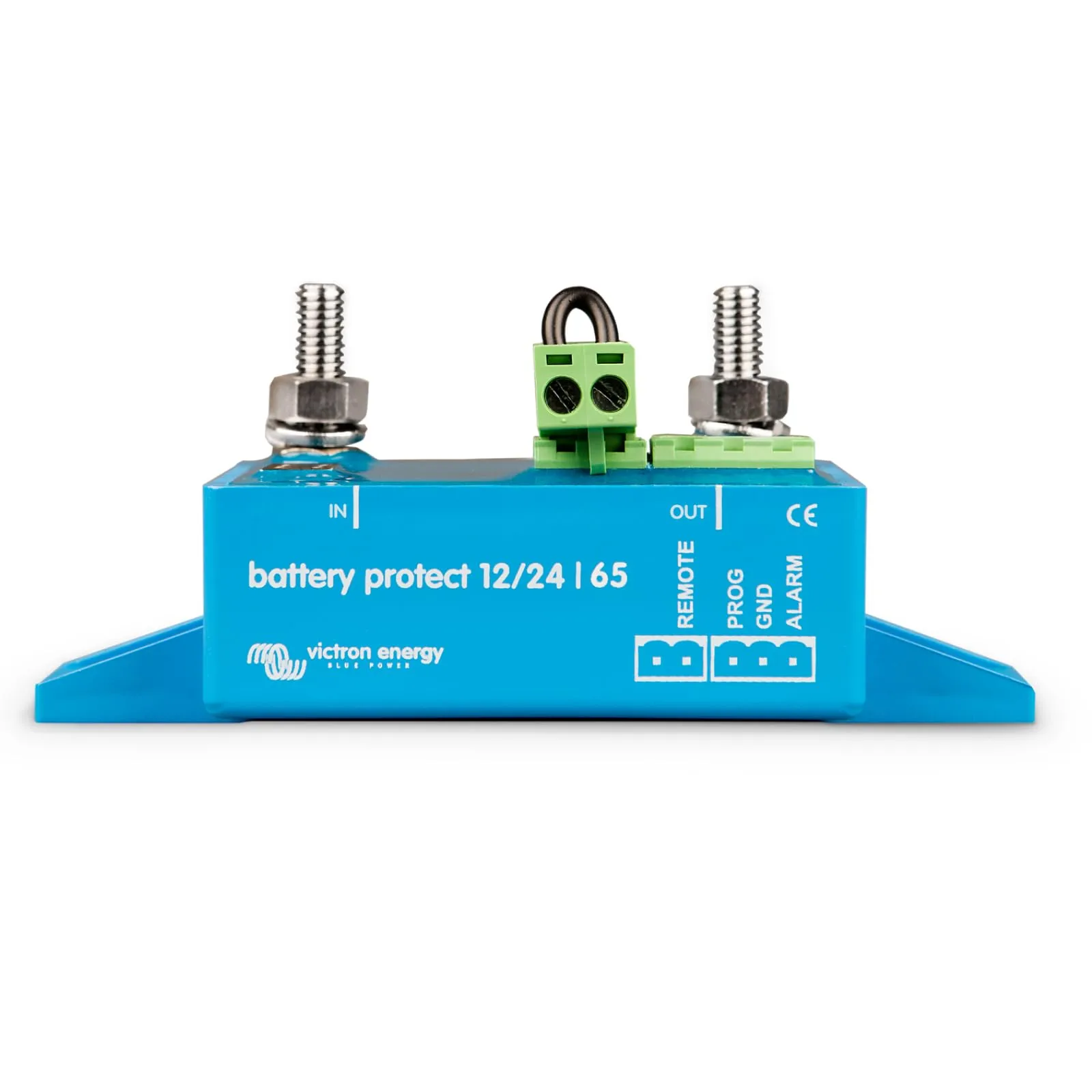

VICTRON ENERGY BatteryProtect BP Battery Disconnect (6-35 VDC)

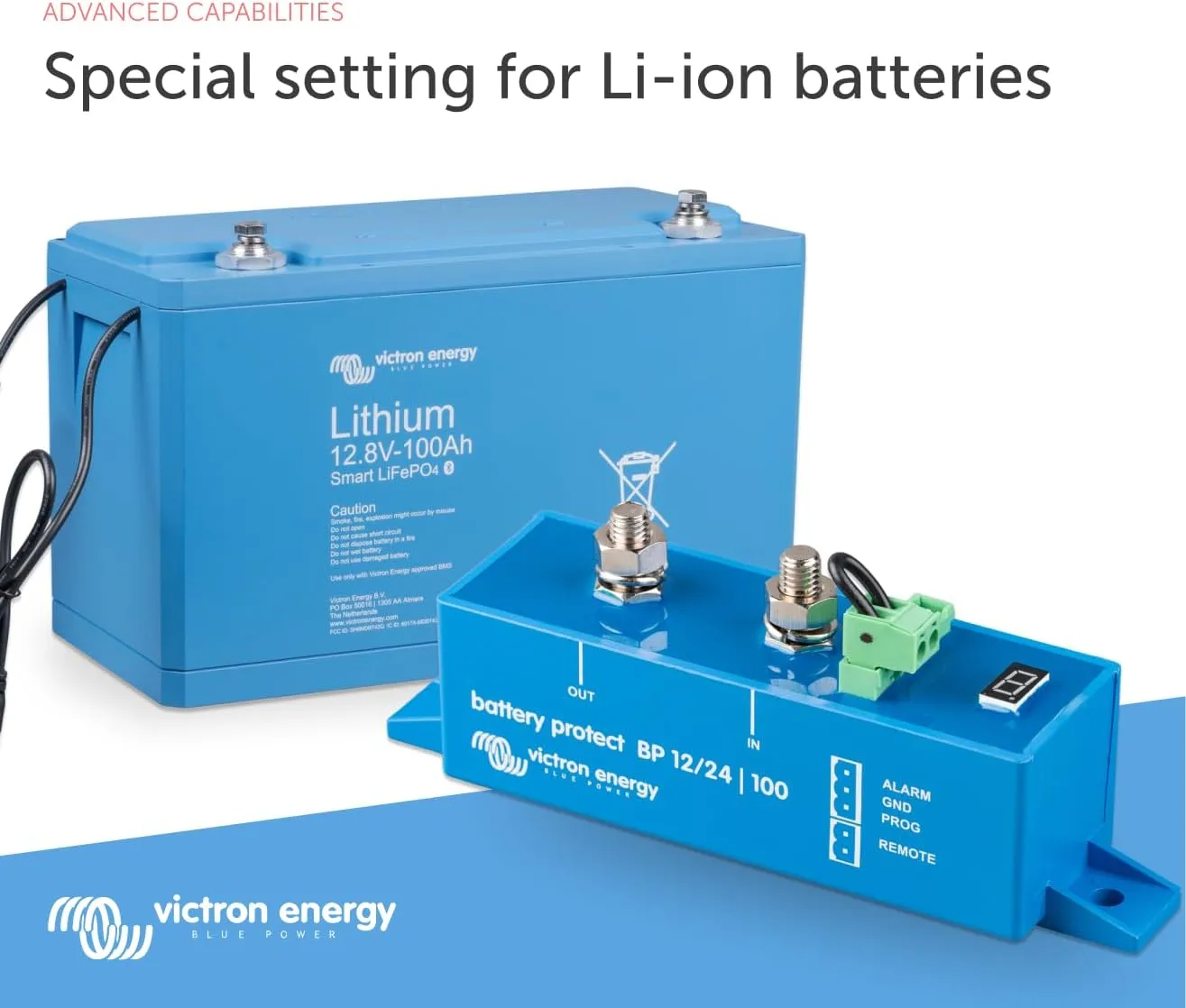

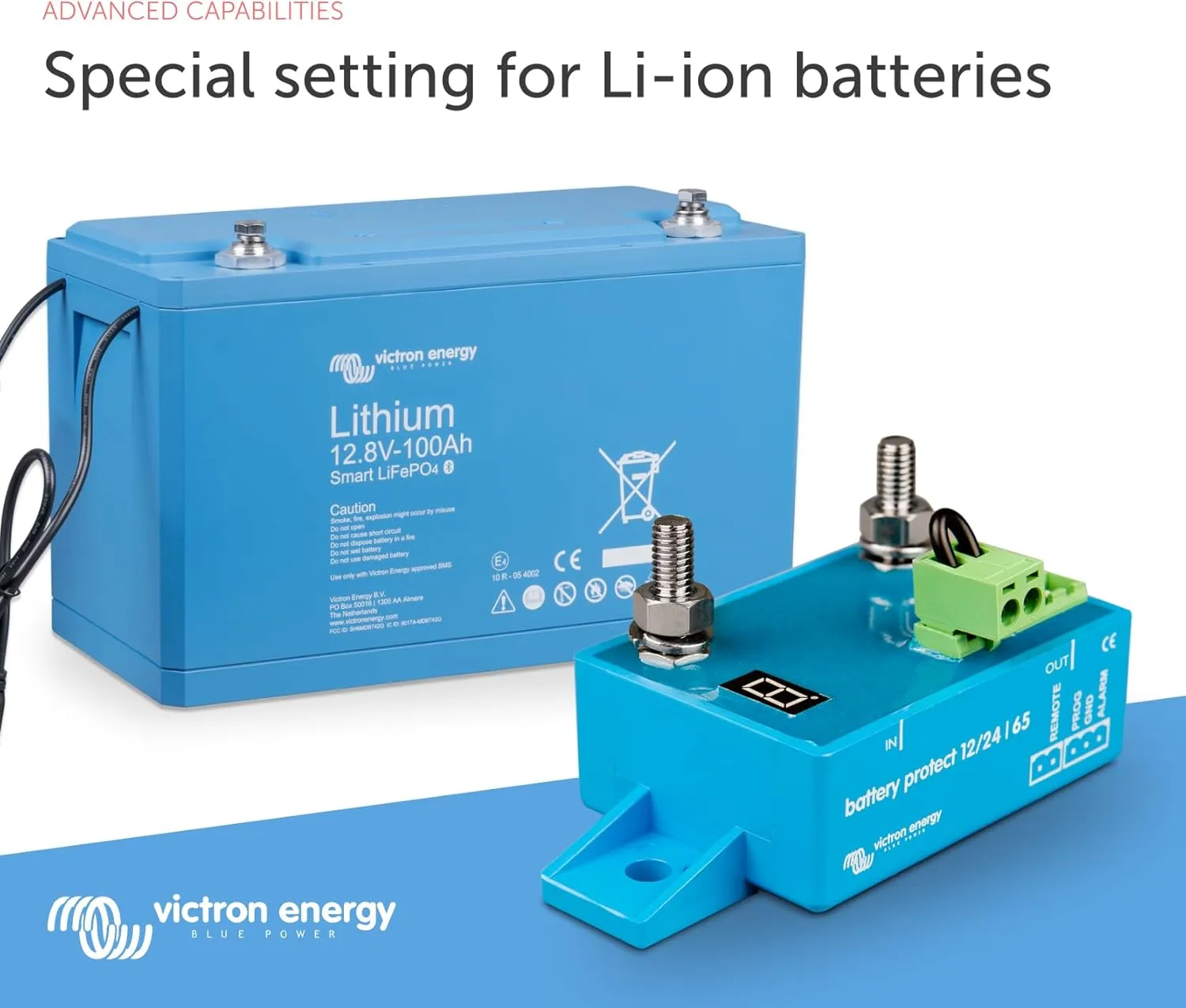

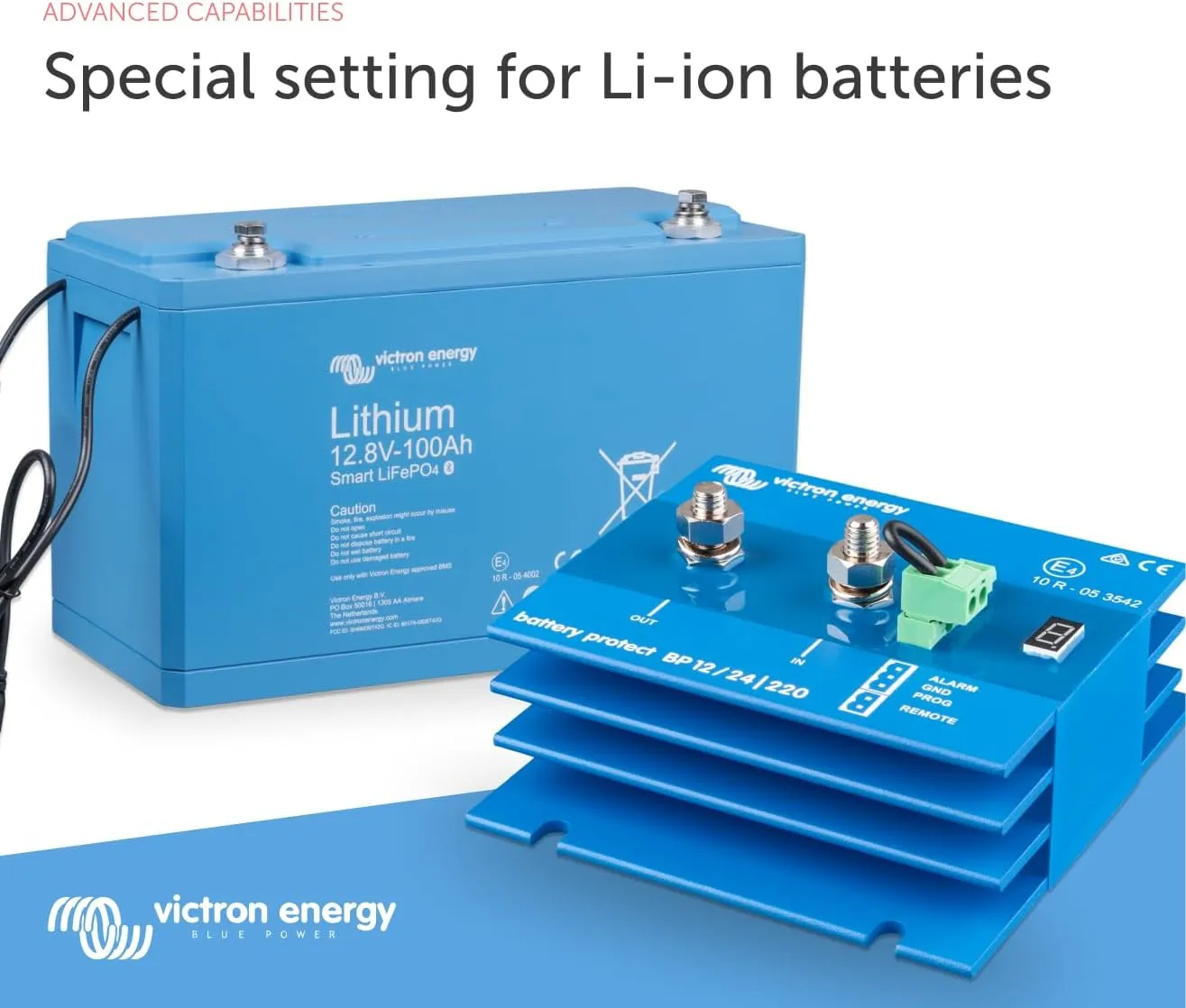

BatteryProtect BP series by VICTRON ENERGY protects 6–35 VDC battery systems by disconnecting non-essential loads to prevent deep discharge and ensure starting capability. All models feature 12/24V auto detection, programmable engage and reconnect voltages selectable via a seven-segment display, and a special Li‑ion BMS control mode. The units use MOSFET switching for ignition-proof operation and include over-voltage protection that disconnects loads above the specified thresholds. Ultra-low current consumption preserves battery charge after low voltage shutdown. A delayed alarm output (short-circuit proof open collector to negative, max. 50 mA) activates when voltage remains below the preset disconnect level, and delayed load disconnect/reconnect timers prevent unnecessary switching during engine starts. The BatteryProtect can also be used as a charge interrupter between a charger and a Li‑ion battery. Refer to product documentation for wiring and installation guidance.

• Incorrect installation can be hazardous, Please consult a licensed professional and follow all applicable electrical codes during installation

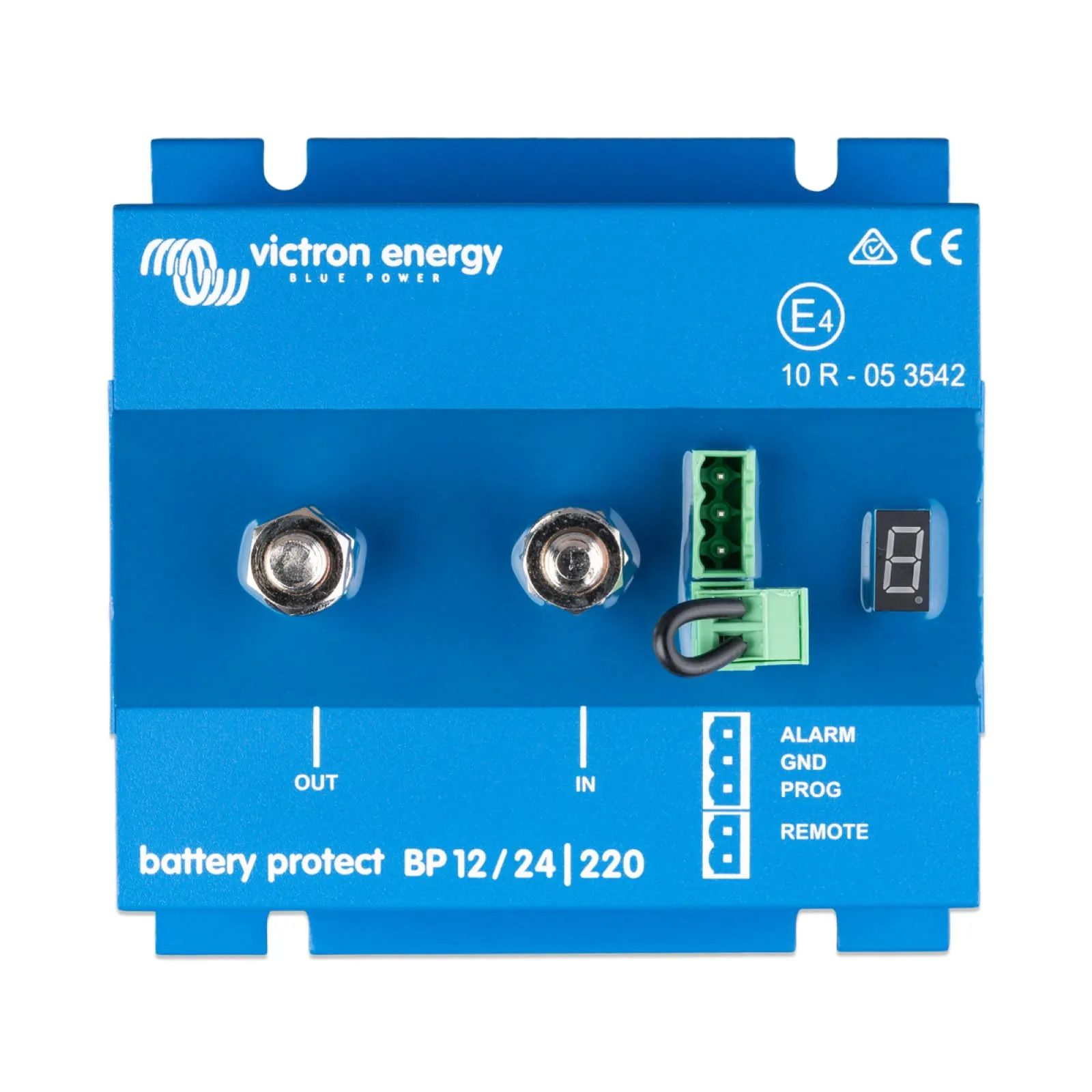

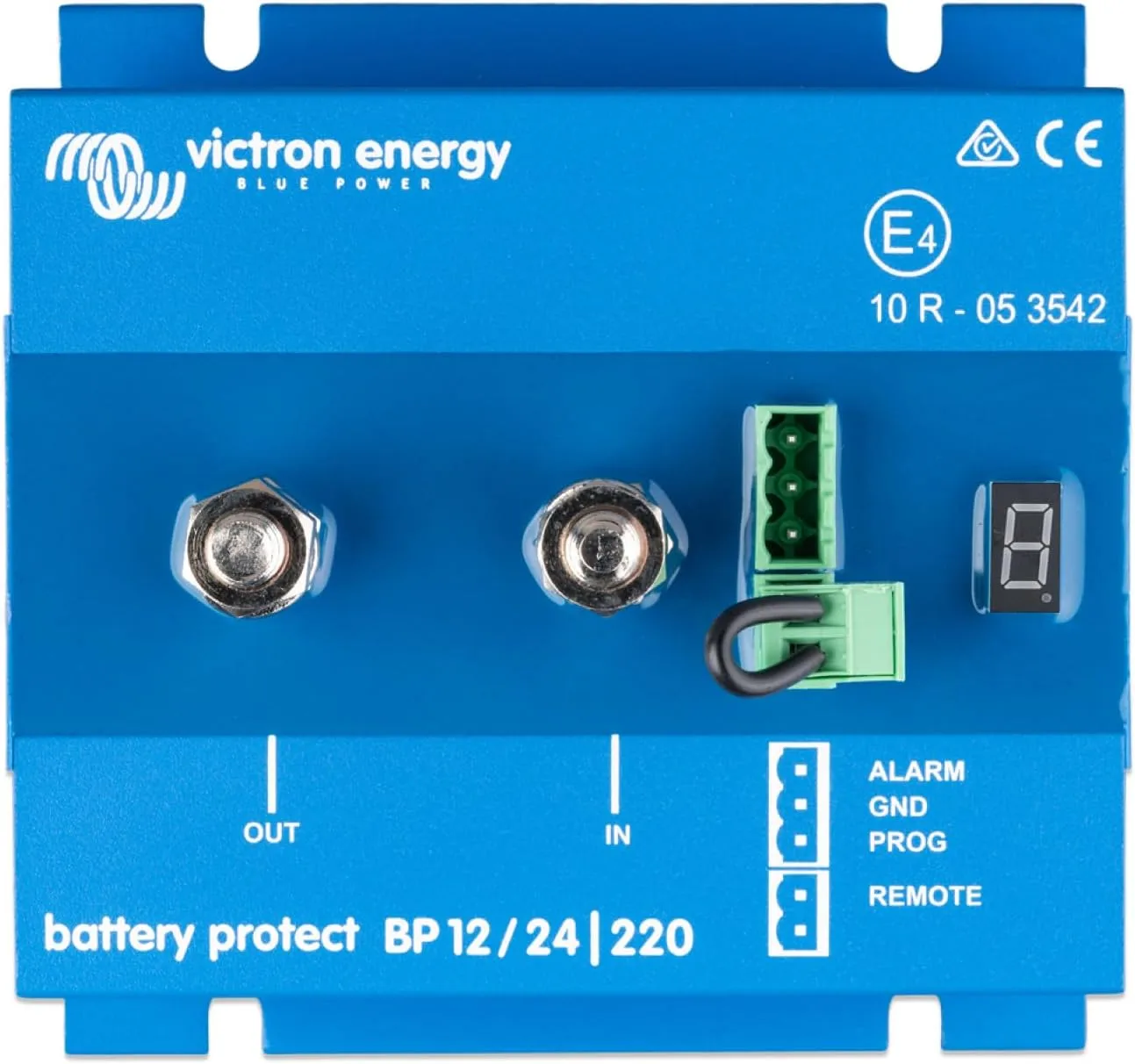

• Victron Energy BatteryProtect can be set to engage / disengage at several different voltages, the seven segment display will indicate which setting has been chosen
• 12/24-Volt auto ranging - Victron Energy BatteryProtect automatically detects system voltage
• Maximum continuous load current 100 amp and Peak current (during 30 seconds) 600 amp

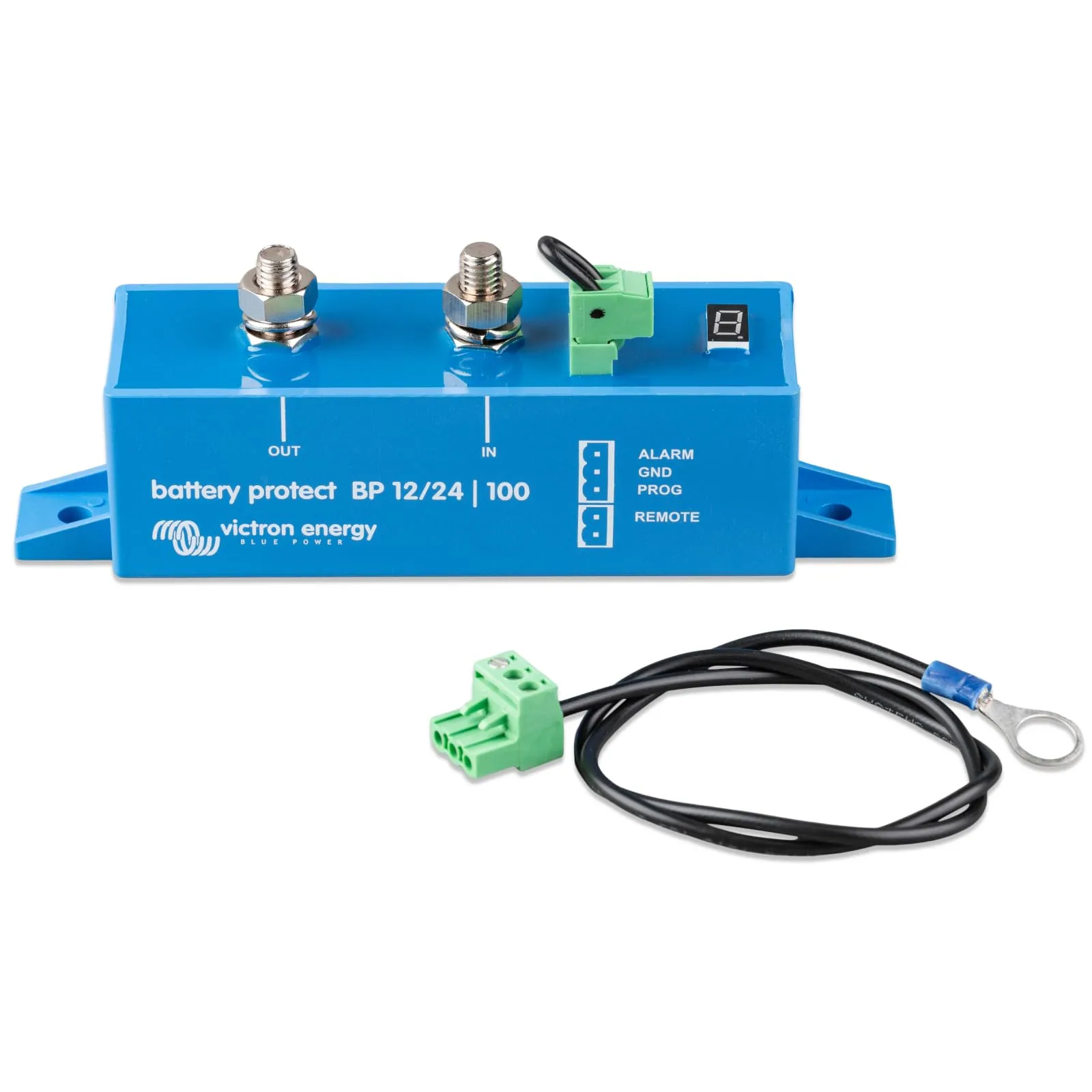

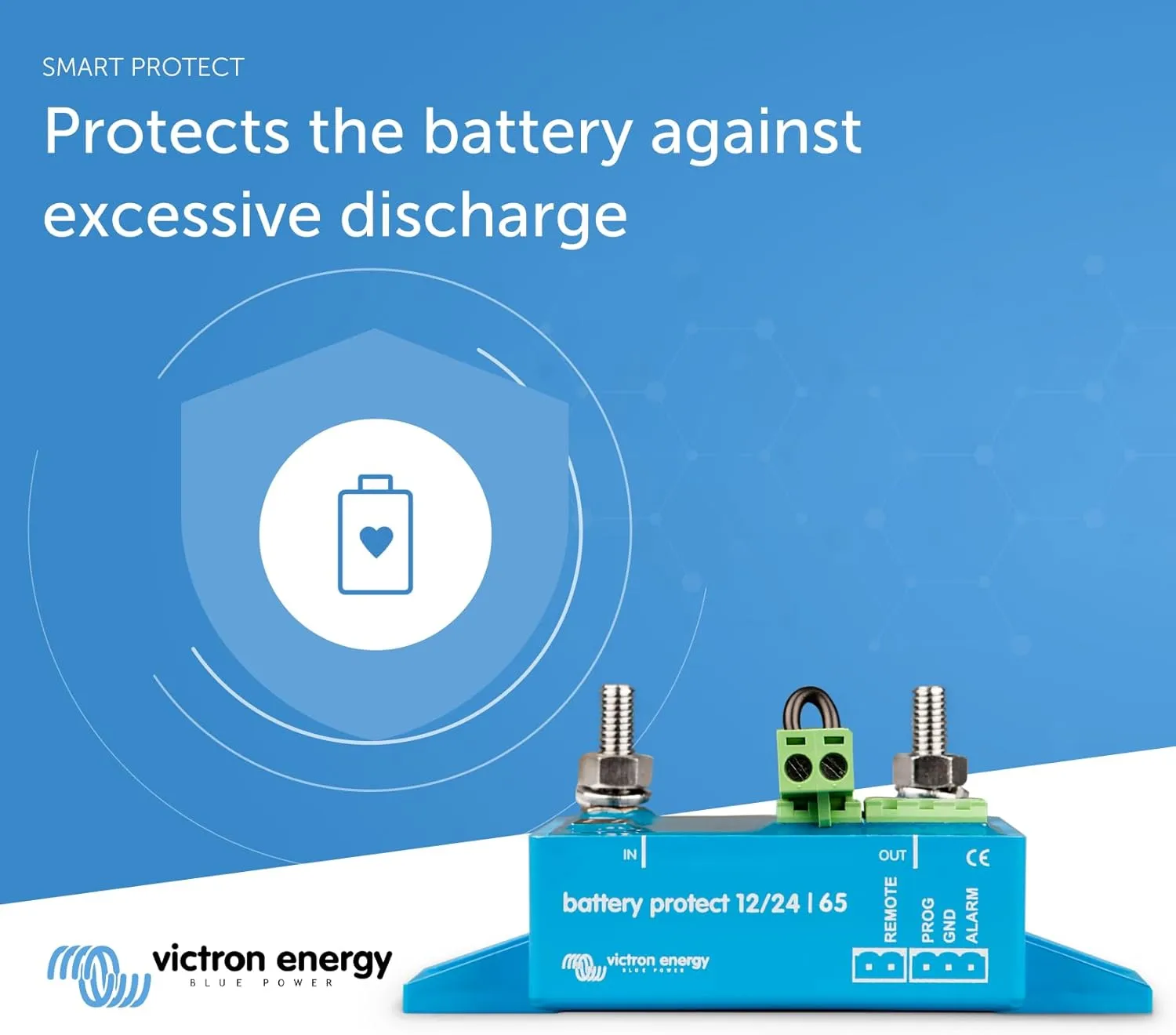

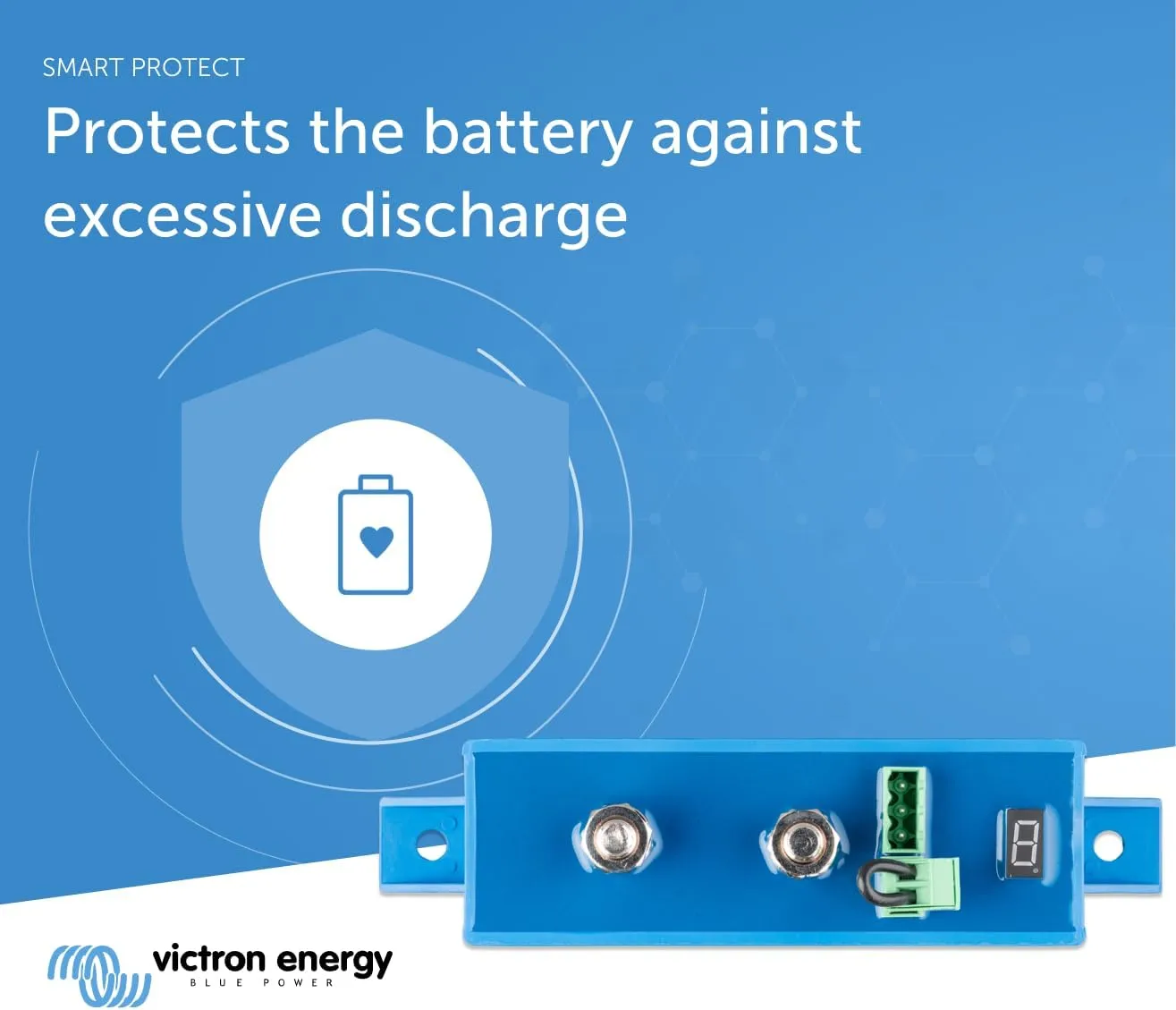

• Victron Energy BatteryProtect 12/24-Volt 100 amp disconnects the battery from non essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine
